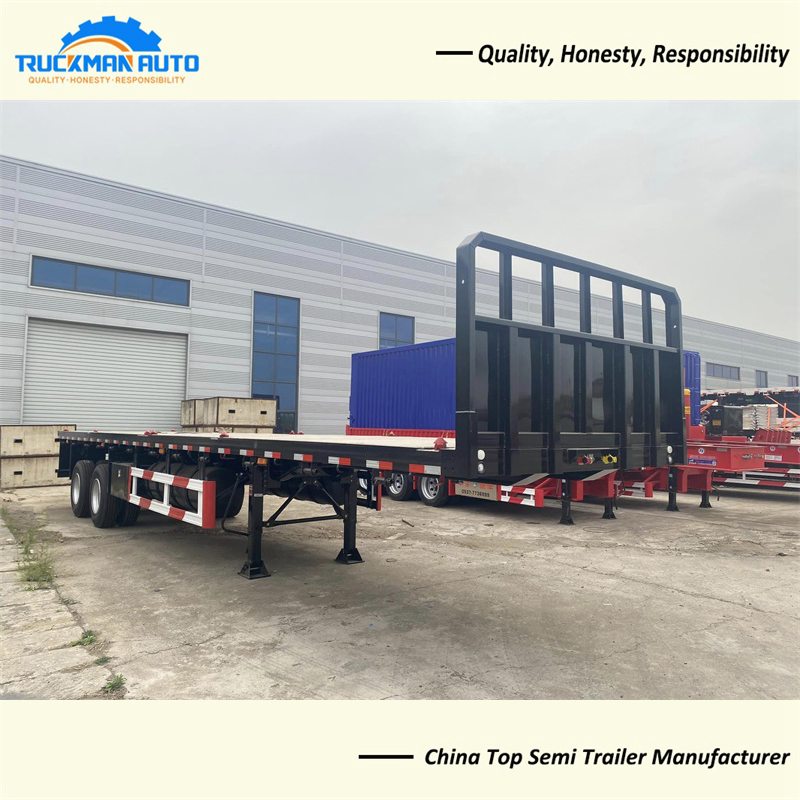

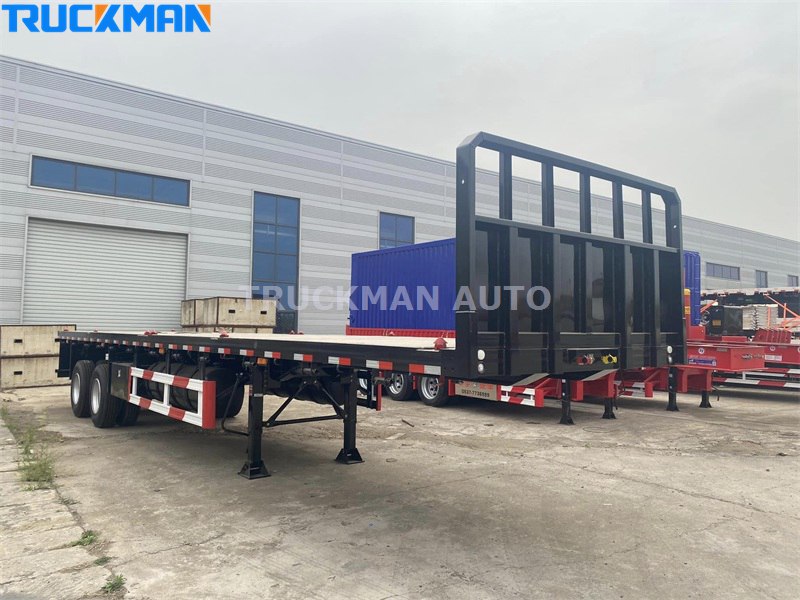

2 axles 50 tons flatbed trailer can loading 50 heaps exclusive cargoes, it may additionally delivery 20ft & 40ft boxes. with 1200mm peak the front aspect wall, the principle characteristic of the front aspect wall is can prevent items drop off whilst braking and cornering.
2 Axles 50 Tons Container Flatbed Trailer Features
-. With front side wall, for stops goods from sliding.
-. Heavy duty 16 tons axle, for support long distance transport.
-. 80 tons heavy duty support leg, support drop and pull transport.
-. Tubeless model 315/80R22.5 tire, wear and tear resistant and low cost.
2 Axles 50 Tons Container Flatbed Trailer Specification
Product Name: 2 Axles 50 Tons Container Flatbed Trailer
Application: Bulk cargoes transport
Axle: 2 axle, 2x16 tons, FUWA brand
Tire: 315/80R22.5, 8 pcs, TRIANGLE brand
Material: High strength steel
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Container Lock: 8 pcs
Support Leg: 28 tons, FUWA brand
Dimension: 12500x2500x2950mm
The 2 axles 50 tons container flatbed trailer specification only for your reference, we can manufacture other model 2 axle container flatbed trailer basic your request.
2 Axles 50 Tons Container Flatbed Trailer Main Beam
2 axle flatbed trailer main beam adopt the automatic submerged welding tech, which can ensure the flatbed trailer using with long time and no crack. Design loading capacity is 50,000kg, the main beam thickness is lower plate 14mm, upper 12mm, middle 8mm. And material of main beam can use the high strength steel and manganese steel.
