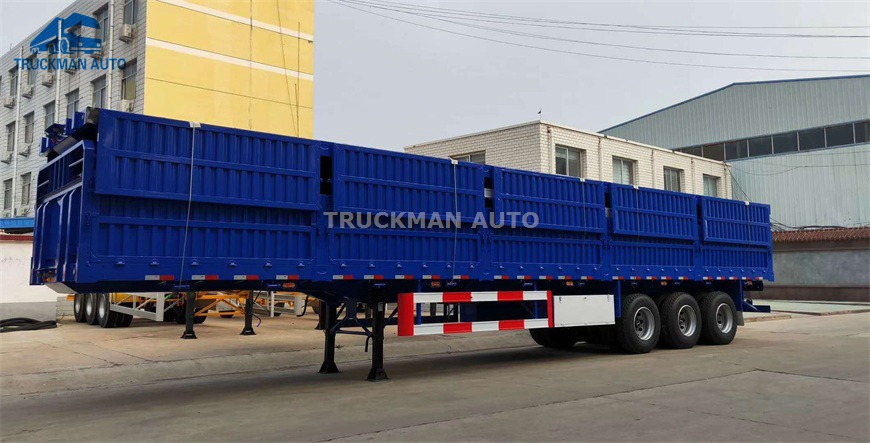

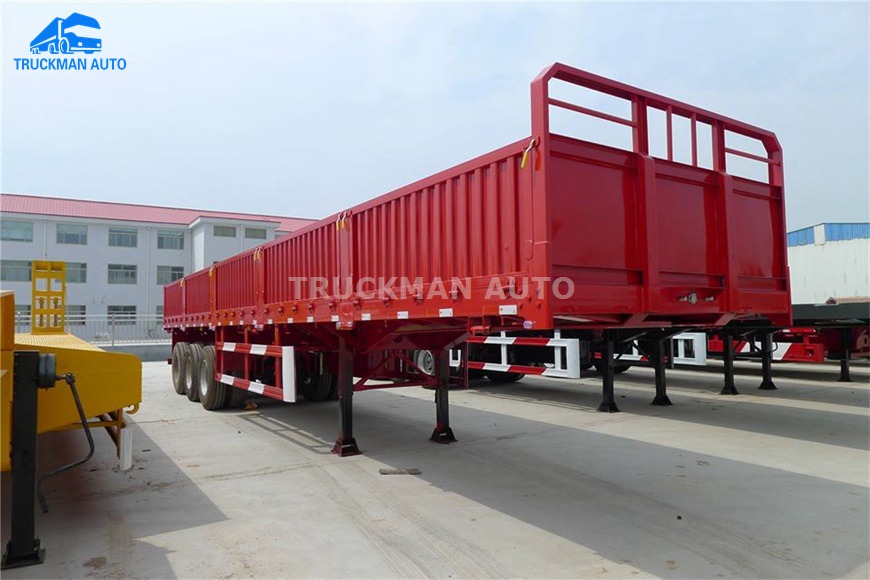

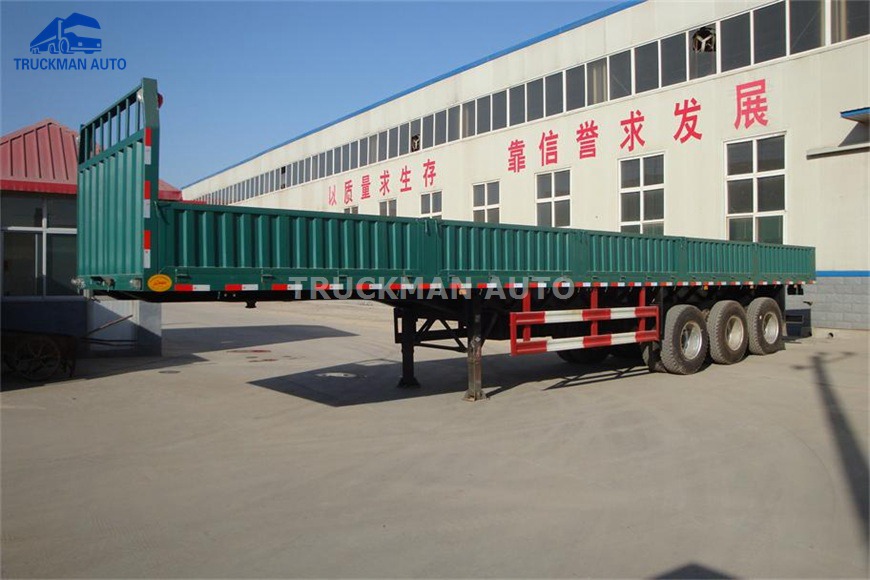

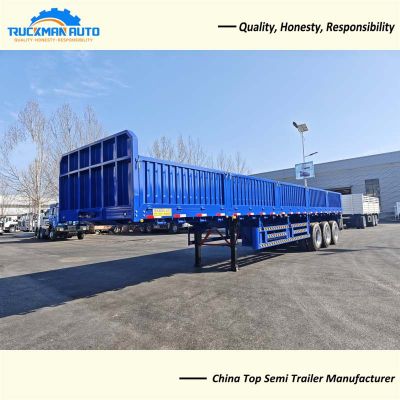

3 Axle 50 Tons 60 Tons 70 Tons Side Wall Semi Trailer For Sale.



1. What Is The Functions Of The Side Wall Semi Trailer ?



Side wall semi trailer suitable for transporting bulk goods, such as agricultural products, building materials and other

goods in medium and long distance. Also can transport all kind of containers after add the container lock.

The side wall semi trailer loading capacity from 40-70 tons, side wall height range from 600mm to 1400mm etc,

meet the different cargoes haulage.



2. Specification Of TRUCKMAN AUTO Side Wall Semi Trailer.



TRUCKMAN AUTO side wall semi trailer adopt the famous brand spare parts, such as JOST brand heavy duty tractor pin

and support leg, TRIANGLE and LINGLONG brand tire, ZY, FUWA and BPW brand axle. The main parts of semi trailer

supply one year guarantee. The specification of side wall semi trailer as follow:



Axles: 3 axles, 16 tons axle

Tire: 12R22.5, 12 pcs

Material: Q355 high strength steel

Suspension: Heavy duty mechanical suspension, enhanced version

Bottom Platform: 3mm thick checkered plate

King Pin: 90# heavy duty version

Landing Gear: JOST 28 tons

Brake System: WABCO

Electrical System: 24V, LED lights

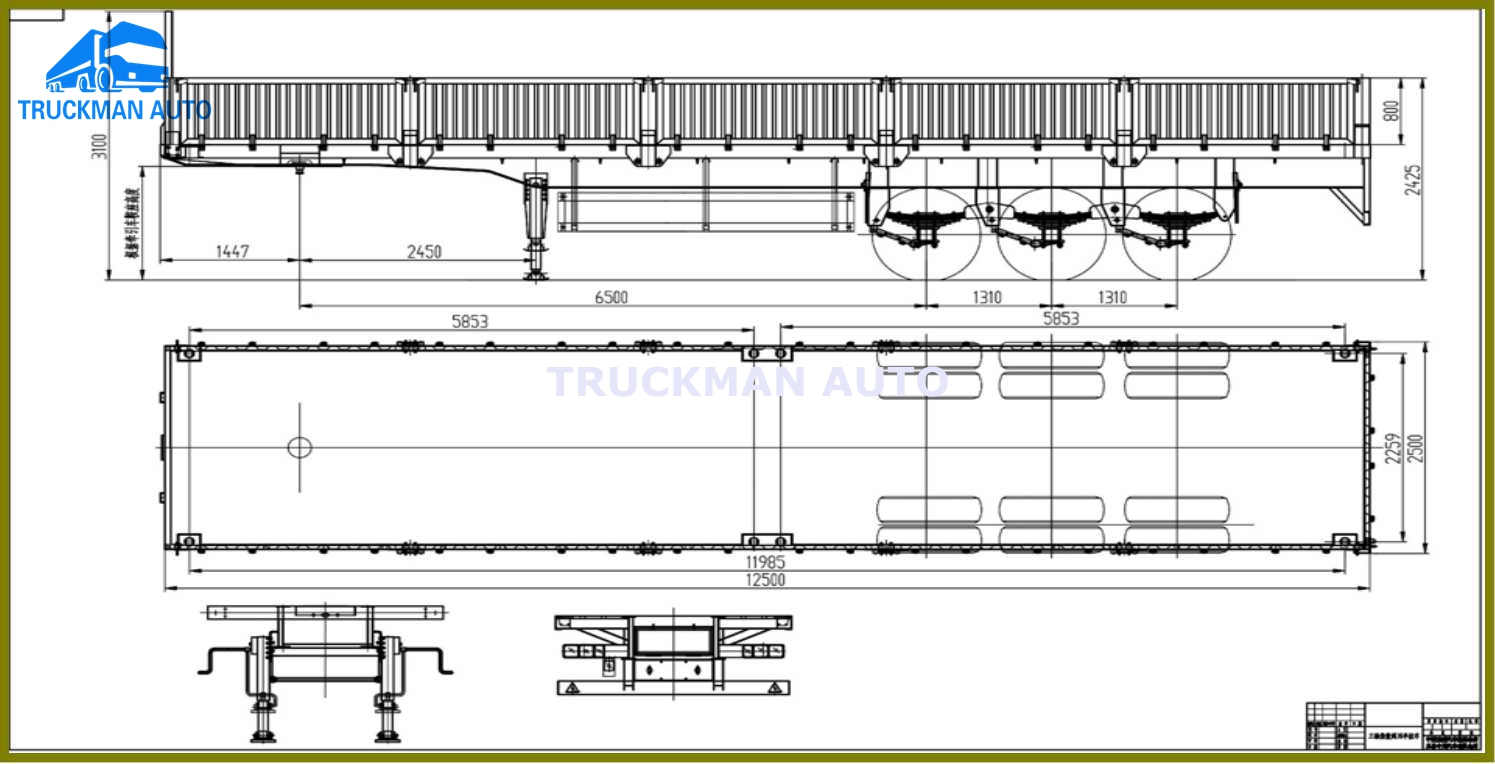

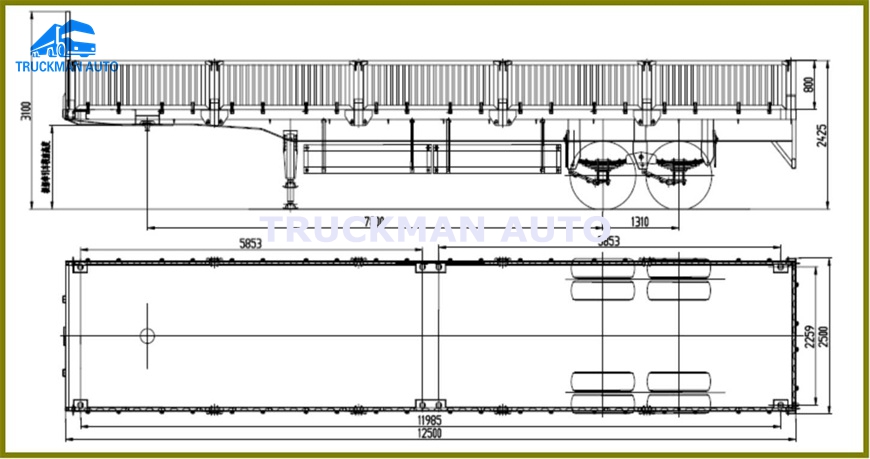

                                                    2 Axle 50 Tons Side Wall Semi Trailer Design Drawings



                                                    3 Axle 70 Tons Side Wall Semi Trailer Design Drawings



3. What Are The Model Of The Suspension Of The Side Wall Semi Trailer ?

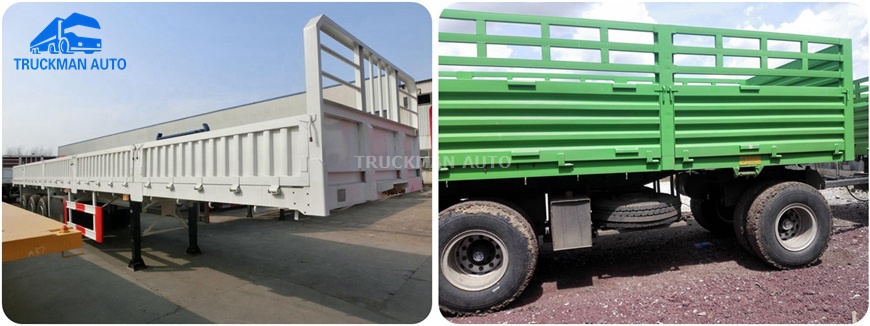

Common side wall semi trailer cargo box fence mainly include vertical bars and horizontal bars. These two types of fence

are very suitable for the transportation of various goods, fence adopt the high strength steel, thickness reach to 1.5mm,

more stronger and wearable than 1mm thickness fence. And easy to disassemble, the production cost also low,

maintenance is very convenient !



4. TRUCKMAN AUTO Side Wall Semi Trailer Hinge Model.



The hinge of the side wall semi trailer is divided into removable and non-removable. If the side wall semi trailer also need

transport the container, then suggest use the removable hinge, the fence can be removed for container transportation.

The TRUCKMAN AUTO semi trailer non-removable hinge material adopt the cast iron, the picture for your reference.

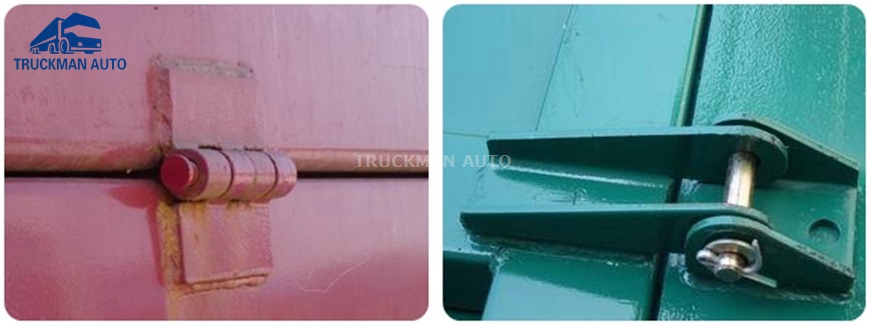

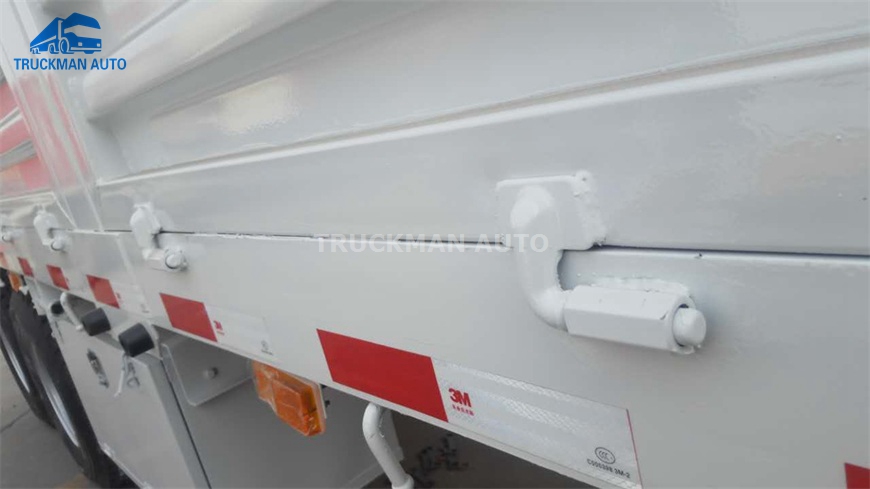

                                  Cast Iron Hinge                                                                           Normal Hinge



TRUCKMAN AUTO also obtained a hinge design patent, this hinge is easy to disassemble and assemble, and it is

not easy to fall off. Our Ethiopian agent reported that this design is very popular locally.



5. What Are The Axle Models Of The Side Wall Semi Trailer ?



TRUCKMAN AUTO side wall trailers have air suspension, single point suspension and leaf spring mechanical suspension.

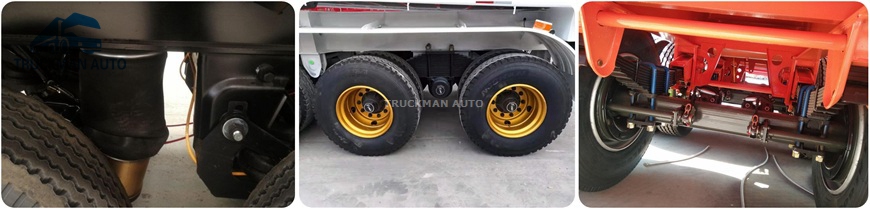

                Air Suspension                                Single Point Suspension                Leaf Spring Mechanical Suspension



The most used suspension is mechanical leaf spring, with the lowest purchase cost and the most convenient maintenance.



However, with the development of economy in recent years, more and more countries have begun to restrict the load of

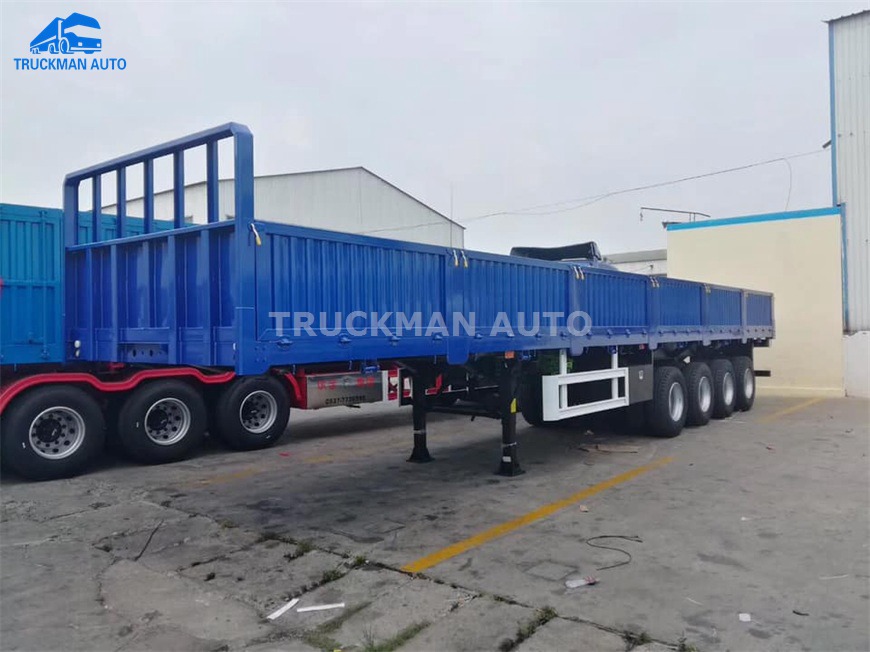

semi trailers. So there are side wall semi trailers with air and leaf spring mechanical suspension, such as 4 axle side wall

semi trailers are very popular in Senegal, Ghana, Mali, and Guinea.



There are also some countries that do not pay much attention to the weight of semi trailers, such as Mauritania, Gabon,

etc. Semi-trailers with large loads are very popular locally. The semi trailers exported to these countries all adopt single

point suspension to meet the transportation requirements of large tonnage.



6. TRUCKMAN AUTO Side Wall Semi Trailer Tire Pattern.



The price of the side wall semi trailer also has a great relationship with the tire, and the price of the tire is related to the

brand, model, pattern and level of the tire. TRUCKMAN AUTO semi trailer adopts famous brand tires, which have achieved

a good result of 230,000km in the Chinese highway test.

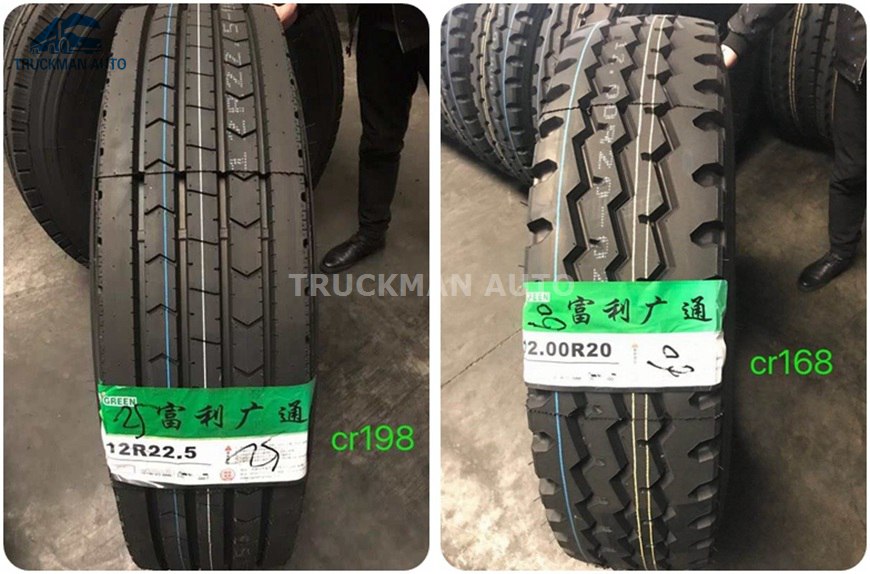

Regarding the tire pattern, TRUCKMAN AUTO's side wall semi trailer uses the wavy pattern instead of the normal pattern.

Although the price of a tire with 12 pcs wave patterns is $470 more expensive than a tire with a regular pattern, considering

the long-term life and the cost of replacing a tire later. This cost is negligible.

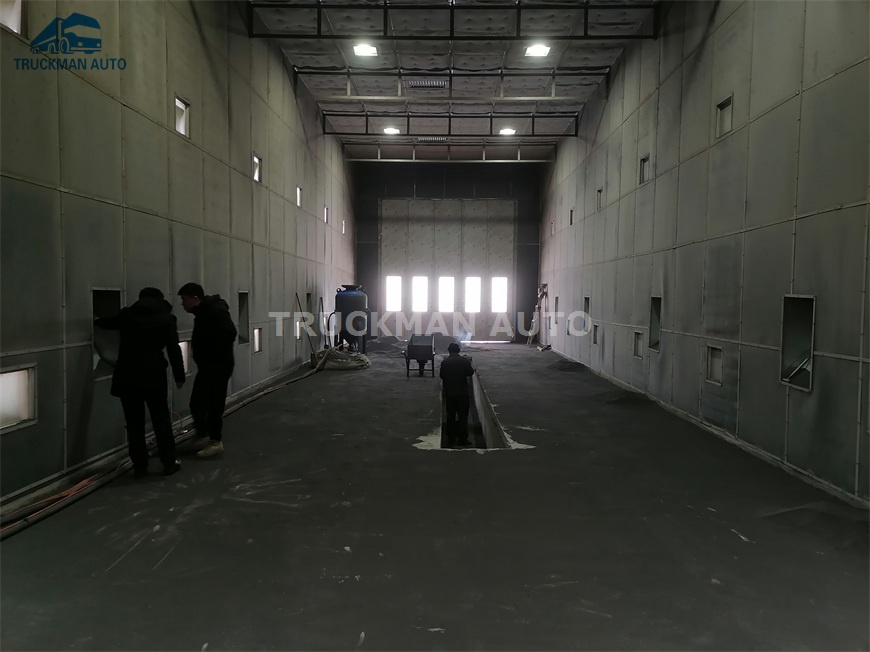

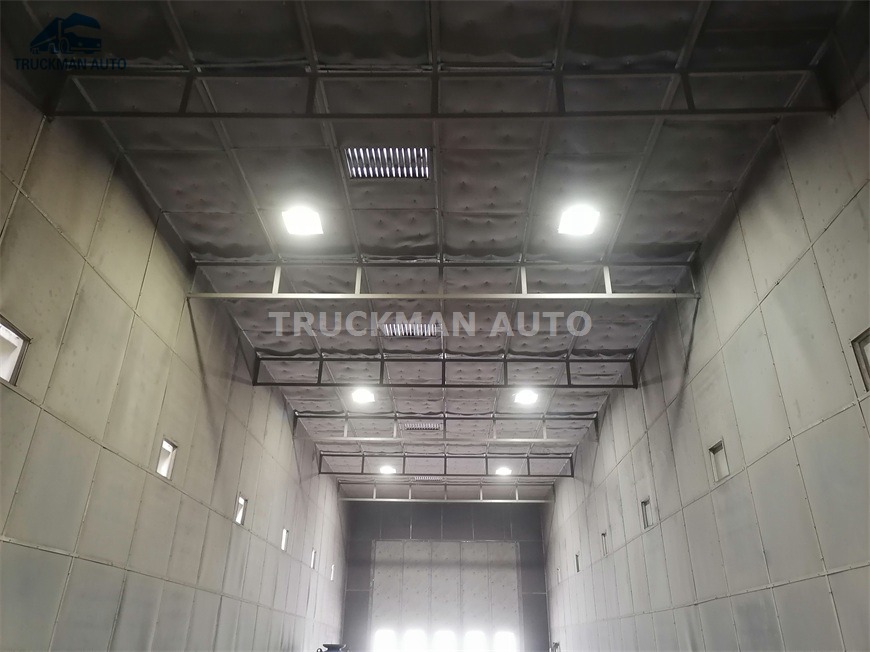

7. Why Do Side Wall Semi Trailers Need Sandblasting ?



A. Function: The process of cleaning and roughening the surface of the base semi trailer. Using compressed air as power

to form a high-speed jet beam to spray the spray material (copper ore sand, quartz sand, emery, iron sand, Hainan sand)

to the surface of the workpiece to be treated at high speed, so that the appearance or shape of the trailer surface changes.



B. Advantages: Due to the impact and cutting effect of abrasives on the surface of the semi trailer, the surface of the

semi trailer can obtain a certain degree of cleanliness and different roughness, and the mechanical properties of the

surface of the semi trailer are improved, thus improving the fatigue resistance of the semi trailer, increasing the It

improves the adsorption force between it and the paint, prolongs the durability of the paint, and improves the rust

resistance of the semi trailer.



8. Shipment Of Side Wall Semi Trailer.



The side wall semi trailer can be transported by bulk, ro-ro or container ship. Since the side wall semi trailer can be

disassembled, 2 or 3 units can be stacked together for shipment, saving a lot of freight. When the side wall semi shipment

via the bulk vessel, the trailer will spray wax and cover the raincoat, avoid the rusty issue.
