5 Axle 60000 Liters Oil Tanker Trailer
5 Axle 60000 Liters Oil Tanker Trailer 5 Axle 60000 Liters Oil Tanker Trailer 5 Axle 60000 Liters Oil Tanker Trailer

5 Axle 60000 Liters Oil Tanker Trailer

Product ID : TAM560OTT
Product Tags : Fuel Tanker Trailer
Product Attributes :

Oil tanker trailer is used to transport liquid fuels, such as gasoline, diesel, natural gas and so on. It adopts closed tank compartment, which has the characteristics of leakage-proof, explosion-proof, stable transportation, etc.

Product Description

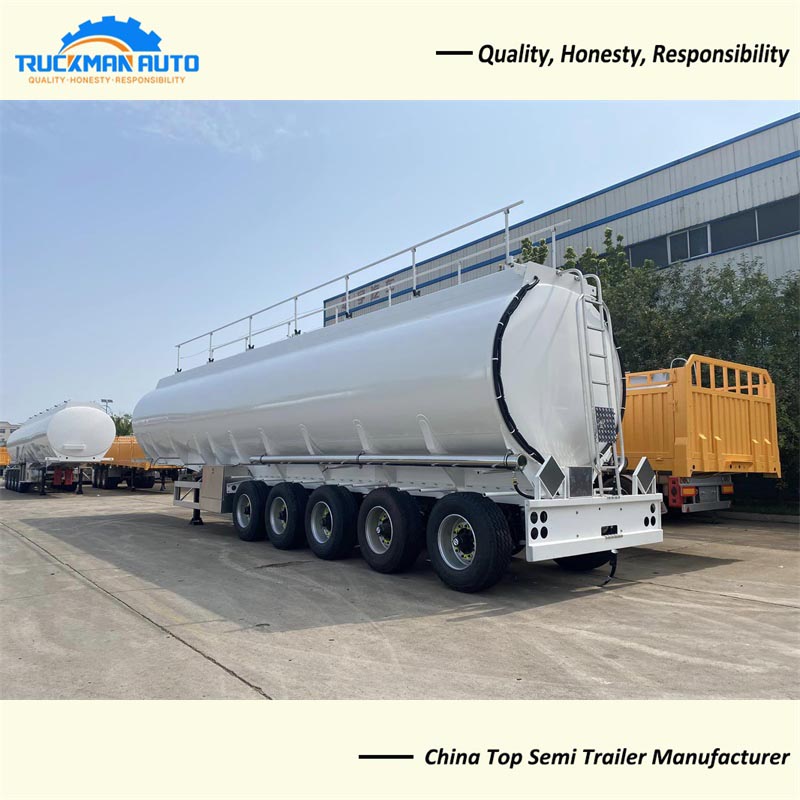

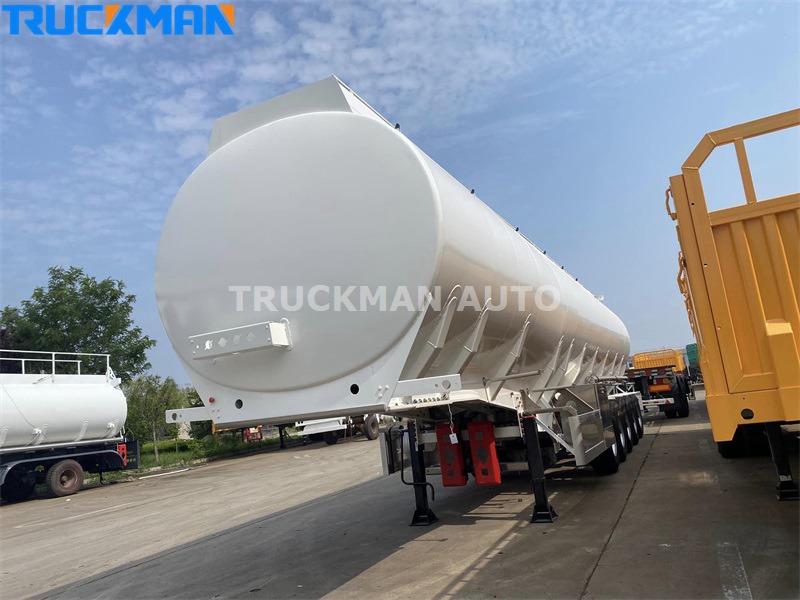

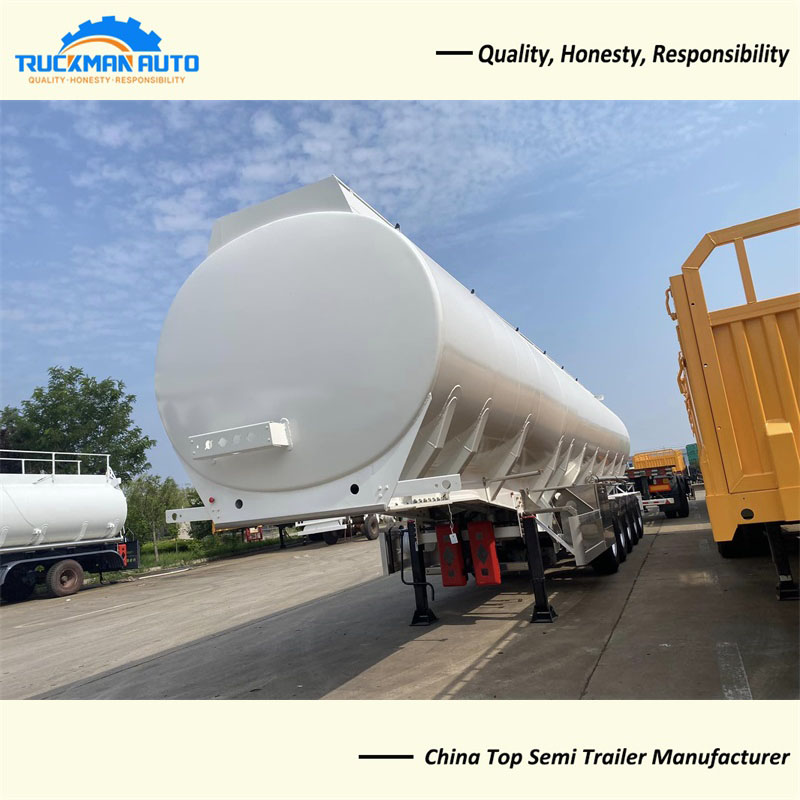

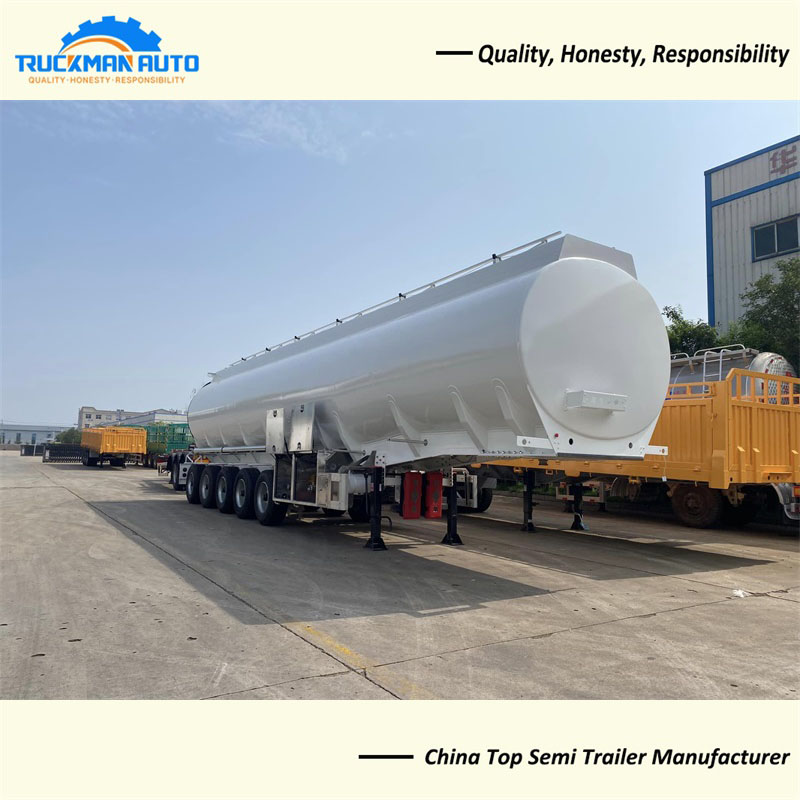

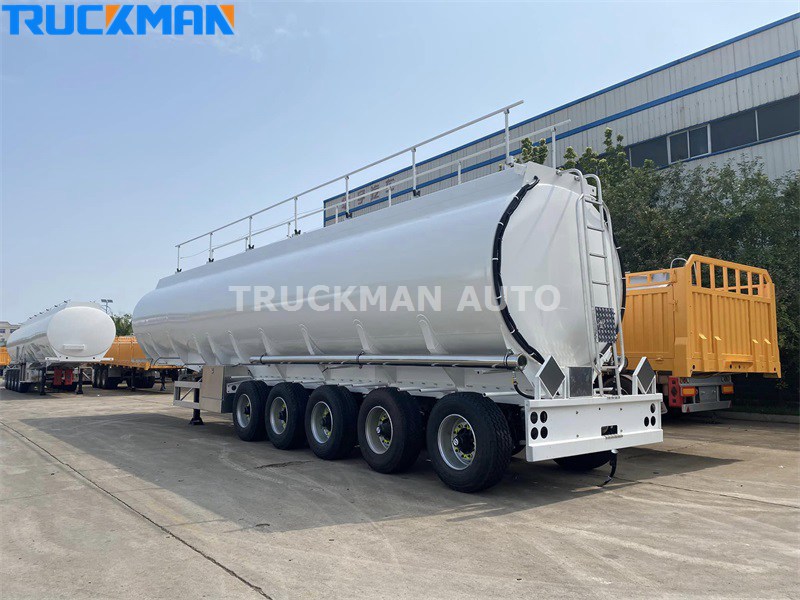

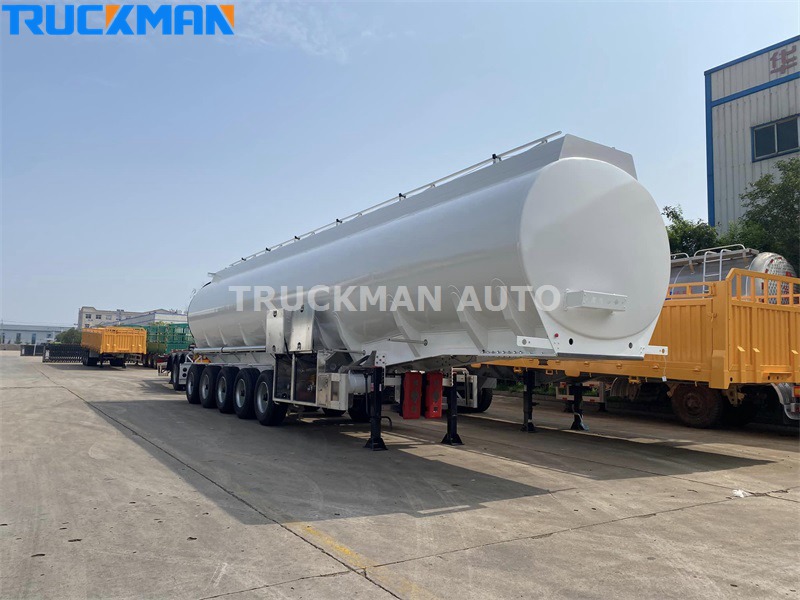

About 5 Axle 60000 Liters Oil Tanker Trailer



The 60000 Liters tanker trailer adopts 5-axle ZY axle with disc brake, with ABS, a tool box on the right side, a long unloading tank on the left side, a spare tire rack, 2 28-ton JOST outriggers, 90# traction pins. Tank volume according to 60 cubic meters, divided into 4 compartments, with climbing ladder, climbing ladder placed in the rear of the tank, the vehicle is equipped with static grounding alarm, fire extinguishers and other safety equipment, in order to improve the safety of the transport process .





5 Axle 60000 Liters Oil Tanker Trailer Specification



Product Name: 5 Axle 60000 Liters Oil Tanker Trailer

Application: Oil transportation

Axle: 5 axle, 5x16 tons, ZY brand

Tire: 315/80R22.5, 10 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Tank Body: 60000 liters

Dimension: 13000x2550x3800mm



5 Axle 60000 Liters Oil Tanker Trailer specification only for your reference, we will recommend other model Oil Tanker Trailer basic your request.



5 Axle 60000 Liters Oil Tanker Trailer Tank Body



The 5 axle tanker trailer internal of the tank body can be designed as independent bins, which can use independent oil pipelines to separate different varieties and grades of oil to meet the transportation needs of various oils and effectively avoid mixing and adulteration. It is designed with wave-proof partition to reduce the fluctuation and impact of oil during transportation, prevent the leakage of oil and grease during transportation, and eliminate the infiltration of foreign oil or other substances.





5 Axle 60000 Liters Oil Tanker Trailer Loading and Unloading System



The oil tanker trailer is usually equipped with an efficient loading and unloading system, including pump-in and pump-out functions, which are realized through the opening and closing of steel pipelines and different ball valves. It can improve the loading and unloading efficiency and reduce the risk of oil exposure and contamination during the loading and unloading process. Centrifugal pumps, gear pumps and stainless steel pumps can be selected according to the use of tanker trucks, which are characterized by high flow rate and fast suction speed.
