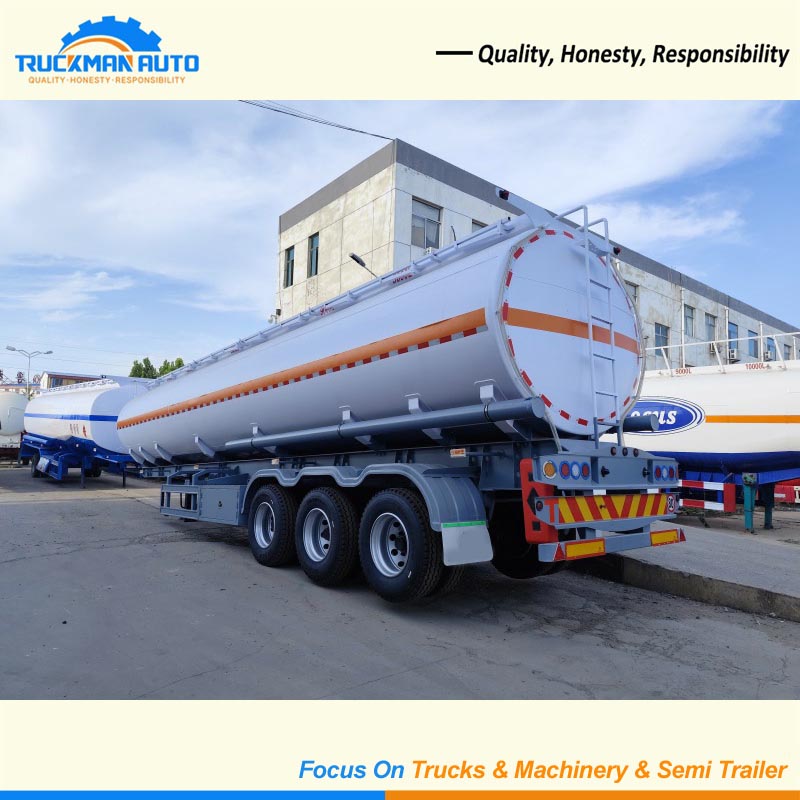

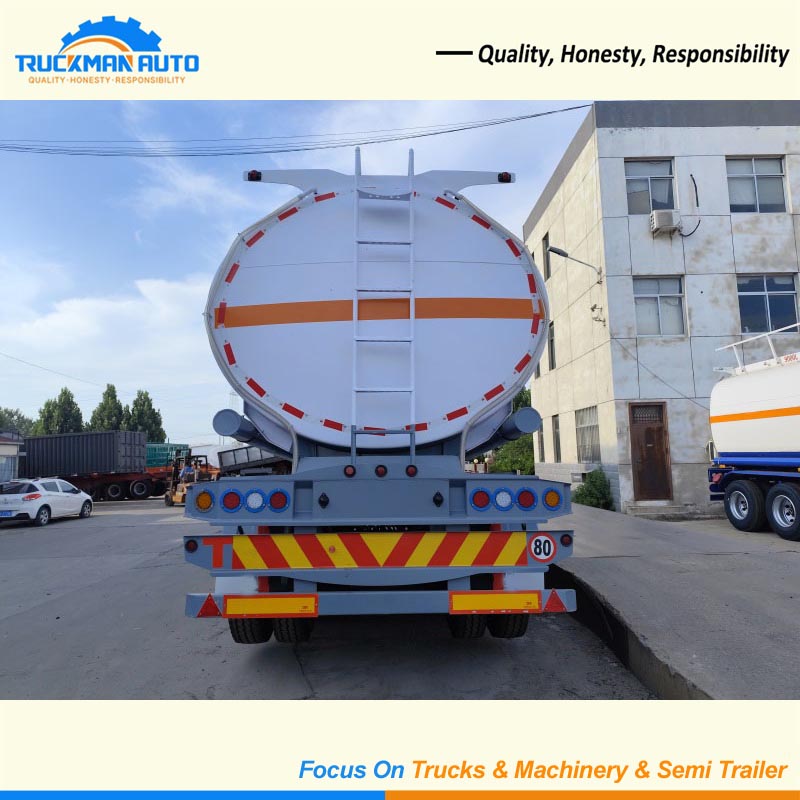

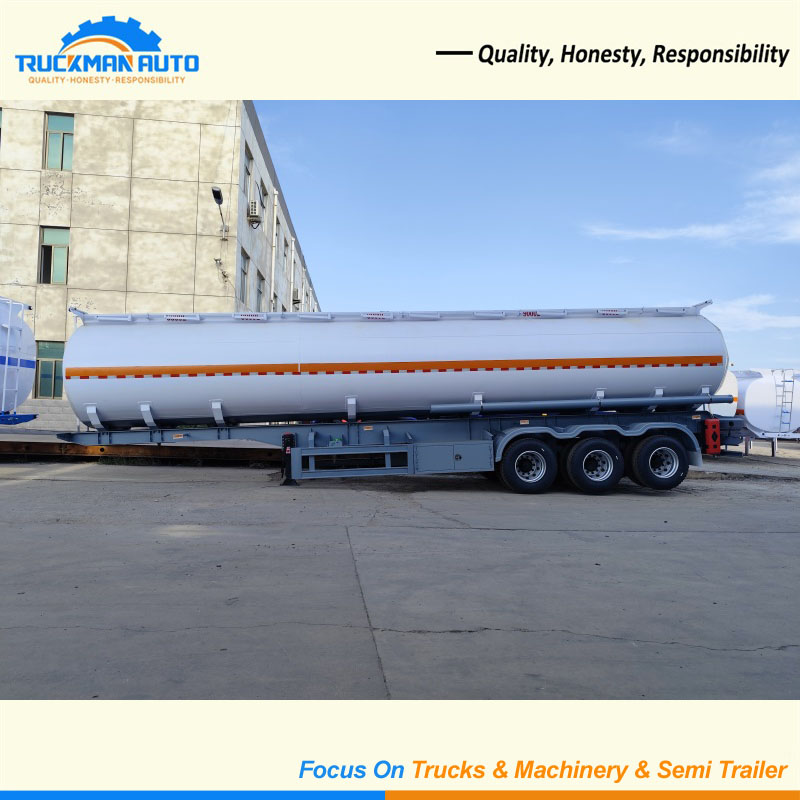

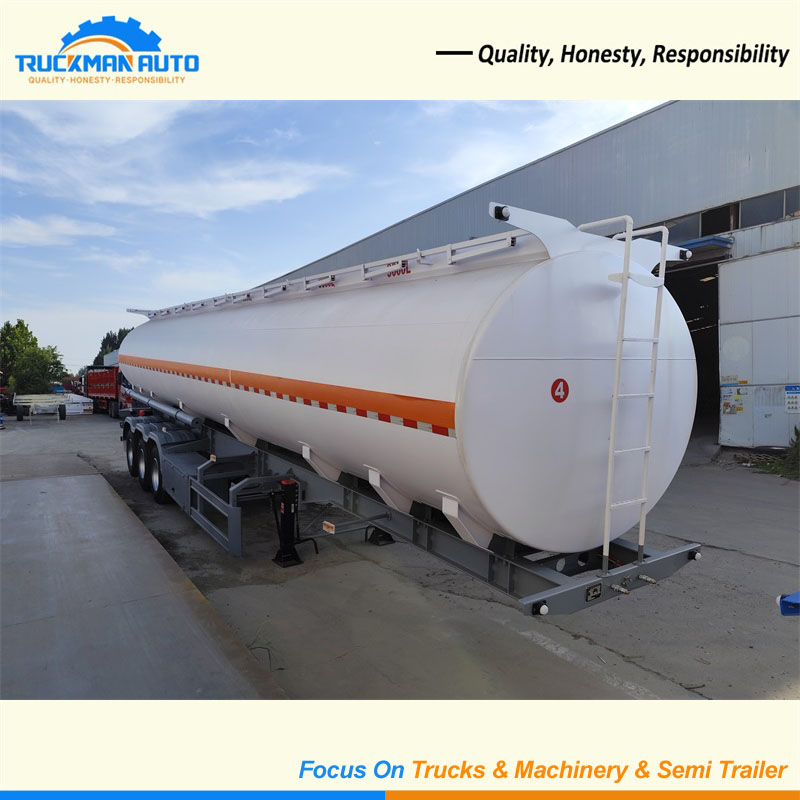

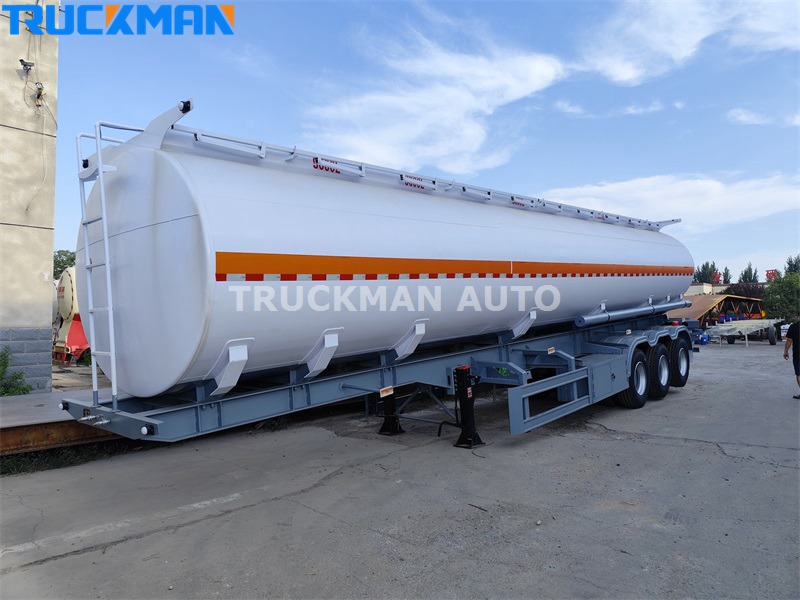

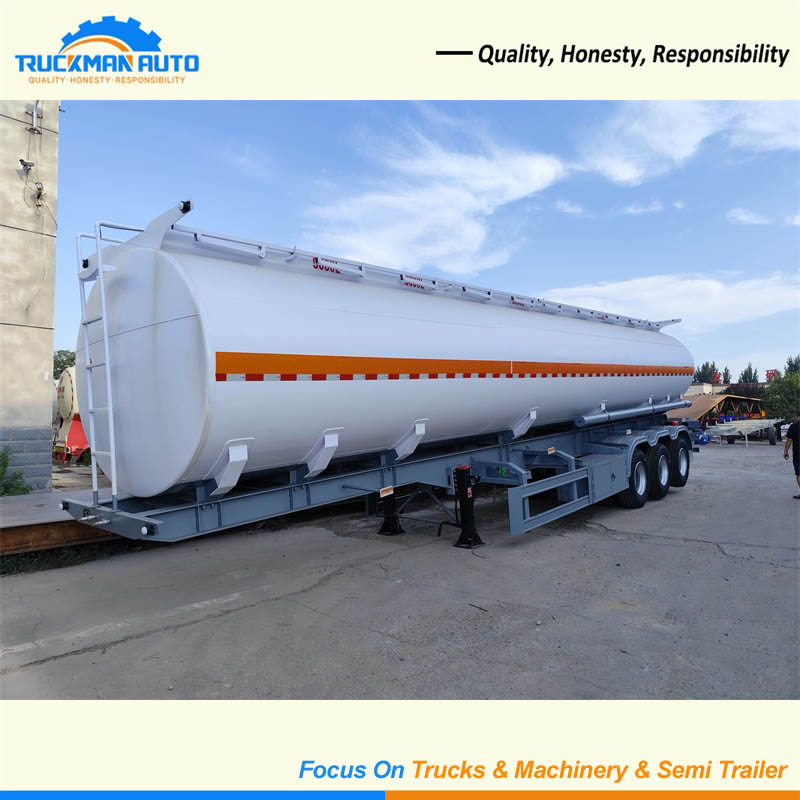

3 Axles 45000 Liters Diesel Gasoline Fuel Tank Trailer

About 3 Axles 45000 Liters Diesel Gasoline Fuel Tank Trailer

The fuel tank trailer consists of a head and a barrel. The barrel is welded from steel sheets. The head is integrated using a spinning and stamping process (one-piece design). This process involves continuous partial stamping at a specific temperature. To ensure accurate welding of the barrel and head and guarantee longevity, the tank trailer can be designed in either a circular or oval shape. It is equipped with safety valve that automatically adjusts the pressure within the tank. This helps maintain pressure within a certain range. The safety valve protects the tank and reduces evaporation losses of volatile oil. All accessories on this tank trailer are from well-known brands, ensuring product quality and a longer service life.

3 Axles 45000 Liters Diesel Gasoline Fuel Tank Trailer Specification

Product Name: 3 Axles 45000 Liters Diesel Gasoline Fuel Tank Trailer

Application: Oil transportation

Axle: 3 axle, 3x16 tons, ZY brand

Tire: 315/80R22.5, 12 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 12700x2550x3620mm

3 Axles 45000 Liters Diesel Gasoline Fuel Tank Trailer specification only for your reference, we will recommend other model Fuel Tank trailer basic your request.

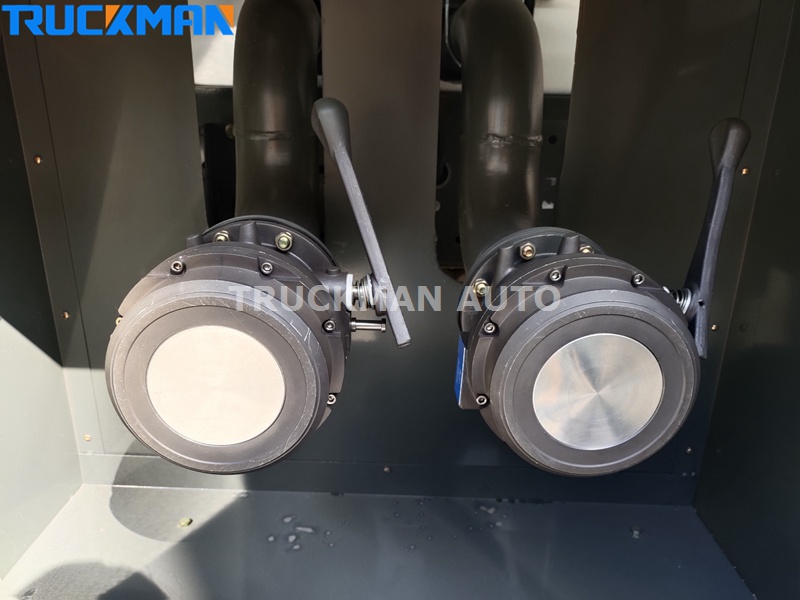

3 Axles 45000 Liters Diesel Gasoline Fuel Tank Trailer Fuel Outlet Valve

This fuel outlet valve is designed for quick fuel discharge. The front connector complies with US API Rp 1004 standards, facilitating connection to the fuel discharge hose connector. A fluid-dynamically designed internal structure minimizes internal pressure at high flow rates. The outlet features a flat bottom, ensuring no fuel leakage during connector removal, ensuring safety and reliability. The quick-discharge hose connector features a 70-degree angled design, facilitating connection and effectively extending hose life.

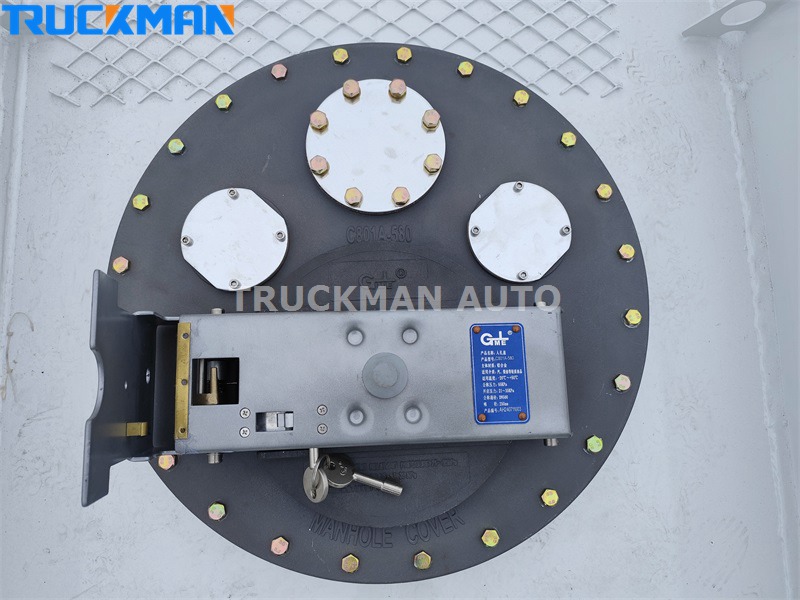

3 Axles 45000 Liters Diesel Gasoline Fuel Tank Trailer Manhole Cover

This European-standard tank opening, installed on the top of the 3 axles tank trailer, features built-in breathing and emergency drain features. The manhole cover can be equipped with a vapor recovery valve, oil gauge, and overflow prevention probe. During filling, the overflow prevention sensing system automatically sounds an alarm when the liquid level reaches the detection point, halting filling. The built-in breathing valve stabilizes the internal pressure of the tank during transportation, achieving equilibrium with external pressure. The tilting design prevents overflows, ensuring a sealed tanker in the event of an accident, significantly improving transportation safety.
