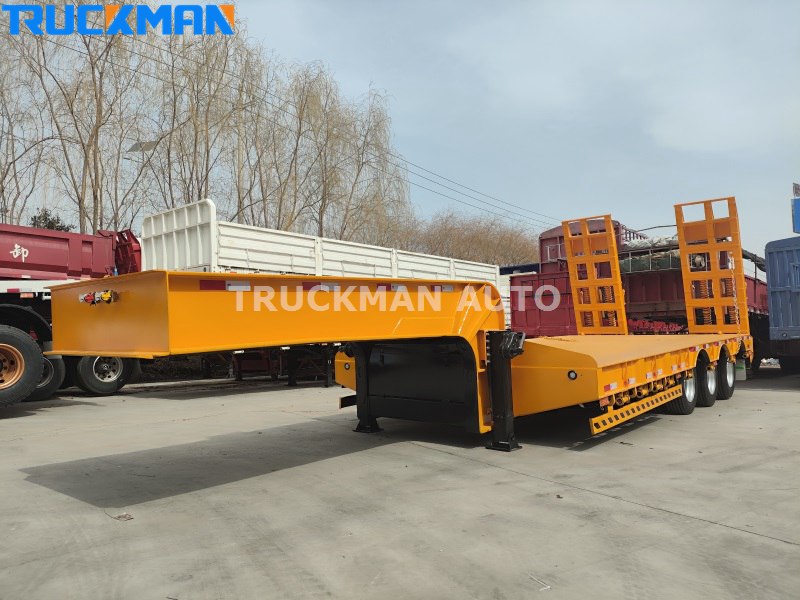

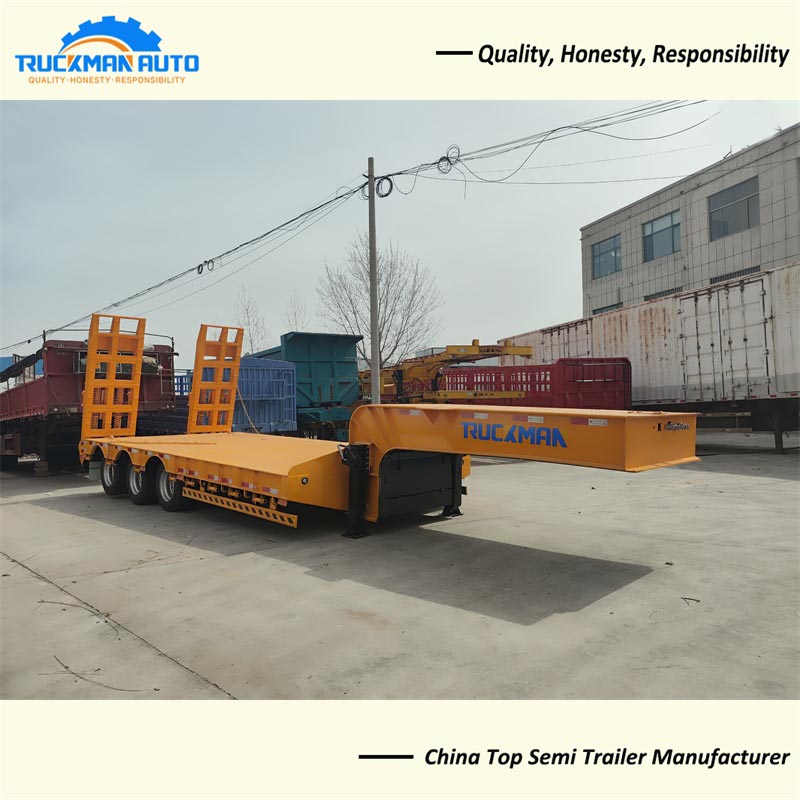

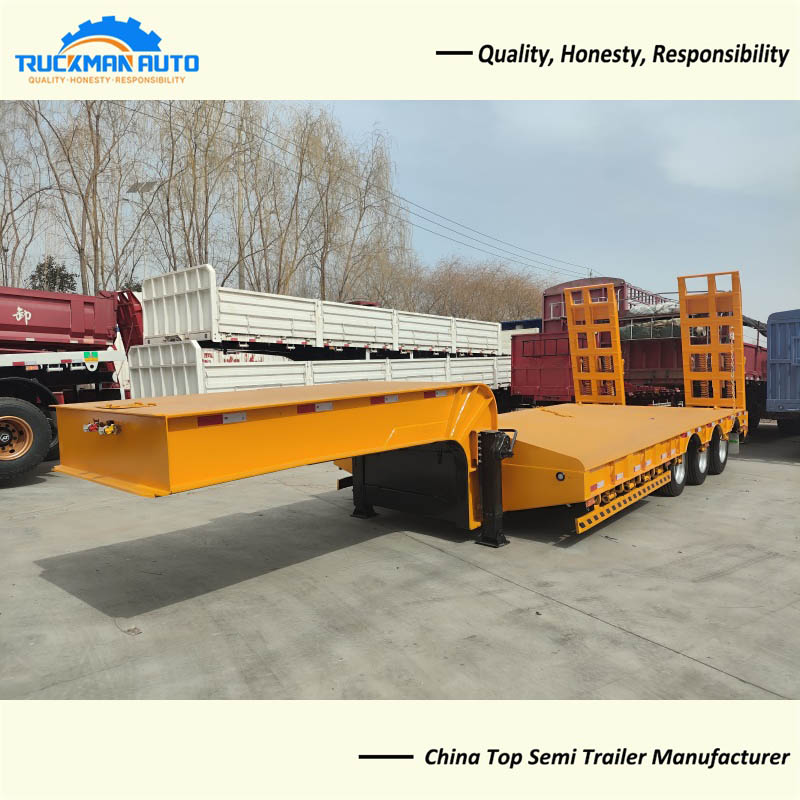

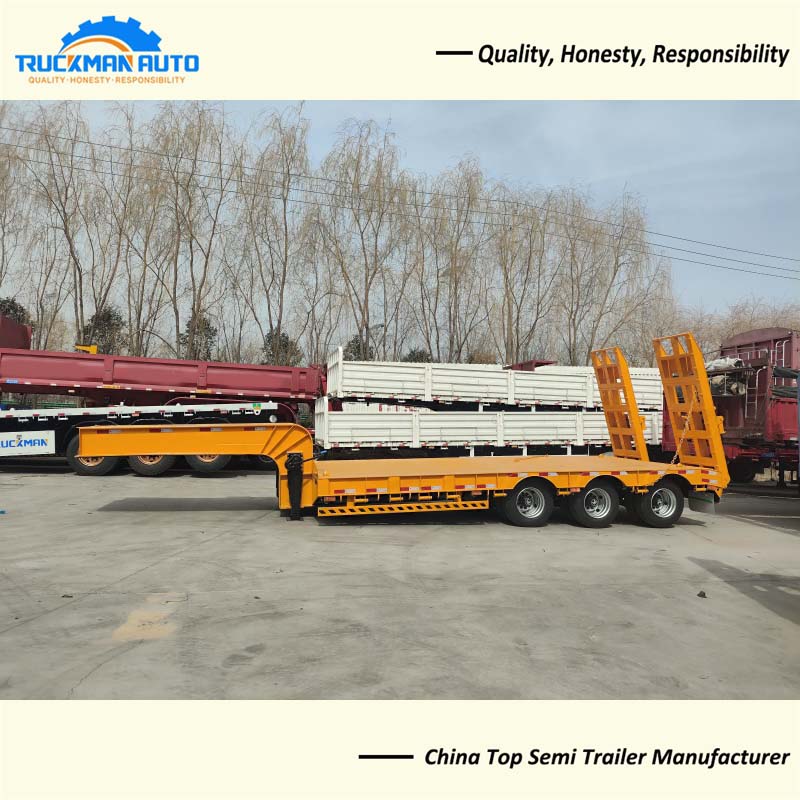

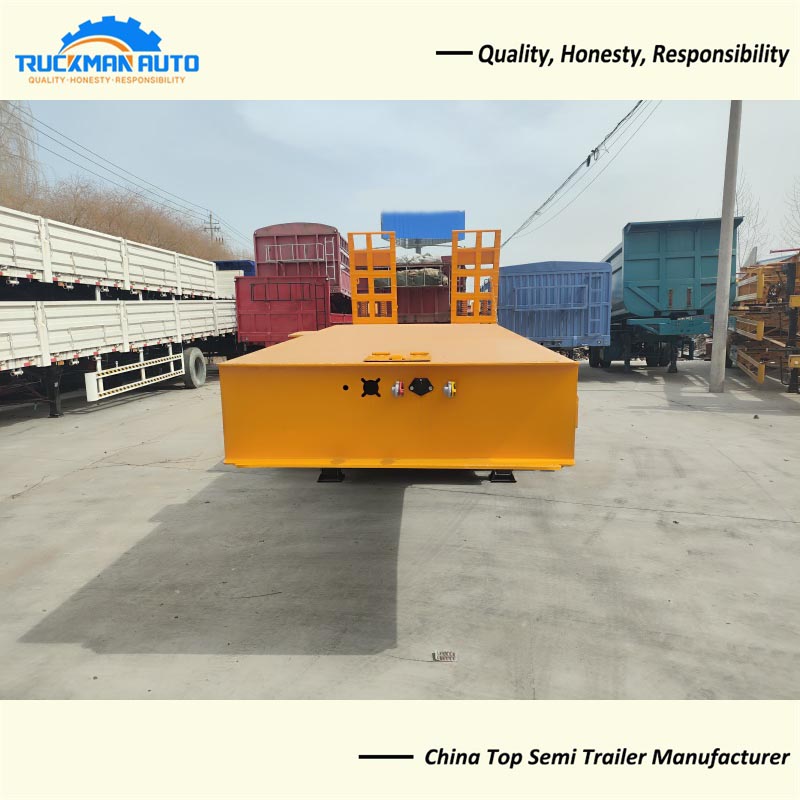

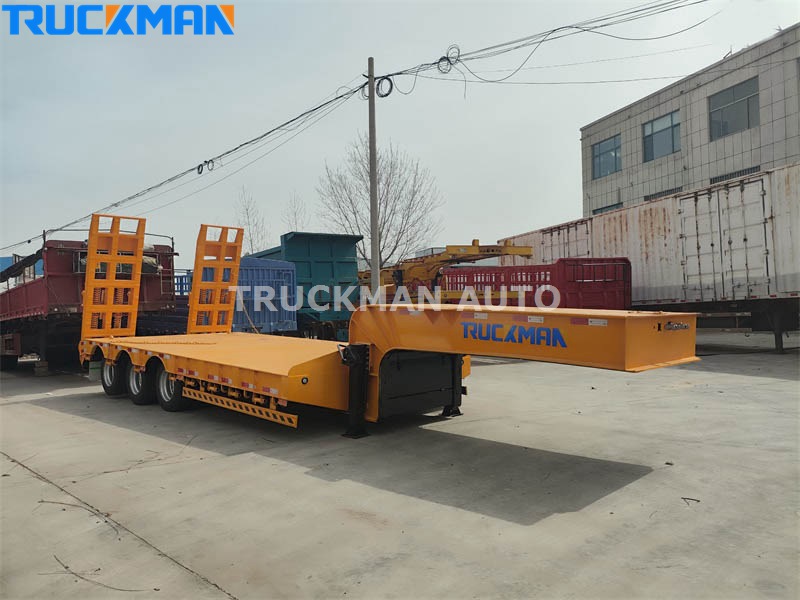

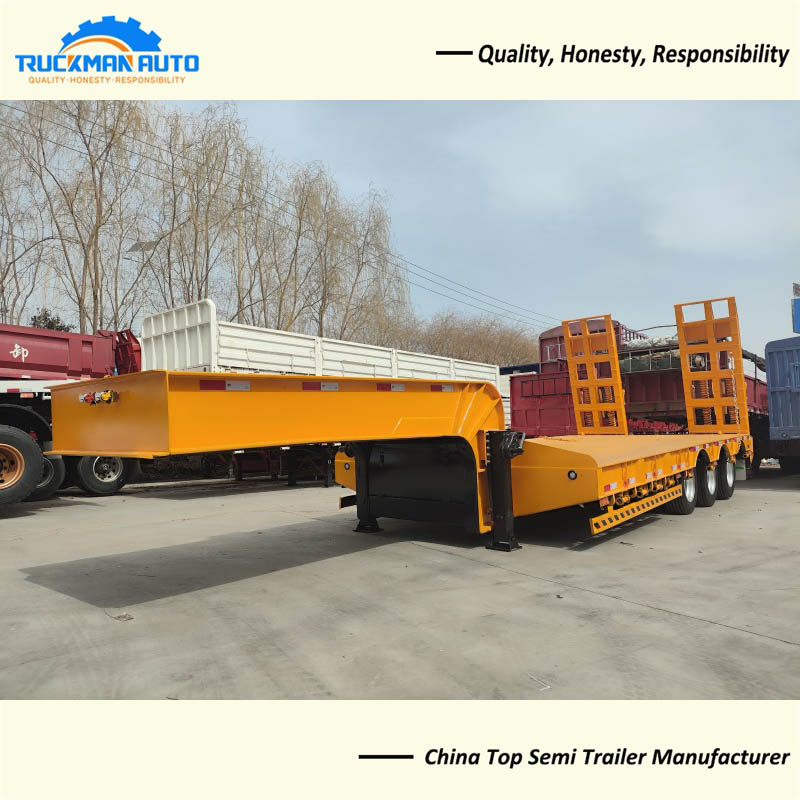

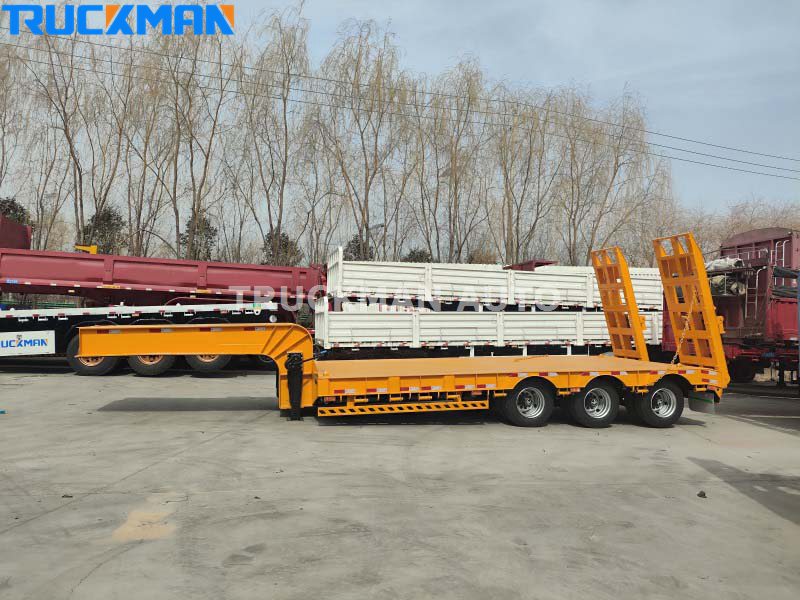

3 Axles 60 Tons Low Bed Trailer

About 3 Axles 60 Tons Low Bed Trailer

This low bed semi-trailer is made of high strength steel plate by laser cutting machine, one piece molding, no welding beam in the middle of high strength, light weight, stronger load capacity, longer service life. Welded beams will reduce the strength of steel, bring deformation, open welding and other problems. The longitudinal beam is subjected to large bending stress and reaction force, in order to ensure that the longitudinal beam has sufficient support strength, double webs are added at the step of the front riser plate, and single webs are added at the front of the rear riser plate, and the welded structure is airtight, which greatly improves torsional performance.

3 Axles 60 Tons Low Bed Trailer Specification

Product Name: 3 Axles 60 Tons Low Bed Trailer

Application: Mechanical transportation

Axle: 3 axle, 3x16 tons, ZY brand

Tire: 315/80R22.5, 12 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 13500x3500x1700mm

3 Axles 60 Tons Low Bed Trailer specification only for your reference, we will recommend other model Low Bed Trailer basic your request.

3 Axles 60 Tons Low Bed Trailer Outrigger

The outrigger of this semi-trailer is composed of double-speed gear box, support sleeve, support rod, transmission screw (rocker arm) and support disk, with a rated load of 28 tons. It adopts linkage type outriggers, and the lifting and lowering of the left and right outriggers can be controlled at the same time through the rocker, which is divided into two gears of high speed and low speed, and the lifting and lowering efficiency is doubled compared with that of the single-acting outriggers. This kind of outrigger is characterized by easy use and labor-saving operation.

3 Axles 60 Tons Low Bed Trailer Shot Blasting Process

The low bed semi-trailer adopts shot blasting technology, and shot blasting can remove rust, oxidized skin, welding slag, cast skin, etc. on the steel surface in order to achieve a clean and smooth surface, and lay a good foundation for subsequent painting and coating. Shot blasting can improve the tensile strength and fatigue strength of metal materials, change the stress state of the material surface, enhance its wear resistance and corrosion resistance, and extend product life. The surface of the semi-trailer after shot blasting is a uniform metallic color, which can improve the appearance quality of the semi-trailer.
