70 tons low flatbed trailer designed for excavator, road roller, bulldozer, motor grader haulage work. Adopt the durable spare parts and advanced production tech.
70 Tons Low Flatbed Trailer Features
-1. 5mm thickness loading platform can bearing extra weight cargoes.
-2. Superior version suspension, like heavy responsibility leaf spring, suspension rack.
-3. True tools for excavator, avenue roller and bulldozer etc heavy duty machinery haulage.
-4. Big brake chamber and 16 heaps brake pad, ensure the brake safety and decrease the protection price.
70 Tons Low Flatbed Trailer Specification
Overall Dimension: 13000x3000x3300mm(LxWxH)
Loading Platform: 9700x3000x1230mm(LxWxH)
Loading Capacity: 70 tons
Axle: FUWA brand. 3 axle, 3x16000kg
Tire: TRIANGLE brand. 315/80R20, 12 pcs, tubeless model.
Suspension: Mechanical suspension
Leaf Spring: TAIYUE brand. 90x16mmx10pcs
Tractor Pin: JOST brand. 3.5 inch
Main Beam: Height: 500mm, Upper plate: 18mm, Middle plate: 12mm, Lower plate: 20mm.

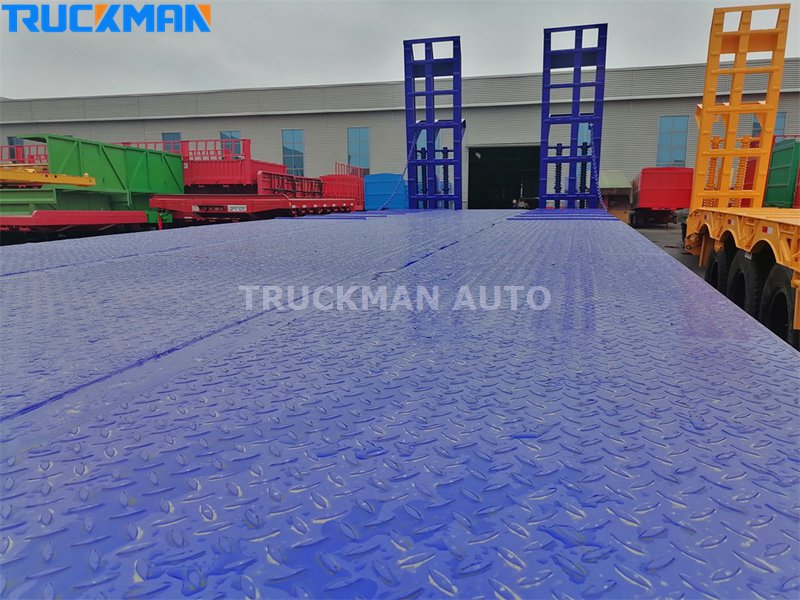

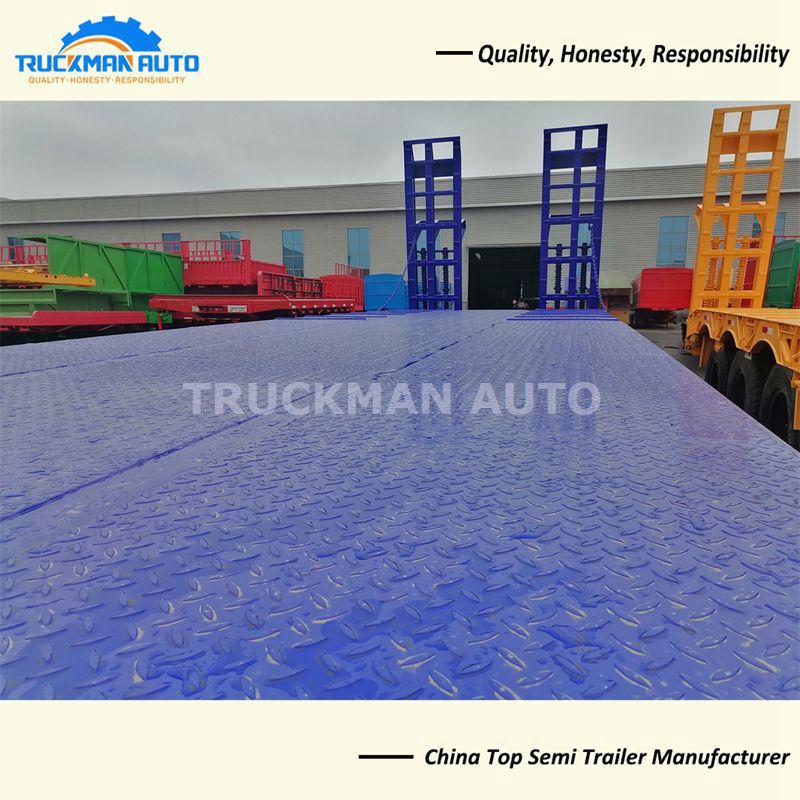

Loading Platform Thickness: 5mm thick checkered plate
Ladder: Mechanical spring model, 850mm width, T700 high strength steel
The 70 tons low flatbed trailer specification only for your reference, we can manufacture other model low flatbed trailer basic your request.
70 Tons Low Flatbed Trailer Paint Spray Process
Painting is an core part of low bed trailer manufacturing. The trailer is powder coated using a shot blasting and electrostatic powder coating process, resulting in stronger adhesion of the coating and less peeling. Uniform powder coating thickness, up to a standard thickness of 120um in a single application.
