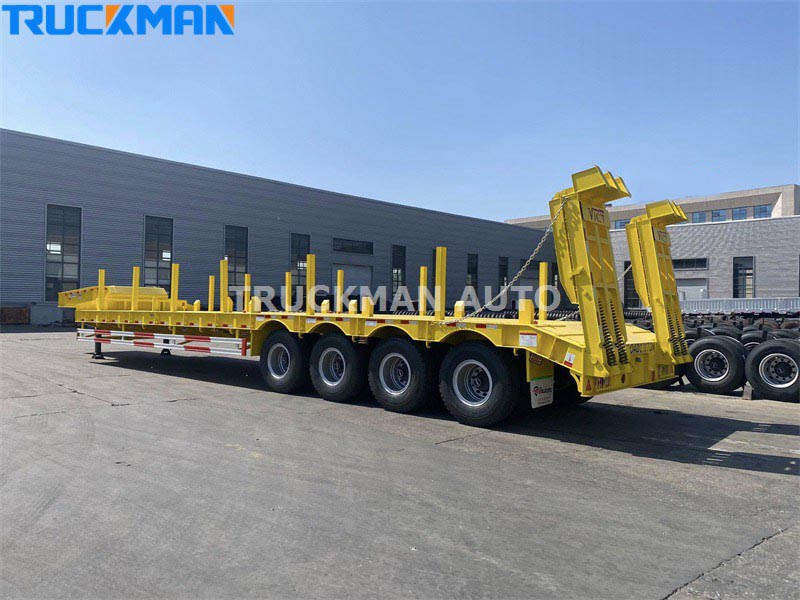

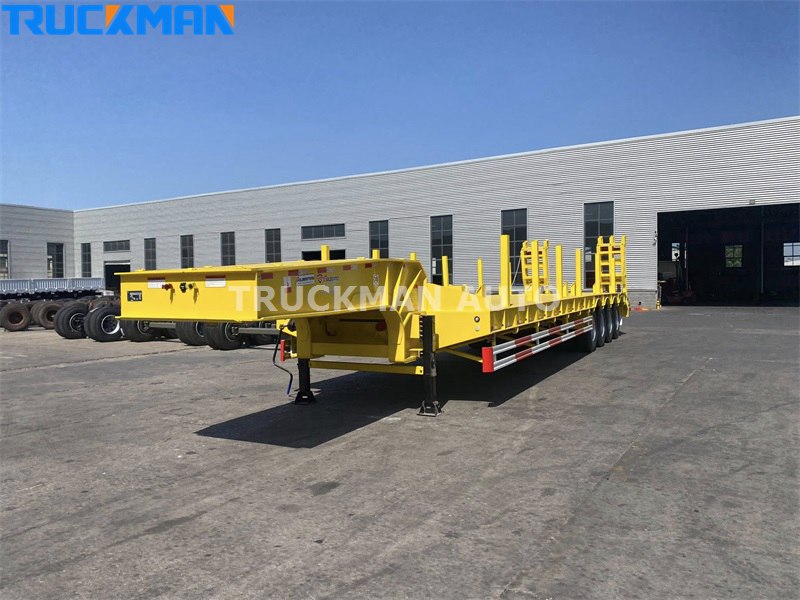

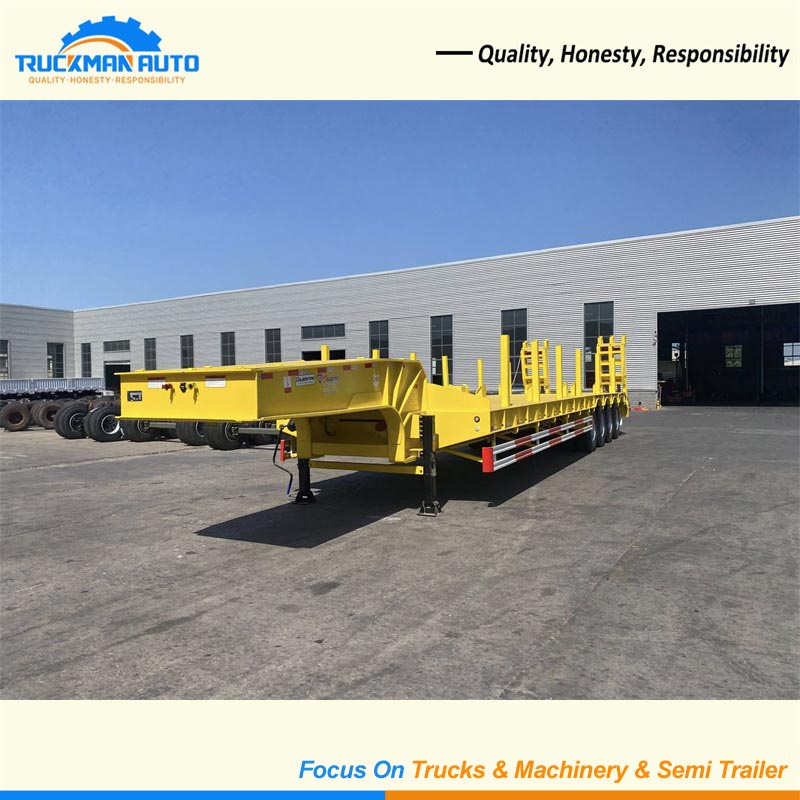

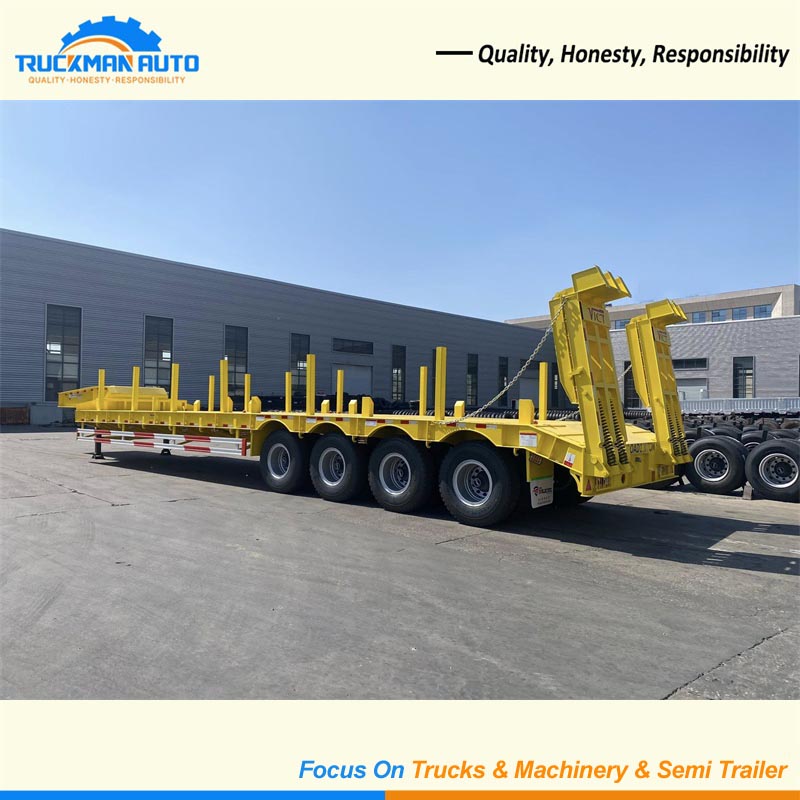

4 Axles 80 Tons Low Bed Trailer For Wood Transportation

About 4 Axles 80 Tons Low Bed Trailer For Wood Transportation

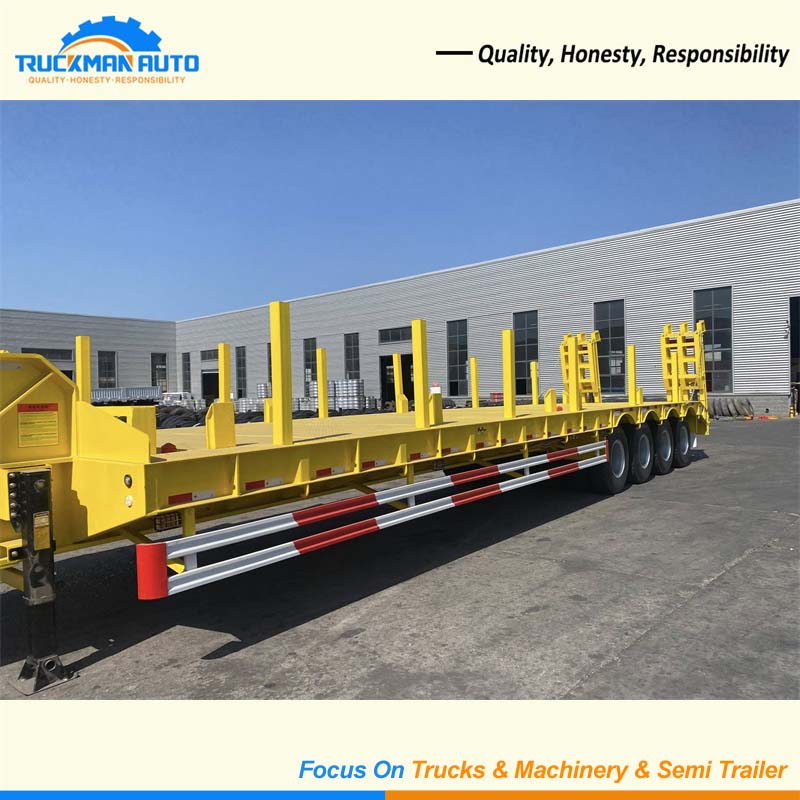

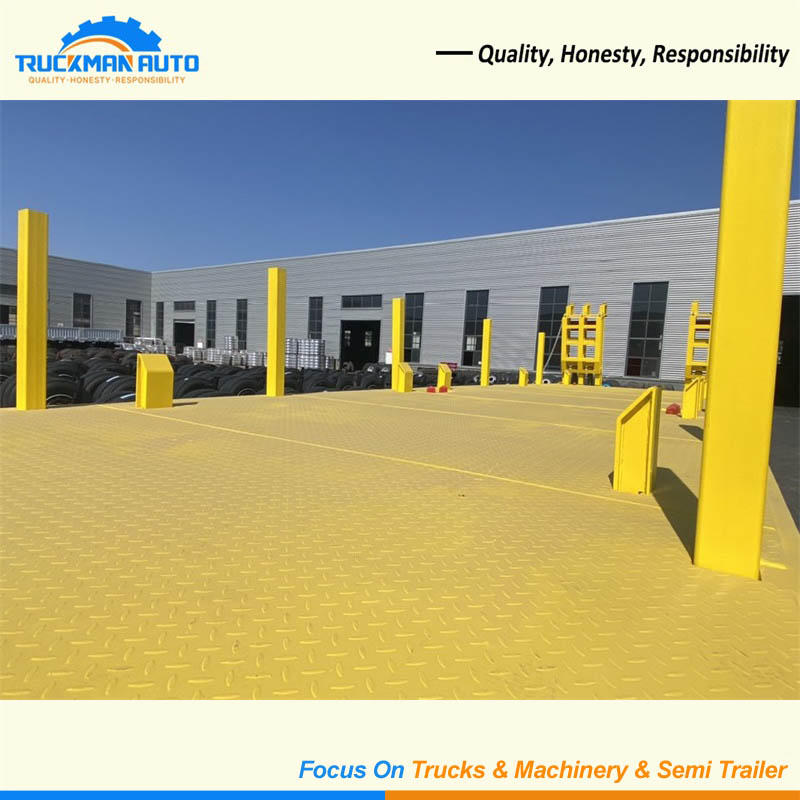

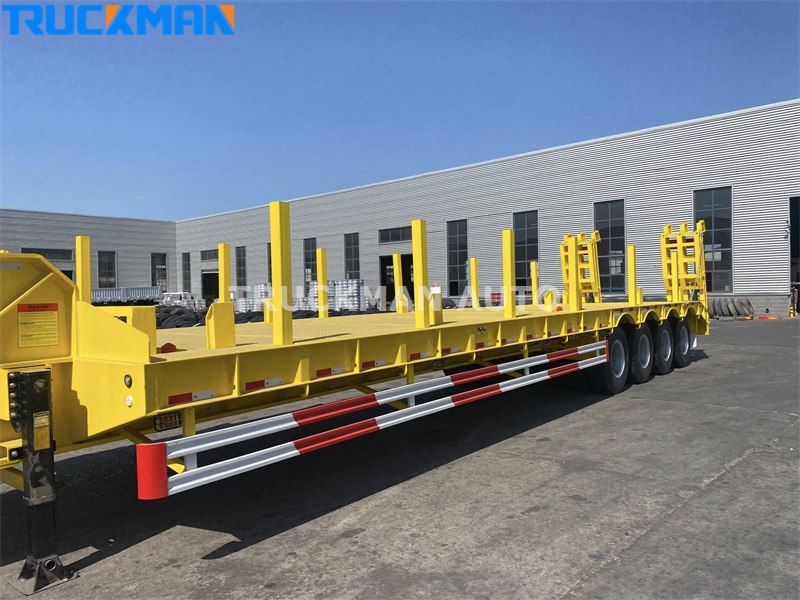

This low bed trailer features automation, low center of gravity, high strength, quick disassembly, convenient loading, etc. Equipped with vertical beams, it is specially used for transporting logs. It can also transport other bulk cargoes, etc., to meet the demand for multiple transportation purposes. This low bed trailer has a high payload capacity. Large quantities of wood can be transported in a single trip, optimizing logistics and reducing transportation costs. The trailer is made of durable materials that can withstand the weight and volume of wood products, ensuring long-term reliability and performance.

4 Axles 80 Tons Low Bed Trailer For Wood Transportation Specification

Product Name: 4 Axles 80 Tons Low Bed Trailer For Wood Transportation

Application: Wood transportation

Axle: 4 axle, 4x16 tons, ZY brand

Tire: 315/80R22.5, 16 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 13500x3500x1800mm

4 Axles 80 Tons Low Bed Trailer For Wood Transportation specification only for your reference, we will recommend other model Low Bed Trailer basic your request.

4 Axles 80 Tons Low Bed Trailer For Wood Transportation Outrigger

The outrigger of this low bed trailer is composed of double-speed gear box, support sleeve, support rod, transmission screw (rocker arm) and support disk, with a rated load of 28 tons. It adopts linkage type outriggers, and the lifting and lowering of the left and right outriggers can be controlled at the same time through the rocker, which is divided into two gears of high-speed and low-speed, and the lifting and lowering efficiency is doubled compared with that of the single-acting outriggers. This kind of outrigger has the features of easy to use and labor-saving operation.

4 Axles 80 Tons Low Bed Trailer For Wood Transportation Axle

The low bed trailer adopts ZY axle with lightweight design and stronger bending and torsion resistance. It adopts compact axle beam structure design and eliminates redundant parts to effectively reduce the weight of the axle while maintaining a high load carrying capacity. Equipped with high performance braking system, it can provide shorter braking distance and better heat attenuation performance, especially during continuous braking, it can also work normally.
