We are the top level and professional semi-trailer supplier.
We can offer you best product and affordable price.
TRUCKMAN Vehicle has successfully been into over 40 countries all over the world.

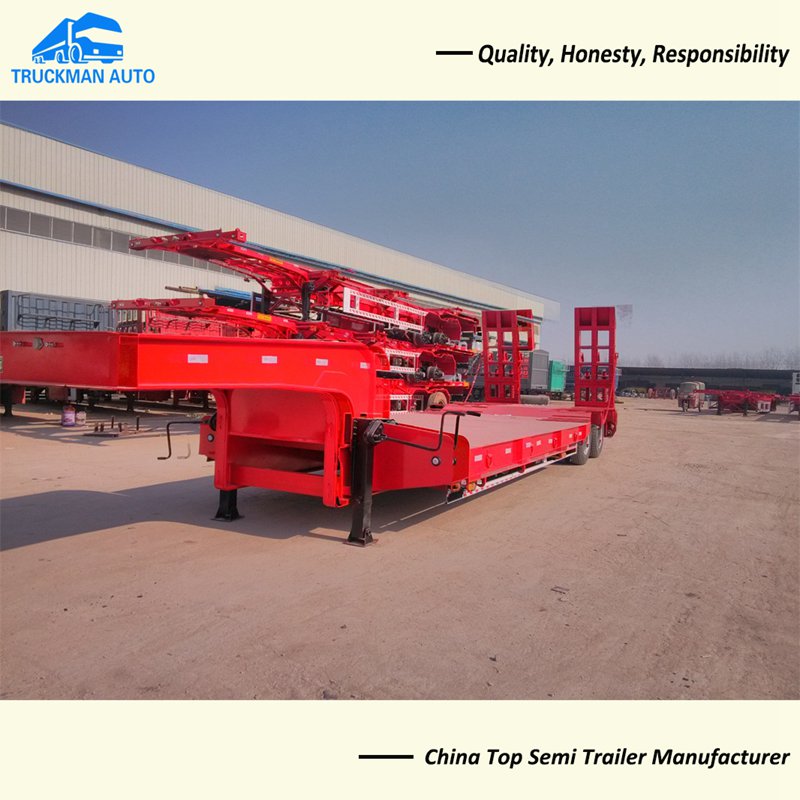

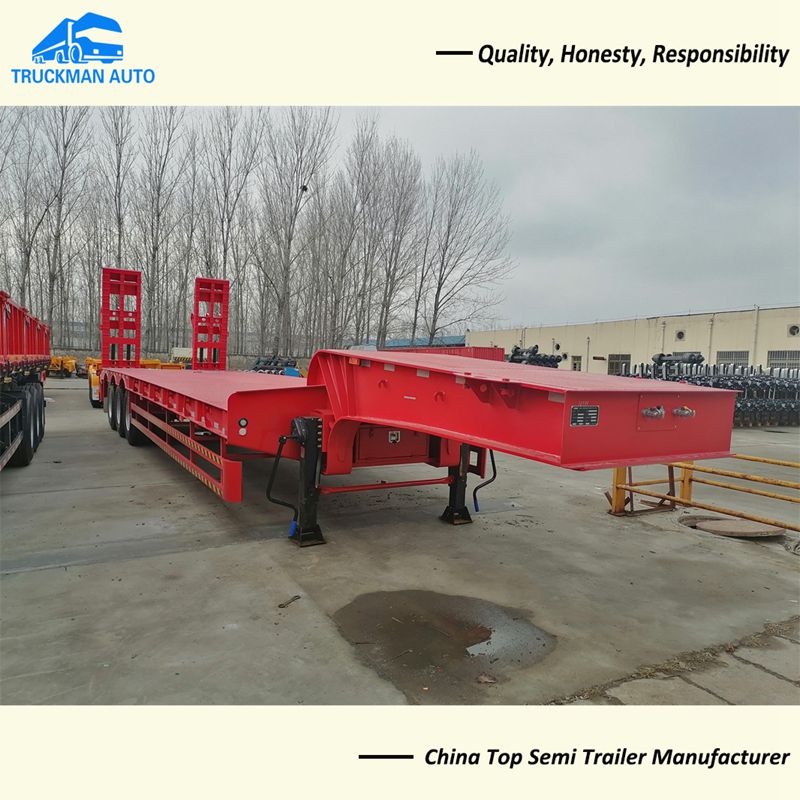

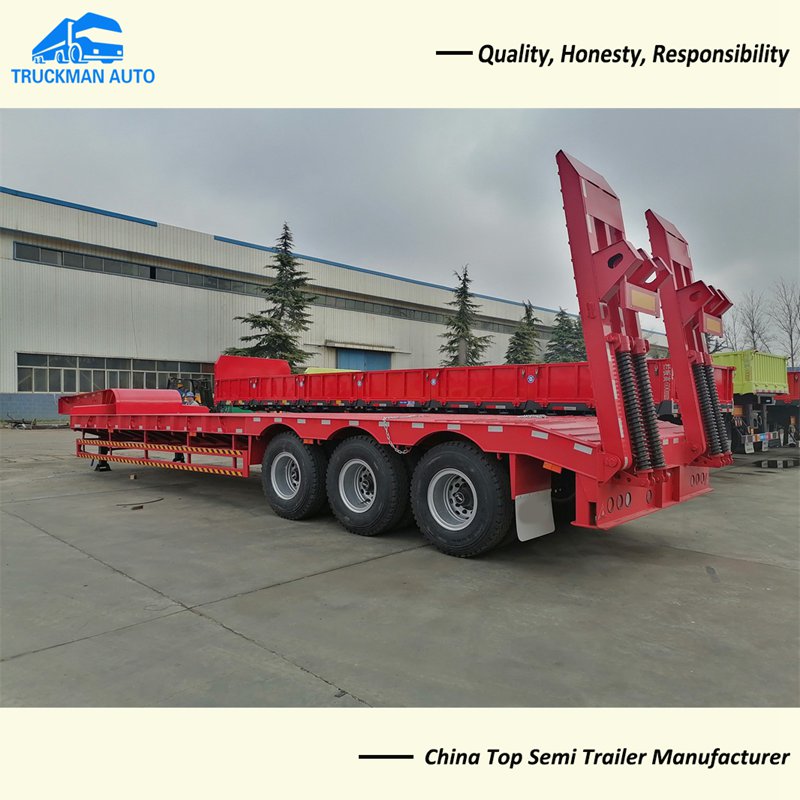

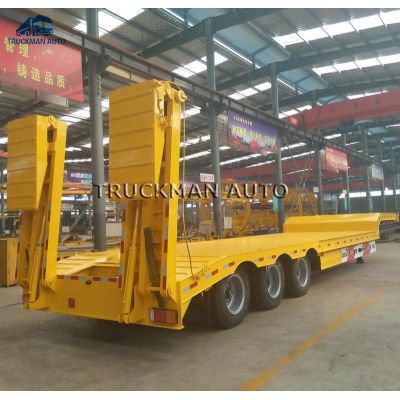

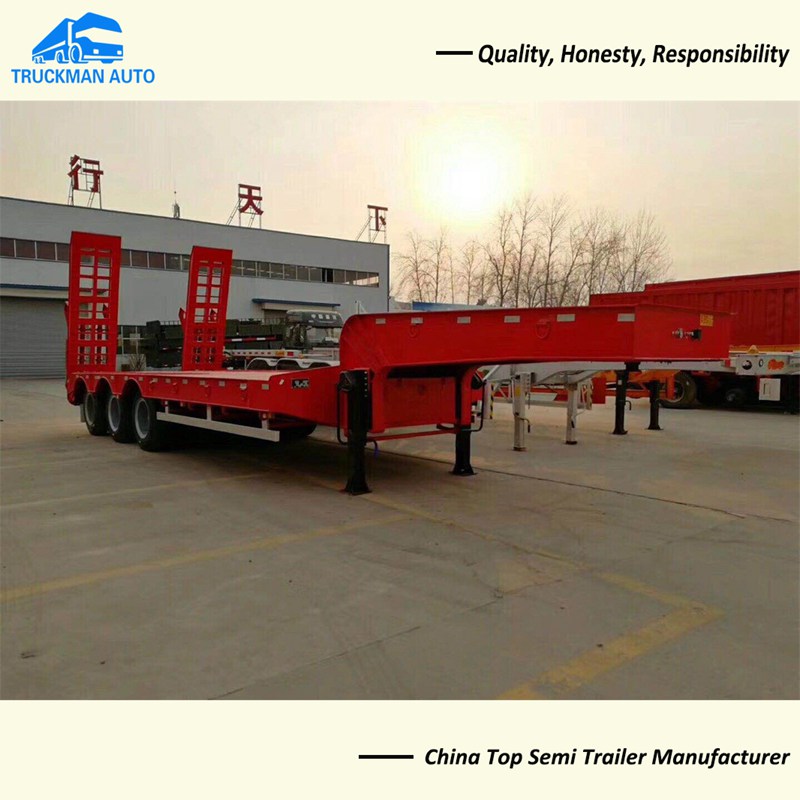

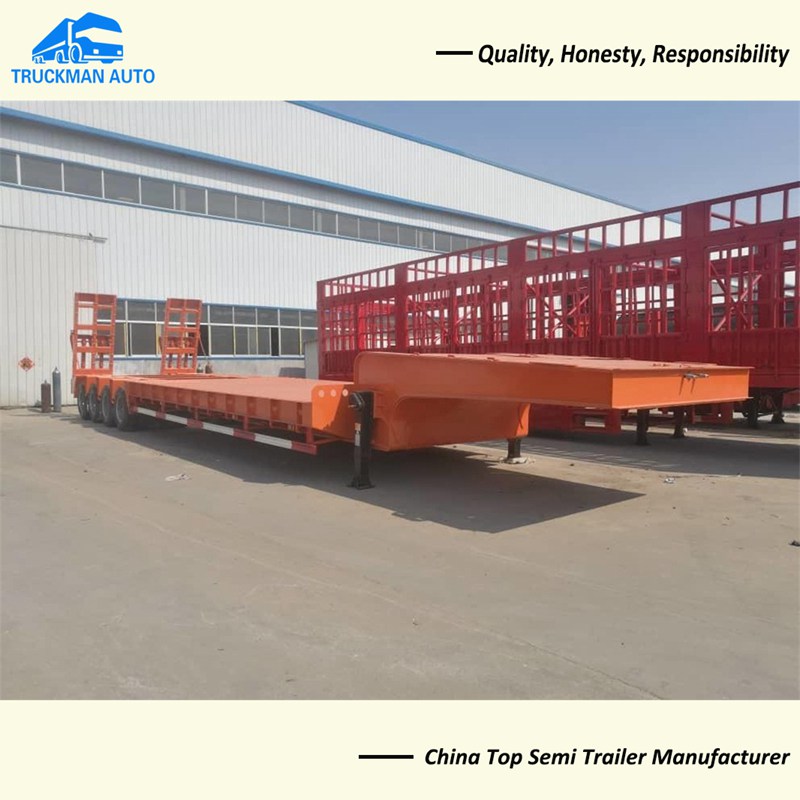

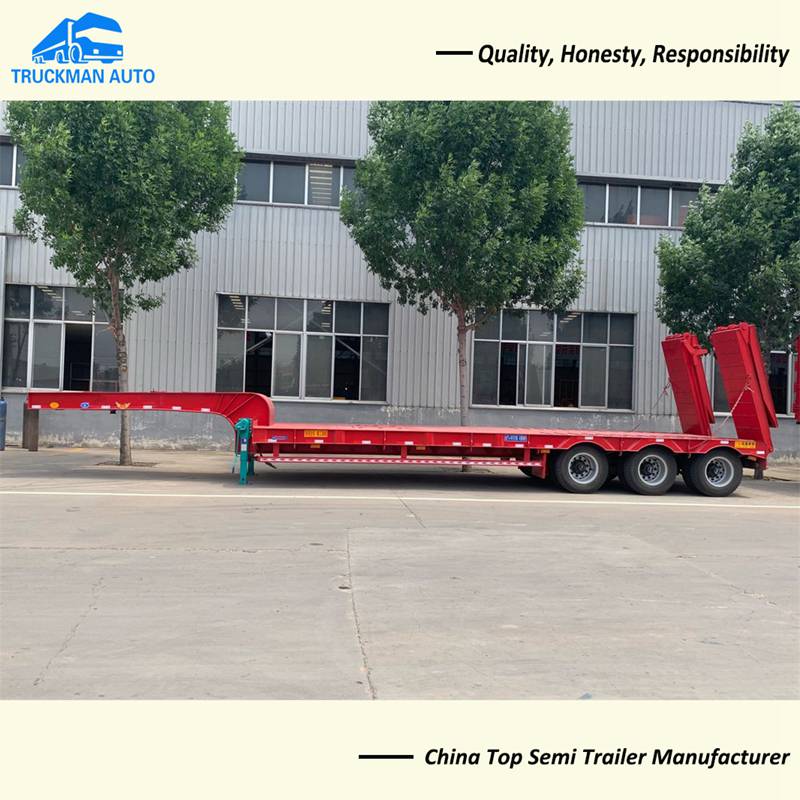

TRUCKMAN low bed trailers are very strong lowbed trailers and with higher strength and durability to reach the transport requirements. We use high tensile strenth steel material Q345B for the lowbed trailers that can considering both harness and toughness, specially for the main key stress point，which is very suitable in good and bad road mainly for Africa,Southeast Asia...
We adopt famous brand parts, like WABCO braking valve, Linglong or Triangel tires,German famous brand Axles beam, Improving the brake system's reaction sensitivity and stability, More Safe.
2 Axles 3 Axles 4 Axles 40-80 Tons Lowbed Semi Trailer specifications:
|
Weight: |
|
|
|
|
Tare Weight |
7500kg--9500kg |
|
|
Loading Capacity |
40T--80T |
|
|
Axle Weight Load |
13T/16T |
|
Specification: |
|
|
|
|
Axle number |
2/3/4 |
|
|
Axle specs. |
FUWA or BPW Brand |
|
|
Suspension |
Common mechanical |
|
|
Wheel |
11.00R20/12.00R20 Radial tire and 12R22.5/13R22.5Tubeless---Triangle or Linglong Brand |
|
|
King Pin |
JOST 2.0''(50#) or 3.5"(90#) traction pin |
|
|
Dimensions |
12450×2500×1490mm,13000*2490*1450/1575/2770mm,14850*2480*1770mm |
|
|
Support legs |
28Tons Jost D200T |
|
|
Rim |
8.25-20/8.5-20*20Vacunnm tire Zhengxing Brand |
|
|
Wheelbase |
7180/6680/6260+1310+1310mm, |
|
|
Steel Spring |
10/10/10 pieces per axles |
|
|
|
|
|
Tire: |
|
|
|
|
Number of Tire |
Option |
|
|
Spare Tire Carriers |
2/4 pieces |
|
Frame: (specs. and materials) |
|
|
|
|
The material of |
The height of the beam is500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm. |
|
|
Platform plate |
3mm Diamond Plate |
|
Brake: |
|
|
|
|
Brake |
Kemi Brand of China or WABCO Brand |
|
|
Brake Chamber |
Four double and two single chamber( TKL brand ) |
|
|
ABS system |
Option |
|
Electrical: |
|
|
|
|
Voltage |
24V |
|
|
Receptacle |
7 ways(7 wire harness) |
All of TRUCKMAN lowbed semi trailer are tested by third party of quality control institute to ensure that our TRUCKMAN semi-trailers in high quality level. All heavy haul trailer is tested for carrying capacity after production is finished.TRUCKMAN would dedicate technical team to guide the operation.
Our Value: Quality, Honesty, Responsibility.
Our Target: Make Customers Satisfied.
Our Wishes: To Be World Class Enterprise.
Our Responsibility: Help Customer Achieve Biggest Value, Make Colleague Biggest Dream Come True.
