The engine fuel consumption ratio lower than 184g/ kW.h is equivalent to international advanced level.
For truck and semi trailer,There are three shipping ways can be choose, RORO, BULK CARGO VESSEL & FLAT RACK CONTAINER,

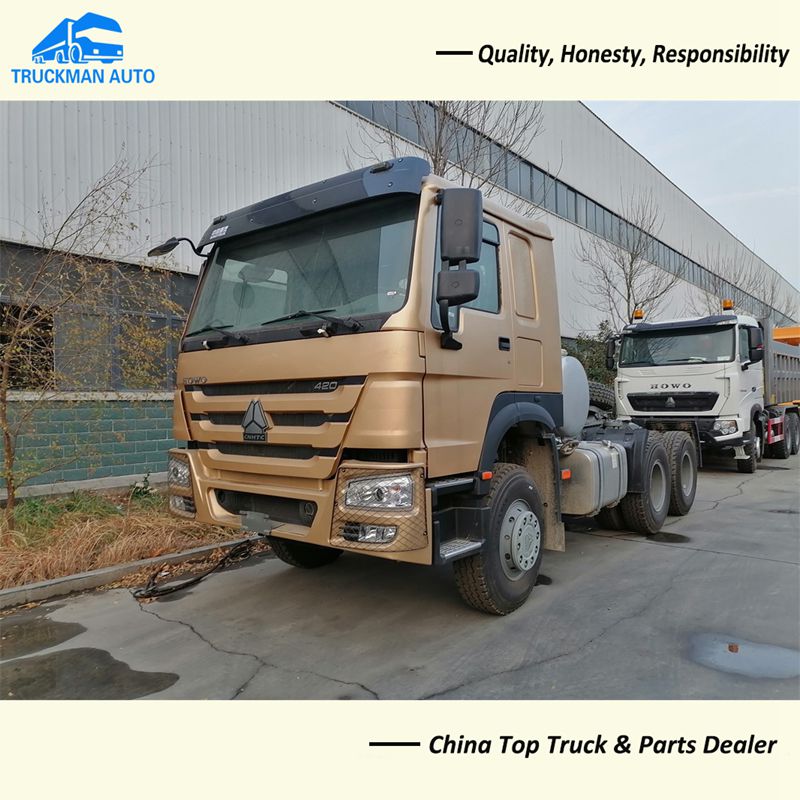

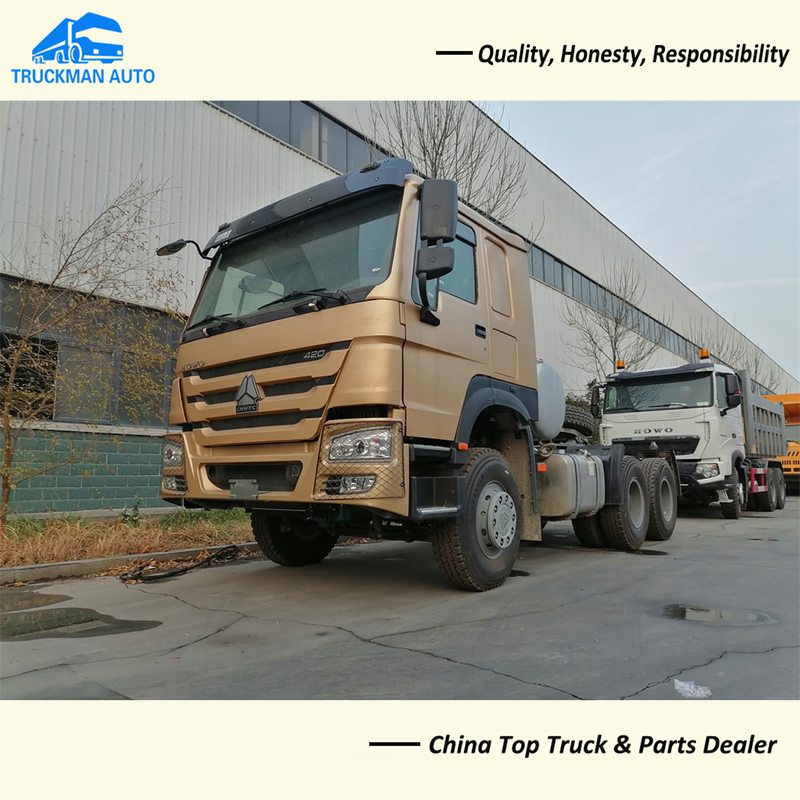

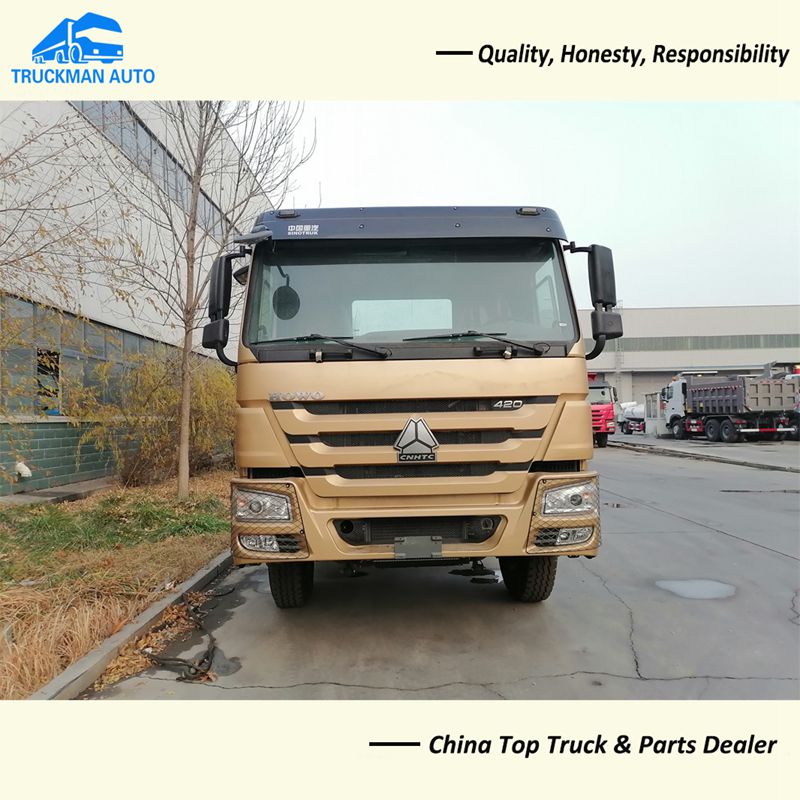

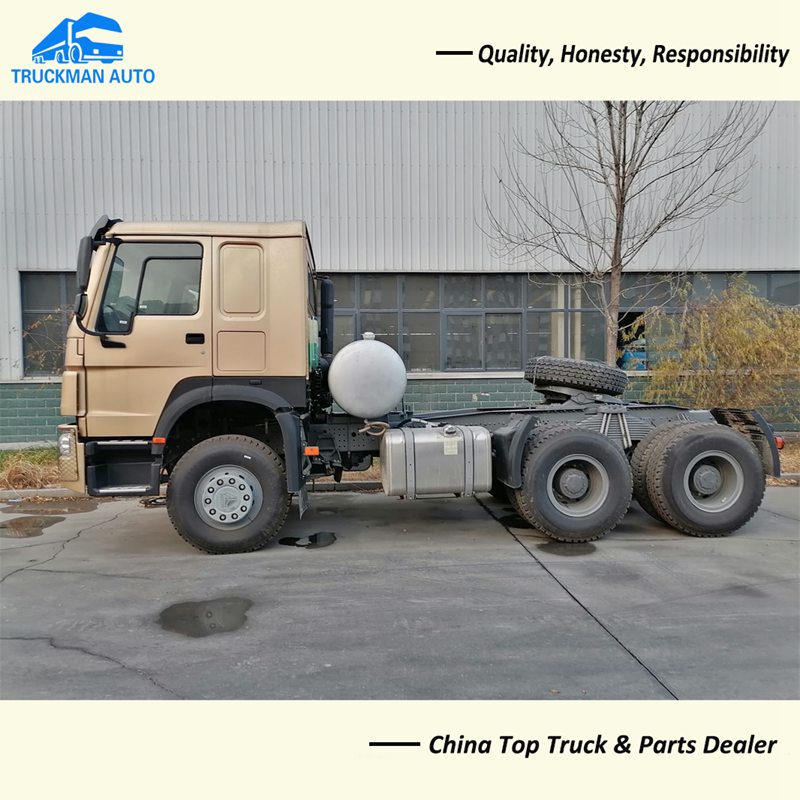

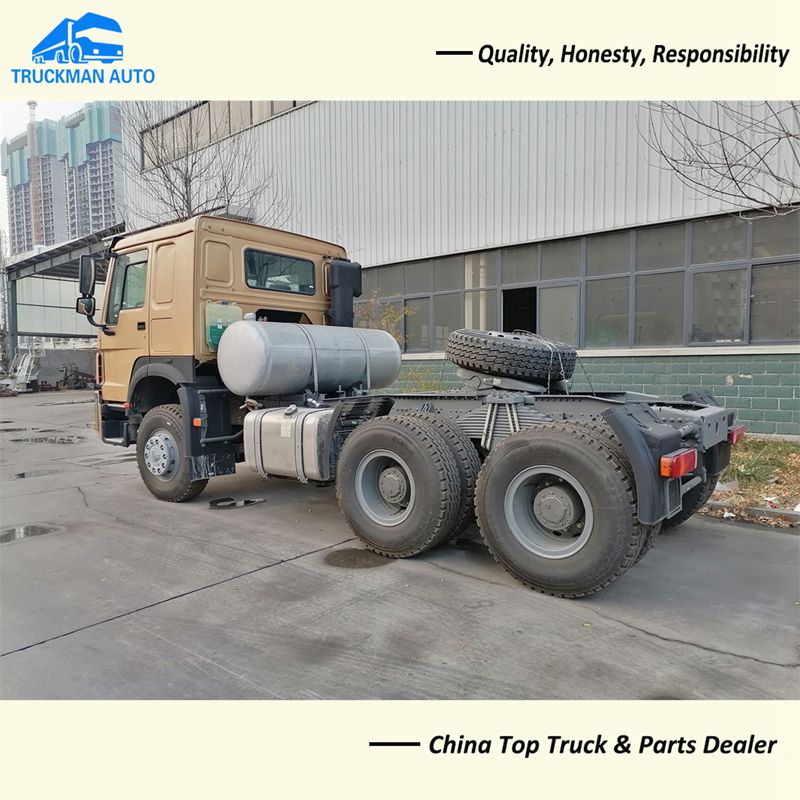

40 HQ Container suit for flatbed & cargo semi trailer and spare parts only, Please kindly check the pictures as below, Thanks!
| Model | ZZ4257V3241W |
| Drive Type | 6×4 |
| Engine | D12.42-20 , 420HP( Euro II) 6 cylinder in-line with water cooling,
turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L |
| Cabin | HW76(with One sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8098 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 12R22.5 tubeless tyre |
| Wheel base | 3200+1350(mm) |
| Overall dimension | 6800×2496×2958(mm) |
| Fifth Wheel | #50, #90 |
| The curb weight | 9180(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 90-102km/h |
| Color | White, red, green, golden and so on. |
One stop shop
Products: You name it, we have it
Quality : 100% 12months/100,000kms warranty
Price: Lowest
Delivery: 15 Days
Provide spare parts (Available)
Win-win situation is our target
Include tipper trucks, tractor trucks, concrete mixer trucks, water tank trucks, fuel tank trucks, cargo trucks, dry cement transport trucks, fire fighting trucks ,all-wheel driving wheel , ,mining dump trucks, special trucks, xcmg machinery,different type semi trailer and spare parts etc.
Our Value: Quality, Honesty, Responsibility.
Our Target: Make Customers Satisfied.
Our Wishes: To Be World Class Enterprise.
Our Responsibility: Help Customer Achieve Biggest Value, Make Colleague Biggest Dream Come True.
WhatsApp: +86 156 6573 6726
