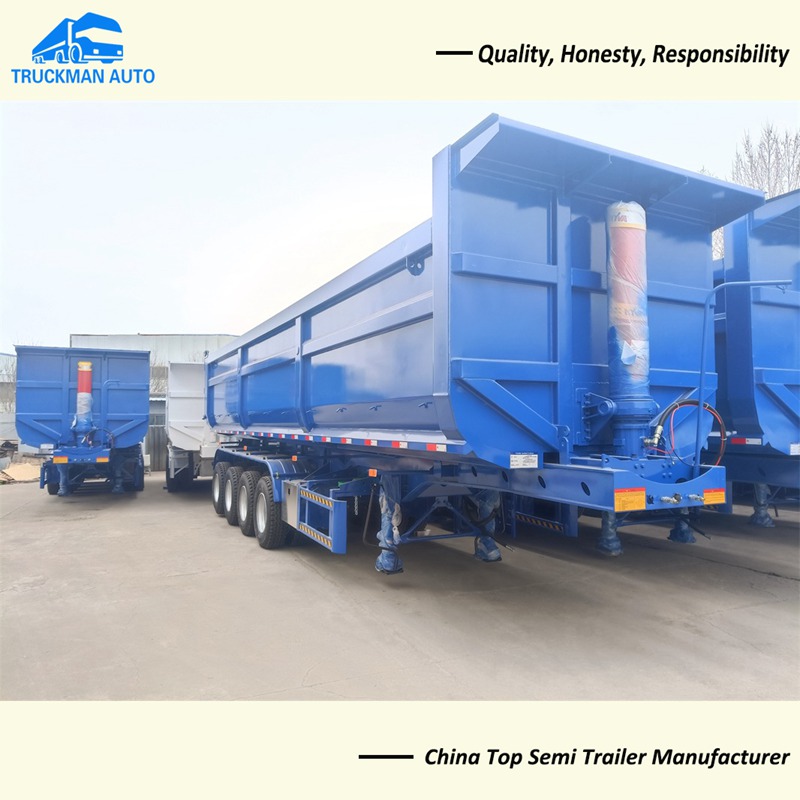

Factory Price 45 Cubic Meter U Shape 4 Axles Rear hydraulic end dump semi trailer are used to load sand, stone, coal ,gravel and other solid building materials or industrial raw materials and Mining products. dump truck semi trailer are designed to make unloading more easier , save manpower greatly, reduce labor intensity .
|
Product Name
|
dump semi trailer
|
|
Bottom plate thickness
|
3mm diamond plate /Q355 steel
|
|
Side Wall thickness
|
2.3mm Q355 steel (three or five door opening door )
|
|
Lifting System
|
Full set of Hydraulic Lifting system (Four diameter125mm lifting cylinder, and one diameter140mm lifting cylinder.)
|
|
Axle
|
13T/16T/20T, FUWA /BPW /Huajin Brand/ZY Brand
|
|

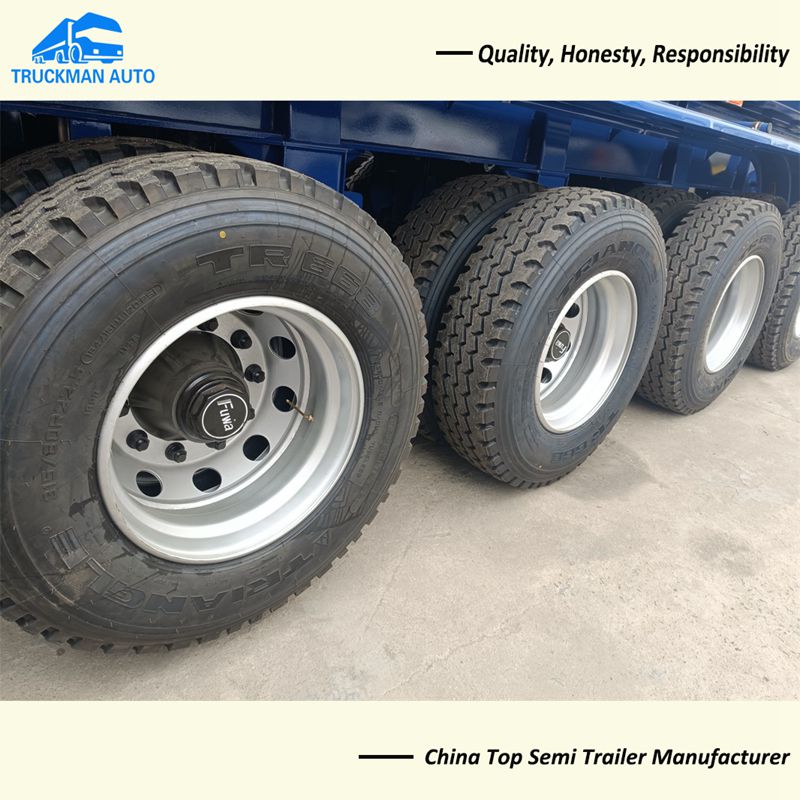

Tire
|
12.00R22.5 315/ 80R22.5 11.00R20 12.00R20 13R22.5(special for export market )
|
|
Suspension
|
Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand ) (special for export market )
|
|
Spring leaf
|
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
(special for export market )
|
|
King pin
|
JOST brand 2.0 or 3.5inch bolts type or Welding type
|
|

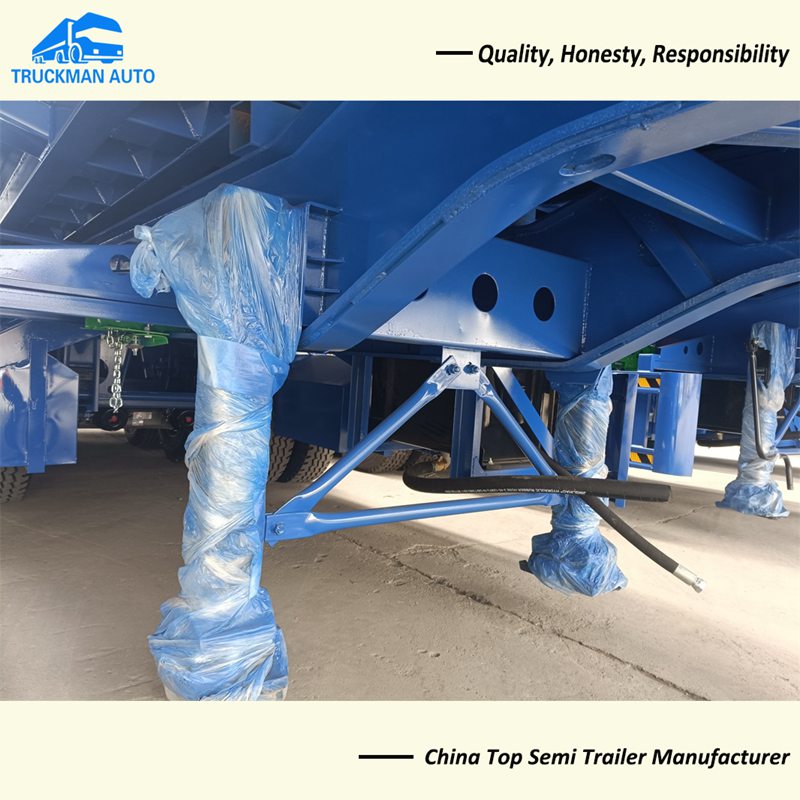

Support Leg
|
JOST brand D200T or China brand 28Tons (Double speed)
|
|
Main Beam
|
Height: 500mm,.upper plate is 16mm, middle plate is 10mm, down plate is18mm(thickness),material is T700 steel.
|
|
Side Beam
|
16mm or 18mm channel steel (Material is Q355steel).
|
|
Brake Chamber
|
T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks
|
|
ABS
|
optional
|
|
Twist Locks
|
Optional;Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
|
|
Valve
|
WABCO valve
|
|
Electric system
|
LED light,24V,7ways(7 wire harness)
|
|
Tool box
|
One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner, and 1 unit cranking bar)
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive paint, 2 coats of final paint.
|
|
Shipping Terms
|
By bulk cargo carrier, RORO or 40HQ container.
|
Finite element analysis for vehicles to improve product performance.
* Strong loading capacity, 30-100 tons loading range.
* High-strength full-thick steel with a titanium content of 0.98 ‰ to ensure the toughness and strength of beams and frames.
* 42 sturdy rib design to ensure the safety and carrying capacity of the trailer.
* Uniquely designed low-load platform, lower center of gravity and smoother travel
* The hydraulic support system is stable and has a long service life. Haiwo brand.
* Optional rectangular or U-shape
TRUCKMAN Tipper Trailer Advantages:
Competitive Advantage- 40 cbm U Shape Dump Semi Trailer
-
Frame body Q355high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
-
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
-
Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
-
We suppply tipper semi trailers with multiple customization options.

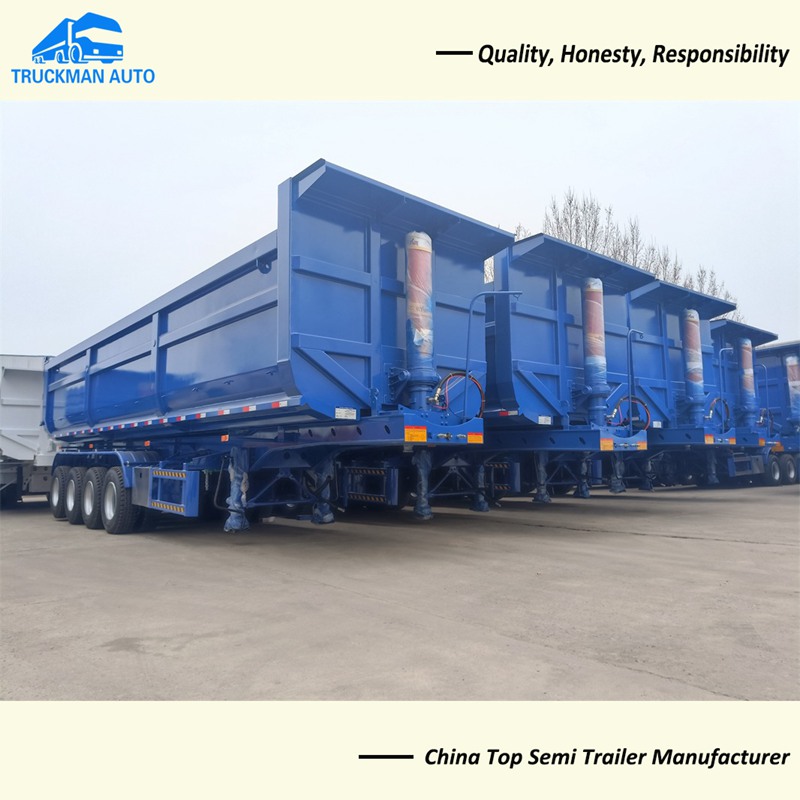

4 Fuwa axles hydraulic dumper trailer 40 cubic meter end tippers rear end U shape tippers for the transport of Mining products in Africa Countries like D.R.Congo,Zambia,Mali,Ghana,Guinea Etc.
