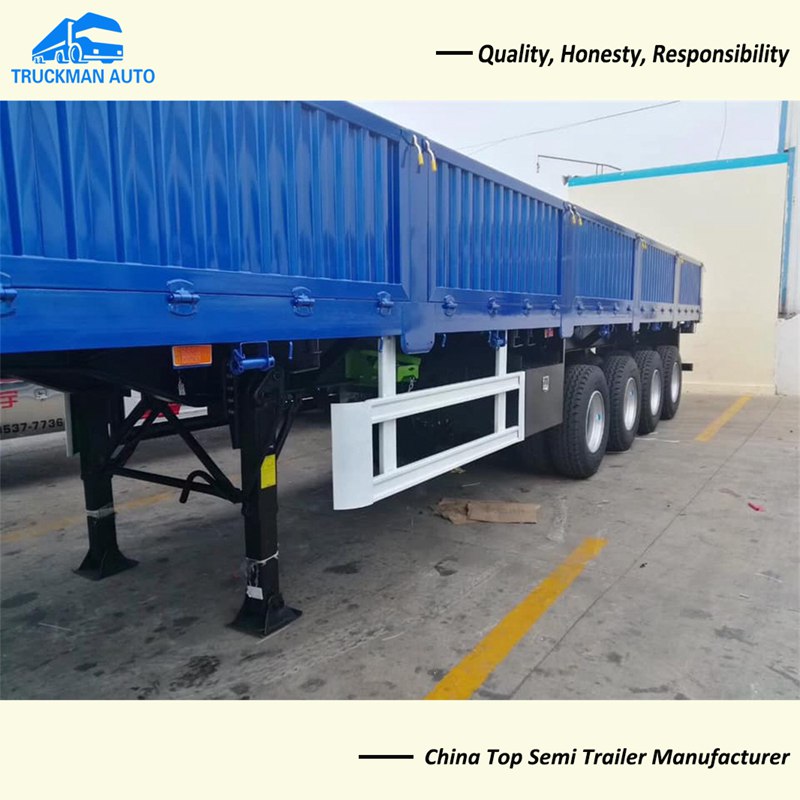

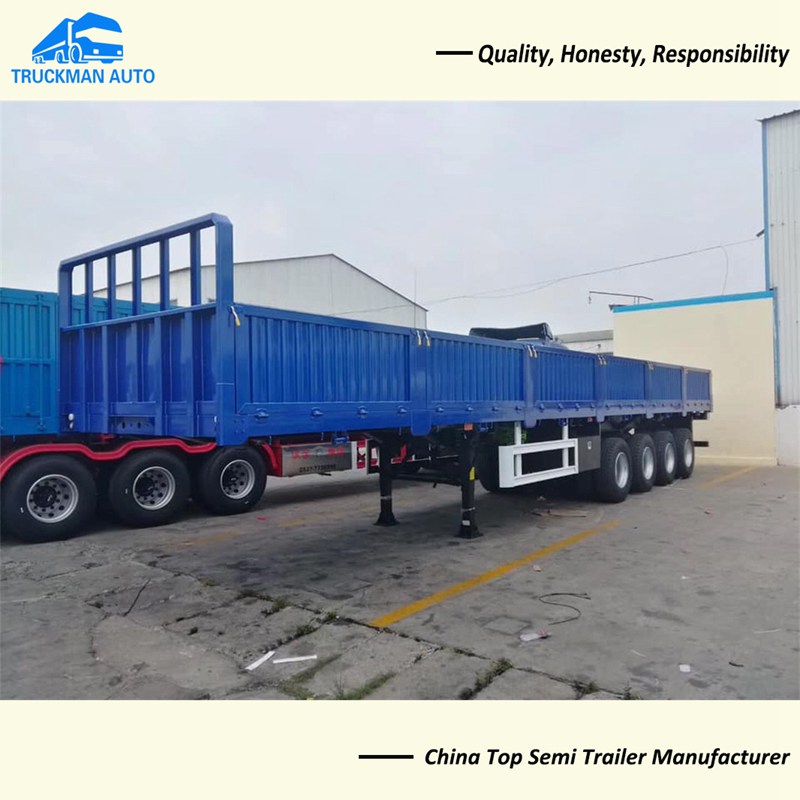

4 axle 50 tons side wall semi trailer used for transport bulk cargo and all kind of container
4 axle side wall semi trailer mainly used for transport bulk cargo and all kind of container. This two function side wall semi trailer is very popular in Ghana, and axle is 4x13,000kg or 16,000kg suitable for local transport bureau request.
Side Wall Semi Trailer Main Specification.
Product Name: Side Wall Semi Trailer
Loading Tons: 50,000kg
Tare Weight: 10,500kg
Axle: 4 axle, 4x13 tons
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx8sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12R22.5, 16 pcs, tubeless tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: Upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam.
With 12 pcs container lock, used for transport all kind of container
Dimension: 12500x2500x3200mm.
The side wall semi trailer could design according to your request.
