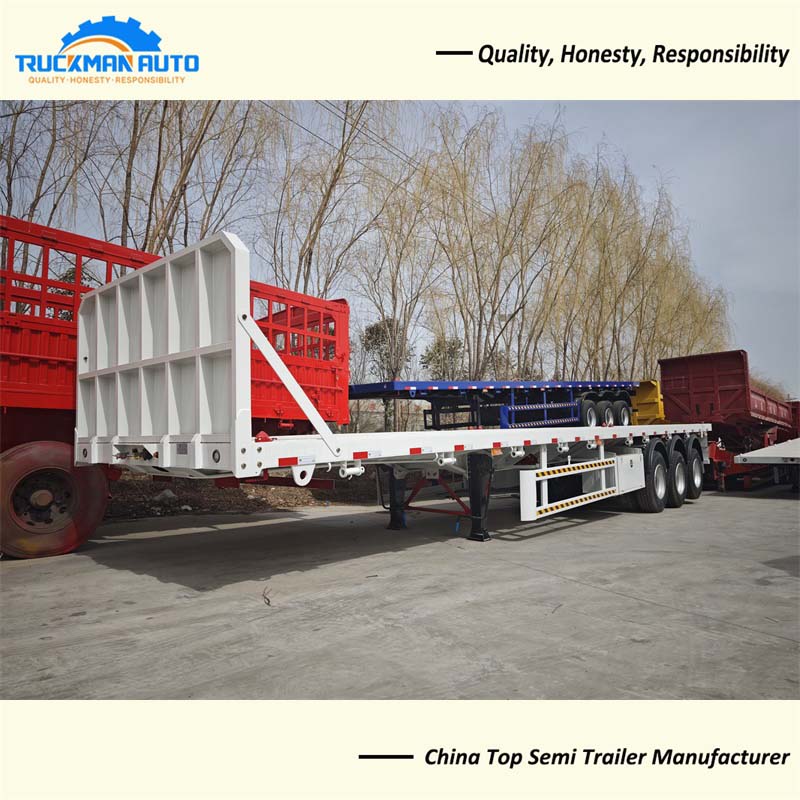

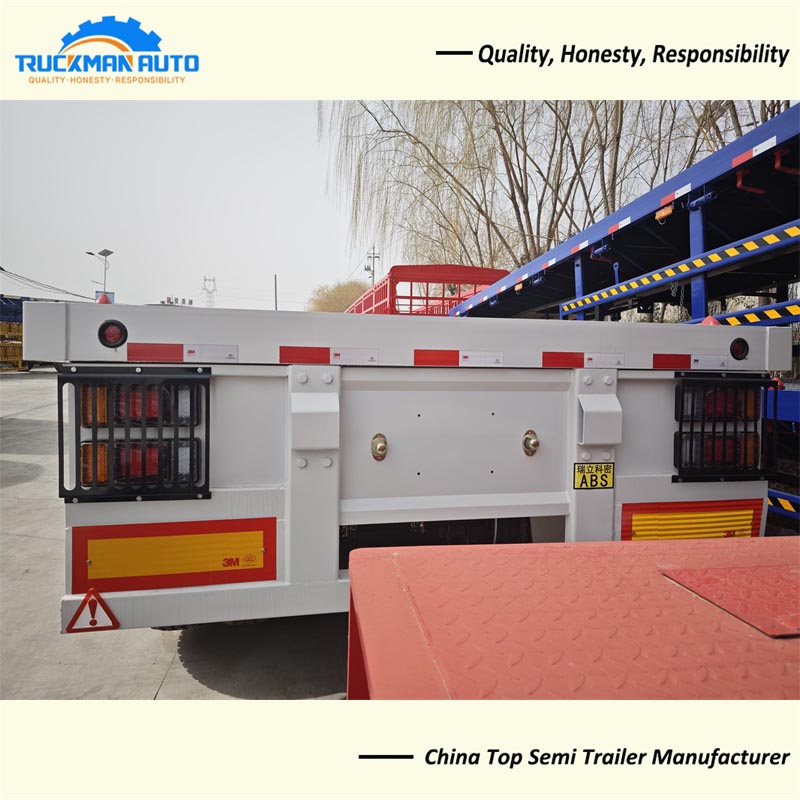

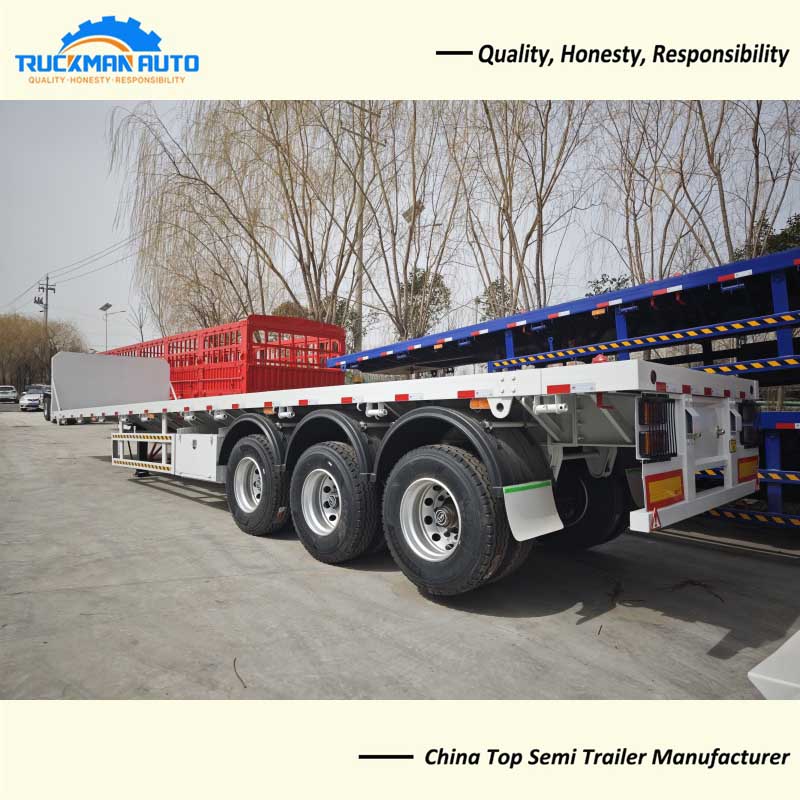

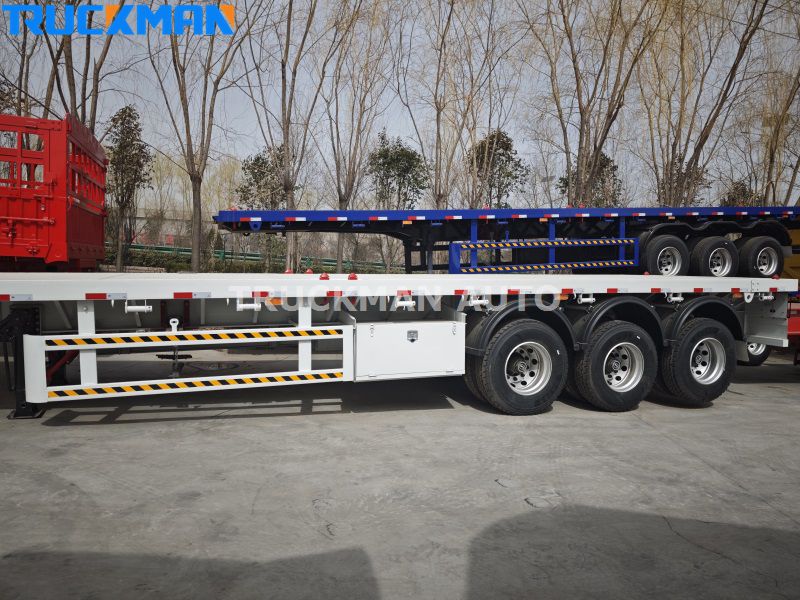

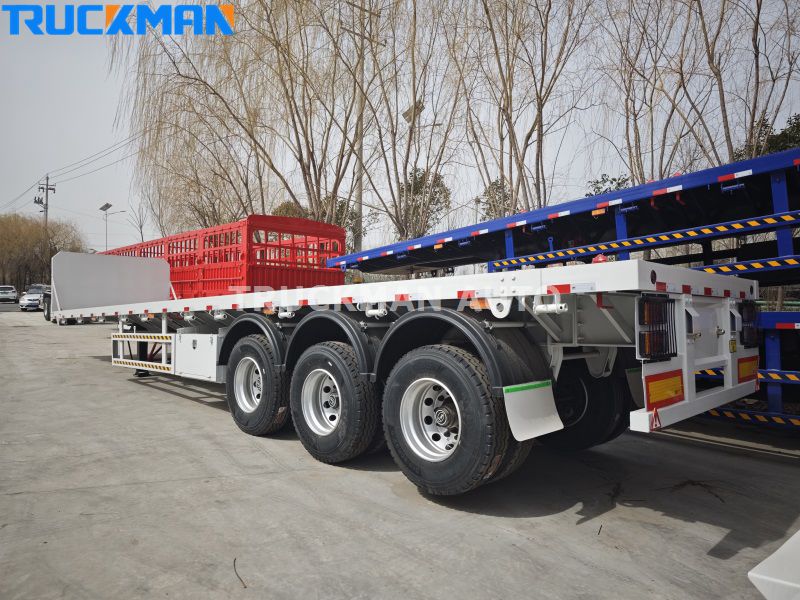

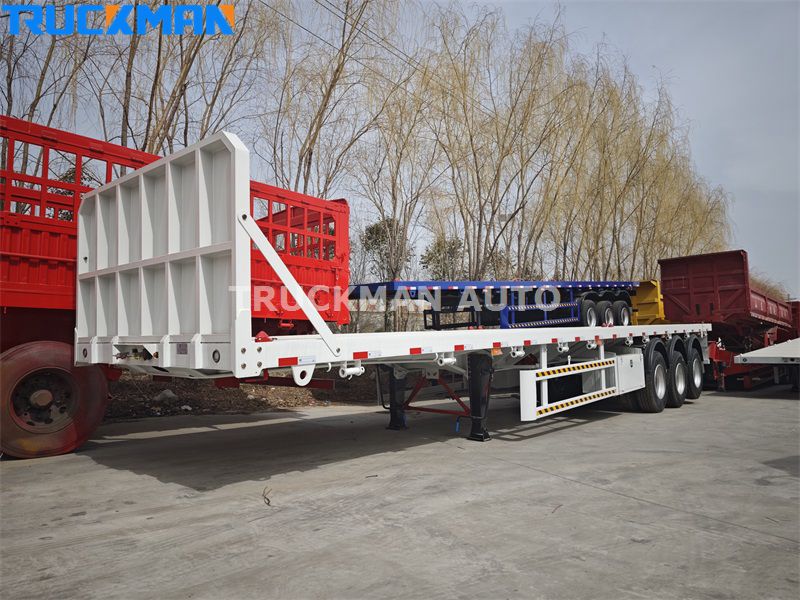

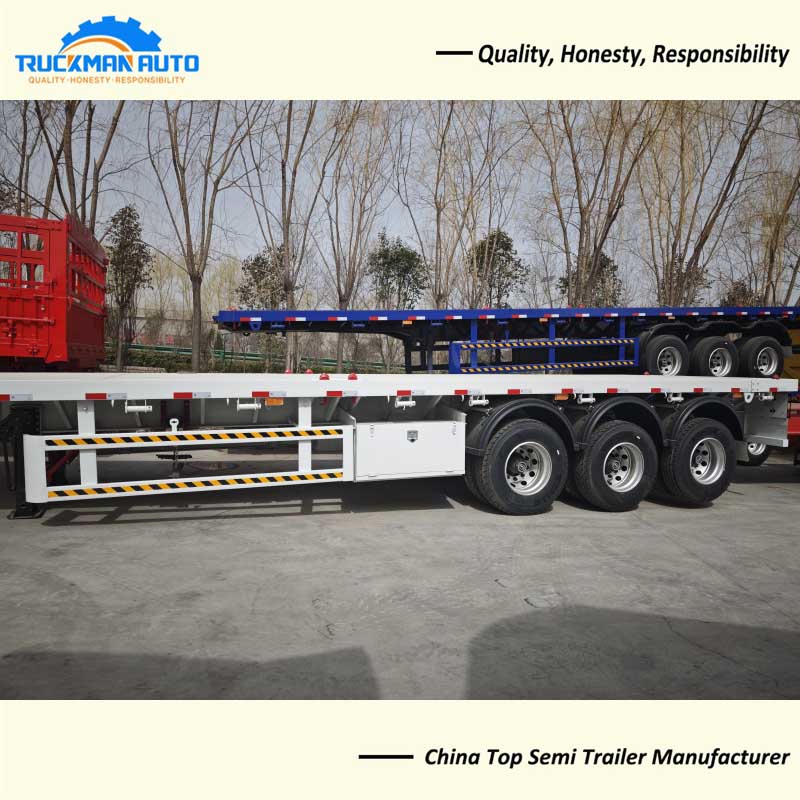

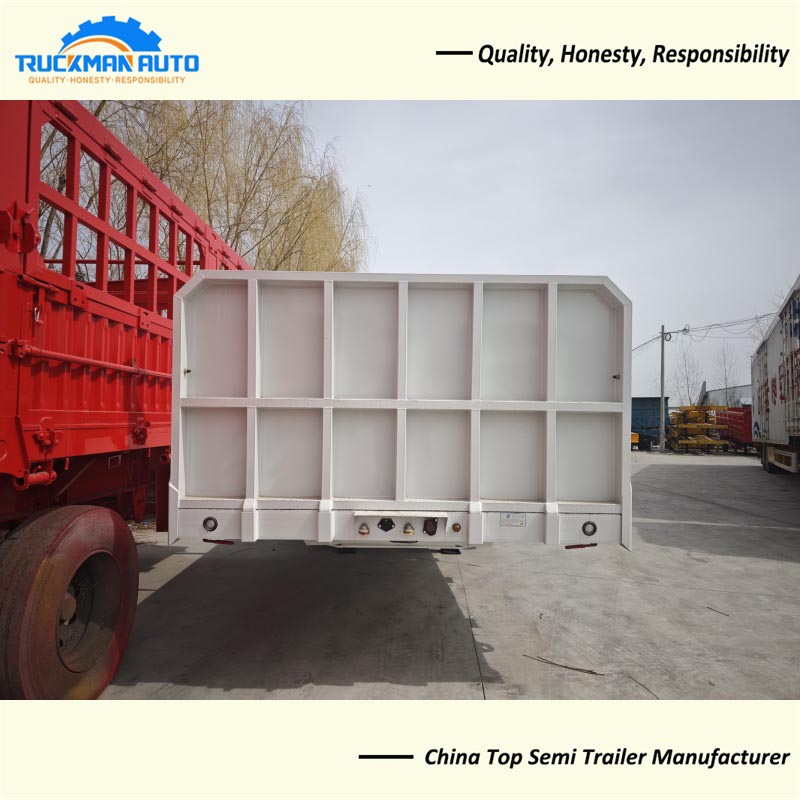

3 Axles 60 Tons Container Flatbed Semi Trailer

About 3 Axles 60 Tons Container Flatbed Semi Trailer

The container flatbed semi-trailer is a transportation device that consists primarily of the steel structure that defines its frame. It also includes a lighting system, brakes and tires. The function of the flatbed trailer is realized through the design and manufacture of its structure. It has been carefully designed to achieve the required height and weight to safely load and transport goods from one location to another. We can design each flatbed trailer to meet your needs in terms of load ratings, dimensions, and other systems required for use.

3 Axles 60 Tons Container Flatbed Semi Trailer Specification

Product Name: 3 Axles 60 Tons Container Flatbed Semi Trailer

Application: Container transportation

Axle: 3 axle, 3x16 tons, ZY brand

Tire: 315/80R22.5, 12 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 12500x2500x1550mm

3 Axles 60 Tons Container Flatbed Semi Trailer specification only for your reference, we will recommend other model Container Flatbed Semi Trailer basic your request.

3 Axles 60 Tons Container Flatbed Semi Trailer Shot Blasting Technology

The container semi trailer frame using shot blasting, shot blasting is the use of high-speed rotation of the impeller to throw the small steel shot or small iron shot high-speed impact on the surface of the parts, so you can remove the oxidation layer on the surface of the parts. At the same time, steel shot or iron shot high-speed impact on the surface of the parts, resulting in distorted lattice deformation of the surface of the parts, so that the surface hardness increases, is a method of cleaning the surface of the parts. Shot blasting will be the frame of the surface oil, rust and corrosion to do the best cleaning, but also the entire frame of the internal stress to be effectively released, and enhance the adhesion of paint and bodywork, really do not paint.

3 Axles 60 Tons Container Flatbed Semi Trailer Suspension System

The semi trailer adopts a new type of suspension system with high strength, strong impact resistance, balanced axle load of each axle, reasonable design of the angle of the system tie rods, bumpy road, reducing the friction between the tires and the ground slip distance, effectively reducing the degree of tire wear. At the same time, the tie rod can be adjusted, adjusting the wheelbase, effectively avoiding the phenomenon of bias grinding and wheel nibbling of the tires. It can improve the service life.
