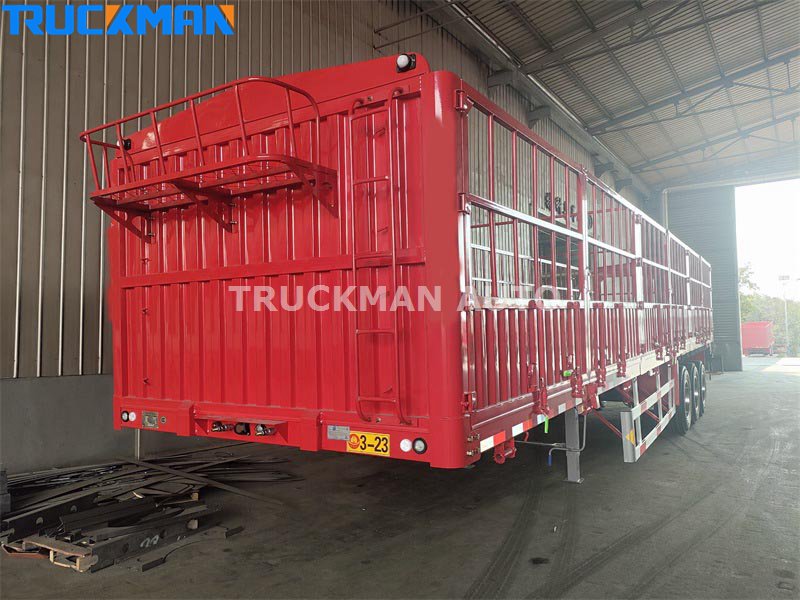

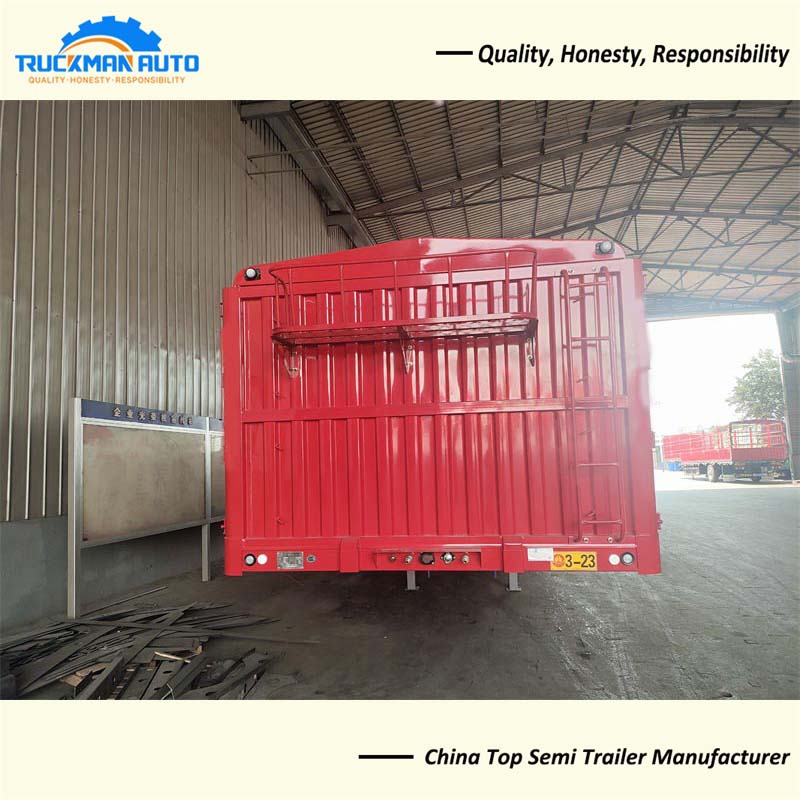

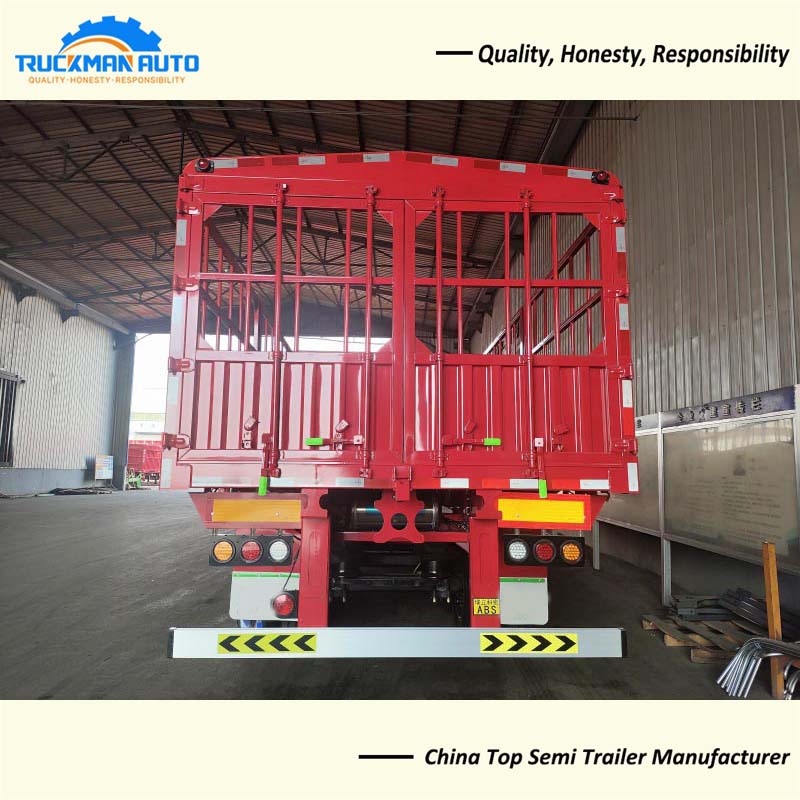

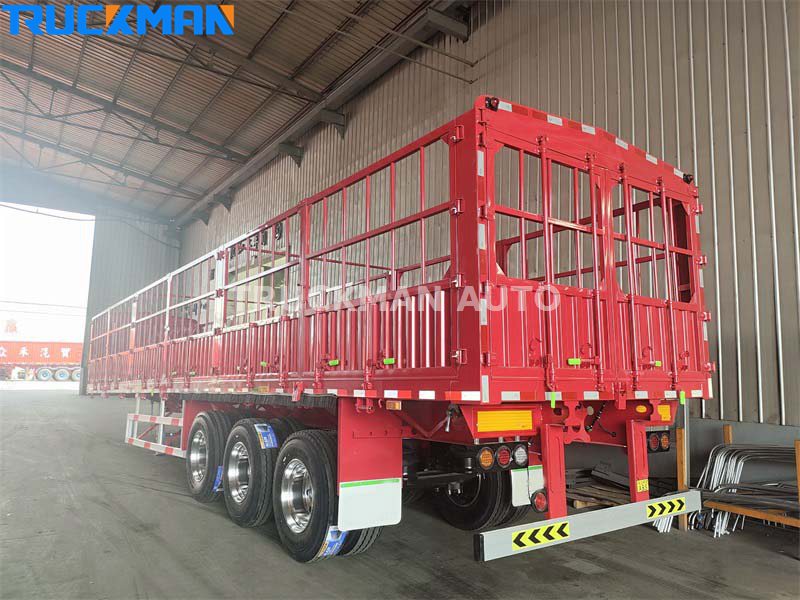

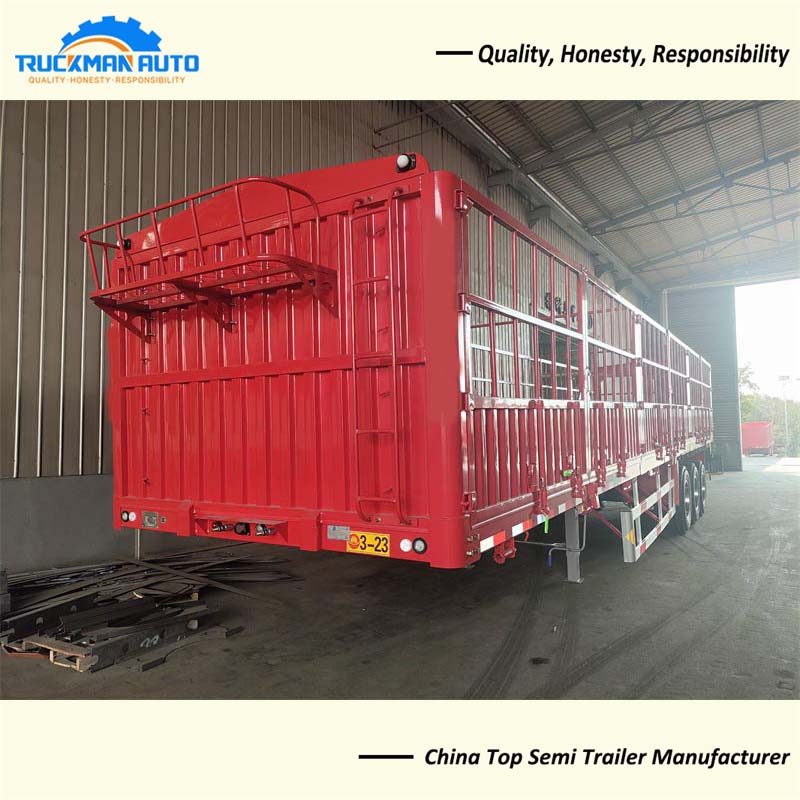

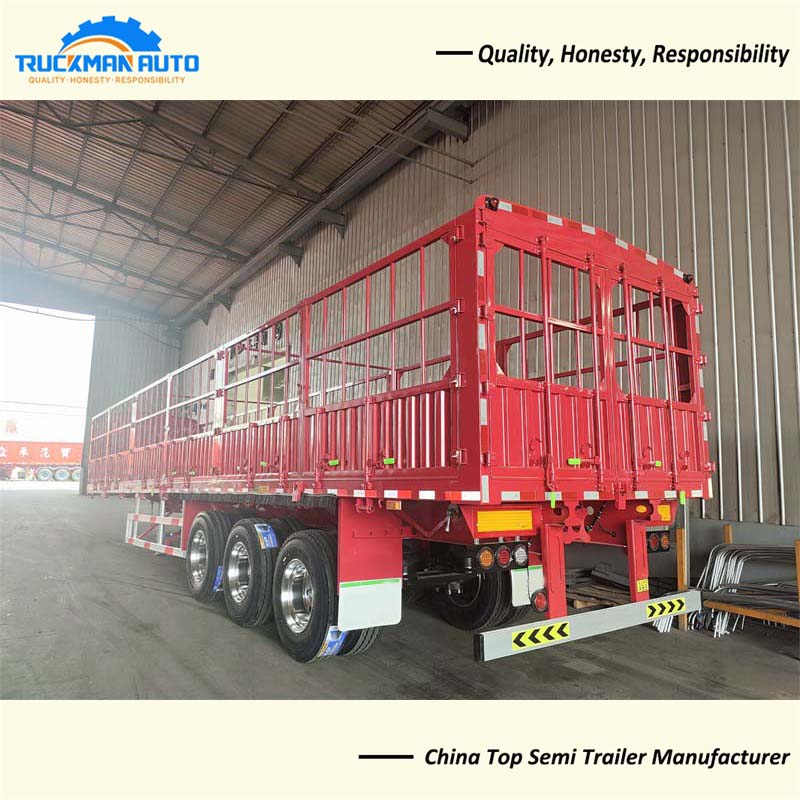

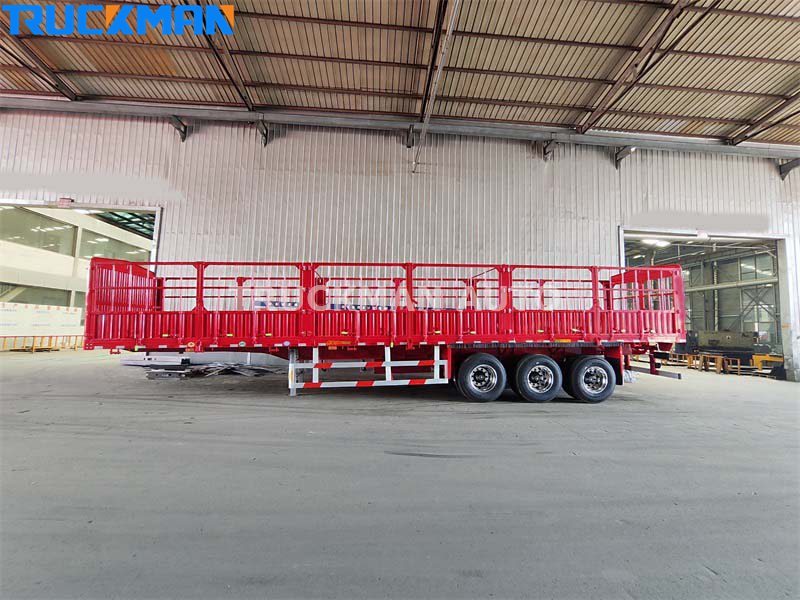

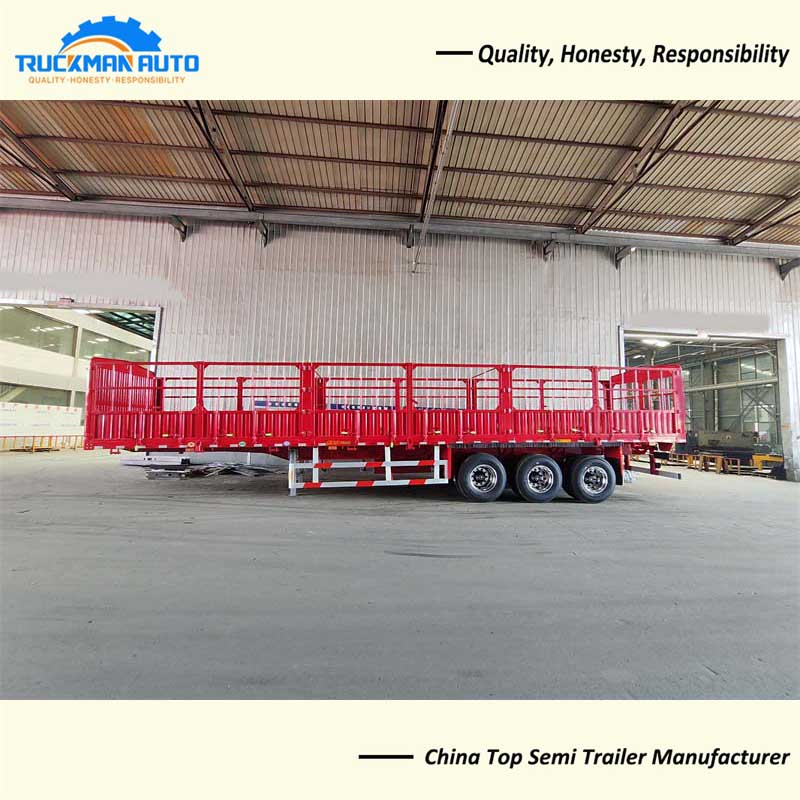

3 Axles 80 Tons Fence Semi Trailer

About 3 Axles 80 Tons Fence Semi Trailer

The semi-trailer fence structure design process combined with the user's transportation of goods category, reasonable design, to meet the load can fully reduce the weight of the carriage, the structure is simple and applicable, easy to dismantle, for the user to reduce the cost of investment, to create more profit space. The frame adopts the longitudinal beam and the whole penetrating crossbeam welded into the space frame structure, so that the beam has a better impact resistance, compression resistance, as well as anti-twisting and deformation ability.

3 Axles 80 Tons Fence Semi Trailer Specification

Product Name: 3 Axles 80 Tons Fence Semi Trailer

Application: Bulk Transportation

Axle: 3 axle, 3x16 tons, ZY brand

Tire: 315/80R22.5, 12 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 13500x2500x3250mm

3 Axles 80 Tons Fence Semi Trailer specification only for your reference, we will recommend other model Fence Semi Trailer basic your request.

3 Axles 80 Tons Fence Semi Trailer Advantage

The whole vehicle body is made of high-quality steel, advanced technology, strict production and manufacturing, the whole vehicle structure is reasonable, reliable performance, easy to operate, beautiful appearance. The suspension adopts non-independent steel plate stamping type rigid suspension, which is made of tandem steel plate spring and suspension support; the structure is reasonable, with strong rigidity and strength, which is used to support the load to slow down the impact. The beams are welded by automatic submerged welding, the frame is shot peened, and the cross beams are penetrated into the longitudinal beams and welded as a whole.

3 Axles 80 Tons Fence Semi Trailer Tires

The tire is designed as a tubeless tire with better elasticity and abrasion resistance, and is able to conduct heat to the wheel hub through the tire body at high speeds, effectively dissipating heat and reducing the risk of flat tires. Due to its flat design, the tire crown angle is zero, providing strong adhesion, helping to maintain driving stability and less friction, which is conducive to vibration damping and increasing vehicle speed. The tire offers long-lasting durability and reliability and is suitable for use in all weather conditions.
