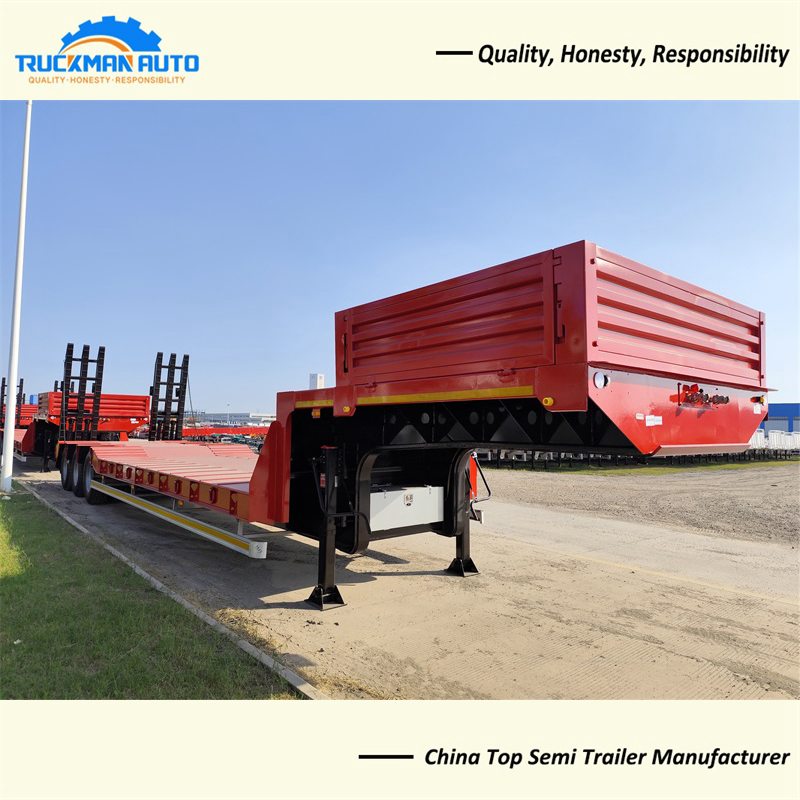

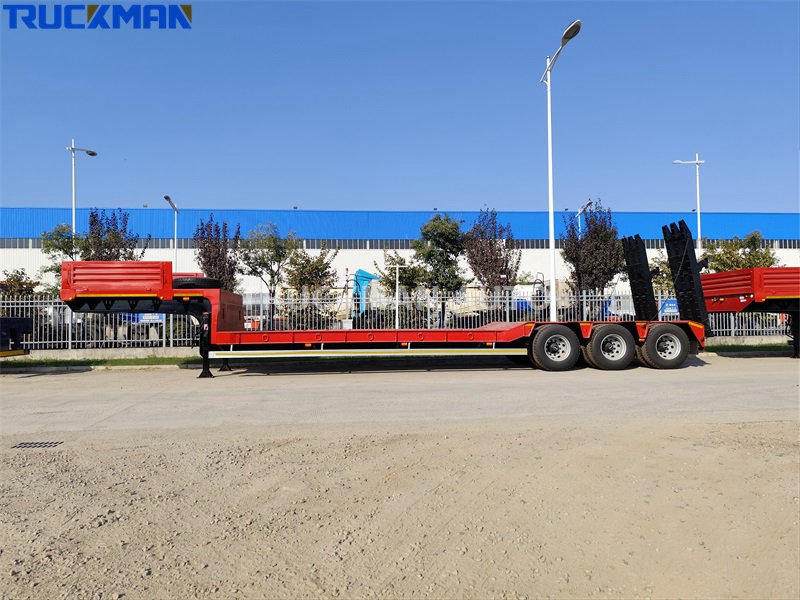

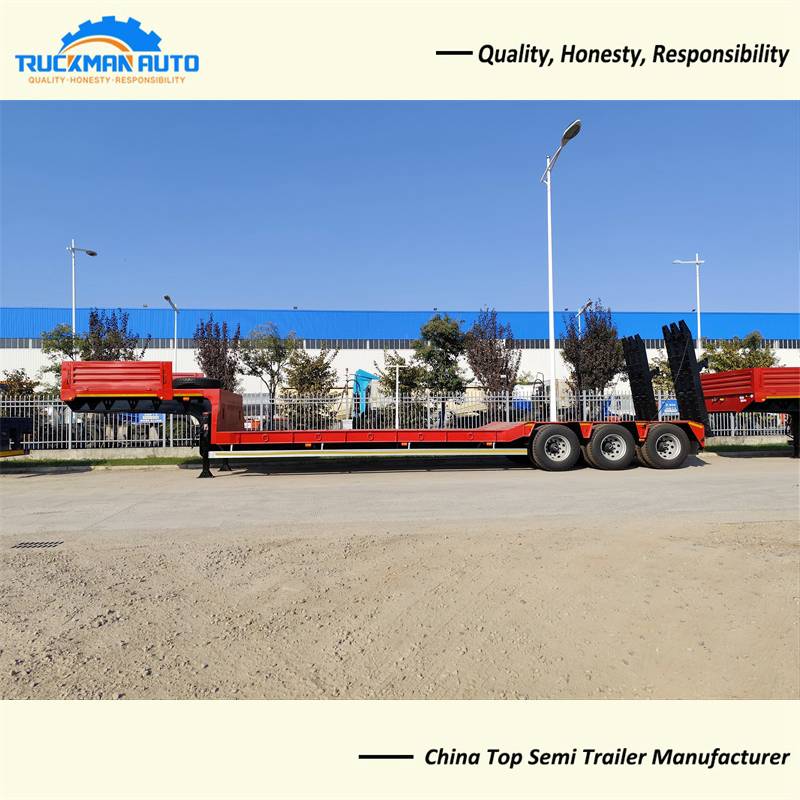

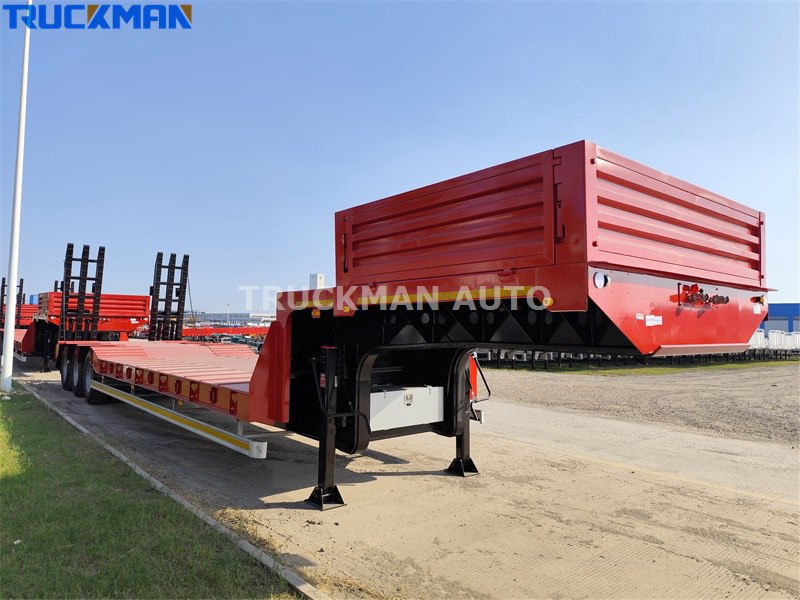

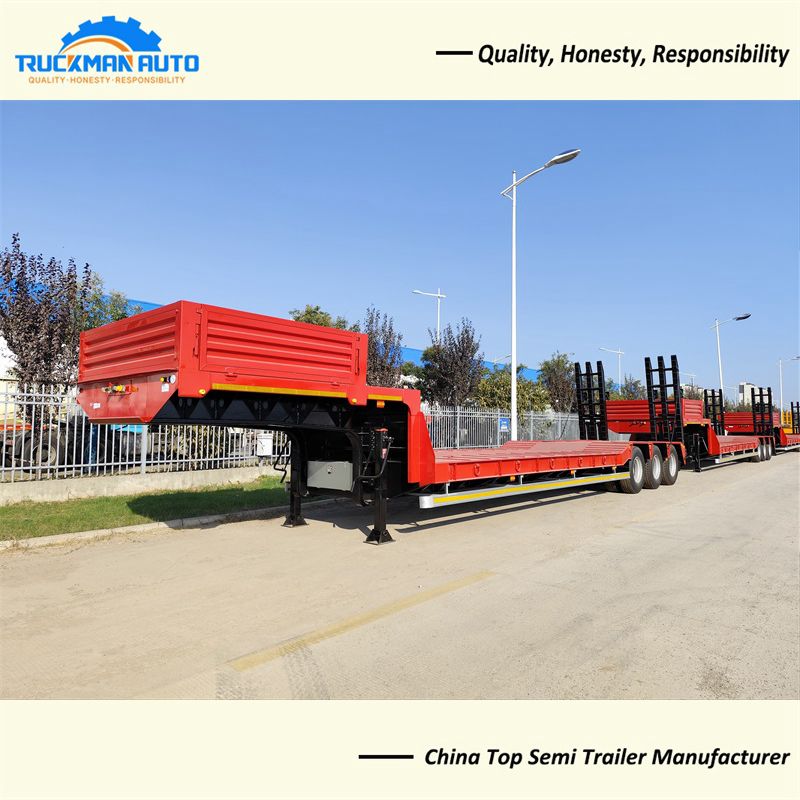

50 Tons Gooseneck Low Bed Trailer

About 50 Tons Gooseneck Low Bed Trailer

The gooseneck low bed trailer has an extremely strong carrying capacity and a low centre of gravity to ensure safe transport. The low bed trailer can be manufactured according to the load capacity and the length of the goods to be transported. All components are made of durable brands, with advanced production tech and in timely maintenance to improve the low bed trailer service life.

50 Tons Gooseneck Low Bed Trailer Specification

Product Name: 50 Tons Gooseneck Low Bed Trailer

Application: Construction machinery transport

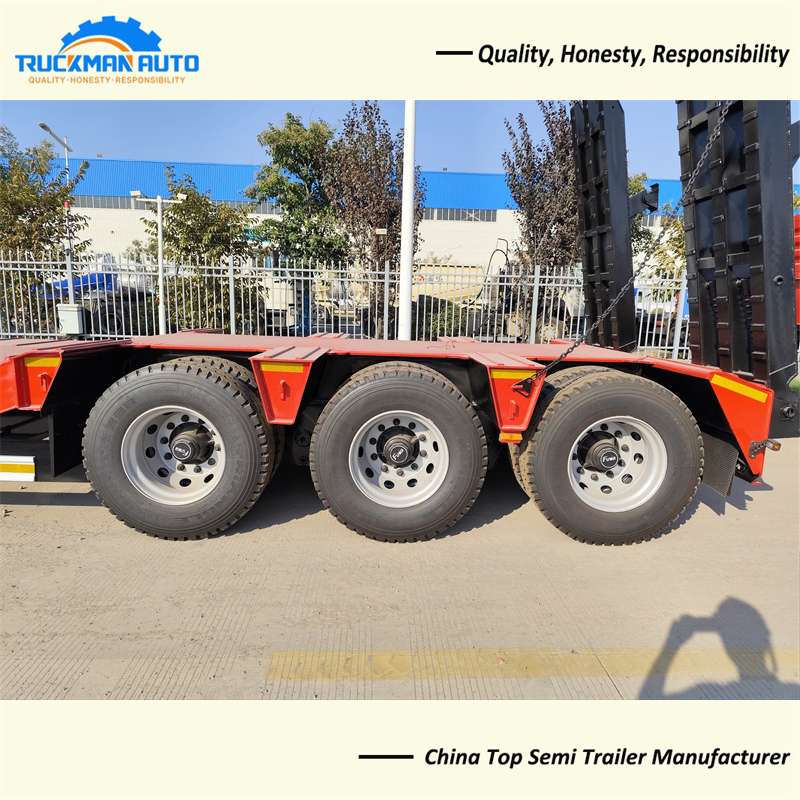

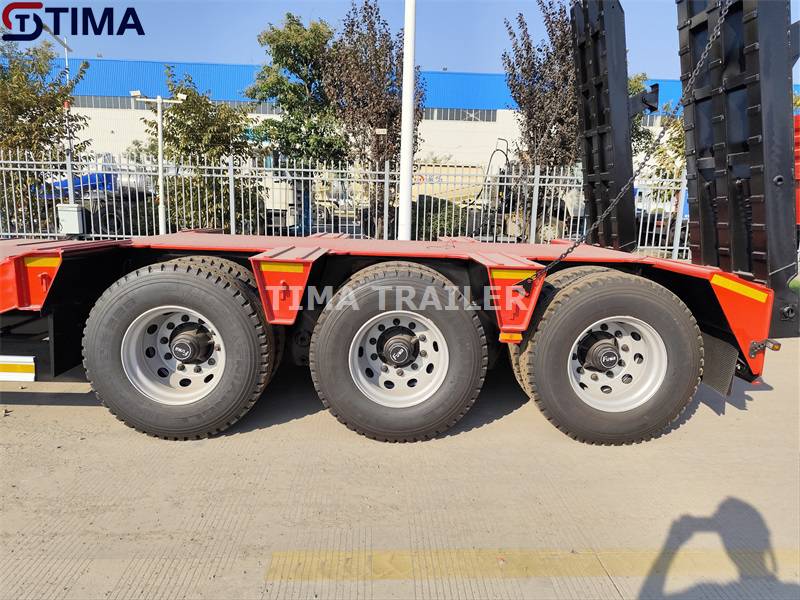

Axle: 3 axles, 3x16 tons, FUWA brand

Tire: 315/80R22.5, 12+1 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 13500x3000x2830mm

The 50 tons gooseneck low bed trailer specification only for your reference, we can manufacture other model gooseneck low bed trailer basic your request.

50 Tons Gooseneck Low Bed Trailer Material

The gooseneck low bed trailer adopt the two model material, the main beam and ladder use the Q550 steel, other parts adopt the Q355 steel. The main beam is made of Q550 steel to ensure the load carrying capacity and to ensure that the beam does not break. The use of Q355 steel for the other components not only reduces the purchase cost but also improves the service life.

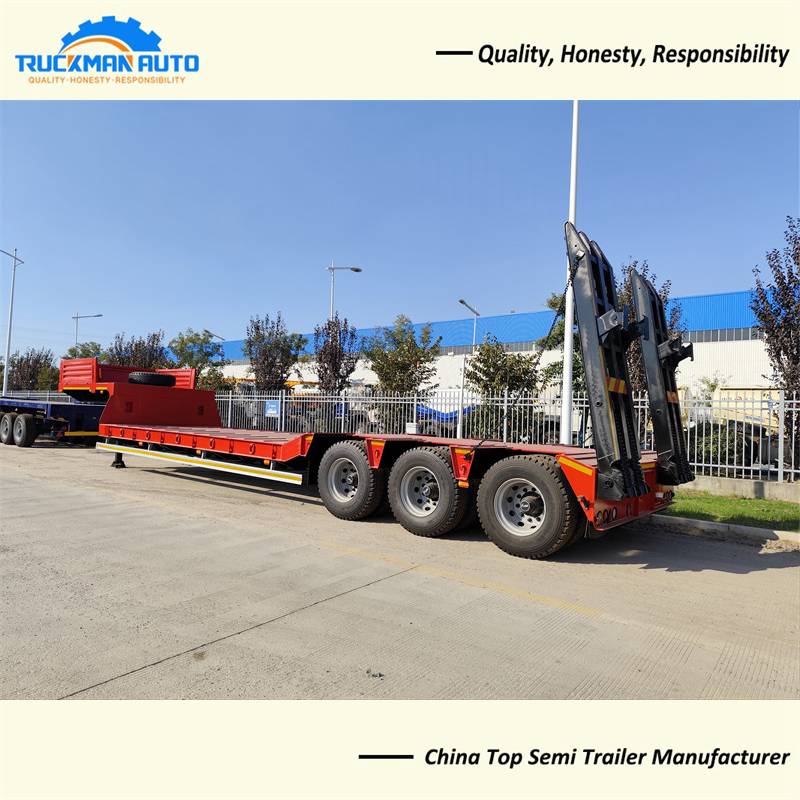

50 Tons Gooseneck Low Bed Trailer Ladder

The 50 tons gooseneck low bed trailer ladder is mechanical spring model, it also can optional the hydraulic ladder. The choice between a mechanical spring ladder and a hydraulic ladder depends on factors such as personal preference, specific operational requirements, and budget considerations. Hydraulic ladders may be preferred when frequent ladder operation is required or when there is a need for precise control over the ladder's positioning. However, mechanical spring ladders can still be reliable and cost-effective options for many applications.
