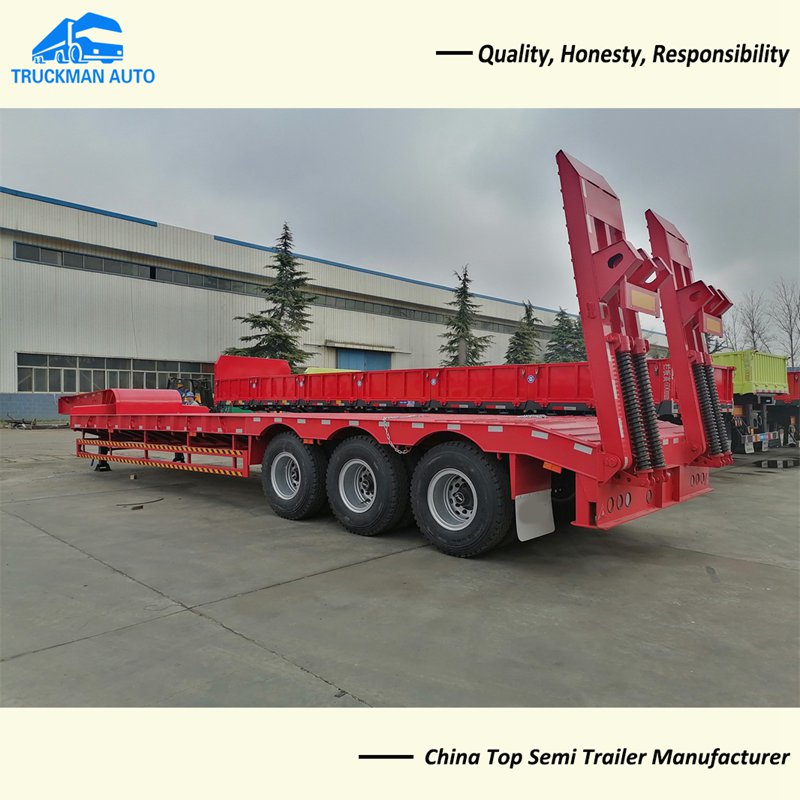

Low bed trailer could loading 40-70 tons suitable for different road condition, the leaf spring of chassis is adopt the 120x16mm more thickness, and the rim thickness also use 18mm. It's confirm the trailer keep running and reduce the maintenance cost. The axles have FUWA, HJ, BPW brand, 13 tons, 16 tons axles. The spare parts could easily get from local and we also could supply the trailer parts.
Low bed trailer could loading 40-70 tons suitable for different road condition, the leaf spring of chassis
is adopt the 120x16mm more thickness, and the rim thickness also use 18mm. It's confirm the trailer
keep running and reduce the maintenance cost. The axles have FUWA, HJ, BPW brand, 13 tons, 16
tons axles. The spare parts could easily get from local and we also could supply the trailer parts.

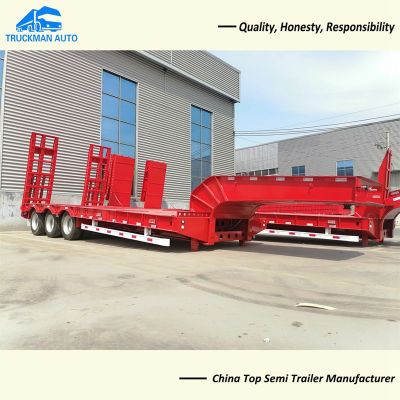

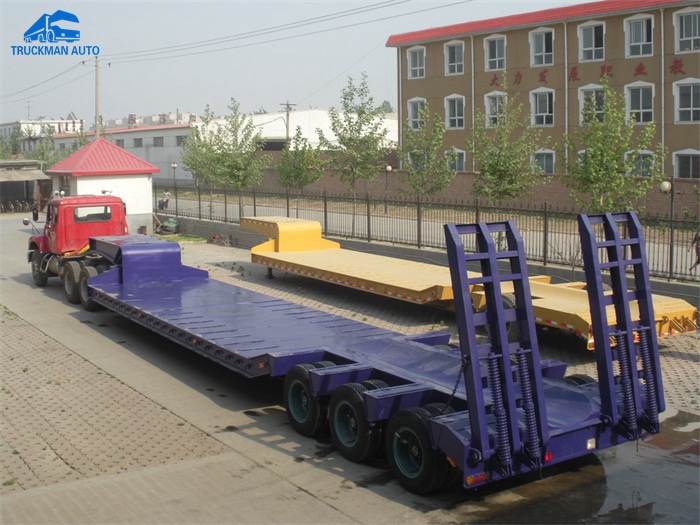

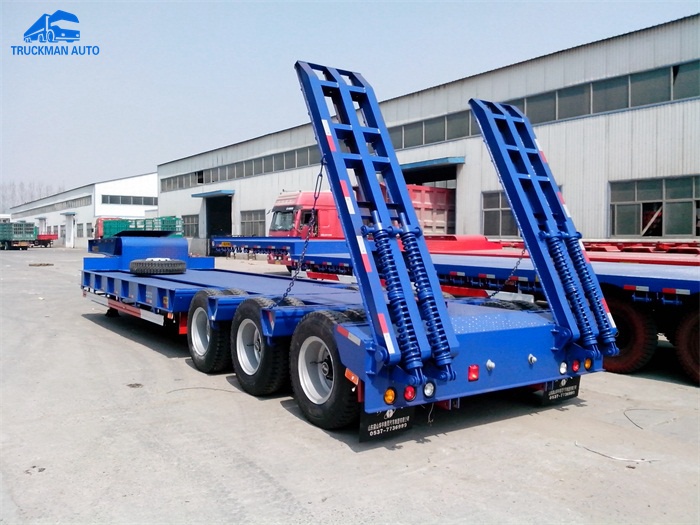

3 Axles 100 Tons Low Bed Trailer

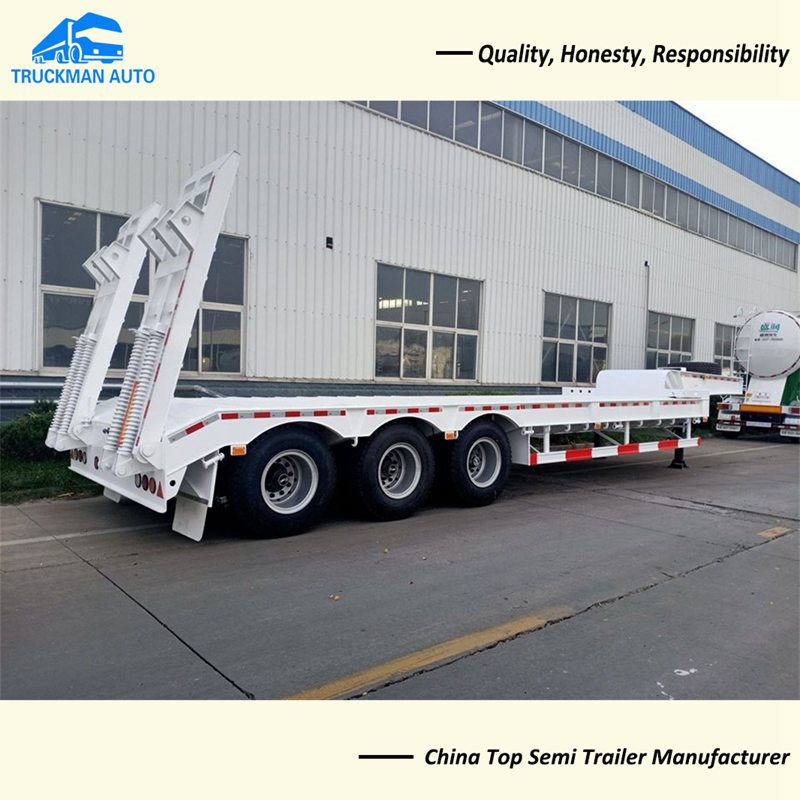

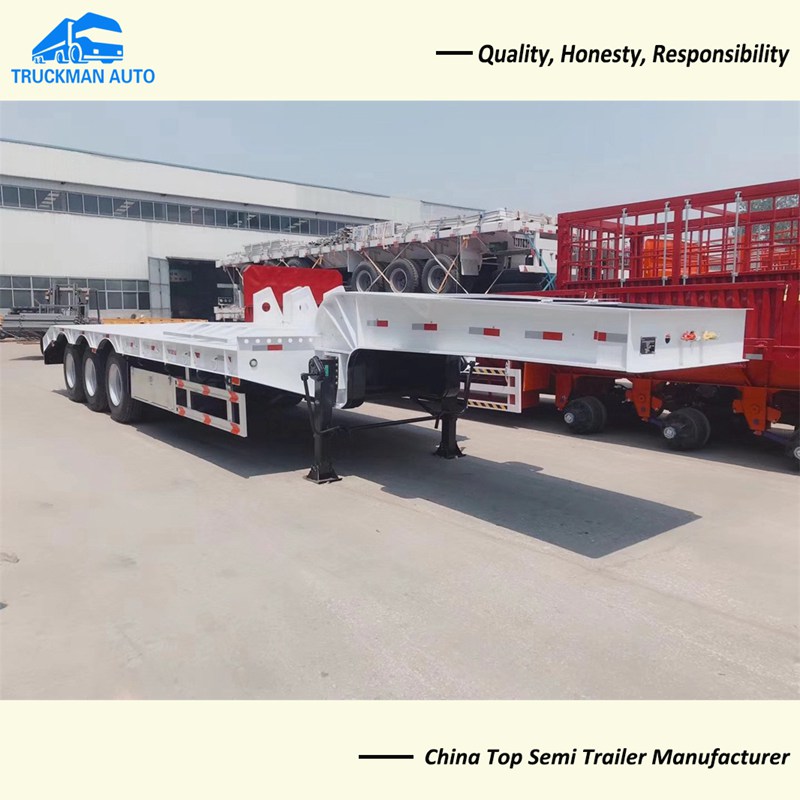

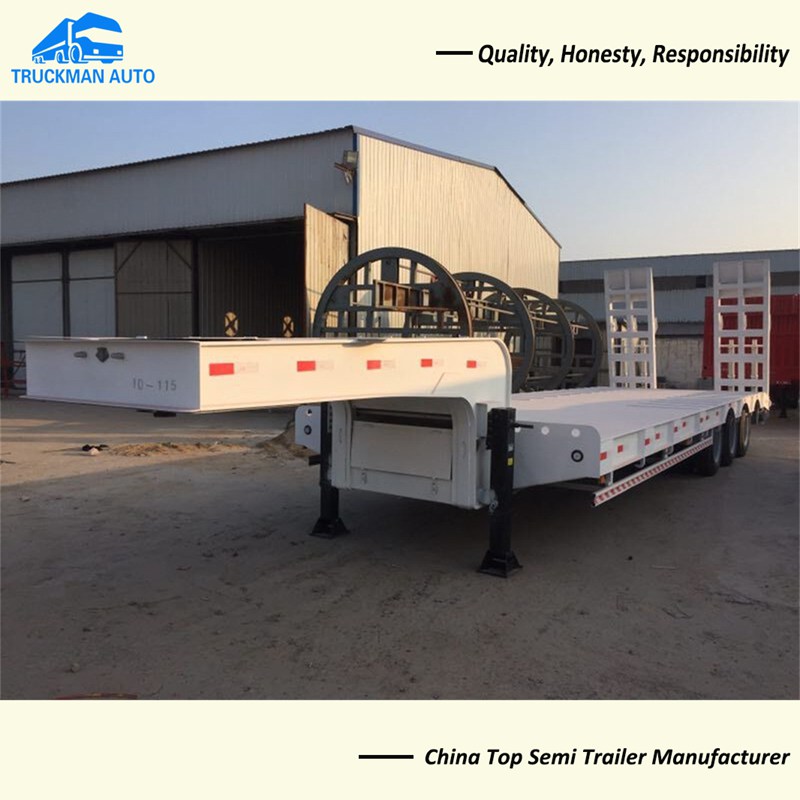

3 Axles 50 Tons Low Bed Trailer
Main Specification For The Flat Bed Semi Trailer.
Loading Capacity: 50-70 Tons
Main Beam Spec.: Q345B Steel, Height: 500mm, upper palte is 16mm, middle is 10mm, side is 18mm.
Suspension: mechanical suspension
Leaf Spring: 120mmx16mmx10pcs
Axle Spec: 3x16 tons, FUWA or BPW
King Pin: 3.5"(90mm) JOST Brand
Tire: 315/80R22.5, 12.00R20, LINGLONG brand.
Brake Chamber: 6 sets

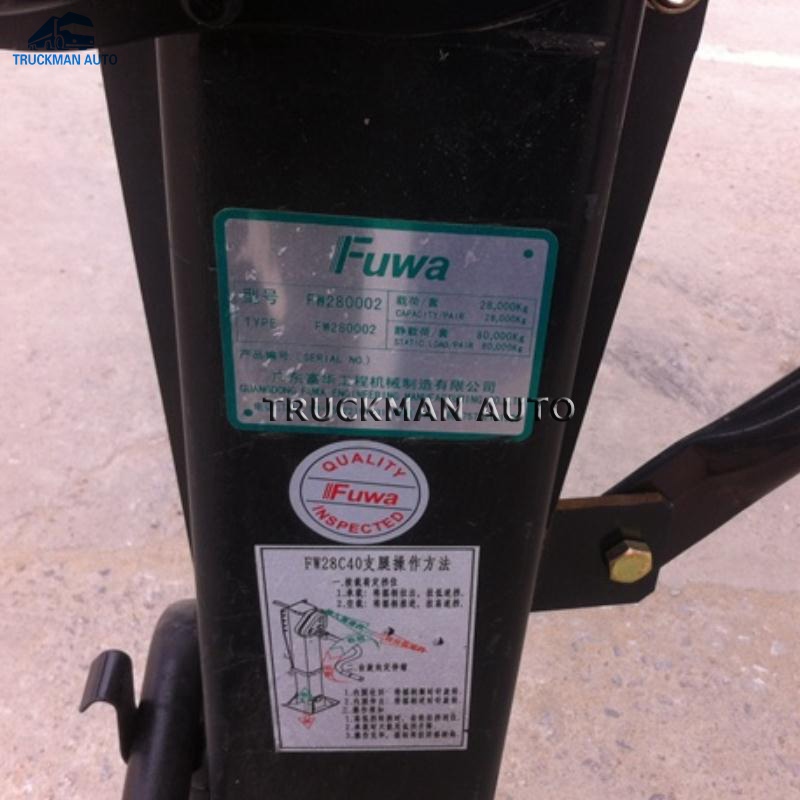

Landing Gear: JOST E100, 28 tons.
Electric System: 24V, One Set 6-core Standard Cable
Light: Tail lamp with turn signal, brake light & reflector, side lamp etc.
The Specification Only For Your Reference, We Also Could Design The Trailer According To Your Request.
