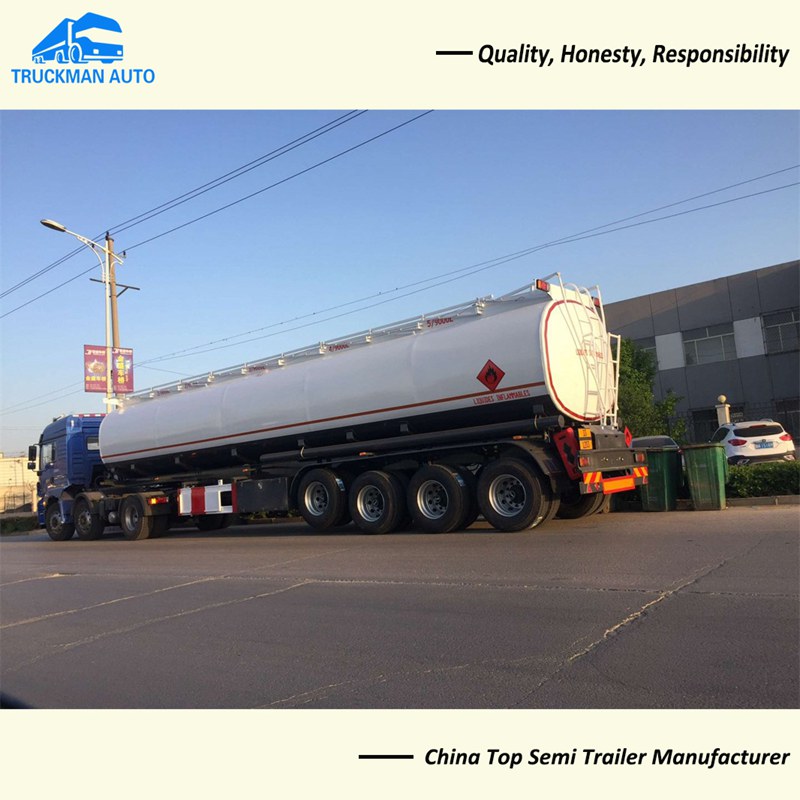

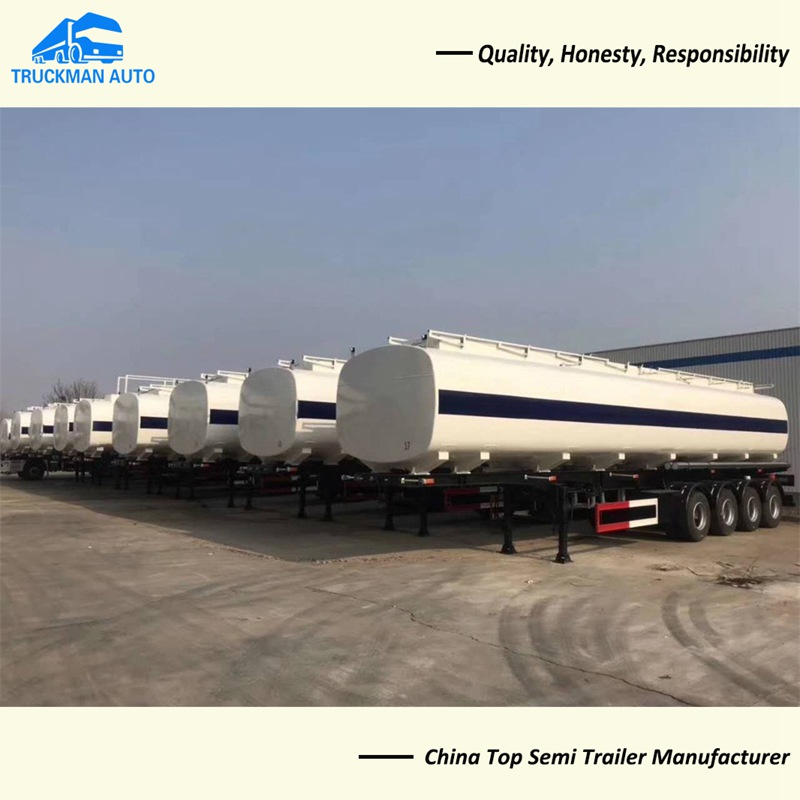

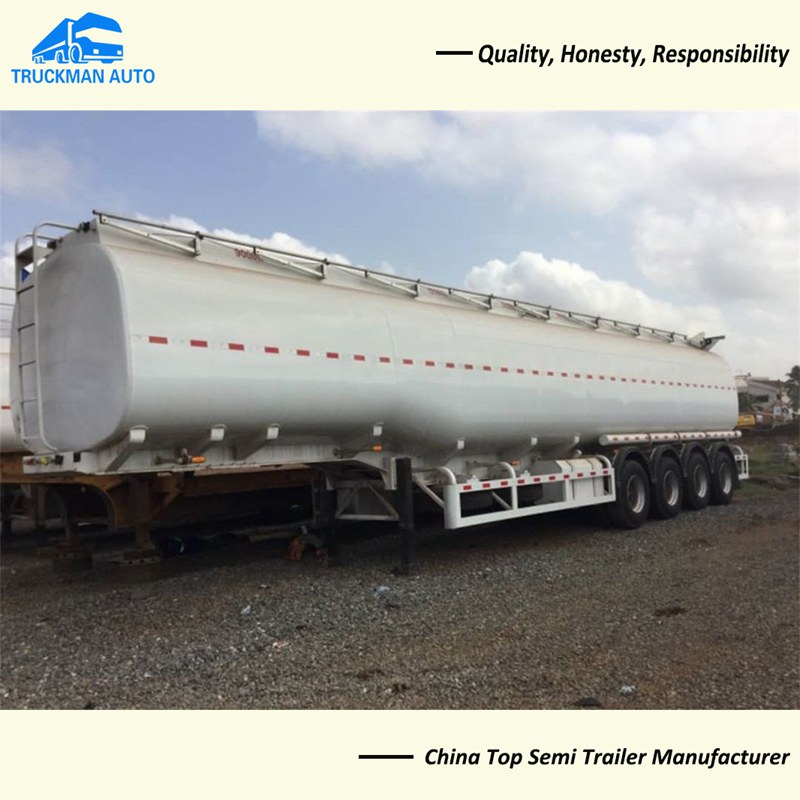

54000 Liter 4 Axle Fuel Tank Trailer For Ghana

4 axle fuel tank trailer special design for the Ghana, the front suspension is air lift also could adopt the mechanical suspension. With total 54000 liters and 6 pcs comdepartment, every 9000 liter / per comdepartment. Also with 6 pcs manhole, discharge valve etc.

54000 Liter 4 Axle Fuel Tank Trailer Main Specification.

Product Name: 4 Axle Fuel Tank Trailer

Loading Capacity: 54,000 liter

Tare Weight: 10,000kg

Axle: 4 axle, 4x13000kg

Suspension: mechanical suspension, America type, 8mm thickness

Leaf Spring: 90x16mmx10pcsx8sets

Rim: 16mm thickness

Landing Gear: JOST, 28 tons.

Tire: 315/80R22.5, 16 pcs, tubeless tire.

Brake System: WABCO brand, ABS and 8 pcs brake chamber.

Thickness Of Frame: middle 8mm, lower plate 16mm, “I” type main beam.

Dimension: 13000x2500x3750mm.

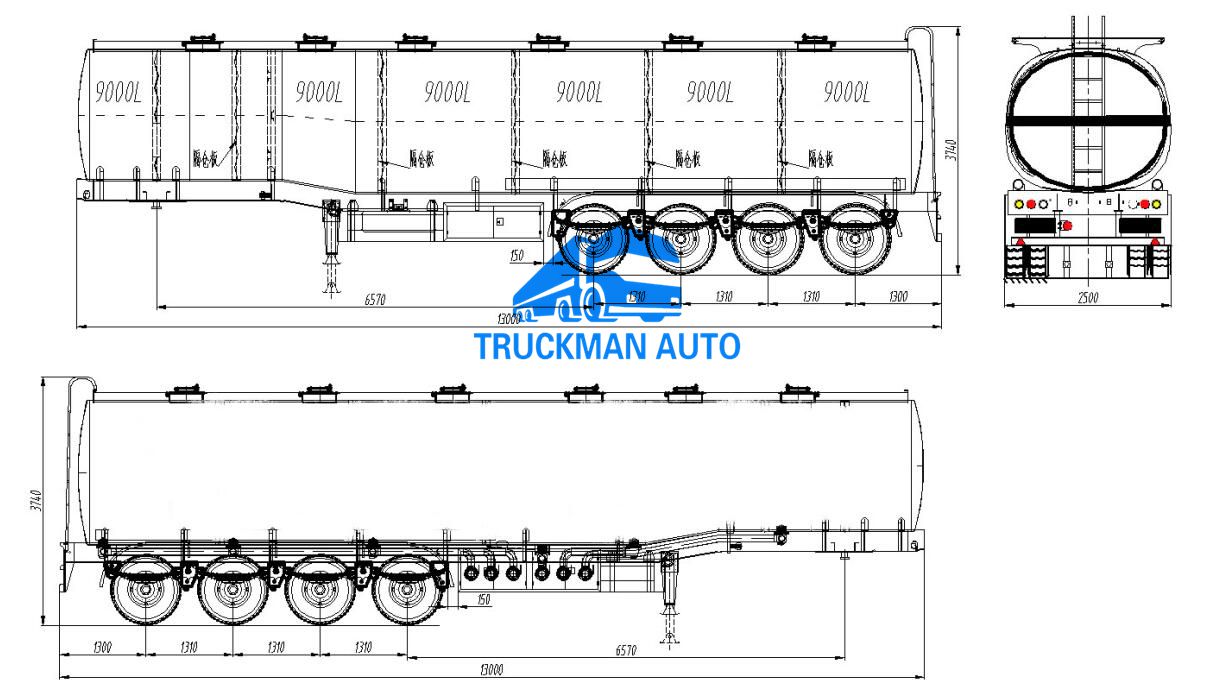

4 Axle Fuel Tank Trailer Design Draft.

The 4 axle fuel tank trailer could design according to your request, like axle could adopt FUWA or BPW brand; comdepartment have 1-10 pcs available; tire also could adopt the LINGLONG, TRIANGLE brand.
