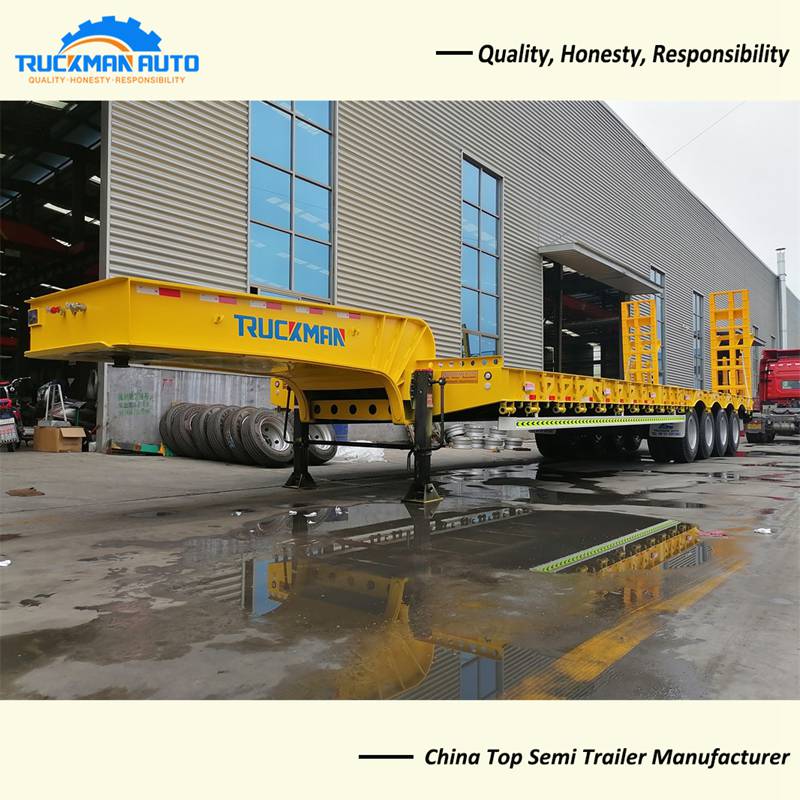

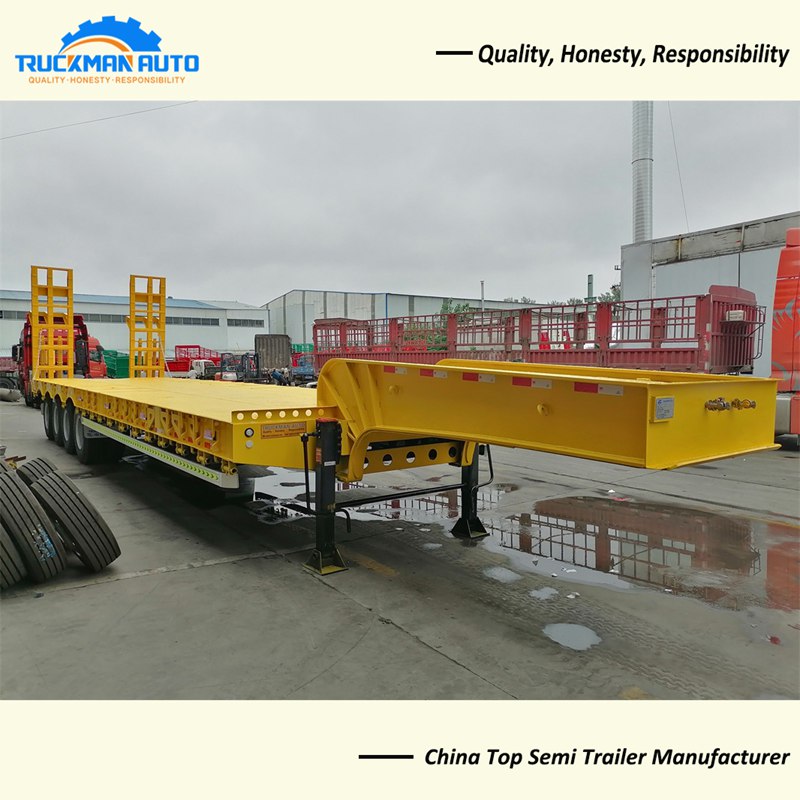

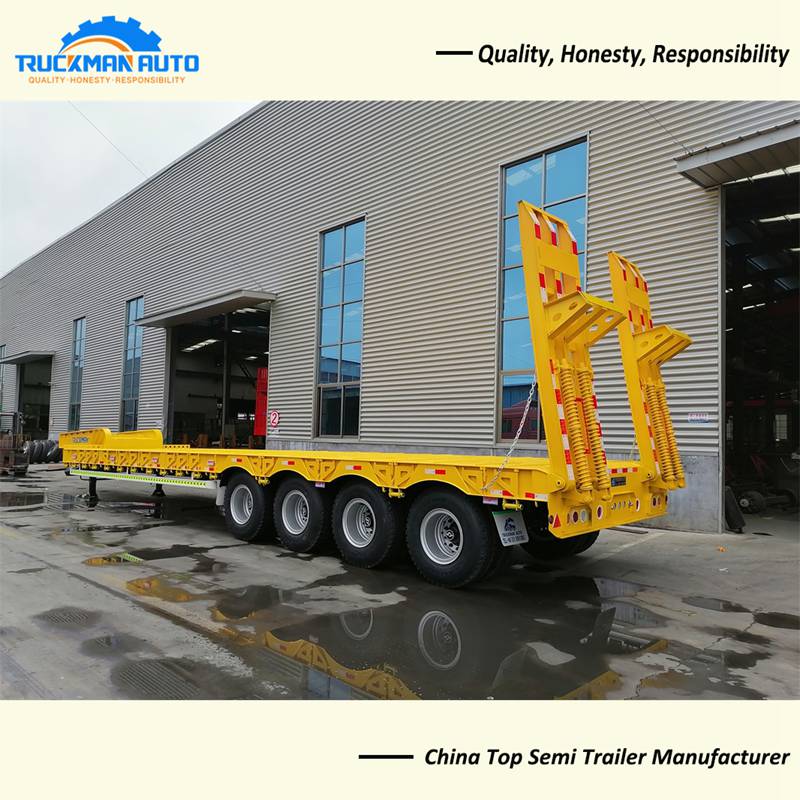

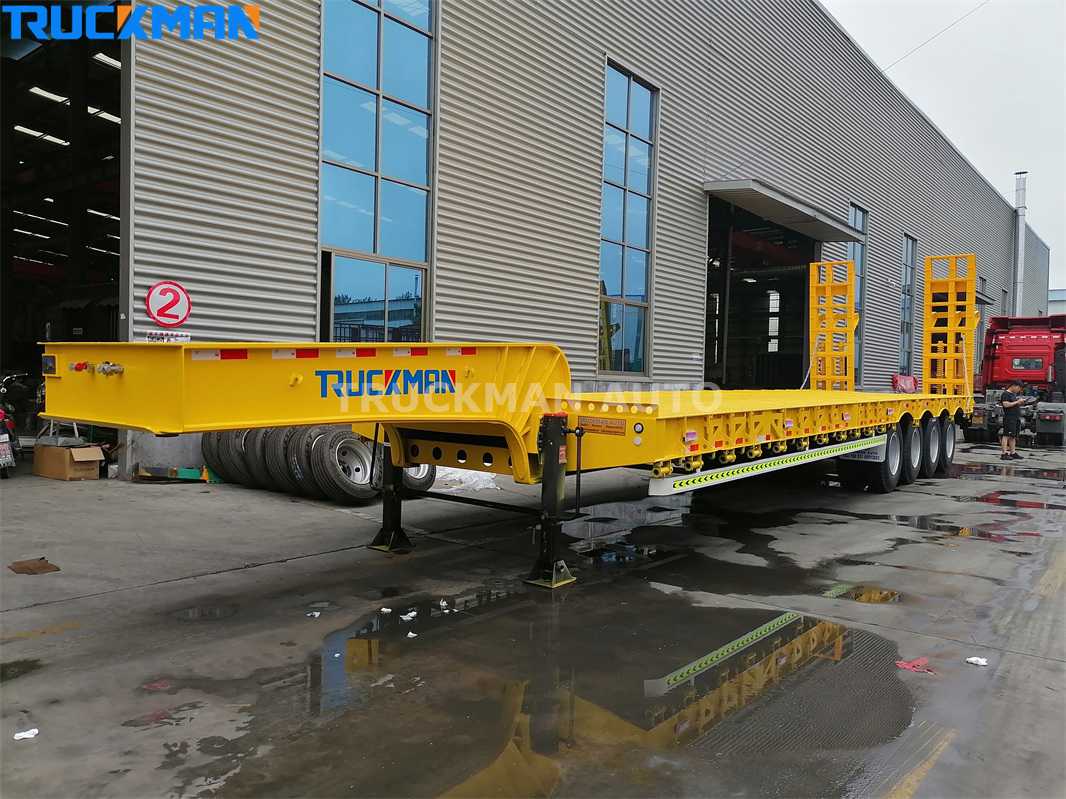

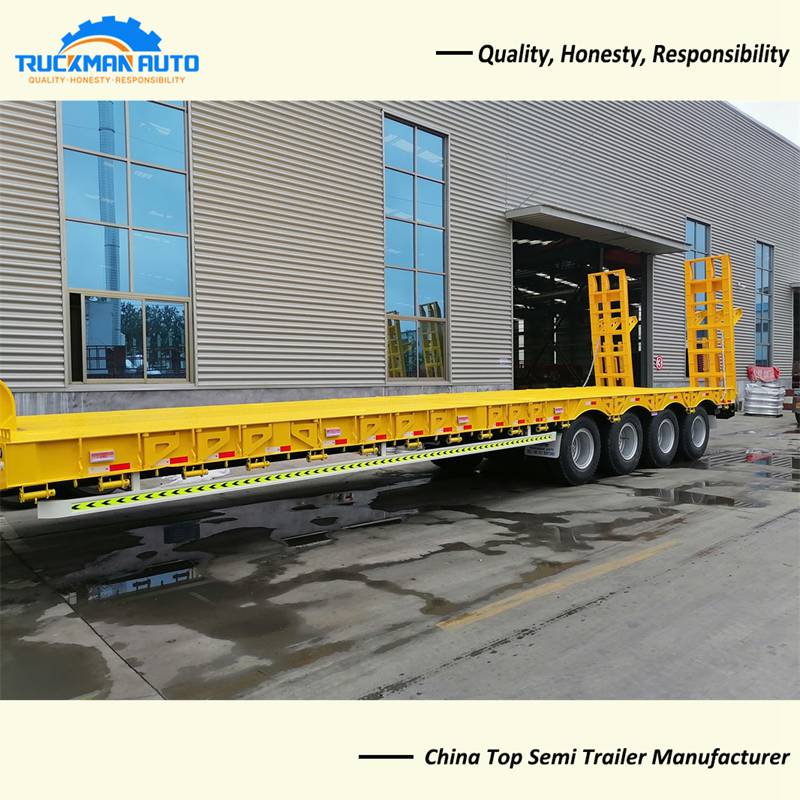

4 Axle 100 Tons Lowbed Trailer For South Sudan

4 Axle 100 Tons Lowbed Trailer Feature

-. 100 tons lowbed trailer main beam adopt the automatic submerged arc welding, the weld beautiful and uniform. Main beam more stronger than manual welding.

-. The side beam of 100 tons lowbed trailer use ‘’工’’ structure design, and height of side beam reach to 300mm, meet the heavy duty loading request

-. Material adopt the T700 high strength steel, compare with Q235 carbon steel it has more stronger pressure resistance and higher loading capacity. Q355 manganese plate can optional.

4 Axle 100 Tons Lowbed Trailer Specification

1. Dimension: 13500x3100x3800mm

2. Axle: 4x16 tons, ZY brand

3. Tire: 315/80R22.5, 16 pcs, LINGLONG

4. Main Beam: upper 20mm, lower 20mm, middle 12mm

5. Support Leg: JOST brand, 28 tons

6. Tractor Pin: JOST brand, 90#

7. Suspension: 8mm thickness, heavy duty loading

8. Leaf Spring: 90x16mmx10pcs

9. Wheel Rim: 18mm

10. Brake Valve: WABCO brand

11. Hooks: Stronger hooks

The 4 axle 100 tons lowbed trailer specification only for your reference, we will recommend other model lowbed trailer basic your request.

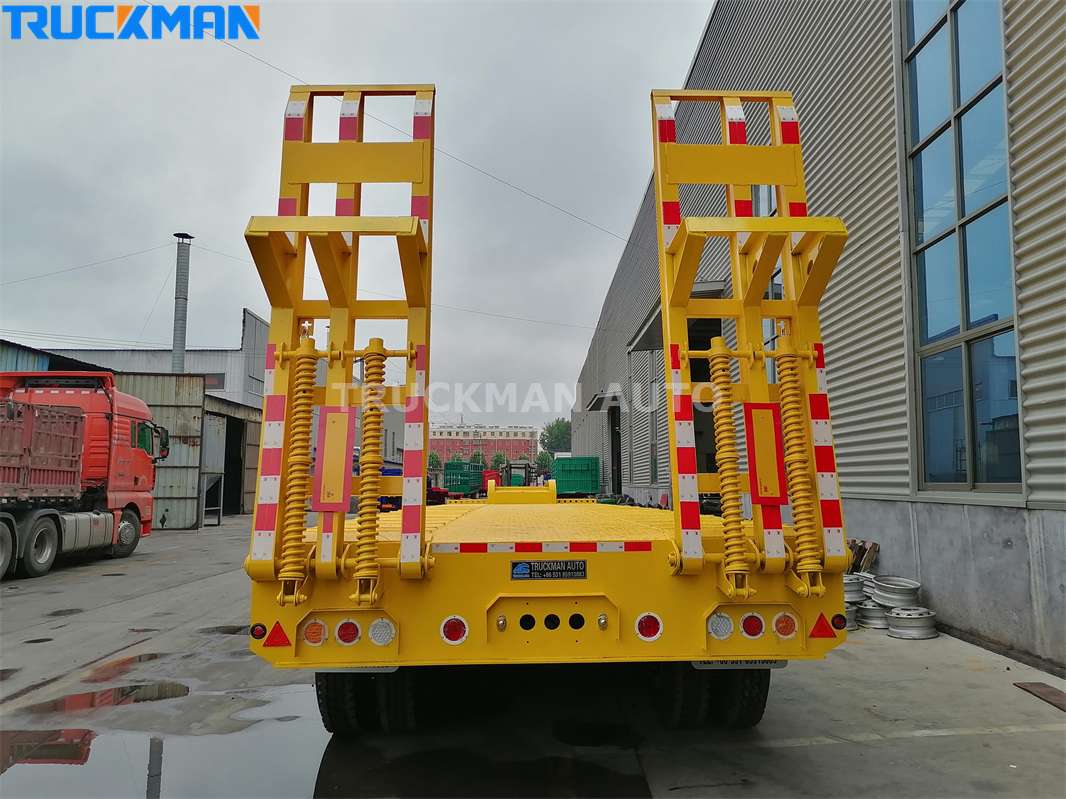

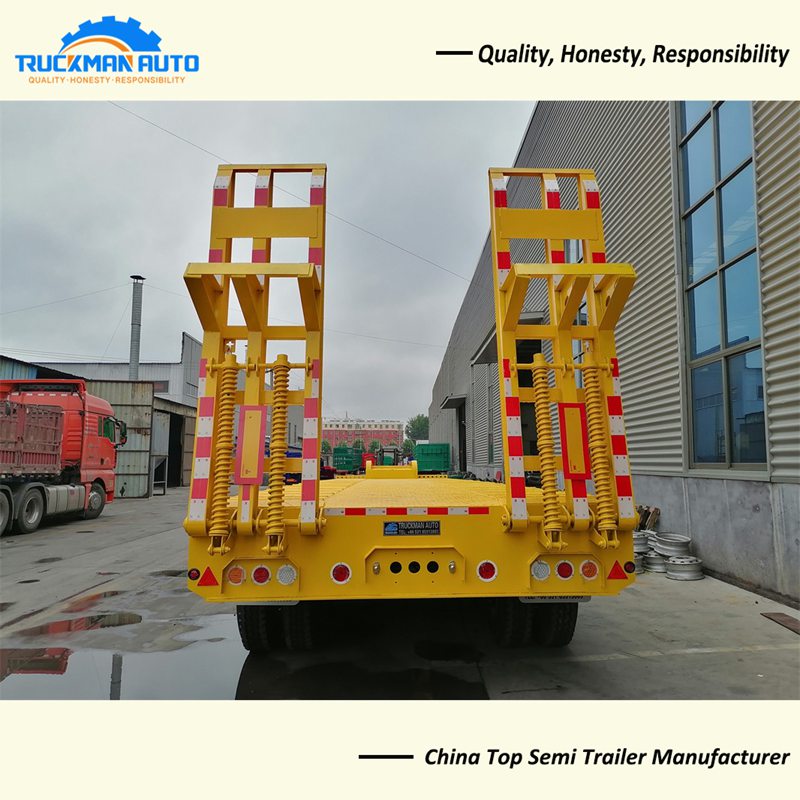

4 Axle 100 Tons Lowbed Trailer Ladder Information

Our TRUCKMAN brand 4 axle 100 tons lowbed trailer ladder width can reach to 850mm, others only 800mm. And use more stronger high strength steel also, longer life, will not deform. The ladder now have two model can option, mechanical spring and hydraulic model, the hydraulic ladder can easy operation, but the purchase and maintenance cost also very higher than mechanical spring ladder. Now on the market the mechanical spring ladder more popular than hydraulic ladder.
