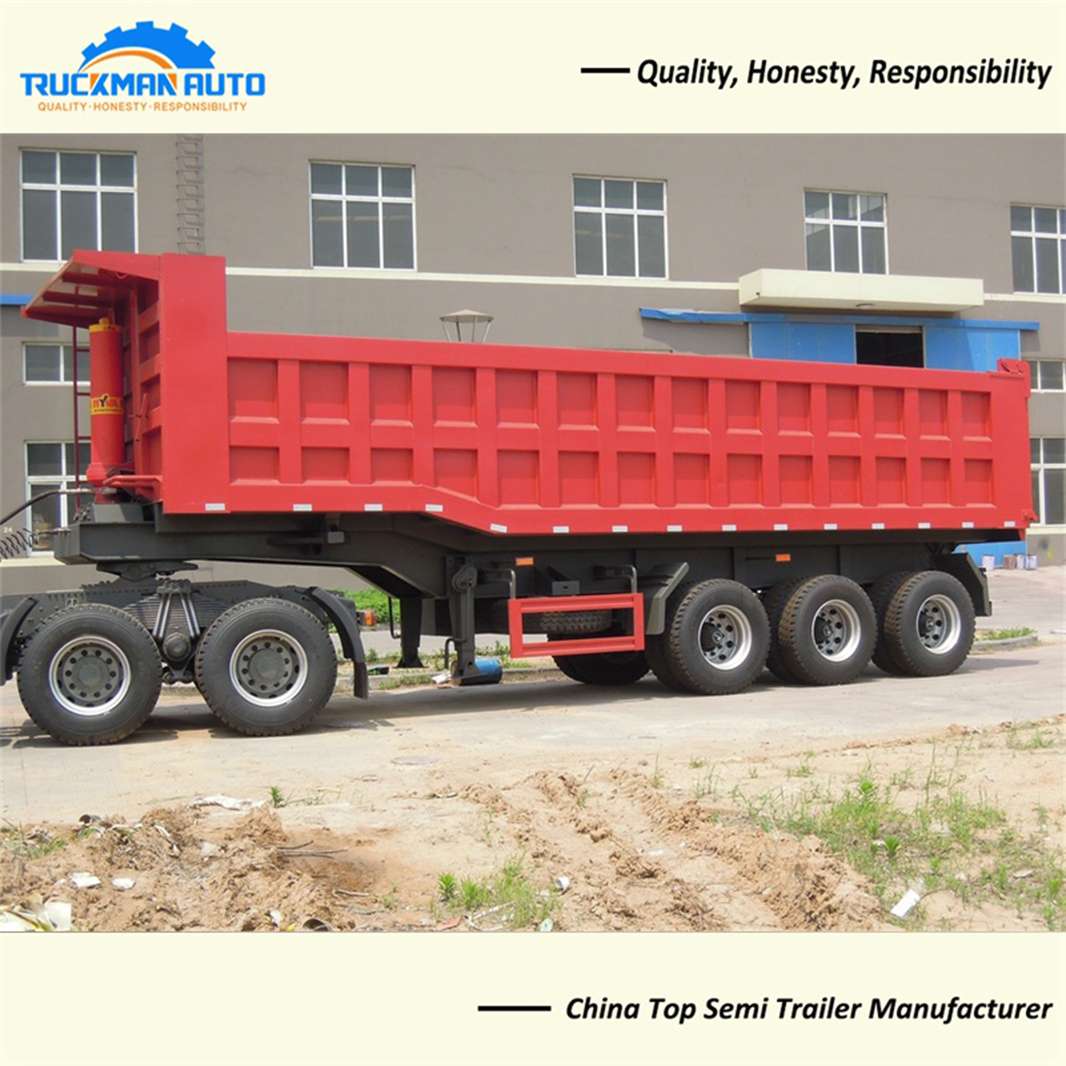

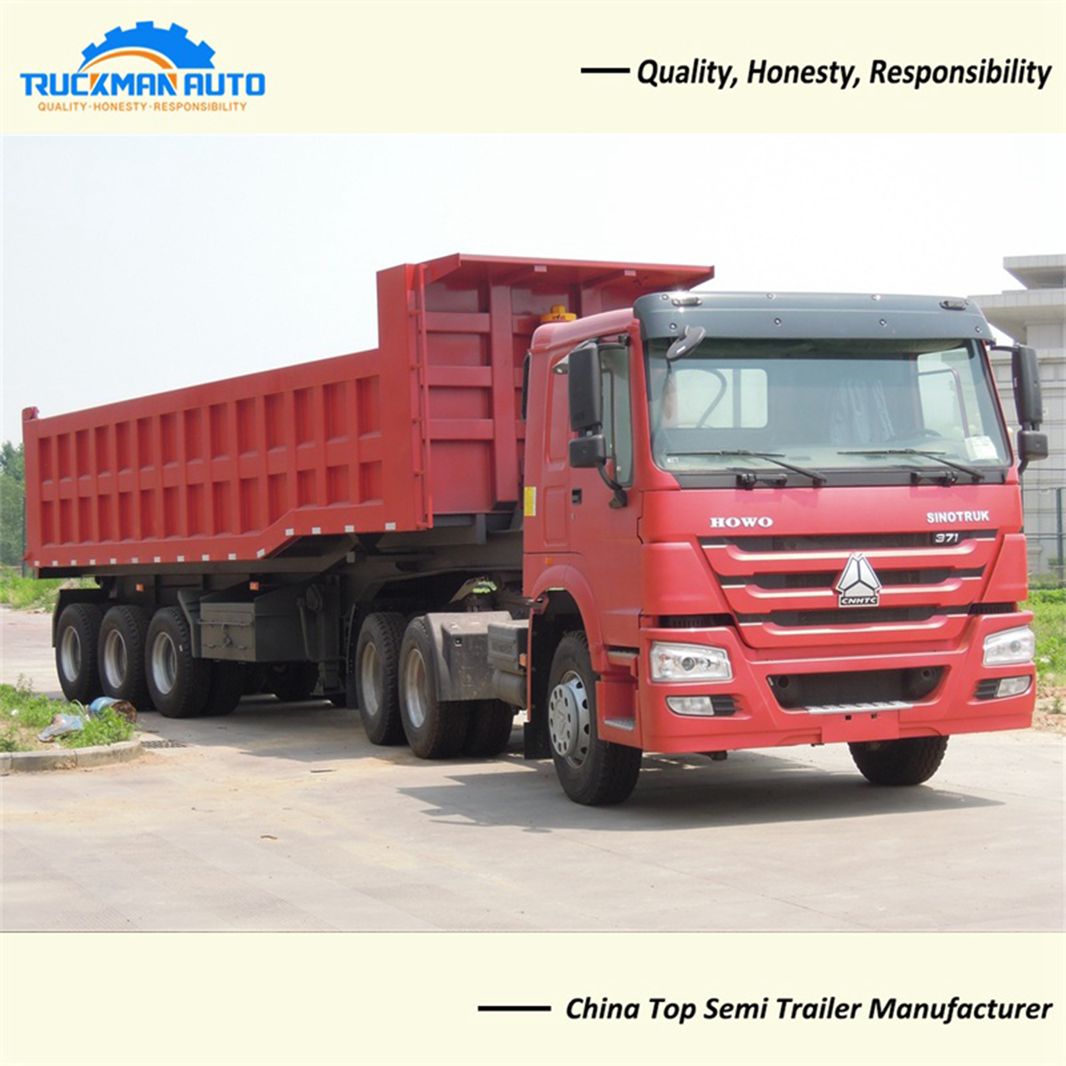

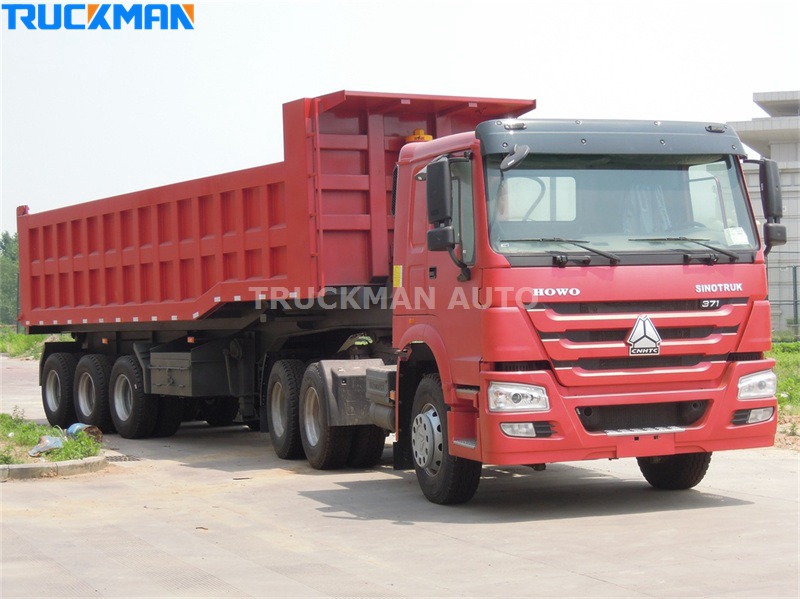

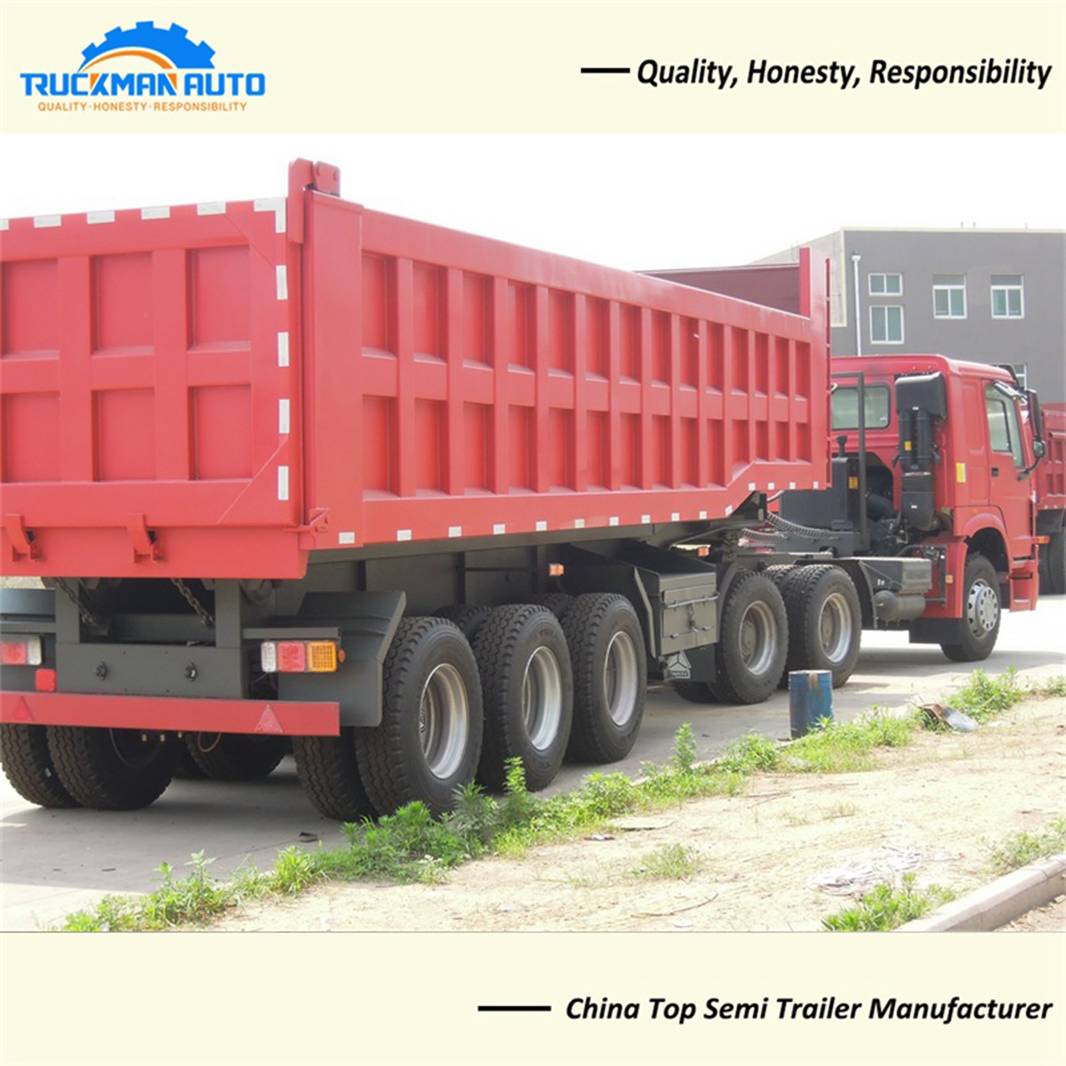

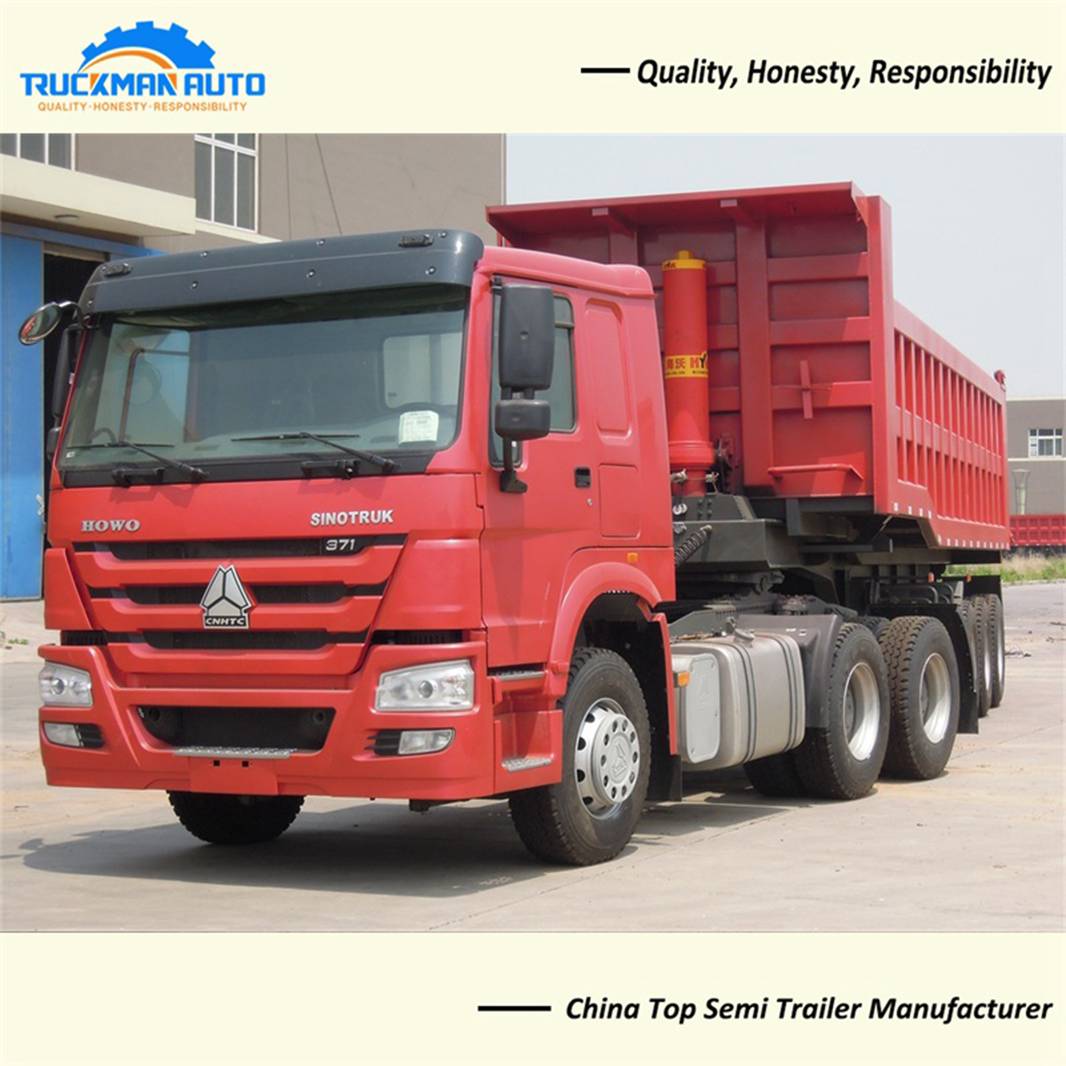

3 axle tipper truck trailer used for transport bauxite, manganese, limestone, sand, gravel etc haulage. The cargo box of dump haulage trailer can reach to 45m3, with U shape and rectangular bucket. And lifting system adopt HYVA brand hydraulic lifting system, with fast lifting speed. Main parts like axle, tire, support leg within warranty.
3 Axle Tipper Truck Trailer Advantage
1. Adopt the NM450 wear-resistant steel, using time is 5 times than Q355
2. Use the advanced production tech, like submerged arc welding tech.
3. Supply warranty for main parts, like tire, axle etc.
4. With 7x24h tech support, supply free spare parts.
3 Axle Tipper Truck Trailer Specification
1. Dimension: 11000x2580x3800mm
2. Axle: 3x16 tons, ZY brand
3. Tire: 12.00R20, 12 pcs, LINGLONG
4. Main Beam: upper 16mm, lower 18mm, middle 8+8mm
5. Support Leg: JOST brand, 28 tons
6. Tractor Pin: JOST brand, 90#
7. Suspension: 8mm thickness, heavy duty loading
8. Leaf Spring: 90x16mmx10pcs
9. Wheel Rim: 18mm
10. Brake Valve: WABCO brand
11. Hooks: Stronger hooks
12. Lifting system: HYVA brand front hydraulic
13. Cargo box:10000*2300*1500mm Bottom 8mm side 6mm
The 3 axle tipper truck trailer specification only for your reference, we can manufacture other model tipper truck trailer basic your request.
3 Axle Tipper Truck Trailer After Sale Service
TRUCKMAN 3 axle tipper truck trailer not only has professional design method and good manufacturing process, but also has after-sales service that makes customers satisfied. We provide 7x24 hours service function, and provide maintenance manuals and toolboxes, which are convenient for customers to maintain semi-trailers.
