60 ton removable gooseneck low boy trailer, the axle total 4 and per axle loading capacity is 16 tons. BPW, ZY and FUWA brand axle available. With small size radial model tire, 8.25R20, which can help reduce the low bed trailer height, easy to pass the height-restricted places such as tunnels, tire brand including the LINGLONG, TRIANGLE and DOUBLE COIN etc.
60 Ton Removable Gooseneck Low Boy Trailer Features
1. Super loading capacity, T700 high strength steel.

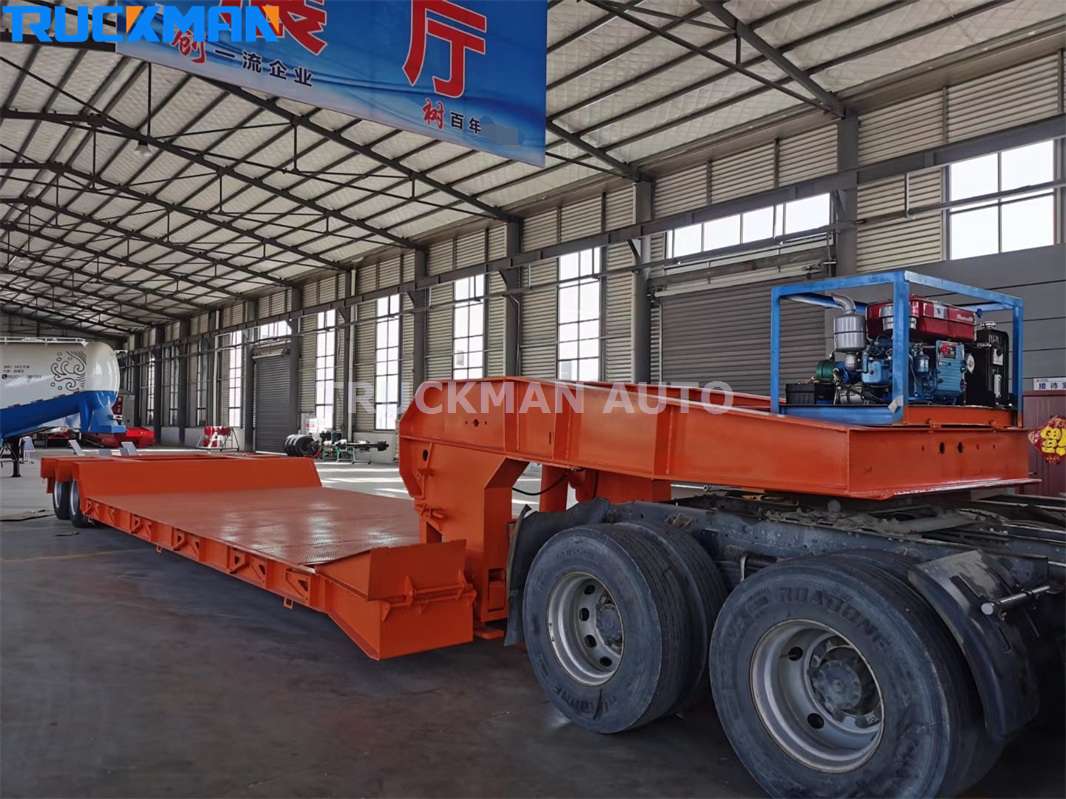

2. With extra engine, supply power to remove the gooseneck.
3. Use the TRIANGLE, LINGLONG and DOUBLE COIN etc famous brand tire.
4. Local reinforcement, gooseneck, climbing ladder tail, suspension reinforcement.
60 Ton Removable Gooseneck Low Boy Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
Detachable Gooseneck Low Bed Trailer |
|
Application |
Heavy duty machinery transport |
|
Suspension |
Heavy duty mechanical suspension |
|
Axle |
2 line 4 axle, ZY, FUWA brand |
|
Tire |
8.25R20, TRIANGLE brand |
|
Leaf Spring |
90x16mmx10pcsx8sets |
|
Main Beam |
Upper 16mm, lower 18mm, middle 10mm |
|
Support Leg |
JOST brand heavy duty support leg |
|
Brake System |
WABCO brand |
|
Dimension |
10500x3000x2120mm |
The 60 ton removable gooseneck low boy trailer specification only for your reference, we can manufacture other model removable gooseneck low boy trailer basic your request.
60 Ton Removable Gooseneck Low Boy Trailer Axle
The detachable gooseneck low bed trailer axle brand is TOP class, heavy duty loading model. Per axle loading tons is 16 ton, tech is from America and Germany. The 16 ton axle brake pad thickness is more thicker than 13 tons axle, it’s mean the 16 tons axle not only have heavy loading capacity but also the brake safety is better than 13 ton axle. And our axle supply 1 year or 100,000km warranty, which one come to it first.
