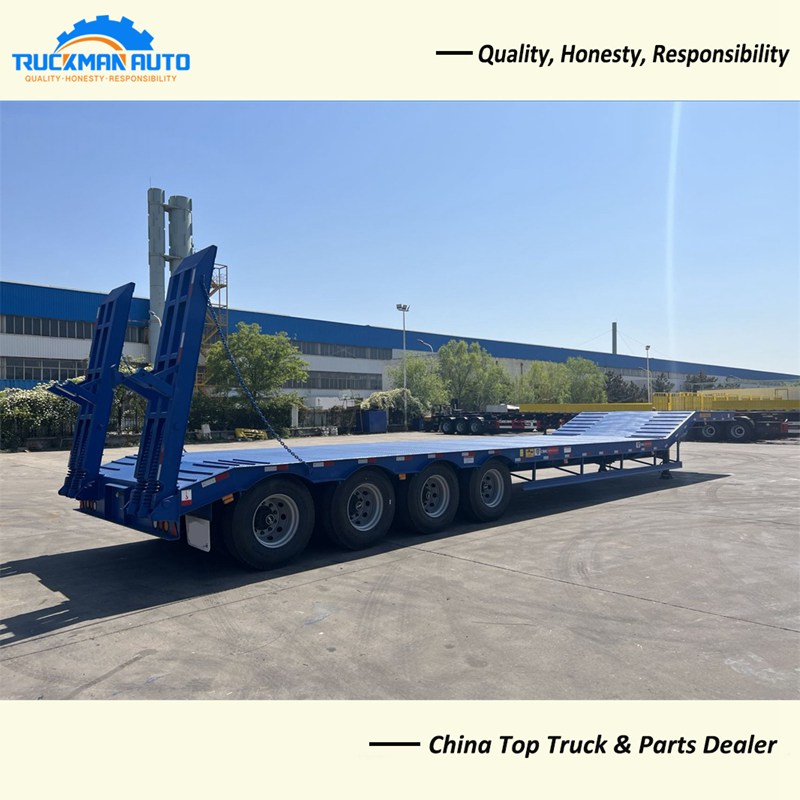

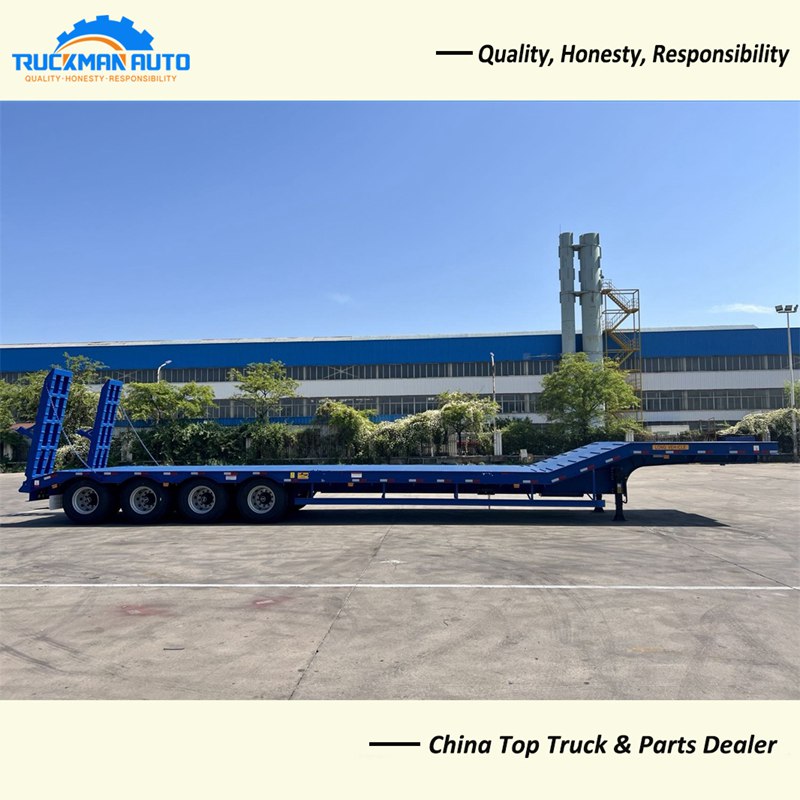

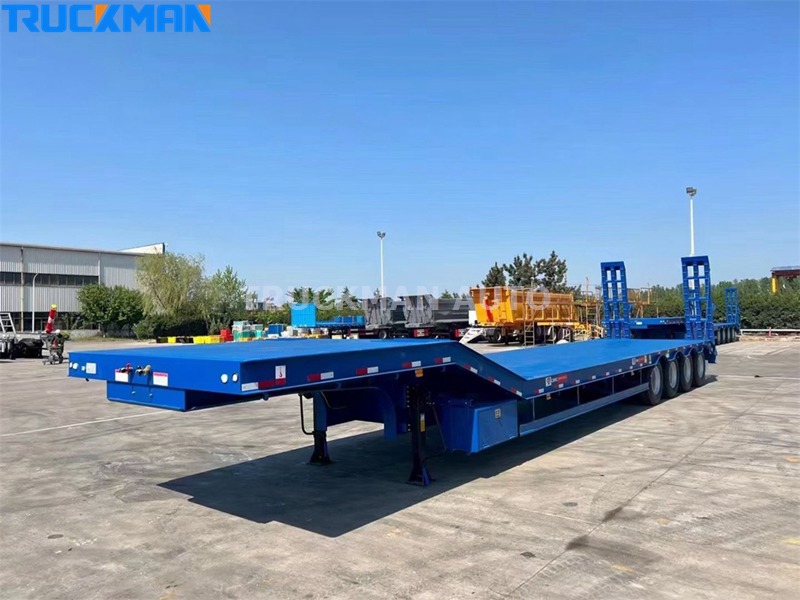

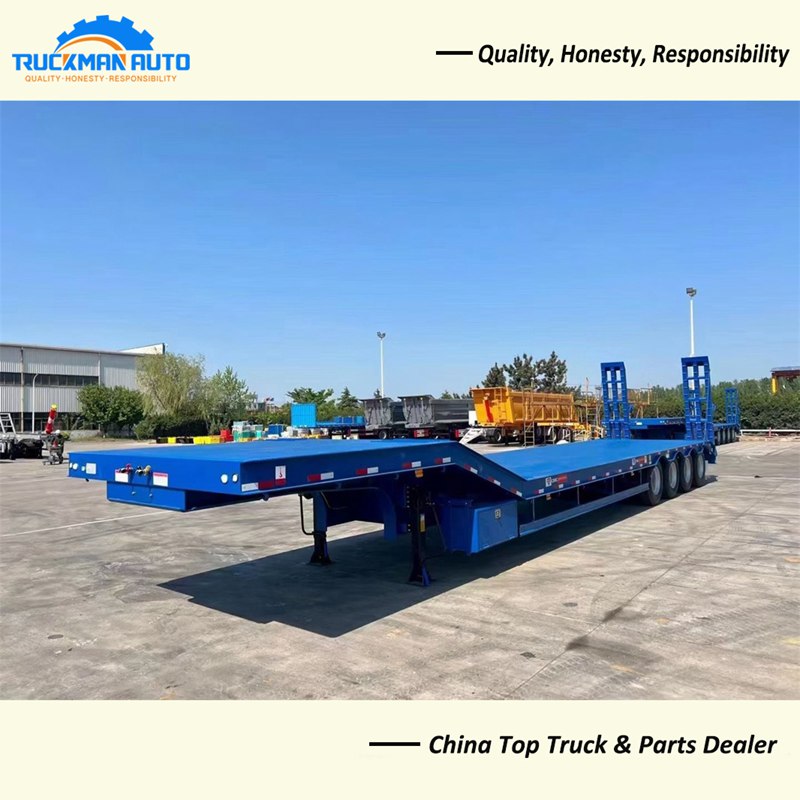

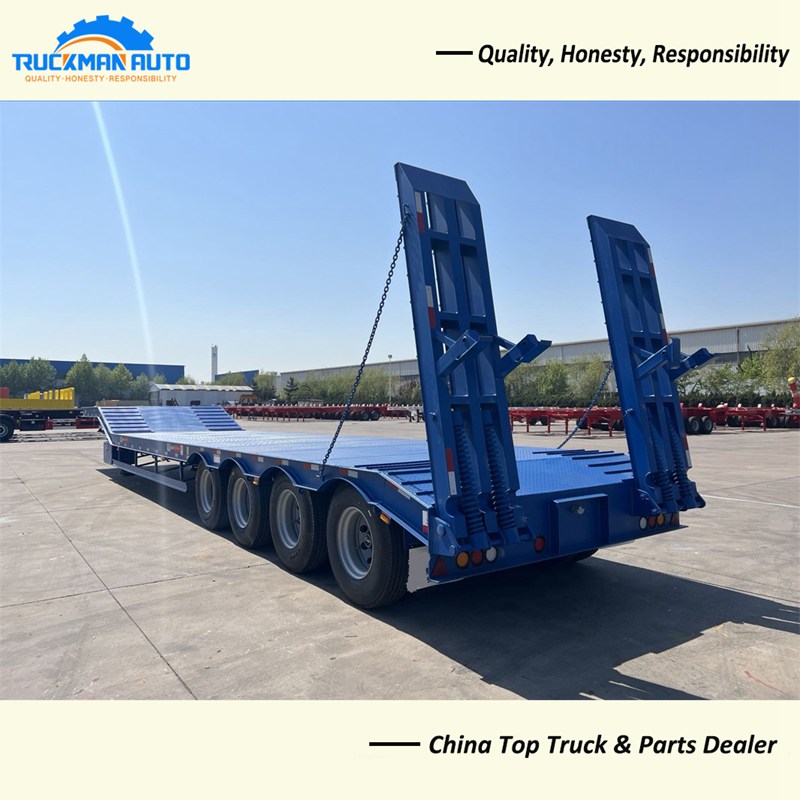

4 axle 100 ton lowbed trailer very popular in Burkina Faso, the low bed trailer can transport two units road roller, wheel loader and excavator. The gooseneck width of lowbed trailer is same with loading platform, that’s can confirm the low bed trailer transport more cargoes one time. The height of lowbed trailer also can adjust basic your request.
4 Axle 100 Ton Lowbed Trailer Features
1. Axle adopt the TOP class brand, per axle loading tons reach to 16 tons.
2. Use the TRIANGLE radial model 12.00R20 tire for mining road working condition.
3. Material use the T700 high strength steel, suitable for heavy duty loading transportation.
4. With strong hooks, rope tightener, rear and side bumper. More durable than ordinary parts.
4 Axle 100 Ton Lowbed Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
4 axle 100 ton lowbed trailer |
|
Application |
Construction machinery transport |
|
Suspension |
Heavy duty mechanical suspension |
|
Axle |
4 axle, 16 tons per axle, ZY, FUWA brand |
|
Tire |
12.00R20, 16 pcs, TRIANGLE brand |
|
Leaf Spring |
90x16mmx10pcsx8sets |
|
Main Beam |
Upper 22mm, lower 22mm, middle 12mm |
|
Support Leg |
JOST brand heavy duty support leg |
|
Brake System |
WABCO brand |
|
Dimension |
14500x3100x2950mm |
The 4 axle 100 ton lowbed trailer specification only for your reference, we can manufacture other model lowbed trailer basic your request.
4 Axle 100 Ton Lowbed Trailer Paint

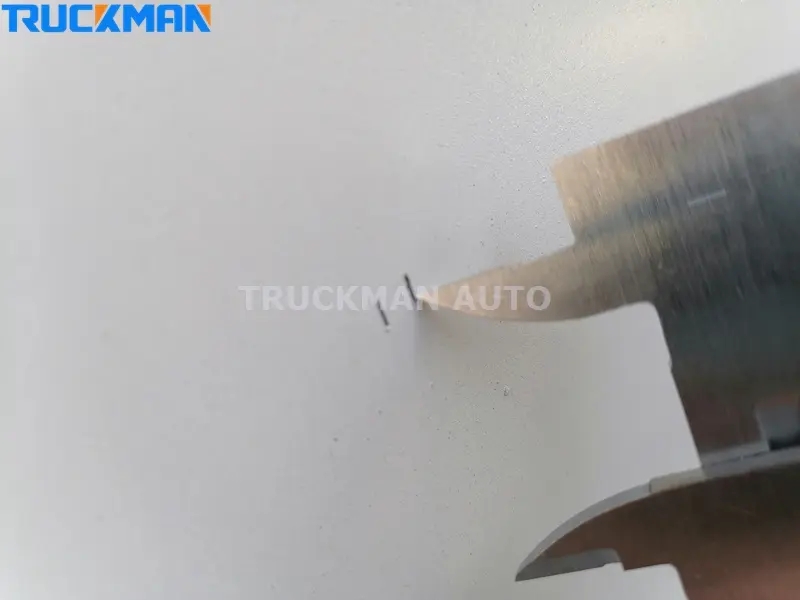

Our TRUCKMAN 4 axle 100 ton lowbed trailer adopt the polyurethane paint, not ordinary alkyd magnetic paint. The polyurethane paint has the characteristics of strong rust and corrosion resistance, anti-abrasion, and long service life. Alkyd magnetic paint has a low price, but it has a short service life of less than 3 years, and it is not wear-resistant, and the paint comes off easily when you rub it.
