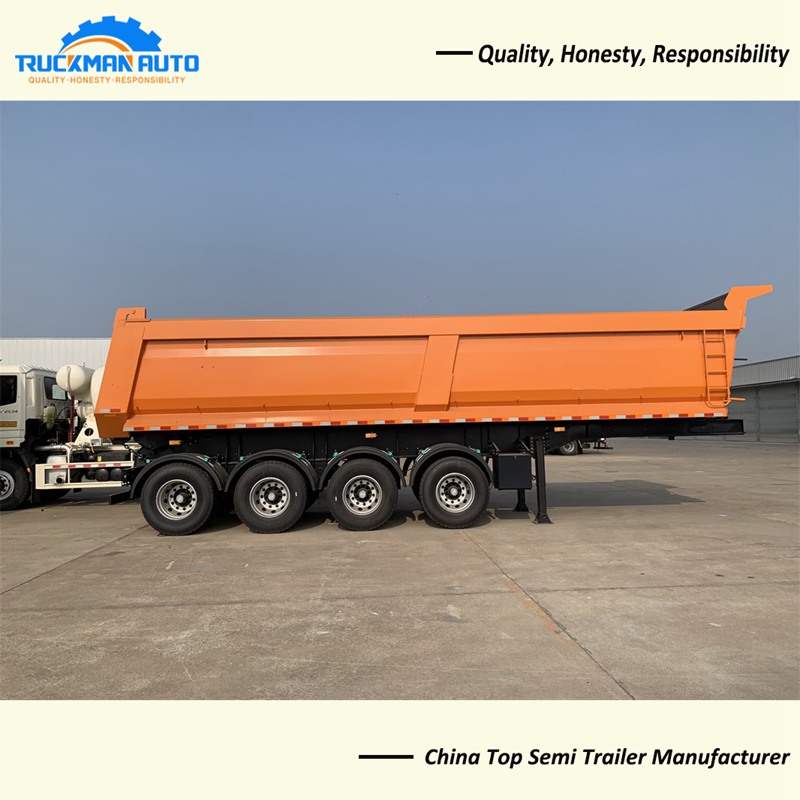

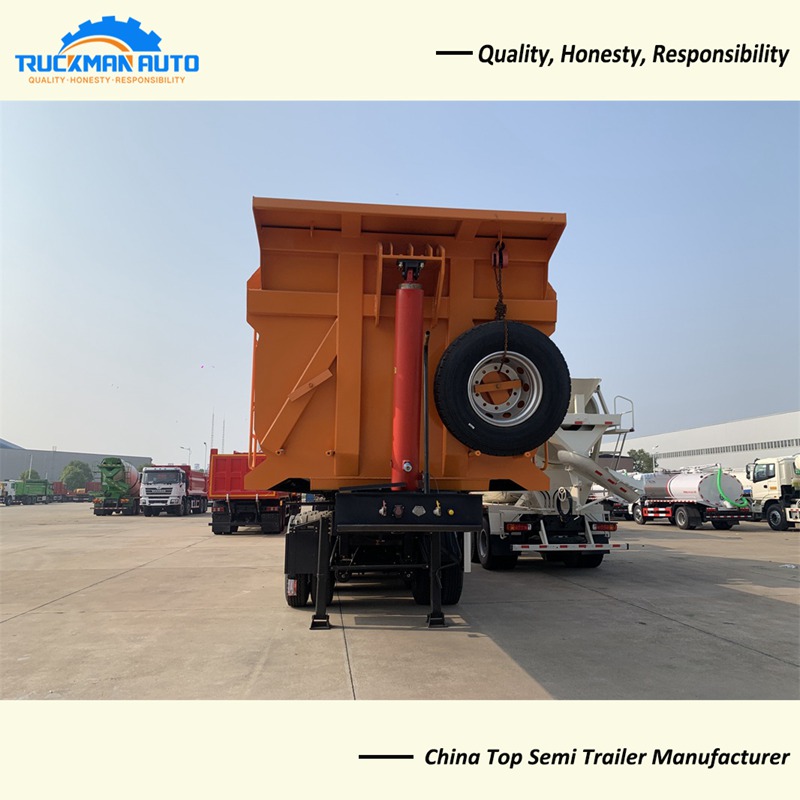

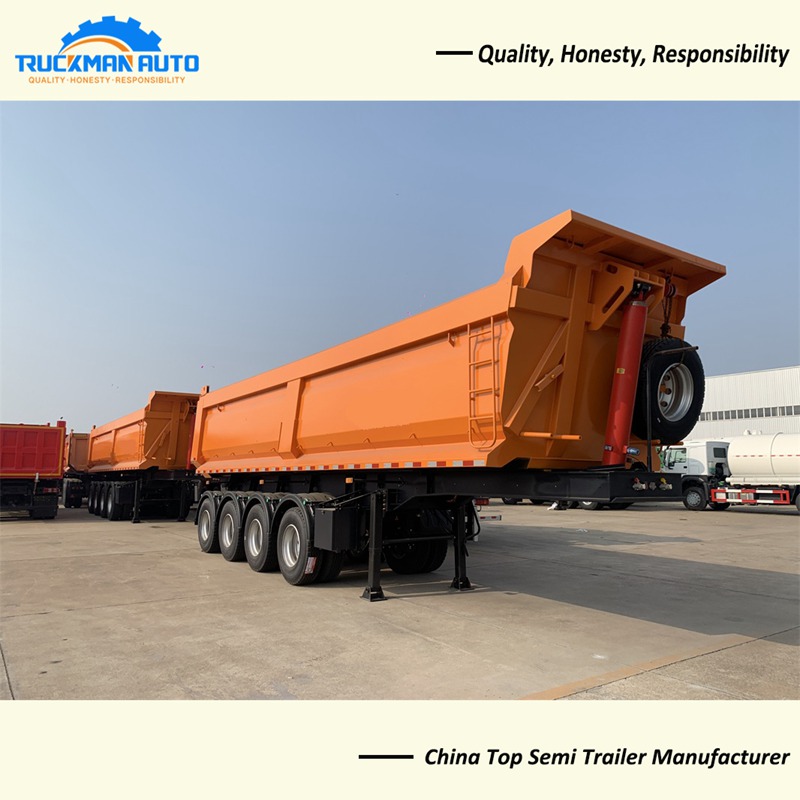

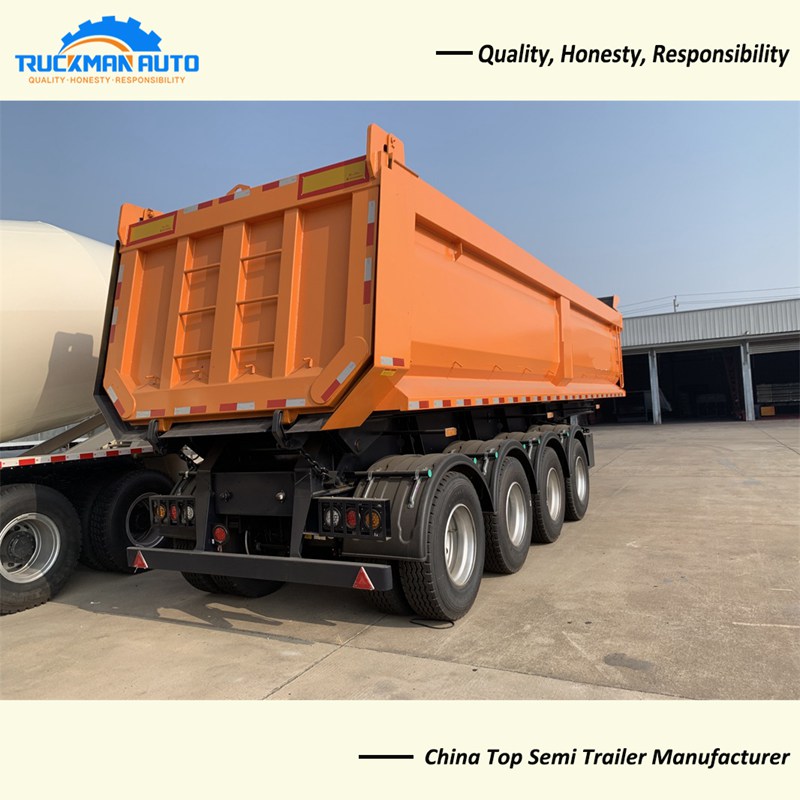

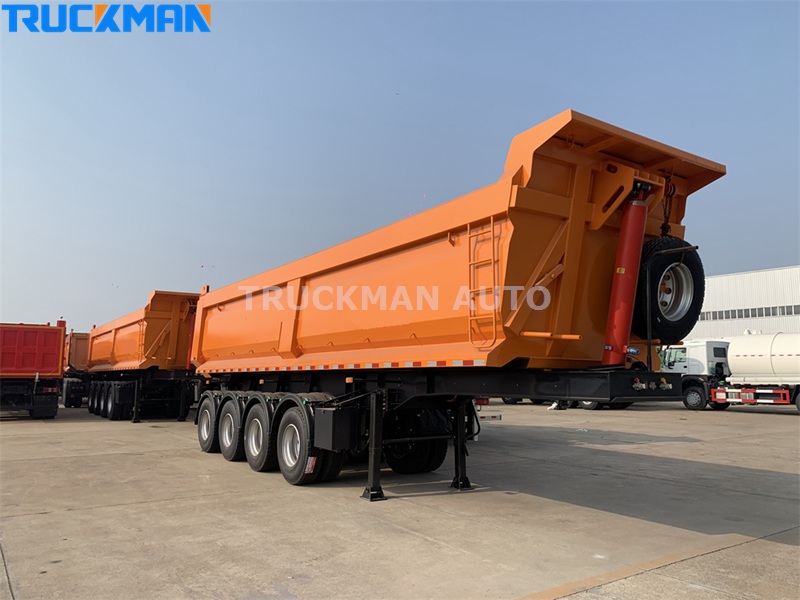

4 axle dump semi trailer bucket is 40 cubic meter, U shape. For transport mining material, like limestone, bauxite, manganese ore etc. the total 4 axle can loading 80 tons cargoes, meet the long distance transport request. The whole dump semi trailer have 8 pcs big brake chamber, and ABS system, brake distance is shorter and more safety.
4 Axle Dump Semi Trailer Features
1. U shape cargo box suitable for sand and stone haulage, no residue.
2. FUWA brand 16 tons heavy duty loading axle, super loading capacity.
3. JOST brand heavy duty model support leg, static load reach to 80 tons.
4. Front axle is air suspension, other axle is mechanical suspension. For different loading tons.
4 Axle Dump Semi Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
4 axle dump semi trailer |
|
Application |
Bulk cargo and container transport |
|
Axle |
4 axle, 4x16 tons, FUWA brand |
|
Tire |
315/80R22.5, 16 pcs |
|
Support Leg |
JOST brand, 28 tons support leg |
|
Tractor Pin |
3.5 inch, JOST brand |
|
Bucket |
40 cubic meter, U shape |
|
Material |
Q355 and NM450 |
|
Loading Ton |
80,000kg |
|
Dimension |
11200x2560x3450mm |
The 4 axle dump semi trailer specification only for your reference, we can manufacture other model dump semi trailer basic your request.

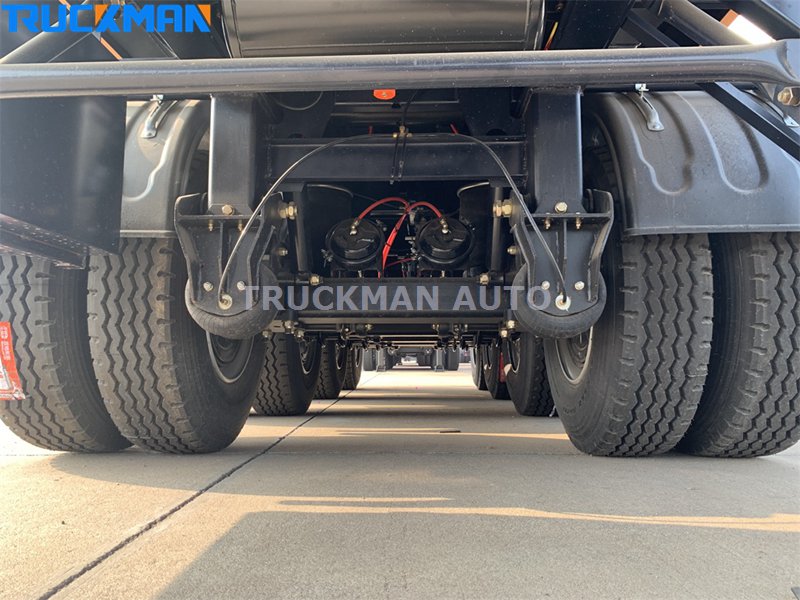

4 Axle Dump Semi Trailer Air Suspension
The advantages of air suspension are light weight, fuel saving and good shock absorption. And it is very popular in West Africa because it meets the local national load limit requirements. When pulling 60 tons of cargo, the front axle can be lifted to reduce fuel consumption as well as tire wear and tear. When pulling 80 tons of cargo, all axles can be lowered to increase the load capacity. The best air and mechanical suspension.
