The SINOTRUK HOWO 430HP trailer truck is powered by a WEICHAI brand WP12.430E201 engine with 12L displacement and a maximum output of 316kW (430hp). In addition to the WEICHAI engine, the HOWO trailer truck can also be equipped with the optional WD615.47, 371HP engine. And engine can optional the engine valve brake, thermostat and protect cover.
SINOTRUK HOWO 430HP Trailer Truck Features
1. Wide range of options for economic efficiency.
2. With large capacity fuel tank for long distance transport.
3. Optional double sleeper cab, also designed for long hauls.
4. Heavy-duty version of the chassis, designed for heavy loads.
SINOTRUK HOWO 430HP Trailer Truck Specification
|
Description |
Parameter Value |
|
Product Name |
SINOTRUK HOWO 430HP trailer truck |
|
Application |
For mining material transport |
|
Engine |
WP12.430E201, 430HP, EURO II |
|
Gearbox |
HW19712, 12 forward and 2 reverse |
|
Cabin |
HW76, with one bed, A/C |
|

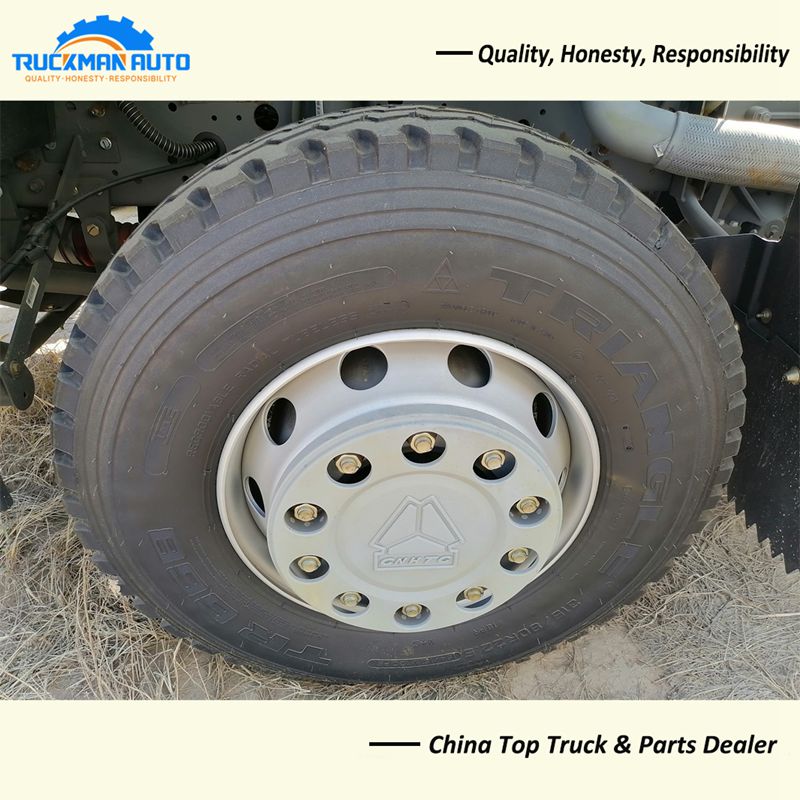

Tire |
315/80R22.5, 10+1 pcs |
|
Driving Axle |
HC16, 2x16000kg |
|
Fuel Tank |
600L |
|
Loading Ton |
70,000kg |
|
Dimension |
6800x2560x3150mm |
The SINOTRUK HOWO trailer truck specification only for your reference, we can manufacture other model SINOTRUK trailer truck basic your request.

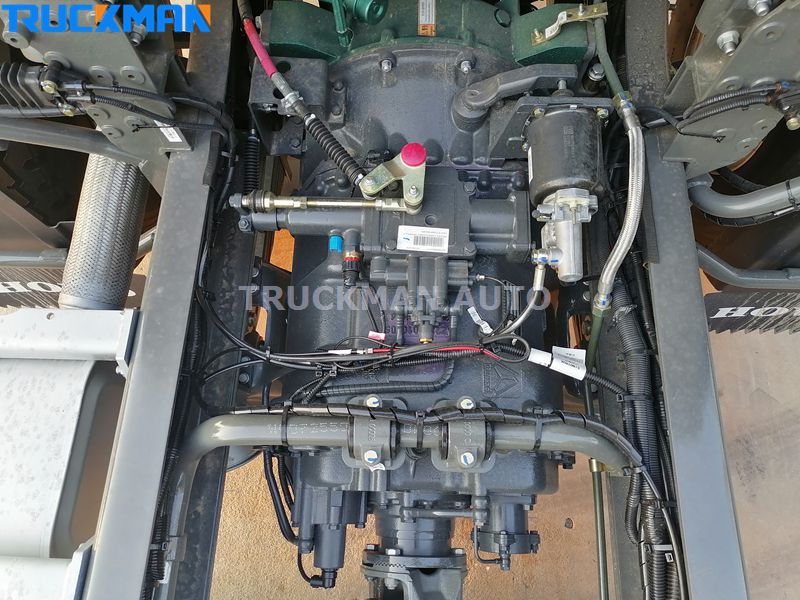

SINOTRUK HOWO 430HP Trailer Truck Gearbox Detail
The SINOTRUK HOWO 430HP trailer truck is paired with a 12-speed gearbox, model HW19712, which has a double subshaft full helical gear structure for the main box and a planetary reduction structure for the subbox, providing a versatile and smooth operation. The gearbox is a direct-shift design with a top gear ratio of 1 and a first gear ratio of 15.01.
