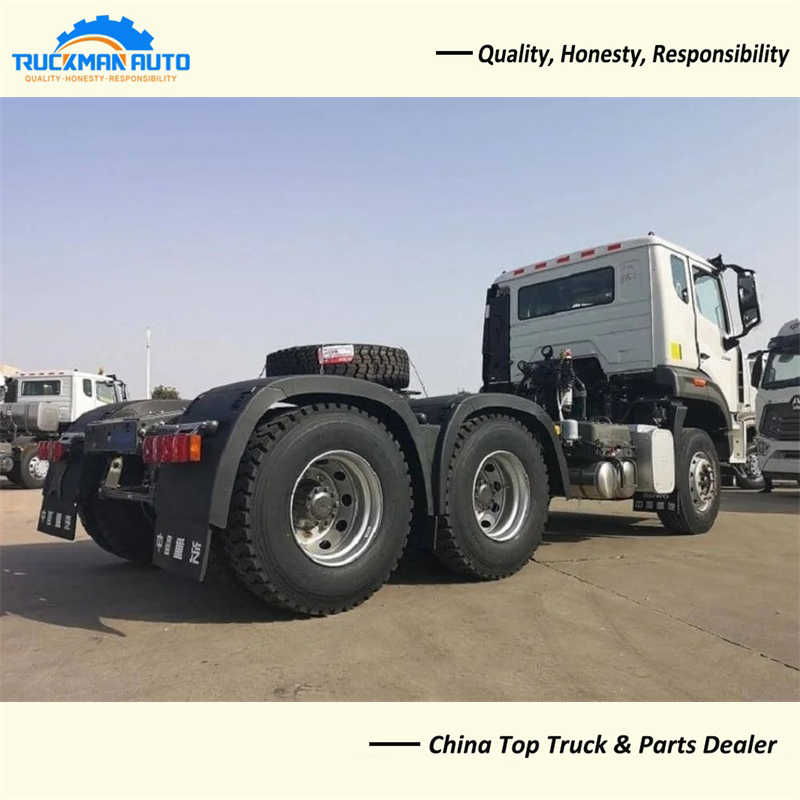

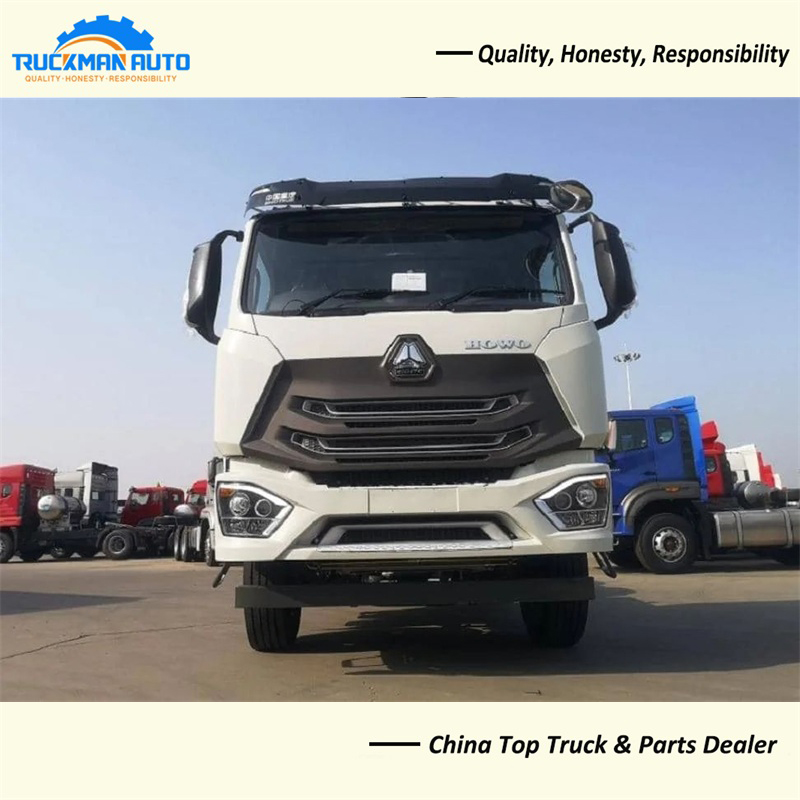

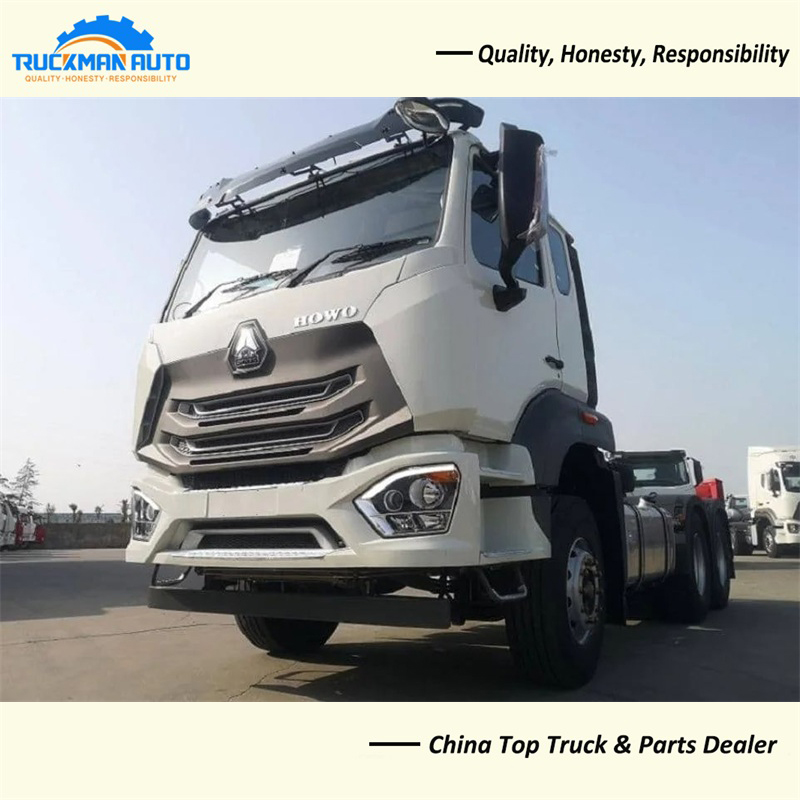

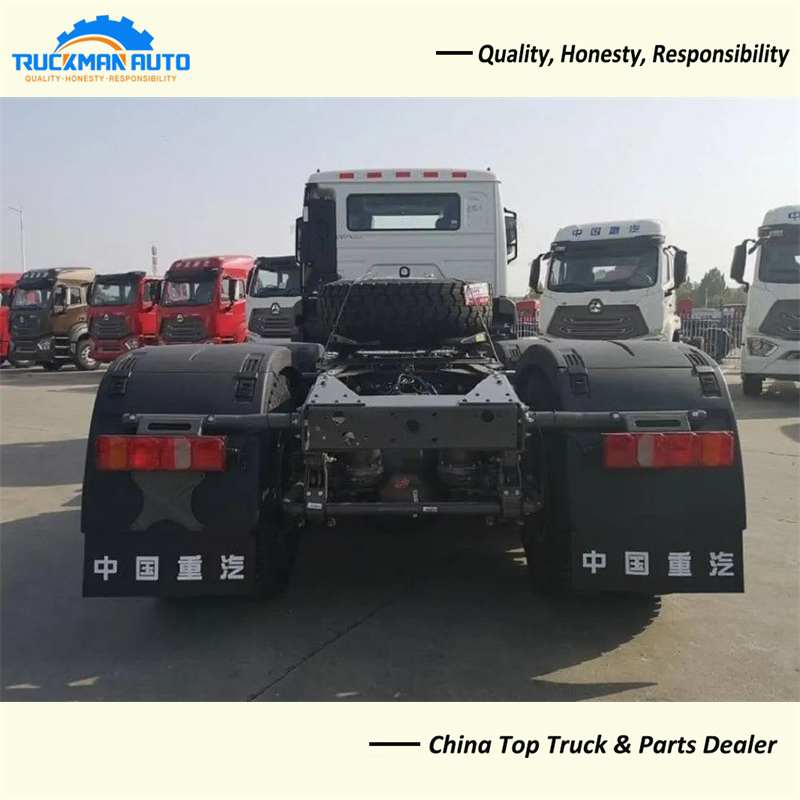

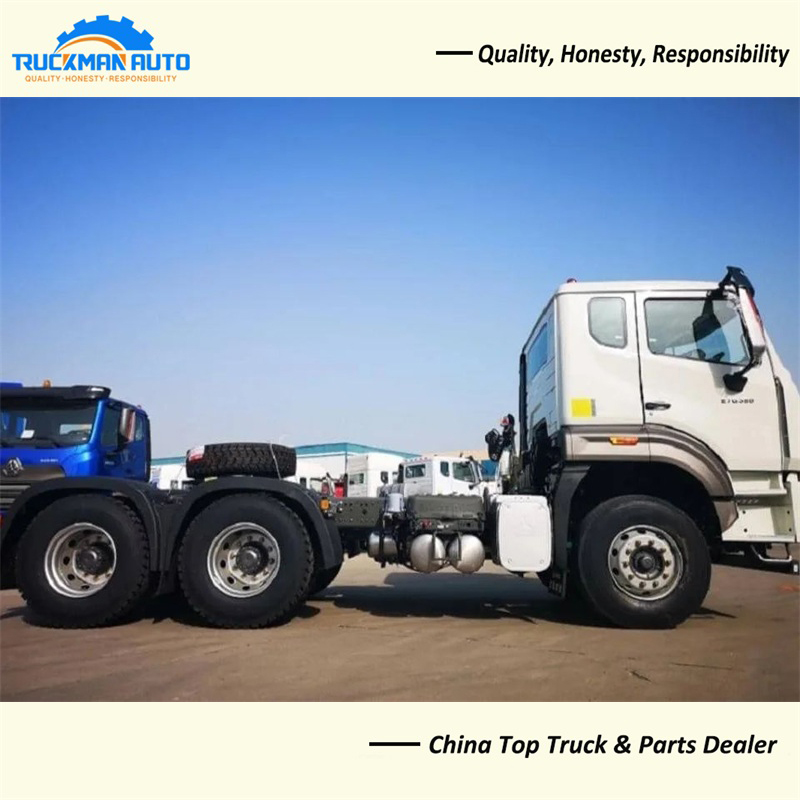

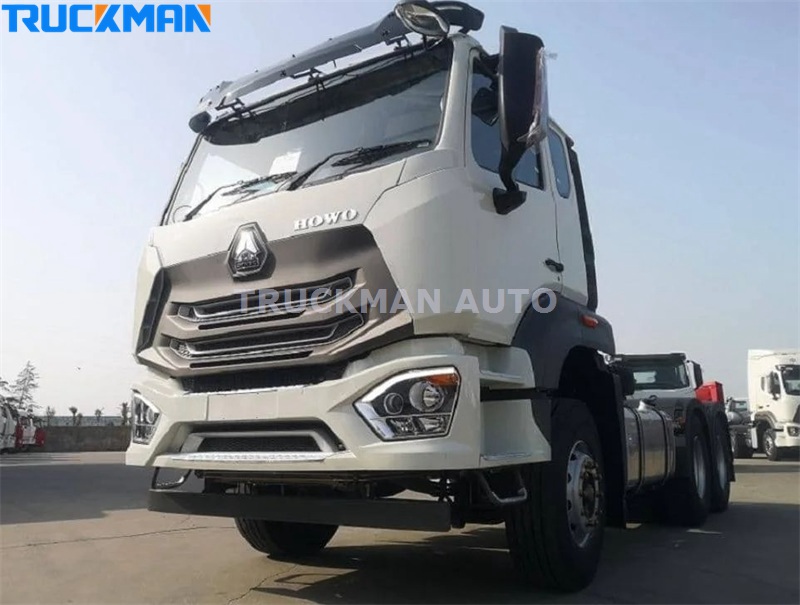

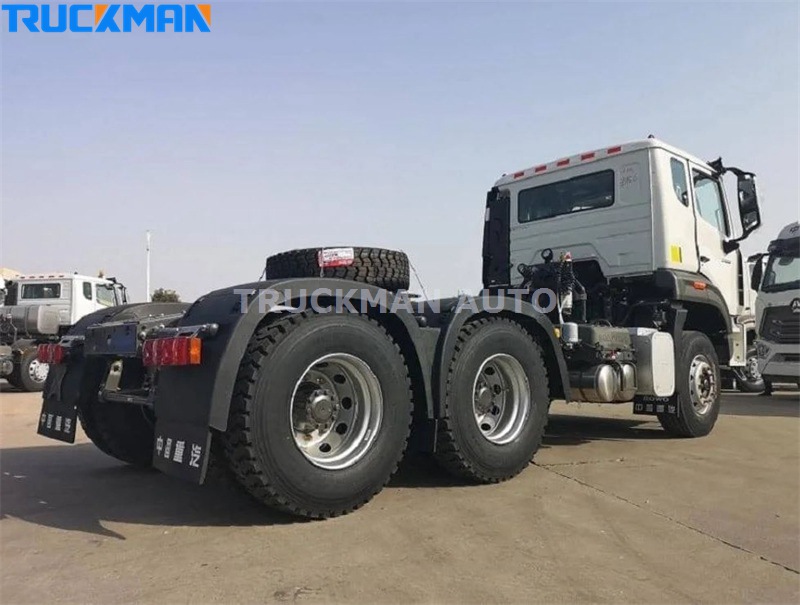

SINOTRUK HOHAN 10 Wheel Truck Head

SINOTRUK HOHAN 10 Wheel Truck Head Features

-. With MP5 entertainment player, radios, GPS etc equipment.

-. The kingpin of tractor truck use the 3.5 inch heavy duty loading model.

-. The driver seat suspension is air model, more comfortable when driving.

-. TRIANGLE brand tubeless and radial model tire optional, for off road driving.

SINOTRUK HOHAN 10 Wheel Truck Head Features Specification

Product Name: SINOTRUK HOHAN 10 wheel truck head

Engine: WP12.400E201, 400HP, EURO 2

Gearbox: 10 forward and 2 reverse gear

Cabin: H77L, with one bed, A/C

Tire: 315/80R22.5, 10+1 pcs

Kingpin: 3.5 inch heavy duty model

Max Speed: 102km/h

Driving Axle: 16000kg axle

Dimension: 6800x2550x3150mm

The SINOTRUK HOHAN 10 wheel truck head specification only for your reference, we can manufacture other model SINOTRUK truck head basic your request.

SINOTRUK HOHAN 10 Wheel Truck Head Features Axle

The rear axle of SINOTRUK HOHAN truck head adopts the HC16 parallel-mounted double-axle single-reduction axle with the main reduction ratio of 4.8. The type of this rear axle is the same as the rear axle used by HOWO tractor truck, and the parts are common. The rear axle uses a V-shaped stabilizer bar, which ensures the stability of the vehicle when driving. Likewise, the rear axle is also designed with multiple leaf springs and is designed for heavy-duty use.
