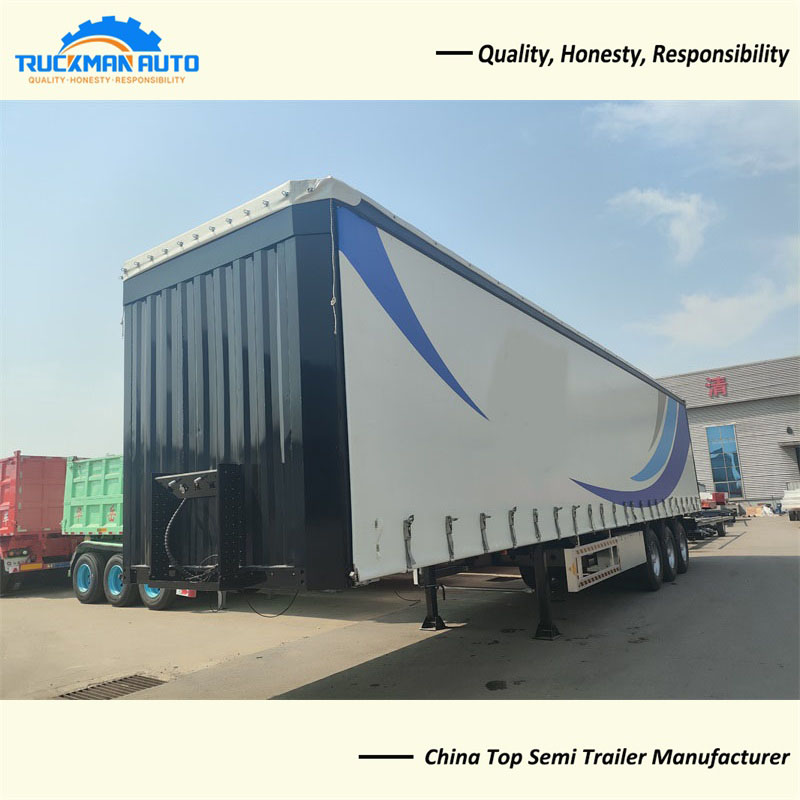

3 Axles 80 Tons Van Type Side Curtain Type Semi Trailer

About 3 Axles 80 Tons Van Type Side Curtain Type Semi Trailer

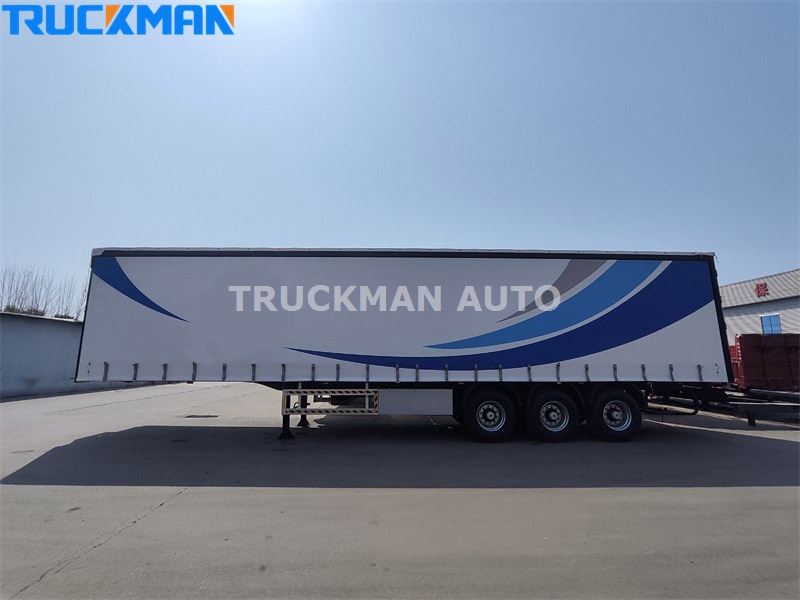

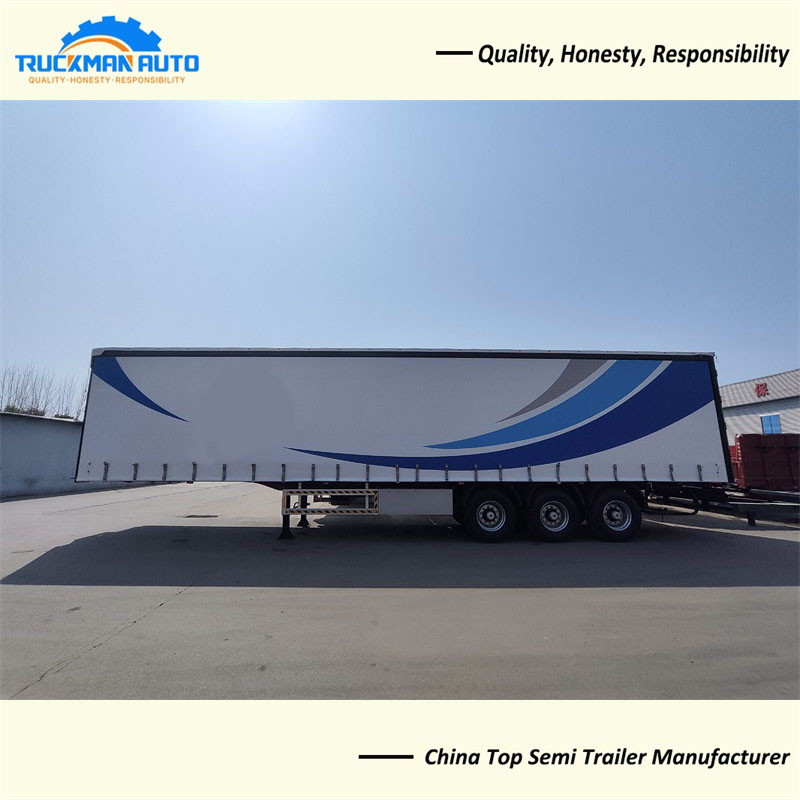

The series of van-type semi-trailers are suitable for the transportation of household appliances, light textile goods and other bulk goods. The van-type transportation semi-trailer has a strong bearing capacity, high safety coefficient, reasonable design, robustness and durability, and advanced technology manufacturing. The tandem steel plate spring and suspension support are composed of; reasonable structure, strong rigidity and hardness, used to support the load to slow down the impact. Side curtain structure is adopted on both sides of the box of van-type transportation semi-trailer, which is lighter in weight and super convenient for unloading goods.

3 Axles 80 Tons Van Type Side Curtain Type Semi Trailer Specification

Product Name: 3 Axles 80 Tons Van Type Side Curtain Type Semi Trailer

Application: Bulk Transportation

Axle: 3 axle, 3x16 tons, ZY brand

Tire: 315/80R22.5, 12 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 11000x2500x3380mm

3 Axles 80 Tons Van Type Side Curtain Type Semi Trailer specification only for your reference, we will recommend other model Semi Trailer basic your request.

3 Axles 80 Tons Van Type Side Curtain Type Semi Trailer Features

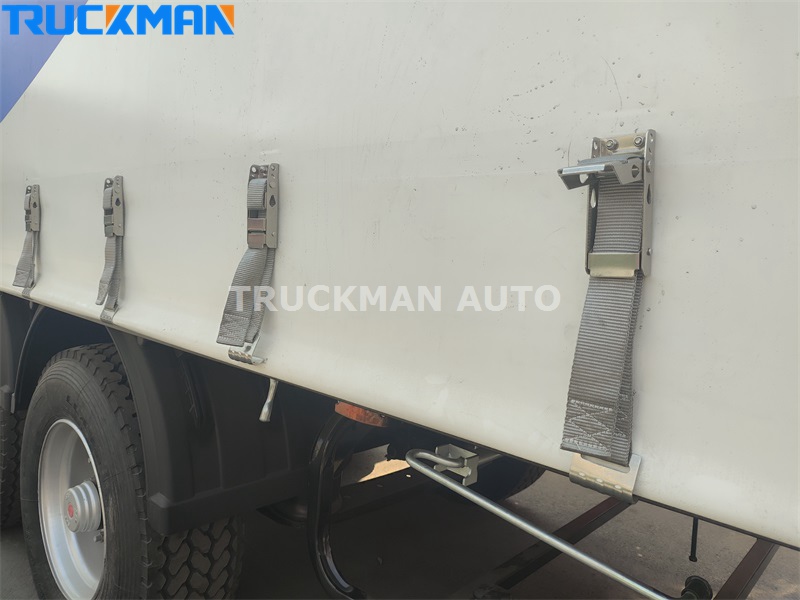

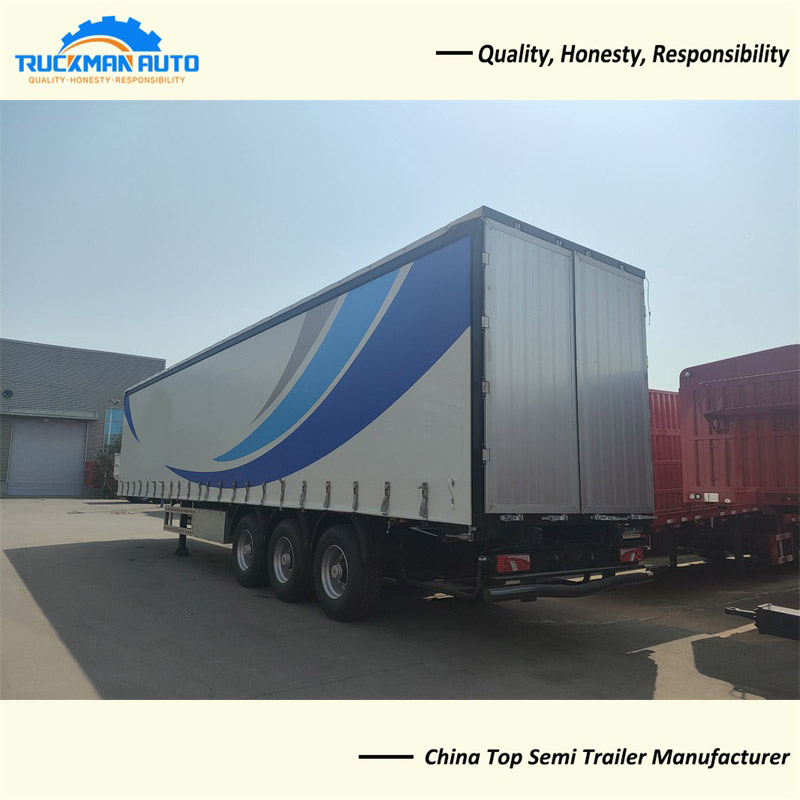

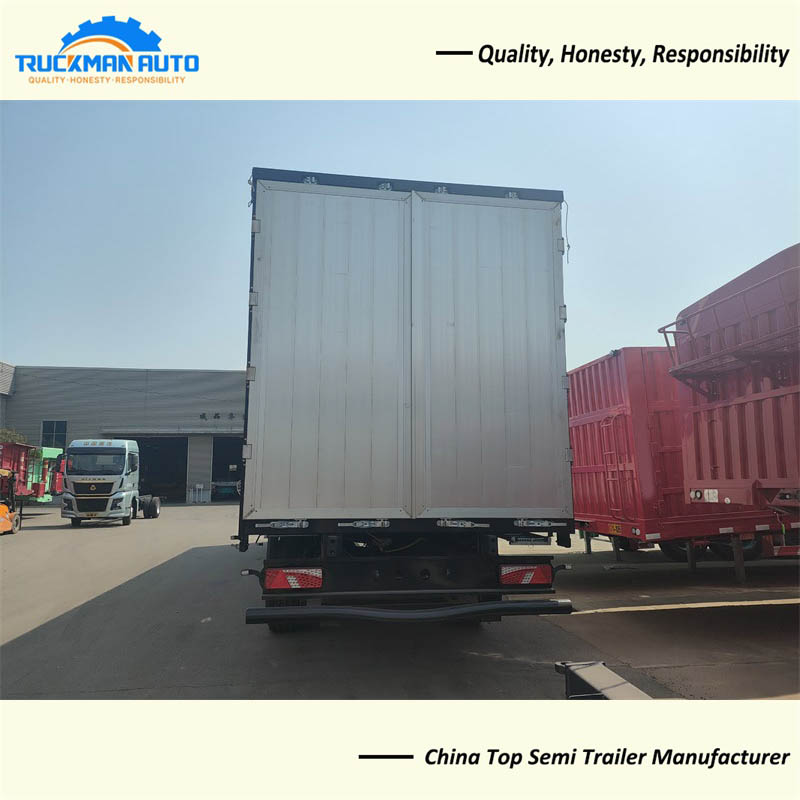

The side curtain trailer is made of soft tarpaulin on both sides, with guide rails on the top and locking structure on the bottom, the side curtain can be pushed and pulled to any position when loading and unloading, which is convenient for forklifts to load and unload from different directions; the top of the carriage is also made of the push and pull structure of “cross bar + tarpaulin”, and the tarpaulin can be completely stowed at one end of the carriage, which is convenient for loading and unloading of large items from the top; the rear of the carriage is generally made of traditional double-door structure, which is made of high-strength lightweight steel or aluminum alloy, and can be docked to the logistics company's loading and unloading platform just like ordinary semi-trailer.

3 Axles 80 Tons Van Type Side Curtain Type Semi Trailer Advantage

The curtain-side trailer uses curtains instead of the box materials of other trailers. In addition, the internal structure is mostly made of aluminum alloy, which makes it lighter. Compared with ordinary barge or box trailers, it can be 3-4 tons lighter. It is easy to load and unload, and efficient. Since the curtains on the top and both sides of the curtain-side trailer can be fully opened, multiple forklifts can be operated at the same time, and the loading and unloading efficiency is higher. And it uses standard palletized transportation, which can maximize the use of space, and the cargo layout is more even and reasonable. The load can be evenly distributed to each axle, reducing excessive wear of a certain part of the chassis.
