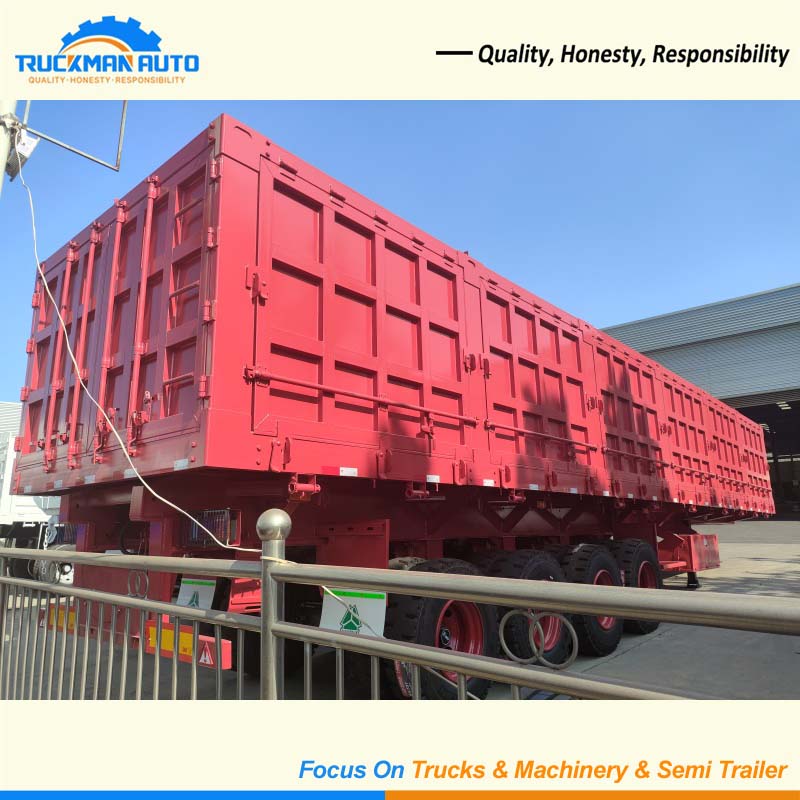

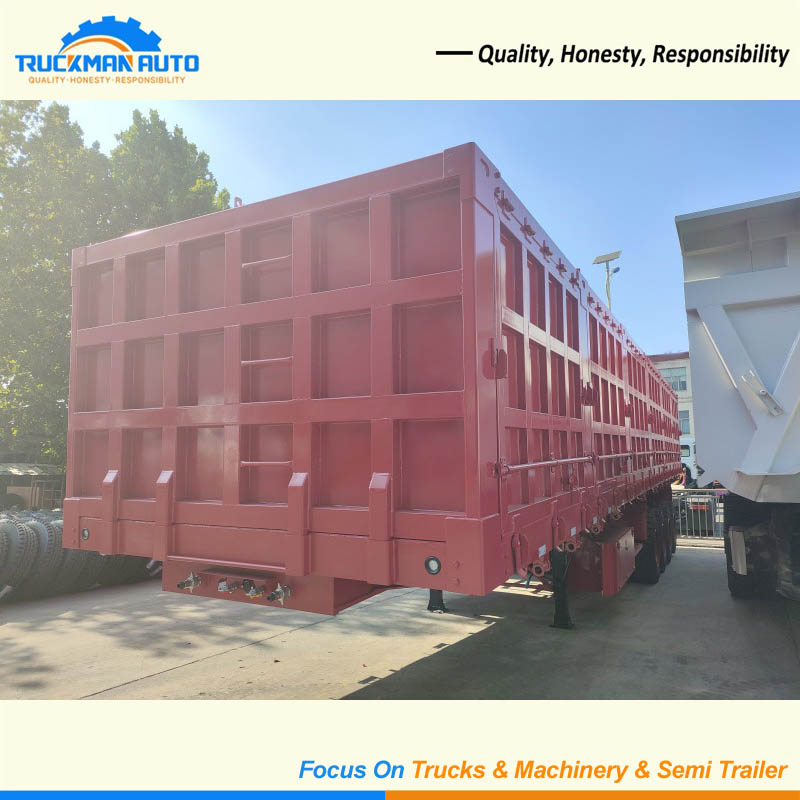

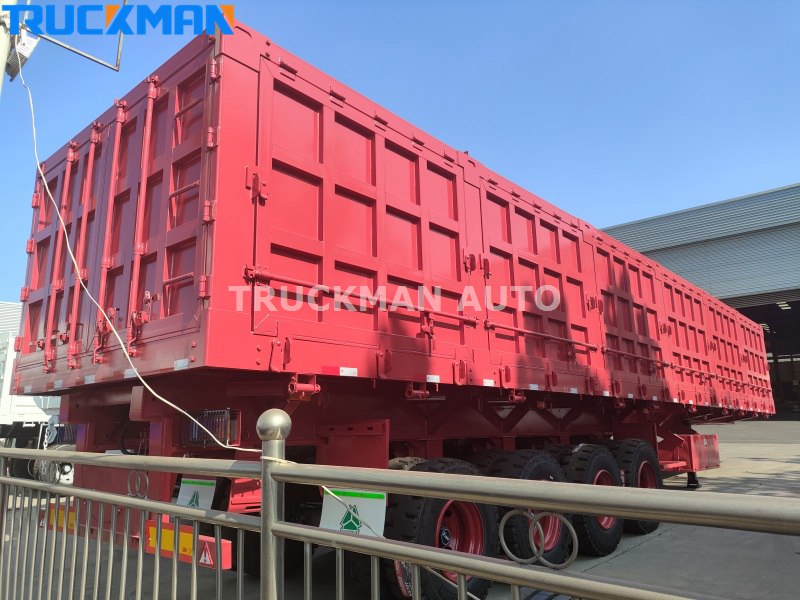

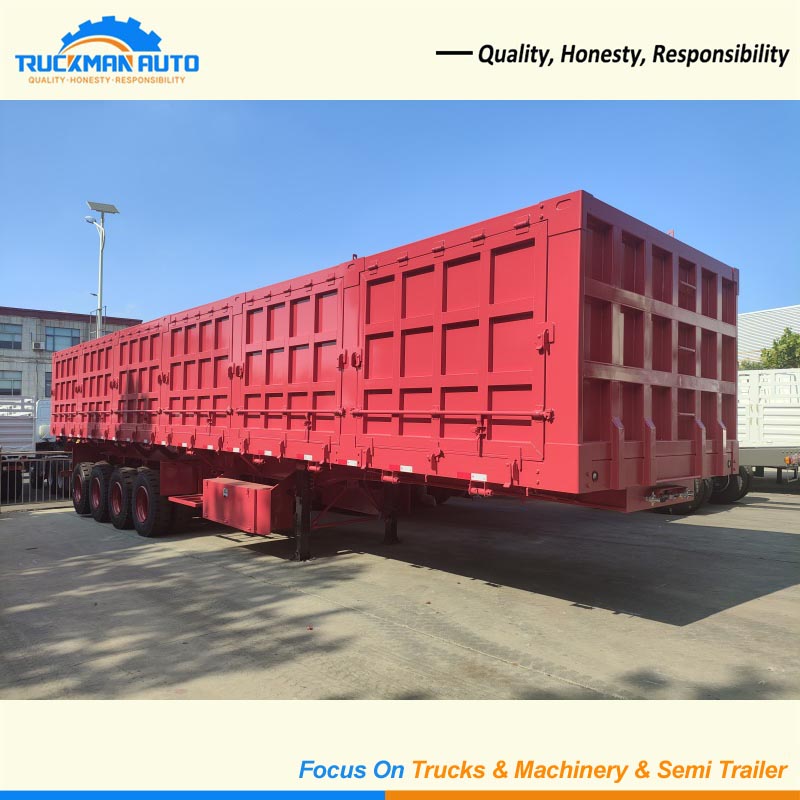

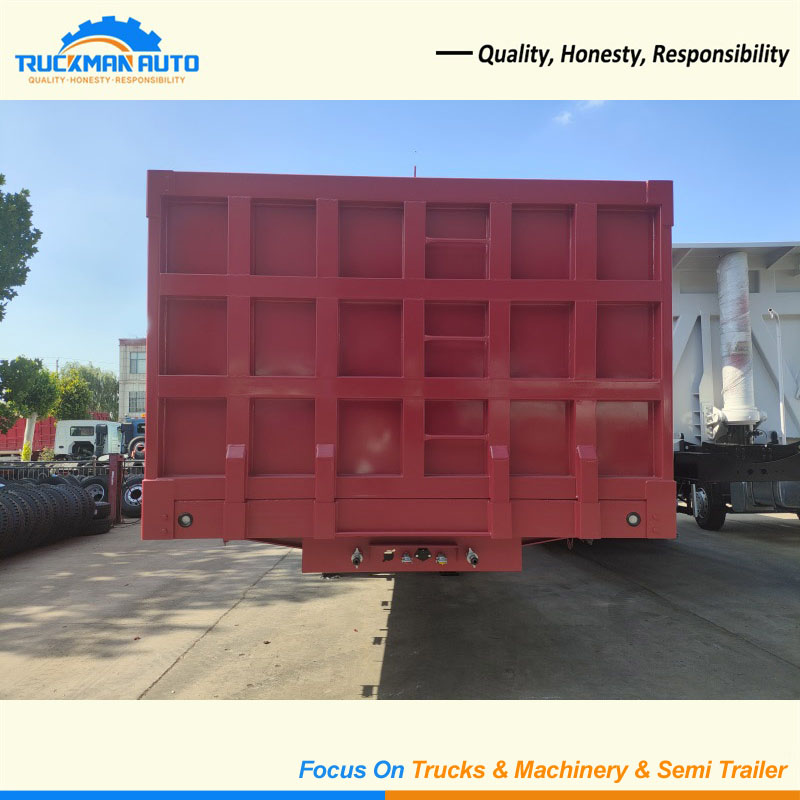

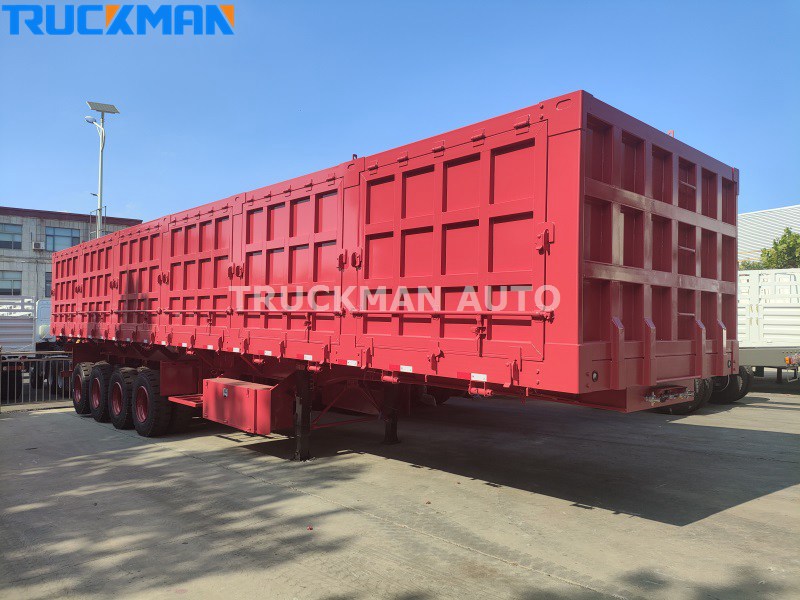

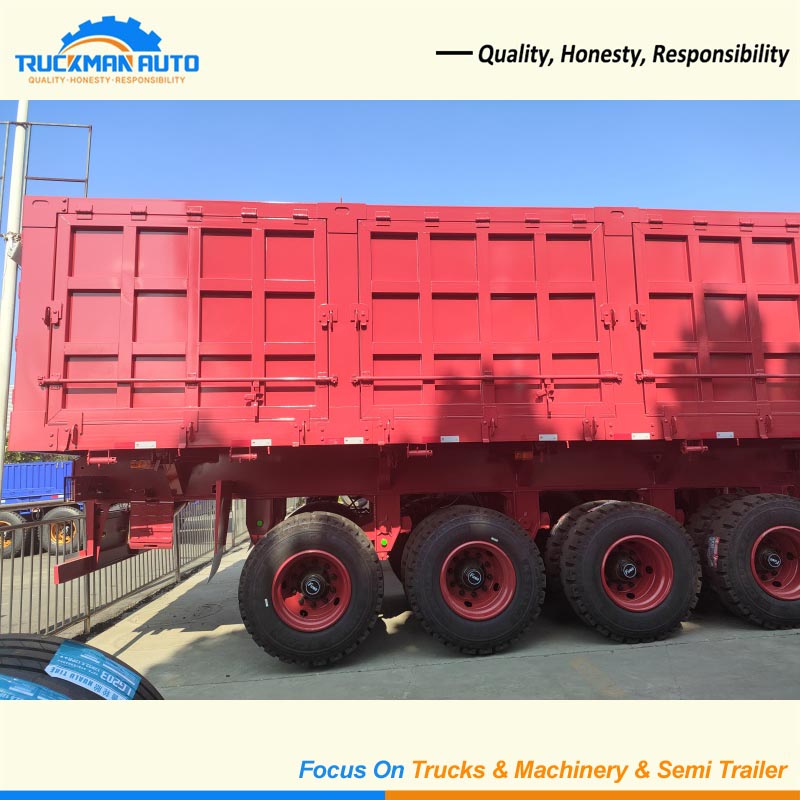

4 Axles 80 Tons Side Flip Type Dump Semi Trailer

About 4 Axles 80 Tons Side Flip Type Dump Semi Trailer

The dump semi trailer adopts modularized production, and it is more convenient to repair and replace the parts. The production efficiency is improved to ensure the high precision and consistency of each accessory, and it is more convenient to repair and replace the accessories later. The structural design principle of side tipping semi-trailer is to equip multiple lifting structures at the bottom of the carriage, and in the working process, all the hydraulic cylinders act together on the support at the bottom of the carriage to turn the box to both sides and carry out the tilting operation of the goods. Side tipping semi-trailer adopts the design of two-sided tipping, i.e. both left and right sides can be tilted sideways.

4 Axles 80 Tons Side Flip Type Dump Semi Trailer Specification

Product Name: 4 Axles 80 Tons Side Flip Type Dump Semi Trailer

Application: Cargo transportation

Axle: 4 axle, 4x16 tons, FUWA brand

Tire: 13R22.5, 16 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 10070x2500x3240mm

4 Axles 80 Tons Side Flip Type Dump Semi Trailer specification only for your reference, we will recommend other model Dump Semi Trailer basic your request.

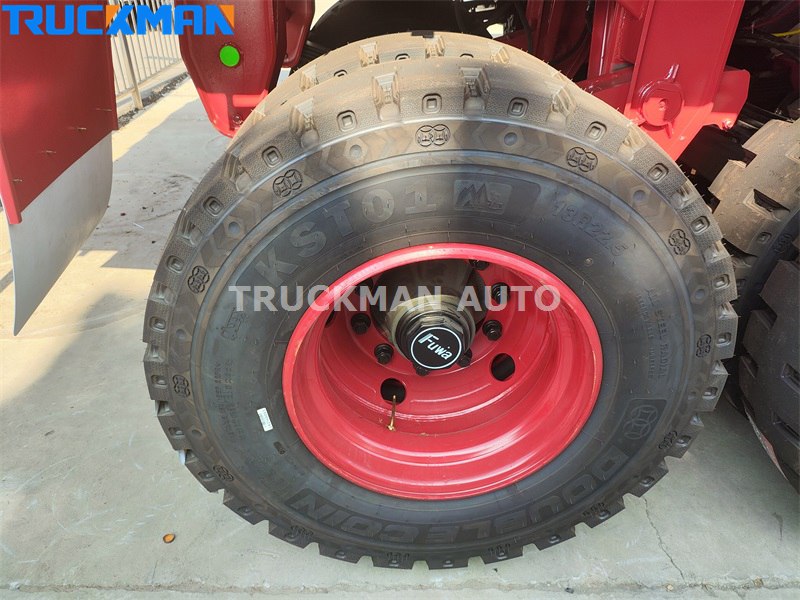

4 Axles 80 Tons Side Flip Type Dump Semi Trailer Tire

The side flip type trailer adopts 13R22.5 tires, the tubeless structure reduces the friction between the inner and outer tires, and the weight of the carcass is relatively light, the rolling resistance is about 7% lower than that of the tires with tubes, which reduces the fuel consumption of the vehicle and saves the operation cost. The tread, large diameter design and special base rubber and heat sink design can make the tire quickly emit heat in the process of driving, avoiding performance degradation and accelerated aging caused by overheating, prolonging the service life of the tire and reducing the probability of failure. It is suitable for different transportation distances and can provide stable and reliable driving performance for vehicles.

4 Axles 80 Tons Side Flip Type Dump Semi Trailer Things To Note

1. The vehicle should be parked on solid and flat road surface, avoiding height difference between left and right tires.

2. The unloading site must be physically examined to understand the actual situation, and special attention must be paid to be lifted before unloading the vehicle installed with rear box plate locking mechanism.

3. In the feeling that there is a side tipping phenomenon occurs, do not panic, not to mention the manipulation valve to switch to the carriage down position, because the carriage drop is by self-weight back down, so the operation will produce greater danger.
