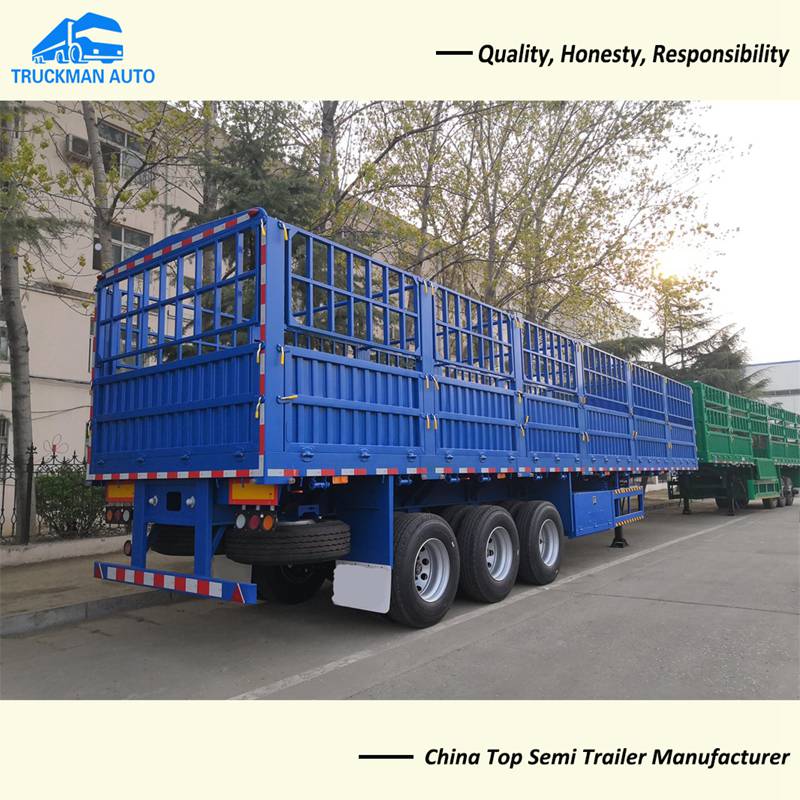

China hot selling fence sidewall cargo semi trailer

Product ID : TMA360TT125FST

Product Tags : Cargo Semi Trailer

Product Description

Fence Cargo Trailer choose Q355 carbon high-tensile steel material, welded by automatic Submerged-Arc processes. We adopt world famous brand of parts, like JOST, WABCO braking valve etc. This makes the trailer not only increase long service life but also improve operating efficiency and save maintenance costs. Fence cargo semi trailer has a fence structure design. We have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height. We are manufacturer, provide customized service, design as the customers’ every request. We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our cooperation can be ODM or OEM mode.

Fence Cargo Semi Trailer
Tare Weight	Approx. 8 Tons
Dimension	1260025002700mm
Loading Capacity	60 T

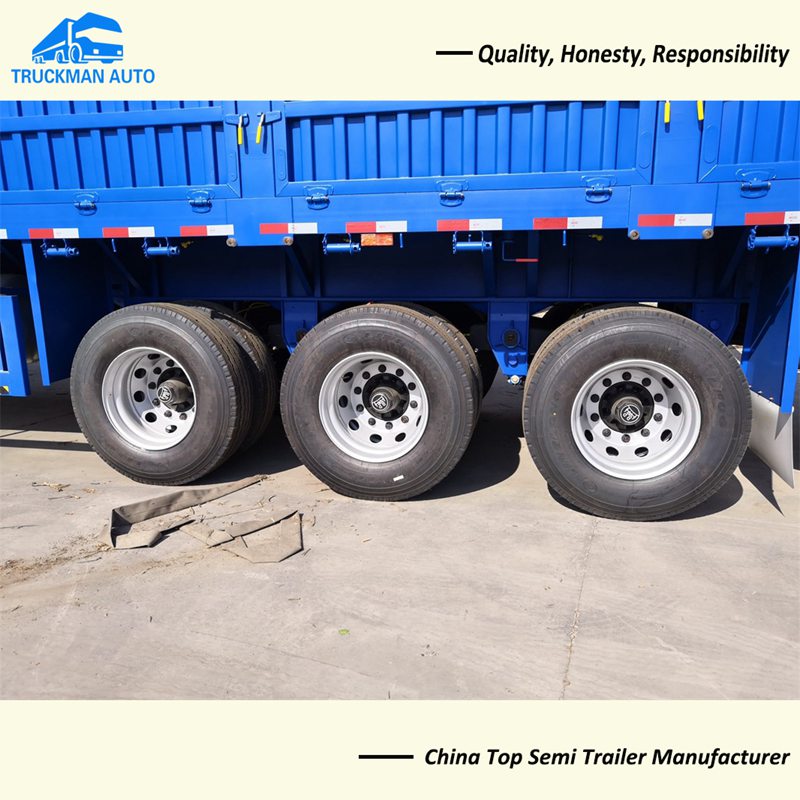

Axle	13T/16T, FUWA/BPW/CIMC/ZY, etc
Rim	9.00*22.5/8.00-20/8.5-20
Suspension	Mechanical suspension(Germany type or America type) or Air suspension
Leaf Spring	90(width)mm16(thickness)mm10 layer(especial for exporting market)
King pin	Jost brand 2.0 or 3.5 inch
Landing Gear	Jost brand two speed
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 10mm, down plate is 16mm; Material is Q355 steel
Side beam	16mm channel steel (Material is Q235B steel)
Bottom Platform	3mm checquered steel plate
Side wall	800 mm height (can be customized)

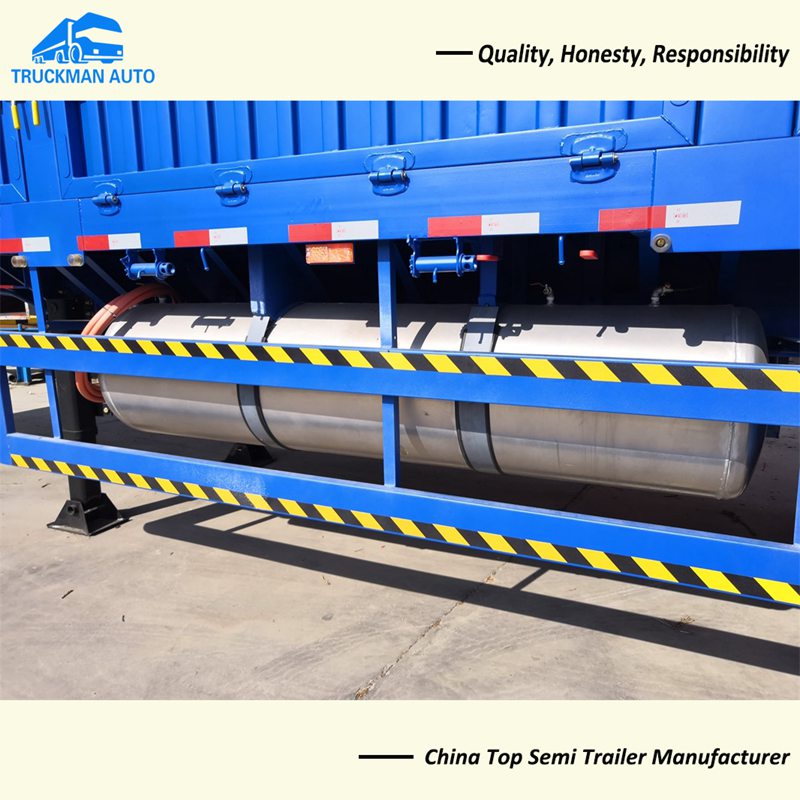

Brake chamber	Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
ABS	Optional
Twist locks	Optional
Valve	Wabco valve (especial for exporting market)
Light	LED Light (especial for exporting market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece 1m 0.5m0.5m ( size can be customized)
Painting	Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of surface paint, color advised by customer
Shipping terms	By bulk vessel, RORO, or 40HQ container
Any parts fitted could according to clients request, contact us to get more.

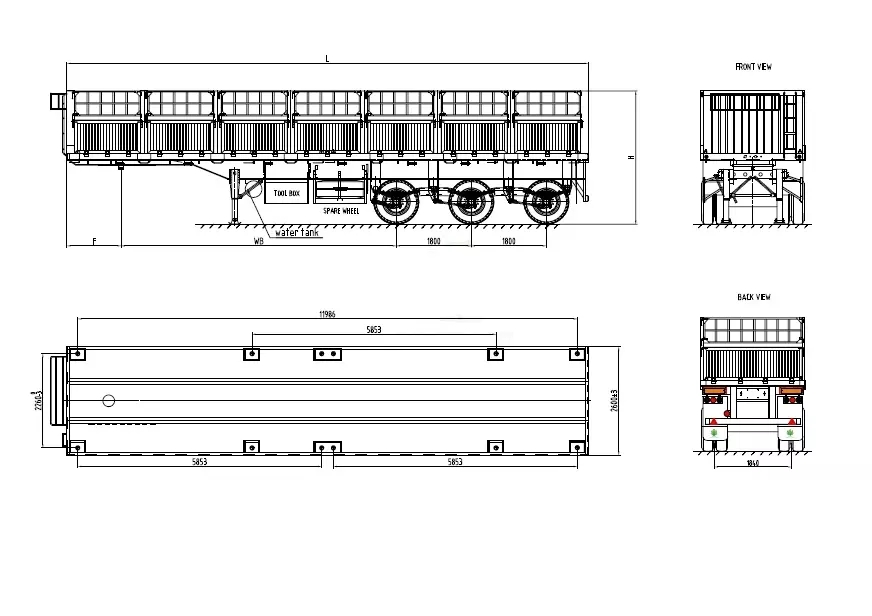

Drawing of Fence Side wall semi trailer

Application for Truck Trailer or Semi Trailer
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers / High Quality Body/BPW, FUWA or Certificated Chinese Axles / ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .

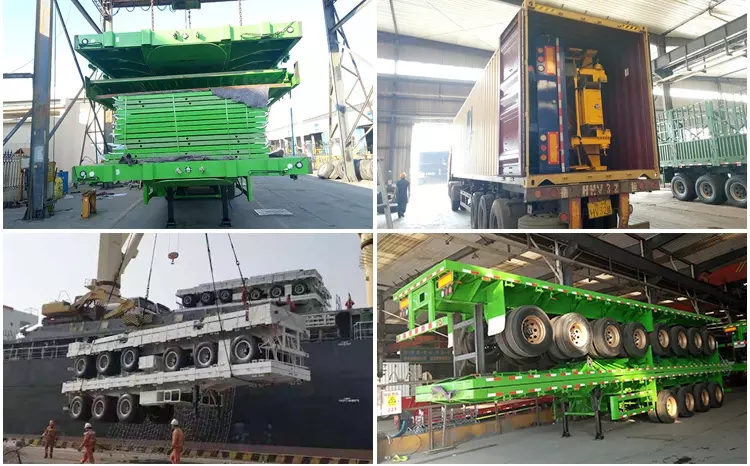

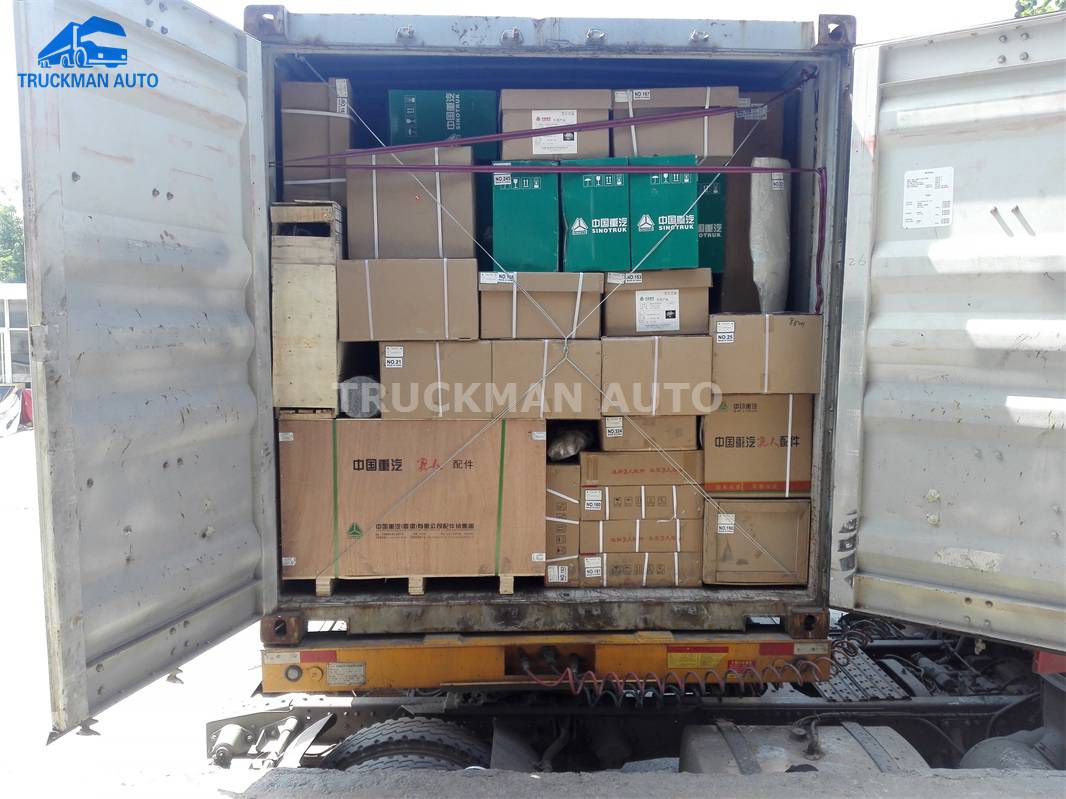

Shipment:
