Feature:
1. Loading rate >98% fully filling
2. Residual rate <0.3%
3. Delivery height >15m suitable most silo
4. Faster unloading >1.5ton/min save fuel
Dimension |
13m×2.5m×4.0m |
Shape |
V shape |
Payload |
45cbm or Custzomized |
Compartment |
Single |
Tanker Body thickness |
5 mm |
End Plate thickness |
6 mm |
Discharging System |
|
Manhole Cover |
3 pcs |
Air Compressor |
Fuda Compressor , 12m³ double-cylinder |
Diesel Engine |
Weichai HUAFENG 4102 diesel Engine |
Discharging pipe |
4 inch rubber hose , 8meters length 1 pcs |
Discharging valve |
4 inch |
Trailer Chassis |
|
Axle |
4*13T FUWA Axles |
Main Beam |
Q345B carbon steel material |
Landing Gear |
28T |
King Pin |
3.5 inch |
Suspension |
Mechanical suspension (60# type) |
Leaf Spring |
90mm(W)*16mm(T)*10 Layer |
Braking System |
4 axles Synchronous valve , 8 big air chamber WABCO relay valve |
ABS |
KEMI brand |
Tyre |
12.00R20*16pcs , Linglong brand |
Spare Tyre Rack |
1 pieces |
Accessories |
One standard tool box |
Ladder |
With |
Voltage |
24V |
Packing and shipping |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime , 2 coats of final paint |
Pattern and Logo |
According to customer’s request |
Shipping Terms |
By Bulk Cargo |
Our company is located in Shandong province of China.Our company has professional team and technology.With good quality, reasonable prices and stylish designs. our products have been more and more popular.JINAN TRUCKMAN AUTOMOBILE CO.,LTD, we can provide full range of trailers, such as:low bed truck trailers, bulk cement trailers, container semi-trailers and so on.High quality products has attracted more and more foreign customers.

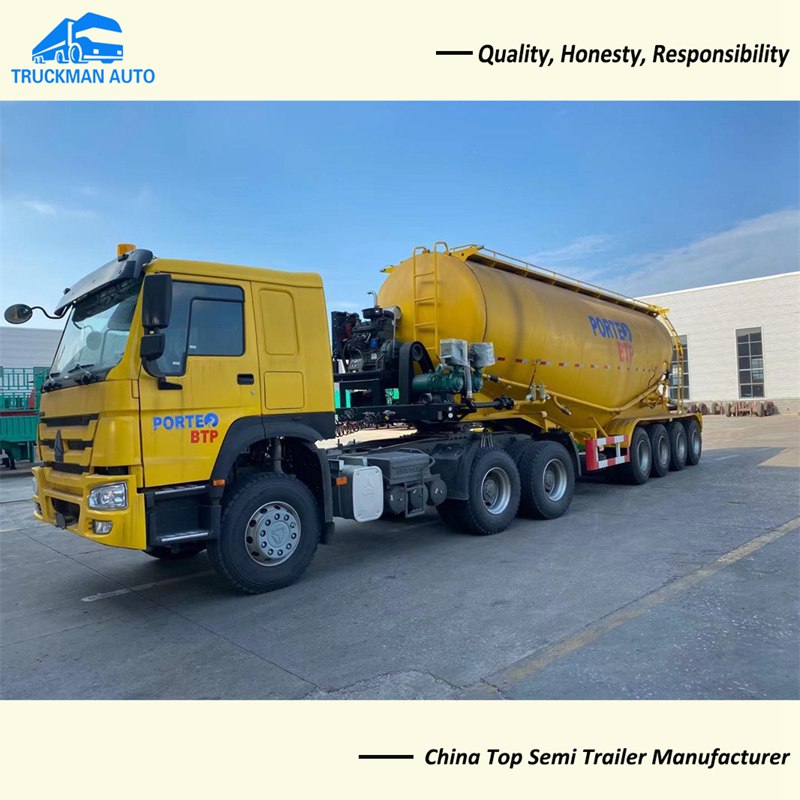

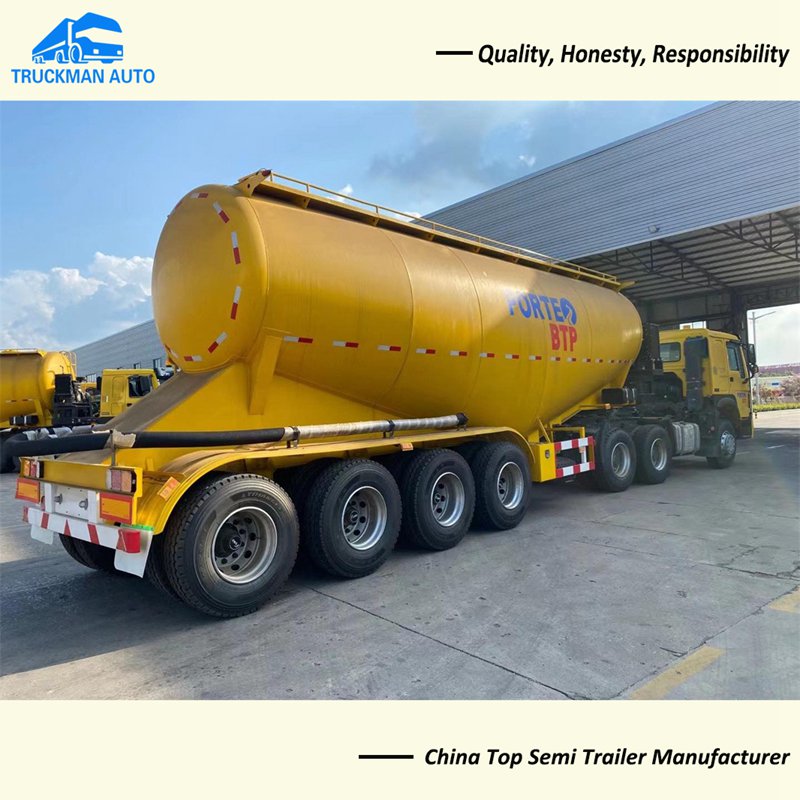

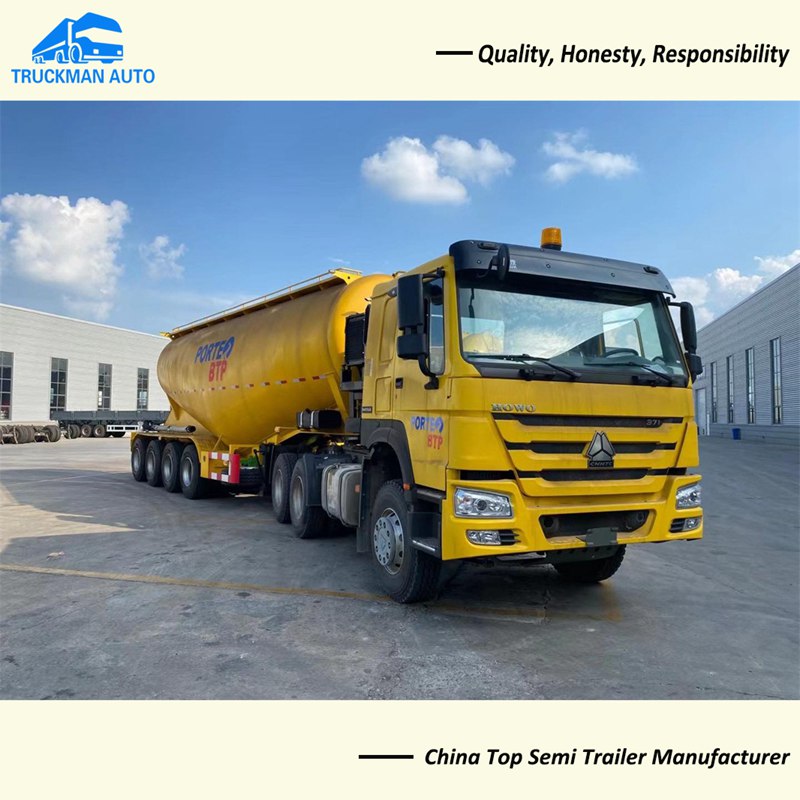

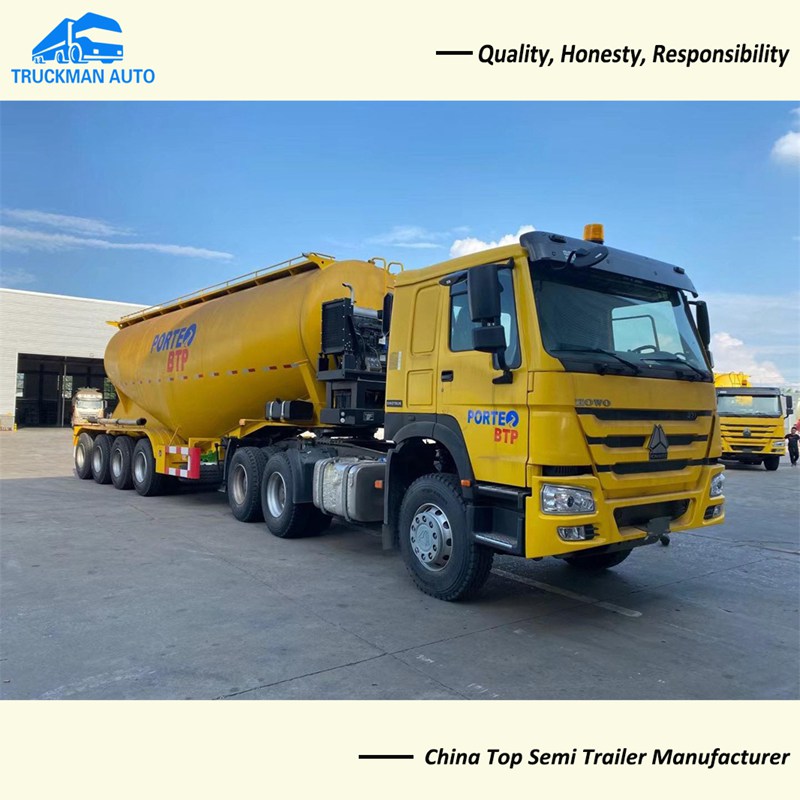

Bulk cement tanker trailer also know as cement bulker, pneumatic trailer.Bulk cement tanker trailer improves the loading and unloading efficiency, and reduce material loss.
Bulk cement tanker trailer is widely used in cement factories, cement warehouses,concrete batching plant and large construction sites for cement, fly coal ash and kinds of diameter ≤ 1mm Powder Material Storage and Transporting.
