According to client's speical requests for trailer, we can design full set drawings for clients.
(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.
China Side Wall Semi Trailer Factory TRUCKMAN Brand Semi Trailer Details:
|
|
|
Tare Weight
|
About 7.9T
|
|
Dimension
|
8500mm-13000mm*2490mm-2500mm*2860mm-2900mm (Size can be choose freely)
|
|
Loading Capacity
|
60 T
|
|
Axle
|
13 T/16T, FUWA /BPW /ZY/TRUCKMAN Brand
|
|
Rim
|
9.00-22.5 8.5-20
|
|
Tire
|
12.00R20,315/80R22.5,11.00R20,13R22.5
|
|
Suspension
|
Mechanical suspension (Germany Type or America Type)
|
|
Or Air suspension (FUWA brand or BPW brand )
|
|
Spring leaf
|
90(W)mm*16(Thickness)mm*10 Layer or 100mm*13mm*12
|
|
King pin
|
JOST brand 2.0 or 3.5inch bolts type or Welding type
|
|
Support leg
|
JOST brand D200T or China brand 28Tons (Double speed)
|
|
Main beam
|
Height: 500mm, upper plate is 14mm, middle plate is 10mm,
|
|
down plate is 16mm ; Material is Q355 Steel .
|
|
Side beam
|
16mm or 18mm channel steel ( Material is Q355steel ).
|
|
Side Wall
|
600mm-1500mm ，or can be do box type ,for choose
|
|
Brake chamber
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; Two pieces of 45L air tanks
|
|
ABS
|
Optional
|
|
Twist Locks
|
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
|
|
Valve
|
WABCO valve (especial for exporting market)
|
|
Light
|
LED light (especial for exporting market)
|
|
Voltage
|
24V
|
|
Receptacle
|
7 ways (7 wire harness)
|
TRUCKMAN Trailer Technology:
Automatic Laser Cutting Machine
Robert Welding Tech
Automatic Submerged Arc Welding
Short Blasting Machine
Electrophoresis Spray Paint

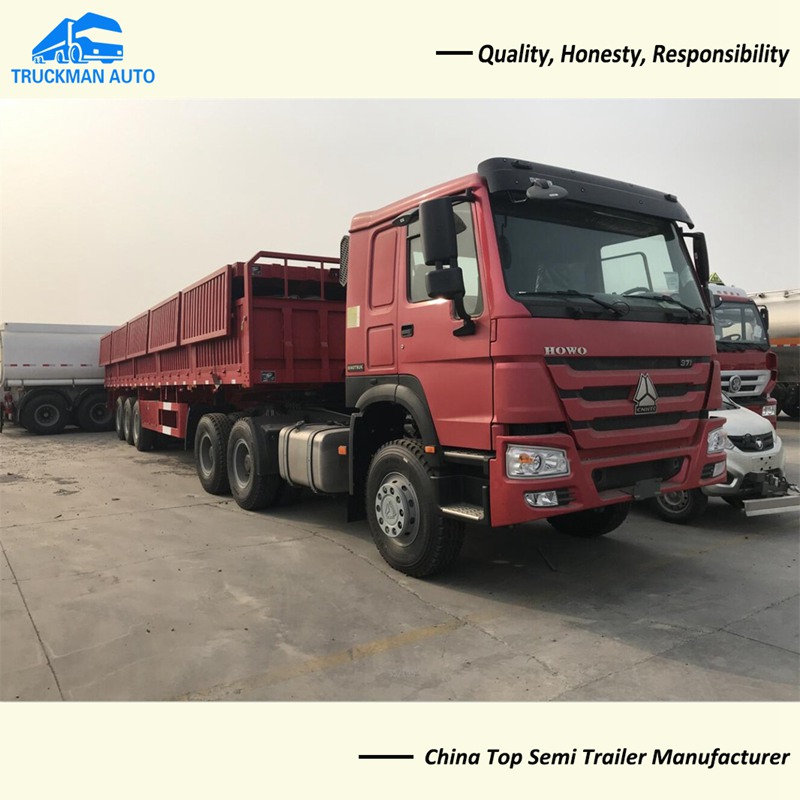

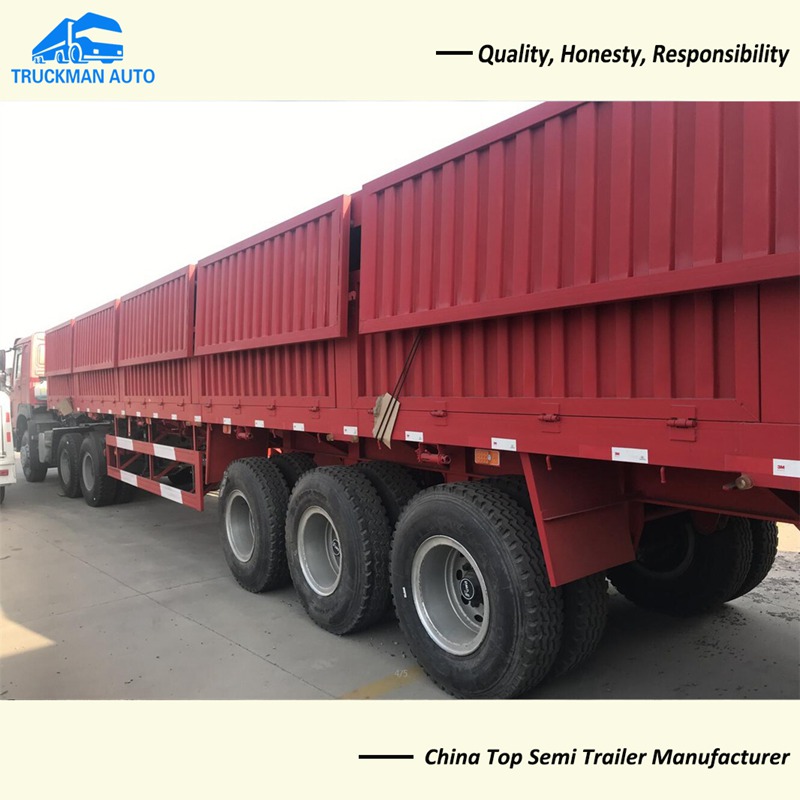

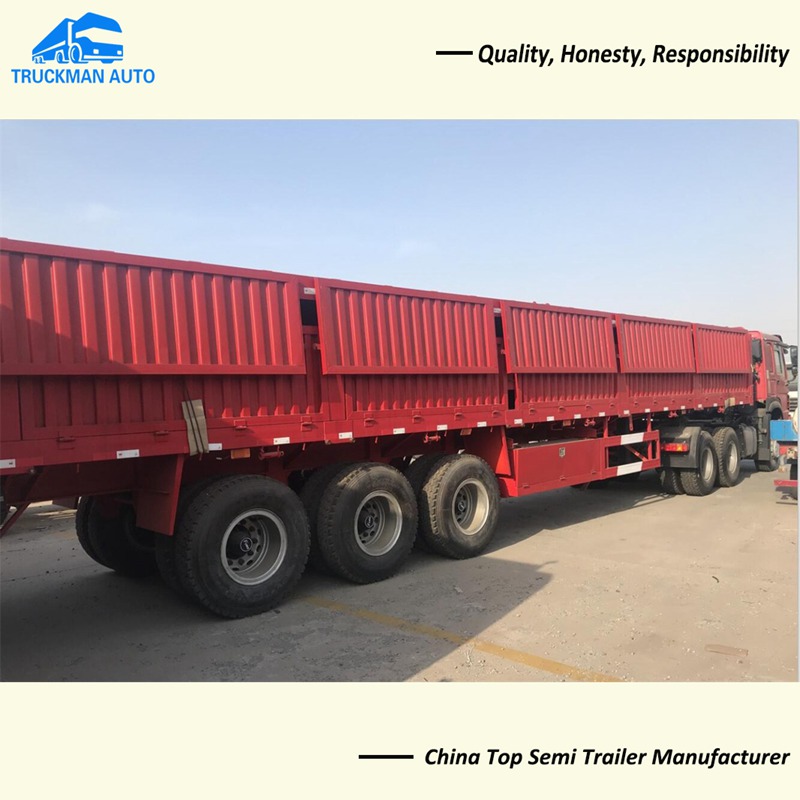

Tri Axles Side Wall general Cargo Stake Transport Semi Trailer.
Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo
The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes.
The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flange plates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding.
FAQ:
1. How do you make the shipment? We will transport the trailers by bulk or cotainer,we have possess longterm cooperation with ship agency who can provide you lowest shipping fee.
2. Can you satisfy my special requirement? Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.
3. How can you guarantee quality? Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
4. Can I have samples of this type of trailer to test the quality? Yes, you can buy any samples to test the quality,our MOQ is 1 set.
5. What's the delivery time and can you lower the price? It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
6.Can I customize the painting and the logo? Yes, we offer customized logo for any type.
7.What's the payment method? TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
