Dump semi trailer also called the tipper semi trailer, it's mainly used for the haulage the mining and construction material
Dump semi trailer also called the tipper semi trailer, it's mainly used for the haulage the mining and
construction material. The suspension could optional the air suspension and mechanical suspension,
for the different loading limit. And now our TRUCKMAN brand dump trailer adopt the front hydraulic
system, and cargo box shape have U shape and normal shape etc.

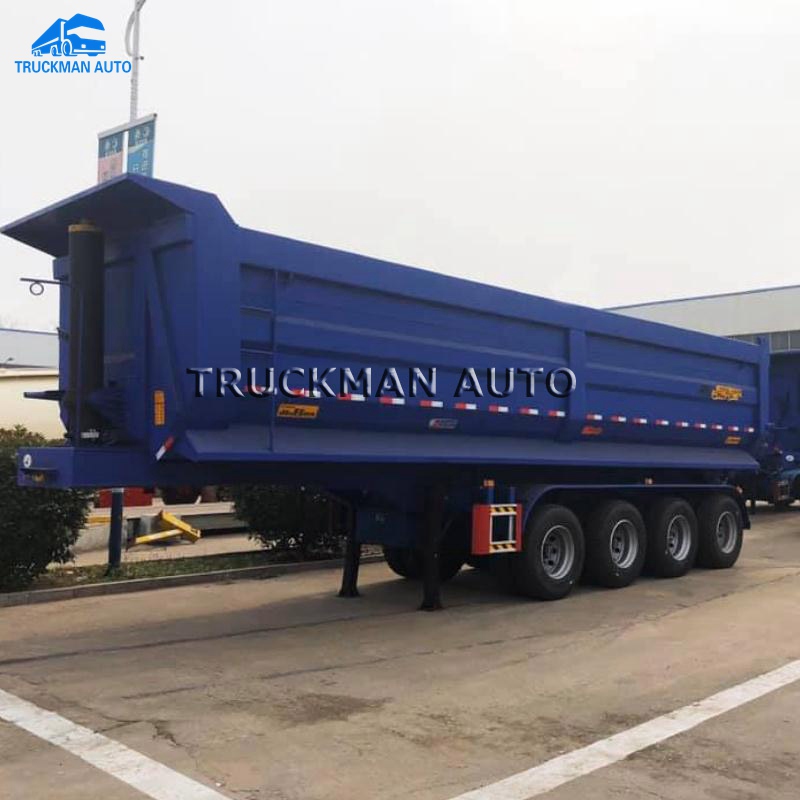

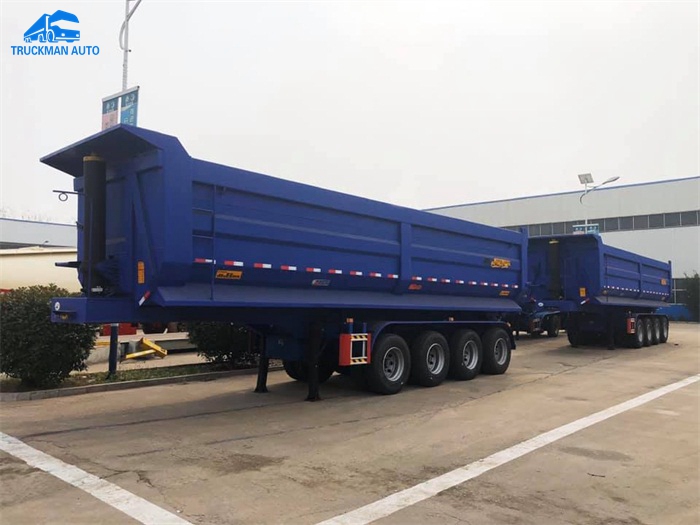

50 Tons U Shape Cargo Box Dump Semi Trailer
The Main Specification For The Dump Semi Trailer
Axles: 3x13 Tons, FUWA or BPW brand.
Main Material: Q345B, high strength steel
Lift System: HYVA brand, front hydraulic lift system
Support leg: JOST brand, 28 Tons
Tractor Pin: JOST brand, 50# or 90#
Brake System: ABS+WABCO brand, with 6 pcs big brake chamber
Tire: 12.00R20, 12R22.5, 315/80R22.5 etc. LINGLONG or TRIANGLE brand
Suspension: mechanical type, with 120x16mmx10pcsx6sets leaf spring.
Size: 11000x2500x3450mm, the bottom 8mm, side 6mm
The Specification Only For Your Reference, We Could Accept The Custom Made.
