Dumper semi trailer now very popular for the mine and construction company, due to the big loading tons and quick transport time. About the dumper semi trailer shipment, now have the RORO, BULK CARGO, FLAT RACK vessel could choose, and with fast delivery time, no rusty, very safety, lower cost etc advantage. and also we have one year warranty for our dumper semi trailer.
Dumper semi trailer now very popular for the mine and construction company, due to the big loading
tons and quick transport time. About the dumper semi trailer shipment, now have the RORO, BULK CARGO,
FLAT RACK vessel could choose, and with fast delivery time, no rusty, very safety, lower cost etc advantage.
and also we have one year warranty for our dumper semi trailer.
Main Specification For Dumper Semi Trailer.
Dimension: 9000×2500×3890mm (Outside)
Cargo Box: 8500x2400x1500mm, U shape cargo box.
Payload: 40 Tons - 80 Tons

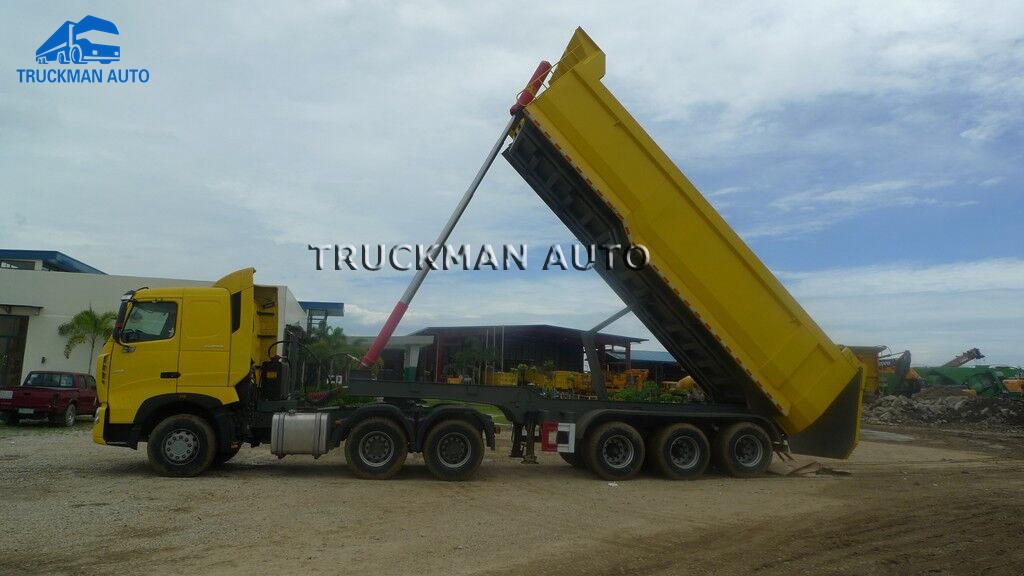

Lifting system: HYVA hydraulic system or Chinese brand
Frame: Automatic welding design I beam, Q345B carbon steel material
Thickness: Upper and lower plate is 18mm, middle is10mm. height is 500mm
Axle: 3 axles, BPW/FUWA/HJ brand
Landing Gear: JOST CHINA BRAND 28T
King Pin: JOST 2.00 or 3.5 inch bolt-in king pin

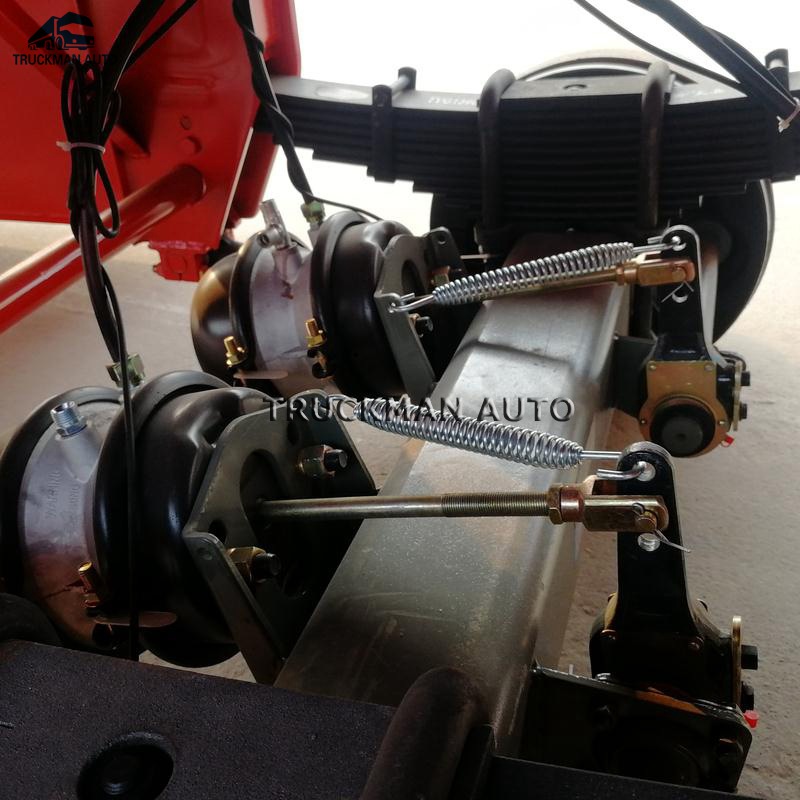

Suspension: Mechanical suspension/Germany or America type/air suspension
Leaf Spring: 120mm(W)*16mm(T)*10 Layer
Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim: 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire: 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
Accessories: One standard tool box
Voltage: 24V
The Specification Only For Your Reference, We Could Accept The Custom Made.
