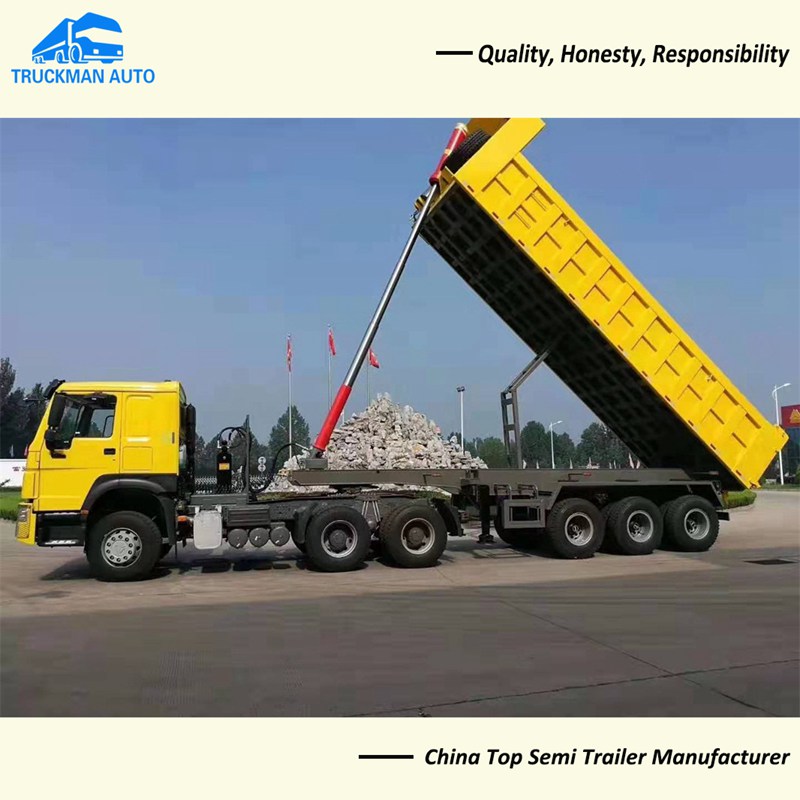

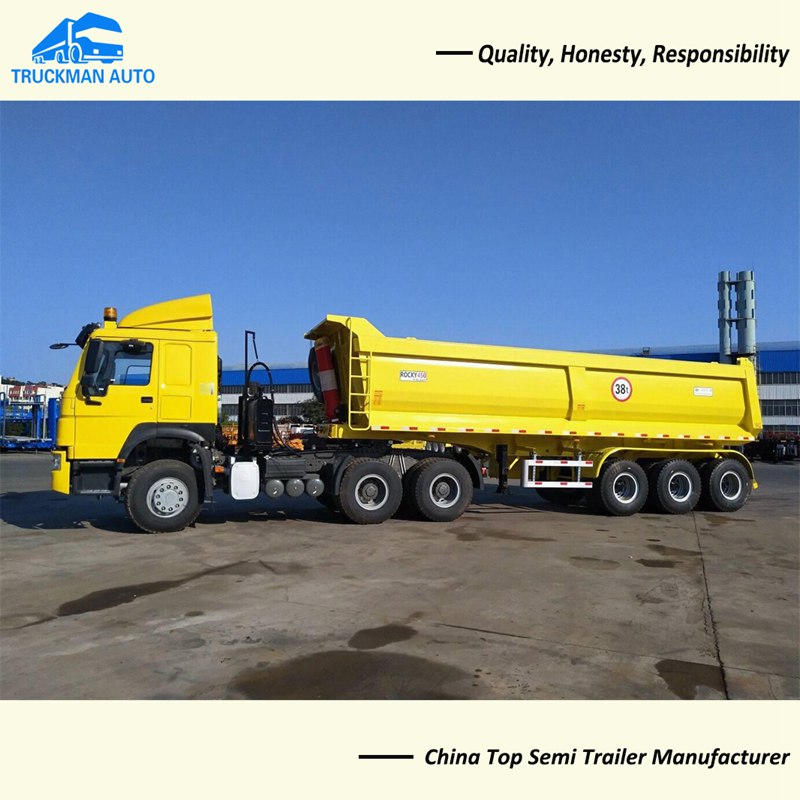

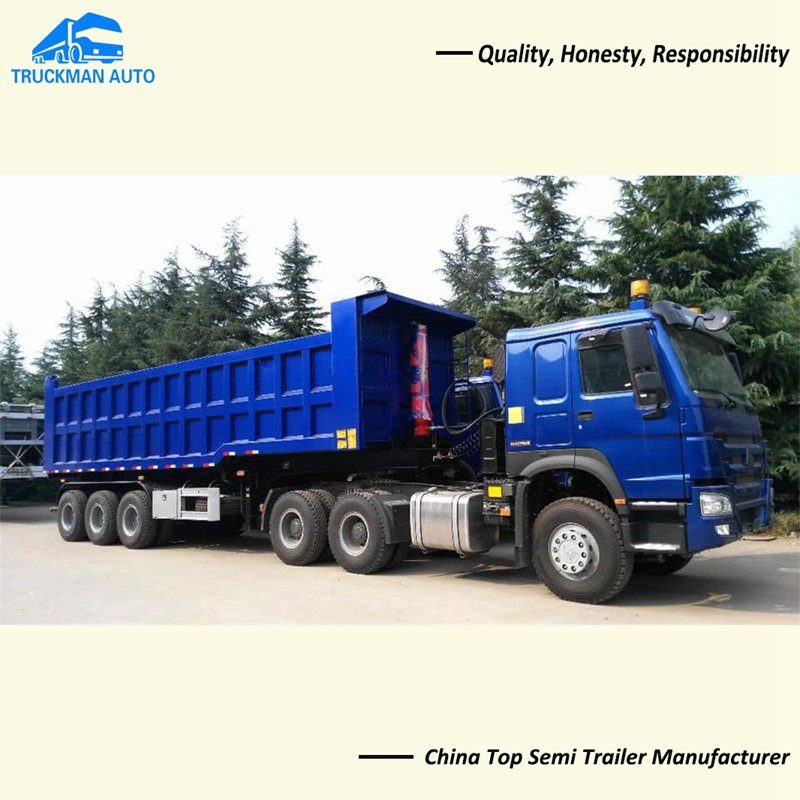

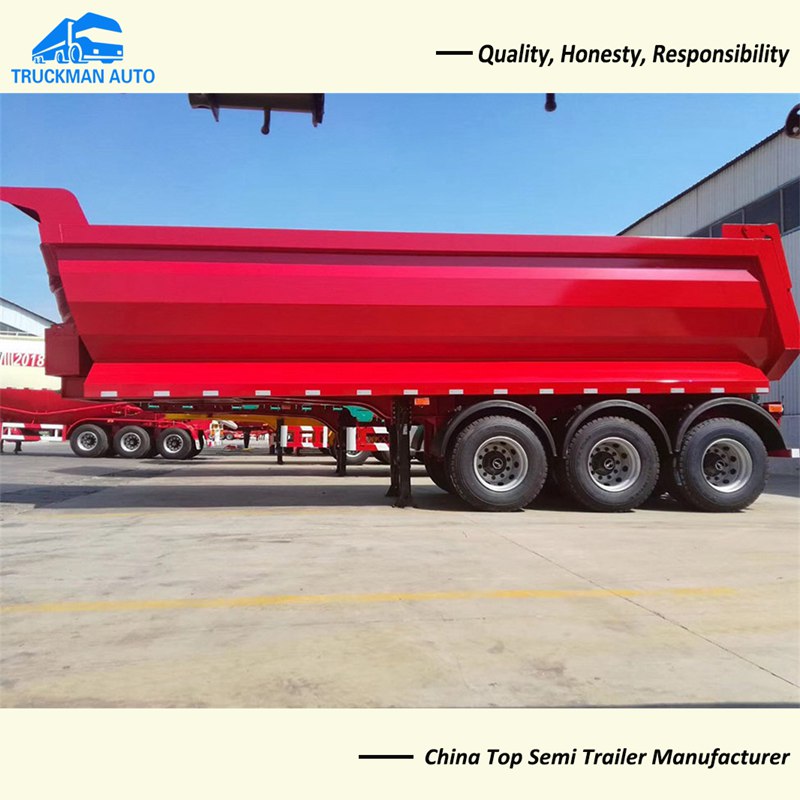

TRUCKMAN Brand 3 Axles Dump Semi Trailers

TRUCKMAN Brand 3 Axles Dump Semi Trailers Tech Details:

Brand:TRUCKMAN semi-trailer

Saddle loading:16000kg

Number of tires:12

Height of traction joint surface:1300mm

Traction neck thickness:235mm

Front overhang radius:2020mm

Payload:60000kg

Whole vehicle curb weight:15000kg

Wheelbase:8300+1310+1310mm

Axle Moment:1310mm

Maximum axle load:50000kg

Maximum loading weight:60000kg

The frame of the semi-trailer is a beam-through structure, and the longitudinal beams are straight or gooseneck. The web height ranges from 400mm to 550mm. Manganese plates are welded. The longitudinal beams are welded by automatic submerged arc welding. The frame is shot blasted. The crossbeams penetrate the longitudinal beams and are welded as a whole. The suspension adopts non-independent steel plate stamped rigid suspension (optional air suspension), which is composed of tandem steel plate springs and suspension supports. The structure is reasonable and has strong rigidity and strength to support the load and reduce the impact. The product is reliable in quality and has a wide range of uses. It has become a model for medium and long-distance vehicles. It is mainly suitable for medium and long-distance transportation of medium-heavy and bulk goods, and the transported goods have strong applicability. The whole vehicle is optimized and designed with advanced computer-aided design software. According to the requirements of vehicle load-bearing quality, the frame is subjected to finite element analysis, scientifically designed, and reasonable load sharing. The axles, tires and other supporting outsourcing parts are all produced by top manufacturers.

TRUCKMAN Brand 3 Axles Dump Semi Trailers Applications:

Self-unloading semi-trailers are suitable for the transportation of bulk cargo such as coal, ore, and building materials.

TRUCKMAN Brand 3 Axles Dump Semi Trailers Catagories:

Dump semi-trailers can be divided into two categories according to their purposes:

one type of heavy-duty and super-heavy dump trailers for off-road transportation are mainly responsible for large-scale mining, engineering and other transportation tasks, and they are usually used in conjunction with excavators.

Another type of light and medium-sized ordinary dump trailers used for road transportation are mainly responsible for the transportation of loose goods such as sand, soil, coal, etc., and are usually used with loaders.
