3 Axles Container Flatbed Semi Trailer With 50 Tons Loading Capacity

Container flatbed semi trailer is different with the skeleton container semi trailer, the flatbed container

trailer also could transport the bulk cargo, when not transport the container. But the skeleton container

trailer due to the chassis and support bar design, only could transport the containers. And flatbed

container semi trailer fairly used for the terminal, warehouse etc, with the fast delivery time and goods

safety etc advantage, now very popular in the world.

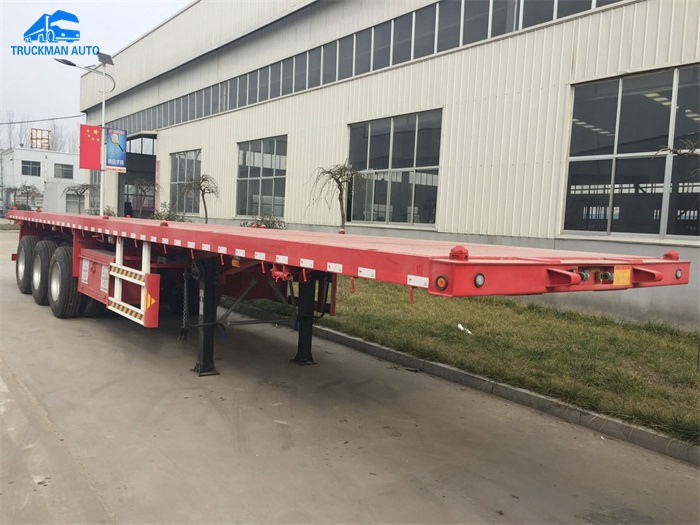

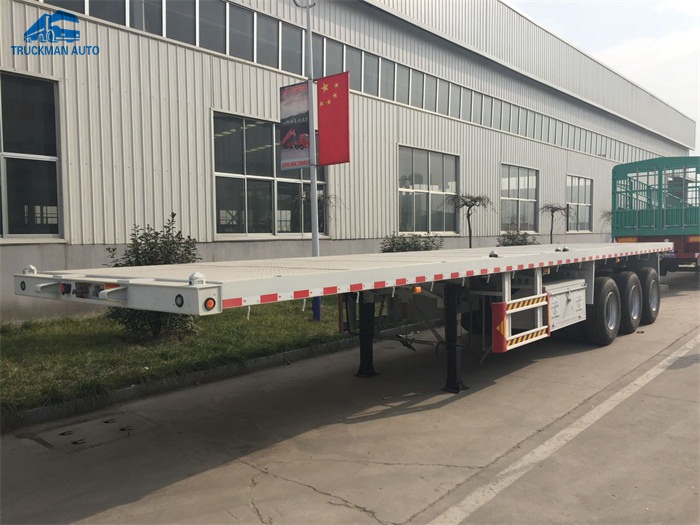

Flatbed Container Semi Trailer With 12 Pcs Container Lock.

The Main Specification For The Skeleton Container Semi Trailer

Dimension: 12400mm*2500mm*1575mm (Size can be choose freely)

Loading Capacity: 30T-50T

Axle: 13T/16T,FUWA/BPM Brand

Rim: 9.00-22.5/8.00-20/8.5-20

Tire: 12.00R22.5, 315/80R22.5, 11.00R20,12.00R20 Brand can be Optional

Suspension: Mechanical suspension(Germany Type or America Type)or Air suspension

Spring leaf: 120(W)mm*16(Thickness)mm*10 Layer(especial for exporting market)

King pin: JOST brand 2.0 or 3.5 inch

Support leg: JOST brand

Main beam: Height:500mm,upper plate is 14mm,middle plate is 8mm,

Down plate is 16mm; Material is Q345B Steel.

Side beam 16mm channel steel(Material is Q235steel).

Bottom platform 3mm diamond steel plate

Brake chamber: WABCO RE 6 relay valve
