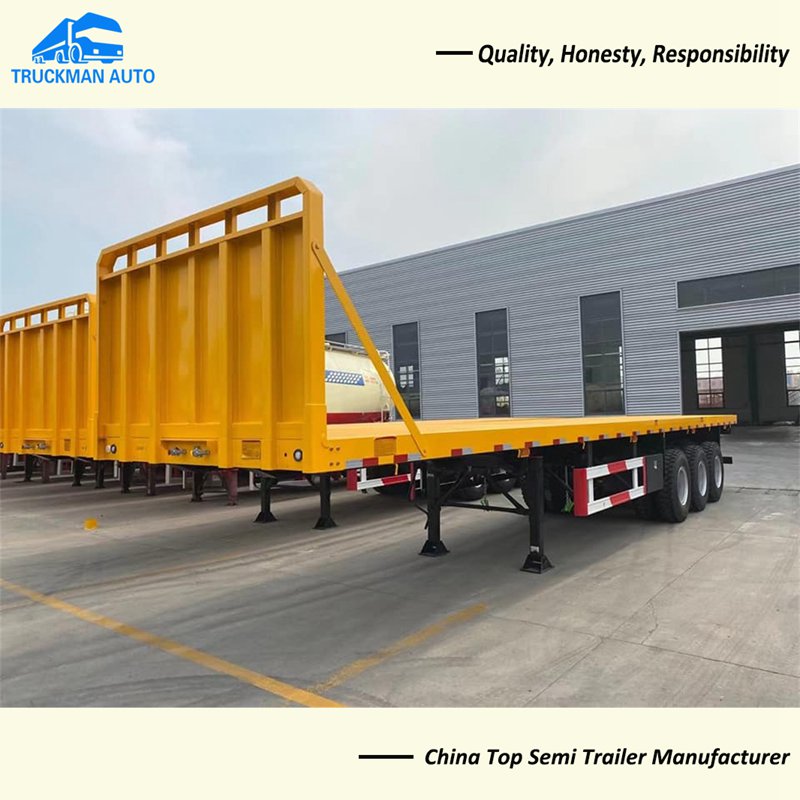

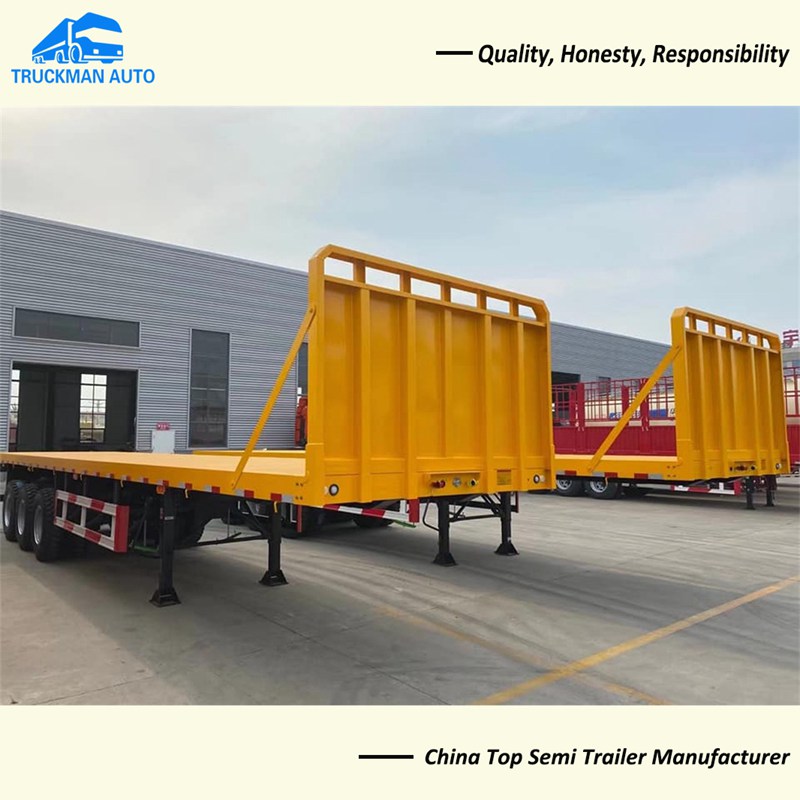

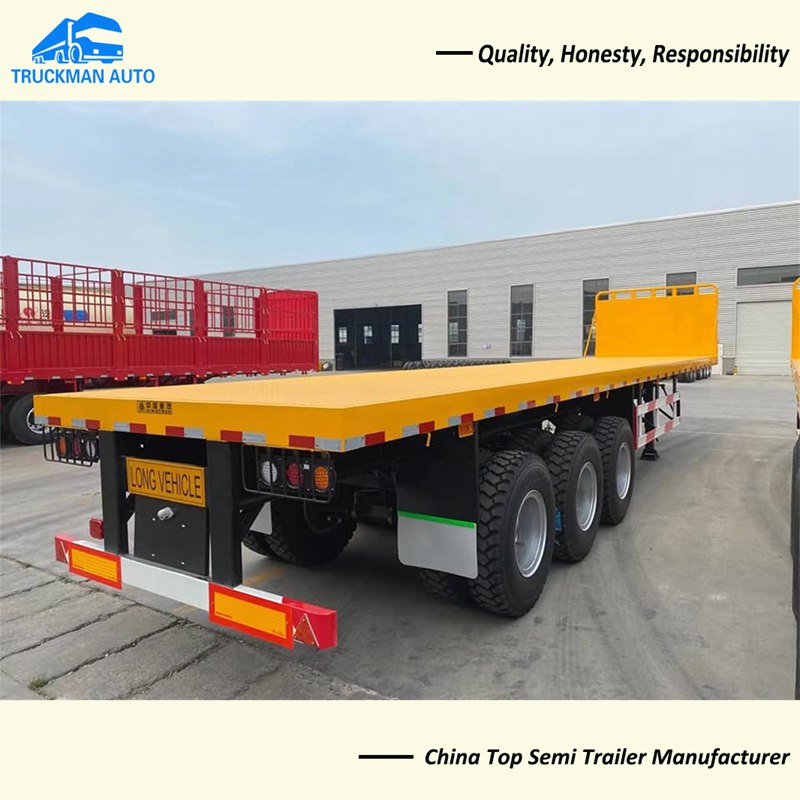

TRUCKMAN Flatbed Container Semi Trailer dedicated to the transport of various containers, and it also can be used to transport ordinary growth goods with its platform. It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.
1.Our company offer one-year warranty,during this period,if there is damage to the accessories due to quality(exception human operation),we will be responsbible
2. Operation problems,technical configuration issures,etc.,we will promptly provide professional solutions to our customers.
3. We offer high quality trailers and competitve price,customized design is available.
4. You are promised with fastest delivery and quick answer.
|
Tare Weight |
About 7.1T |
|
Dimensions |
12450mm*2490mm*1575mm |
|
Loading Capacity(T) |
60T |
|
Axles |
13T/16T,FUWA/BPW/HJ brand |
|
Rims |
9.00-22.5 |
|
Tires |
12R22.5 315/80R22.5 12.00R20,Triangle brand |
|
Suspension |
Mechanical suspension(German Type or America Type) or Air suspension(China brand or BPW brand) |
|
Spring leafs |
90(w)mm*13(Thickness)mm*10 layer or 100mm*12mm*12 |
|
King pin |
JOST brand 2.0 or 3.5 inch bolts type or Welding type |
|
Landing Gear |
JOST brand D200T or China brand 28ton(Double speed) |
|
Main Beam |
Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B steel |
|
Side Beam |
16mm or 18mm channel steel(Material is Q235 steel) |
|
Brake chambers |
WABCO RE 6 relay valve ;T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks |
|
ABS |
Optional |
|
Twist Locks |
Four ,Eight or Twelve pieces(lifting type or Twist Screw Type) |
|
Valve |
WABCO brake valve |
|
Lights |
LED light |
|
Voltage |
24V |
|
Receptacle |
7 ways(7 wire harness) |
|
Tool box |
One piece,1m*0.5m*0.5m(size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
|
Painting |
Complete Chassis and blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
|
Shipping Terms |

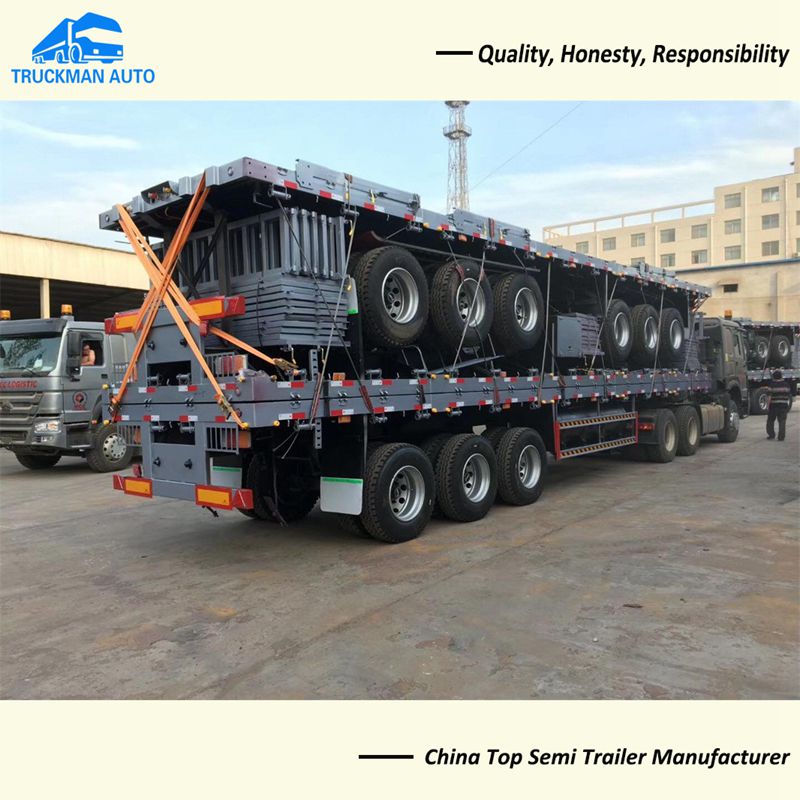

By bulk cargo carrier,RORO,or 40HQ container |
Delivery Solutions that can save Sea freight as follows:
