D12.42 Howo Tractor Truck Head 420HP

Product ID : ZZ4257V3247W

Product Tags : Tractor Truck Head

Product Attributes :

One stop supplier
Products: trucks,trailers,machinery,spare parts
Quality : 100% 12months/50 000kms warranty
Price: as best as we can go
Delivery: within30 working days
Win-win situation is our target

Product Description

1.ENGINE- always giving 100% Standard fitting WD615 and D12 Engine
The exclusive use of reinforced and wide high-strength and double- wall engine block improves the configuration and quality of key
parts and enhances the reliability and durability of engine greatly.1.High reliability
It keeps a record of continuous running of 40 thousand kilometers for one month. Bench test totaled more than 40000 hours and vehicle road test accumulated to more than 5 mil- lion kilometers. Its B10 life could reach 1.5 million kilometers.

Product Description

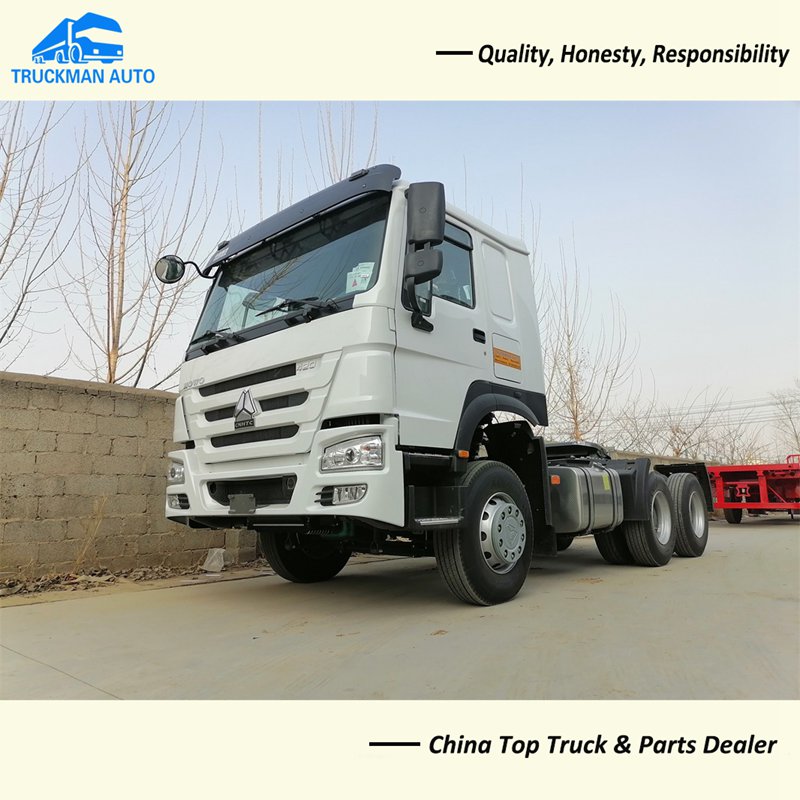

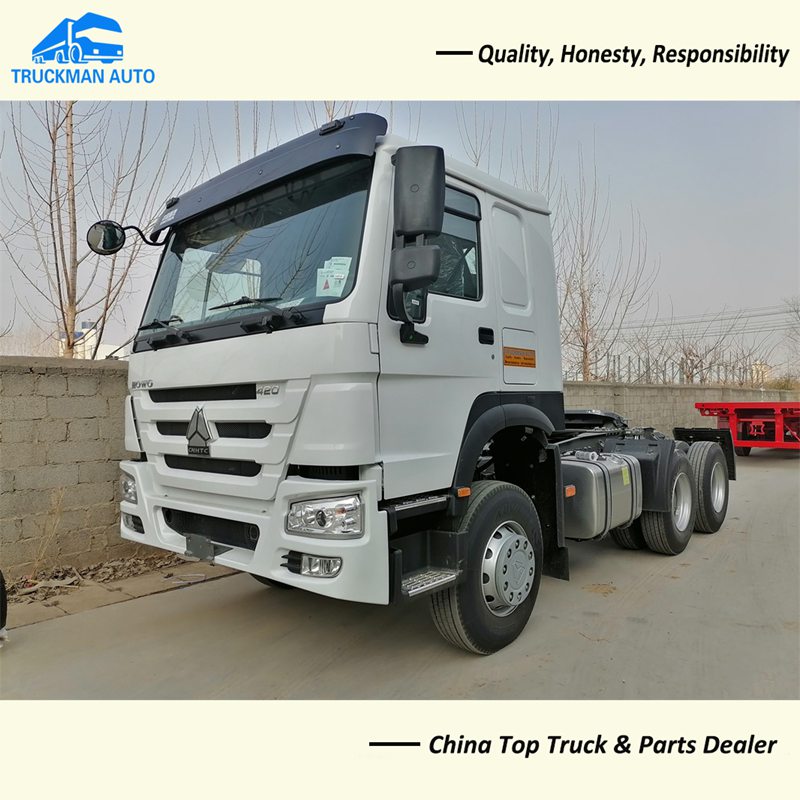

Product Name	SINOTRUK HOWO 6X4 Tractor Truck
Chassis Model	ZZ4257V3247W
Driving Type	LHD (RHD is optional)

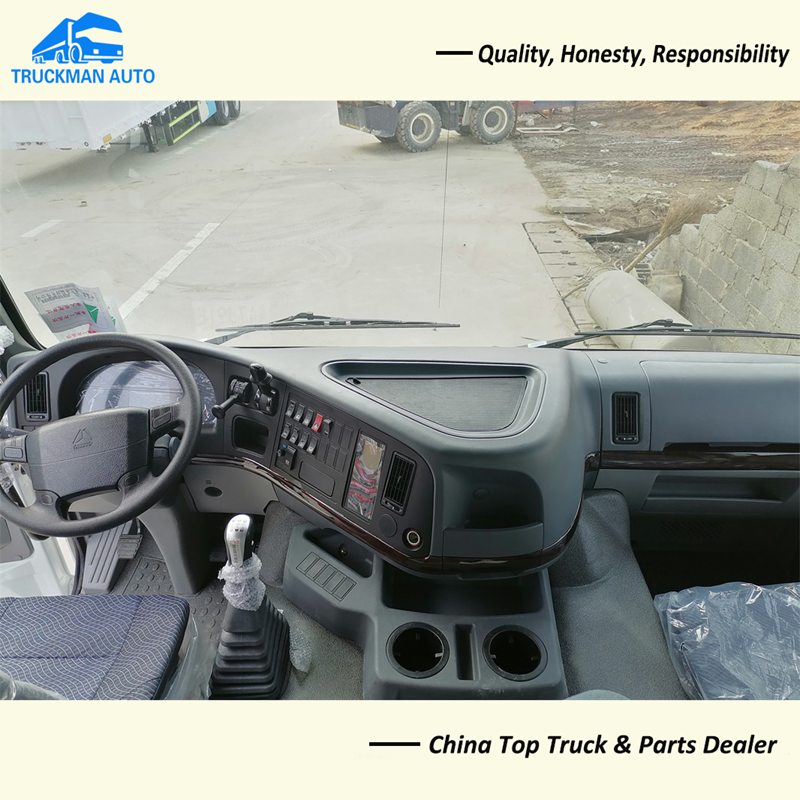

Cabin	HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

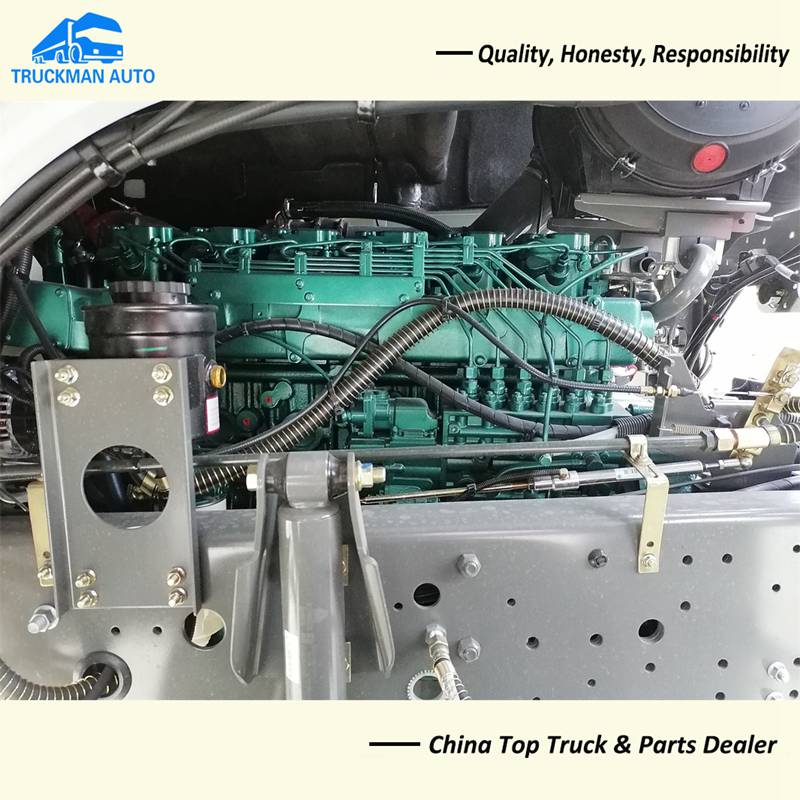

Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model:D10.42-20, Euro 2, 420 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L
Transmission	HW19710, 10F & 2R Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	HF9,1x9000 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange

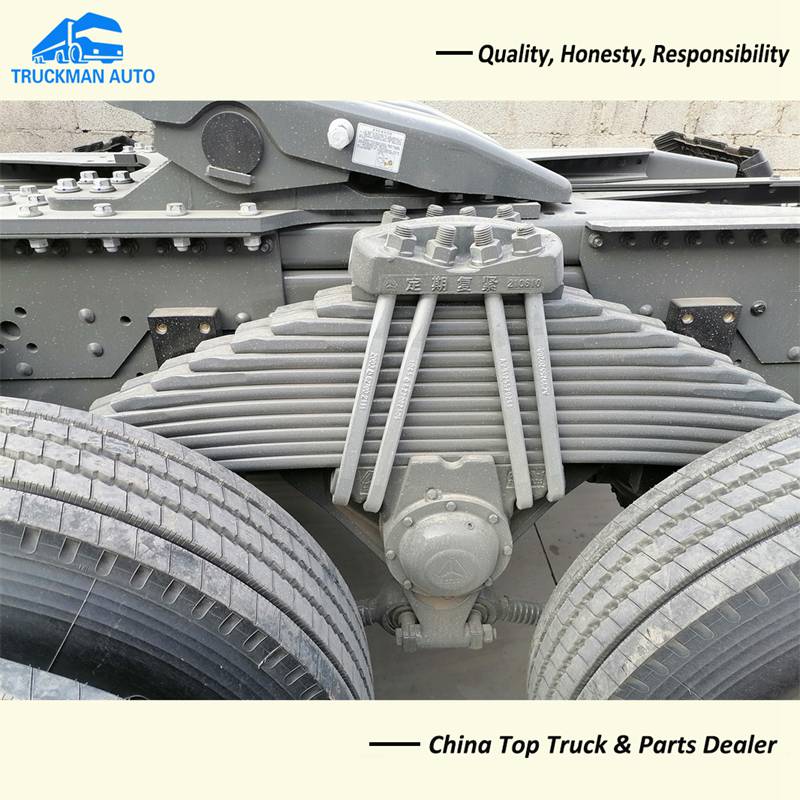

Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12R22.5,13R22.5,315/80R22.5,295/80R22.5, tubeless tyres with one spare tyre Option:12.00R20,11.00R20,12.00R24 Radial Tires.
Fuel Tank	400L Option 600L and 1000L

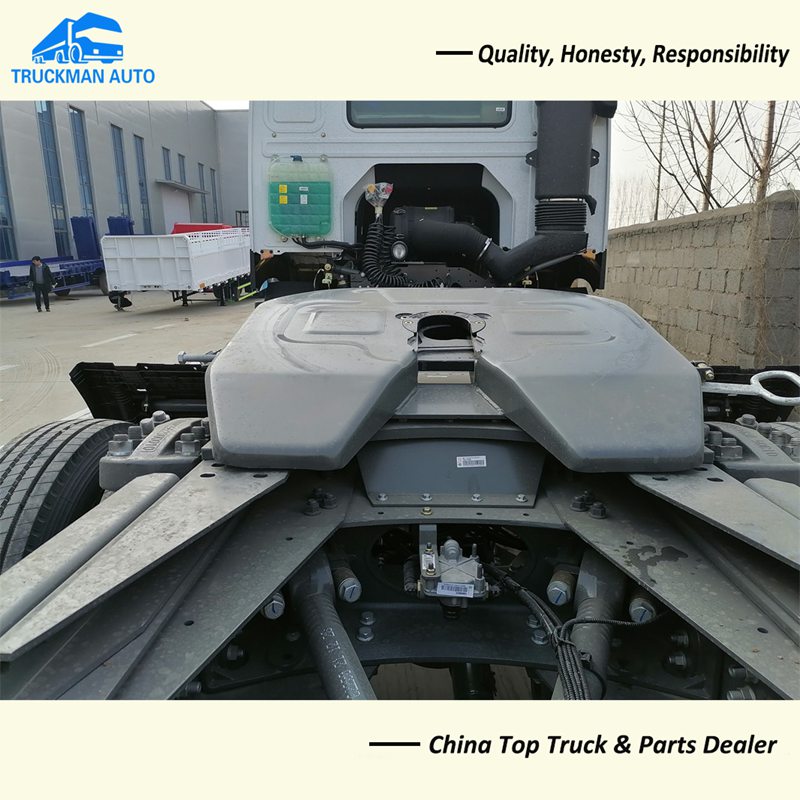

Fifth Wheel	90# or 50 #
Overall Dimension	685025503100mm
