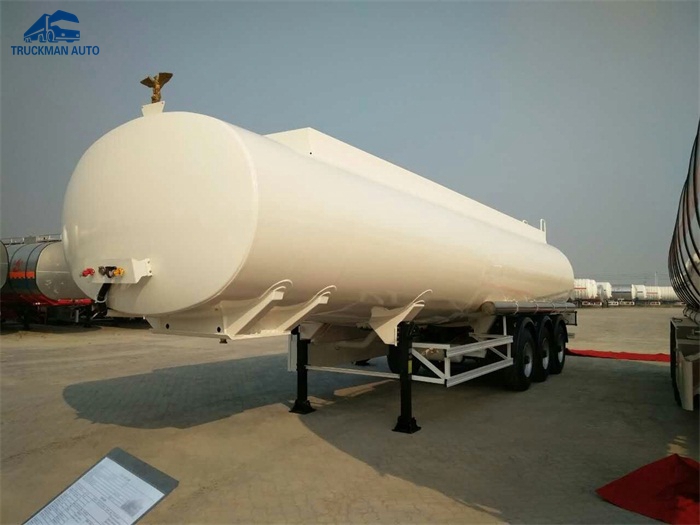

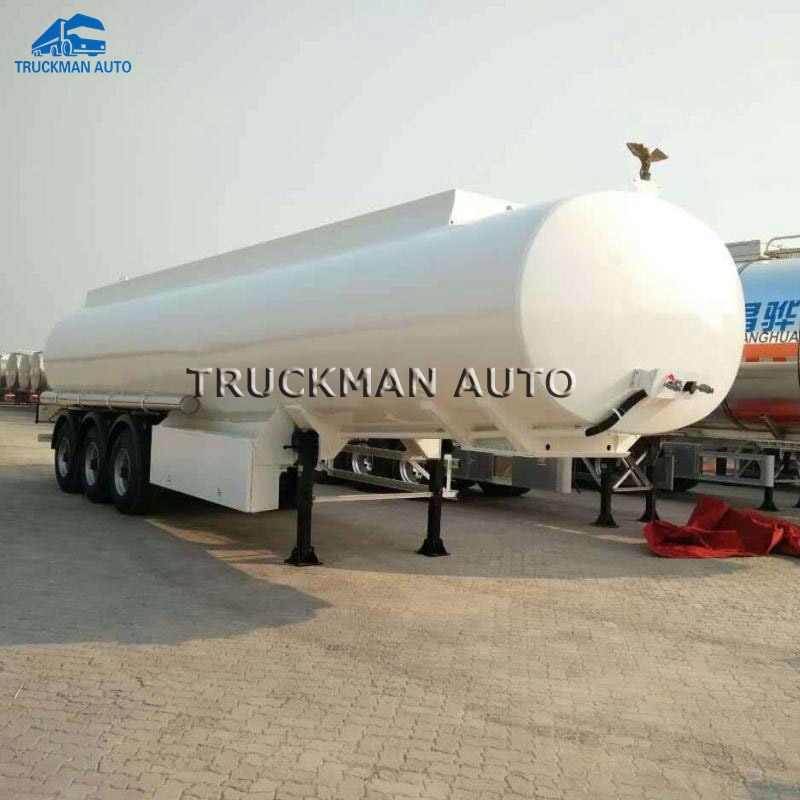

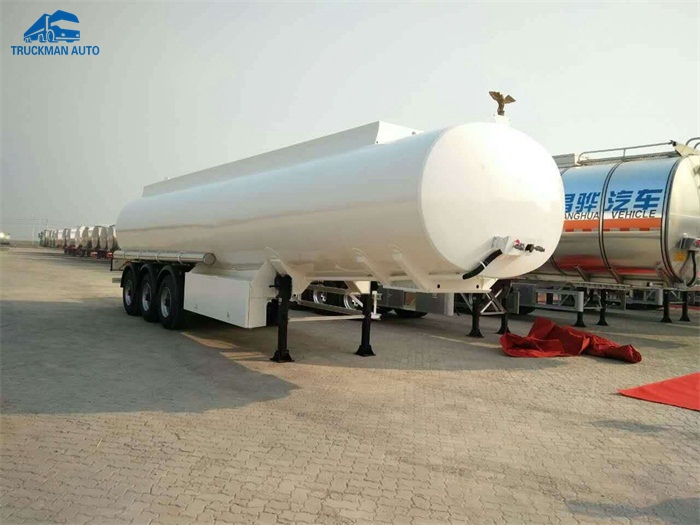

The tanker semi trailer is usually used for transport the liquid, such as the milk, diesel, petrol, water etc according to the function.
-1. Oil Tanker Trailer Main Details.
With the comdepartment for loading different liquid.
Used for transport the oil, fuel, water, milk, diesel etc.
12R22.5 or 12.00R20 tubeless and radial tire could optional.
Tank body from 35000 liter to 55000 liter.
-2. Oil Fuel Tanker Trailer Main Specification.
Loading Capacity: 50 Tons
Tank Body: 45000 Liter, 45m3 volume
Main Beam Spec.: Carbon steel.
Suspension: mechanical suspension
Leaf Spring: 120mmx16mmx10pcs
Axle Spec: 3x13 tons, FUWA
King Pin: 3.5"(90mm) JOST Brand
Tire: 315/80R22.5, 12.00R20, LINGLONG brand.
Brake Chamber: 6 sets
Landing Gear: JOST E100, 28 tons.
Electric System: 24V, One Set 6-core Standard Cable
Light: Tail lamp with turn signal, brake light & reflector, side lamp etc.
