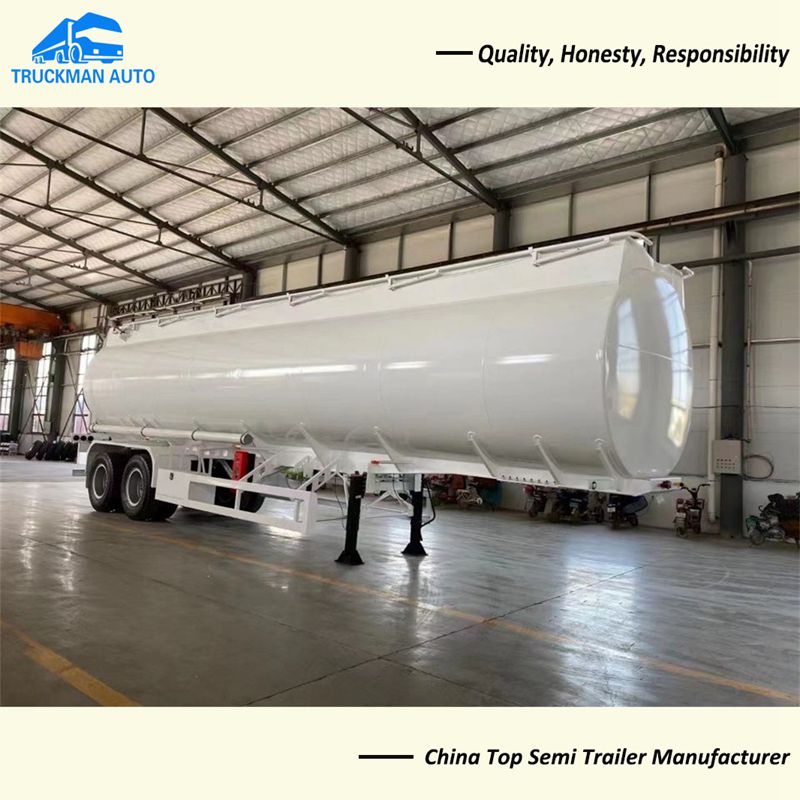

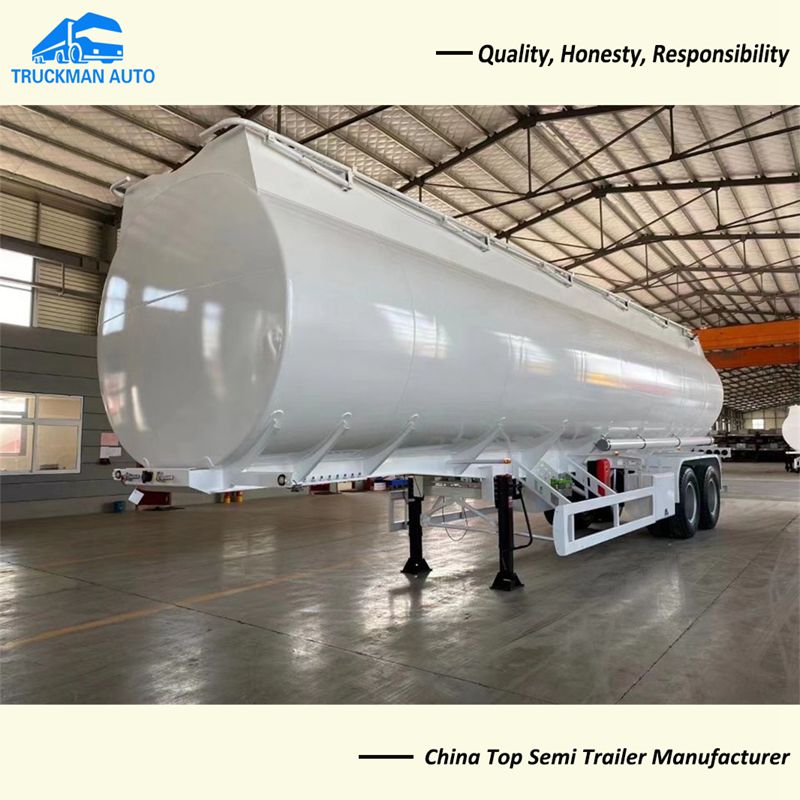

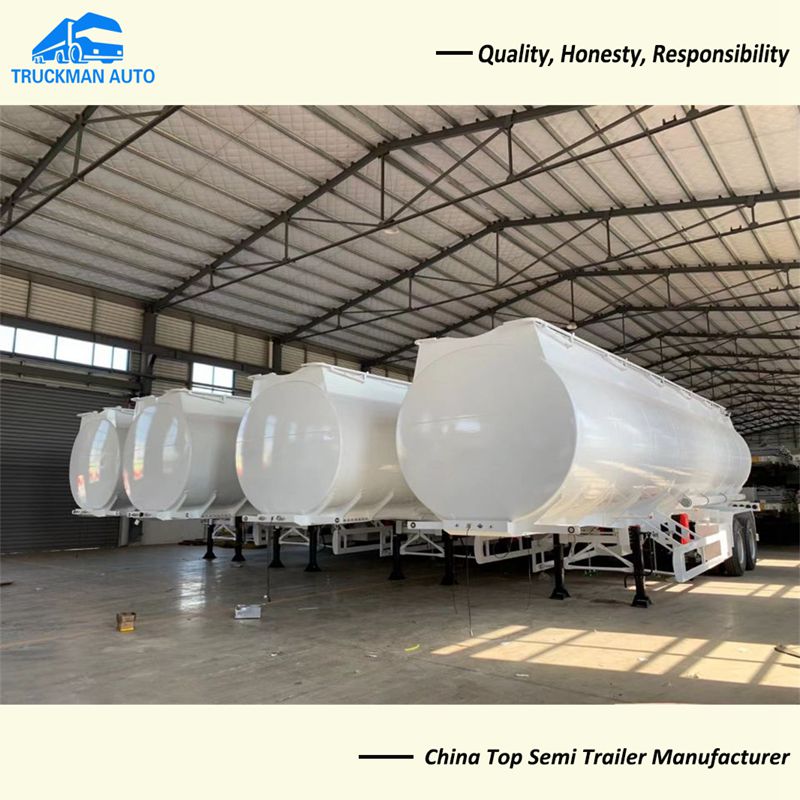

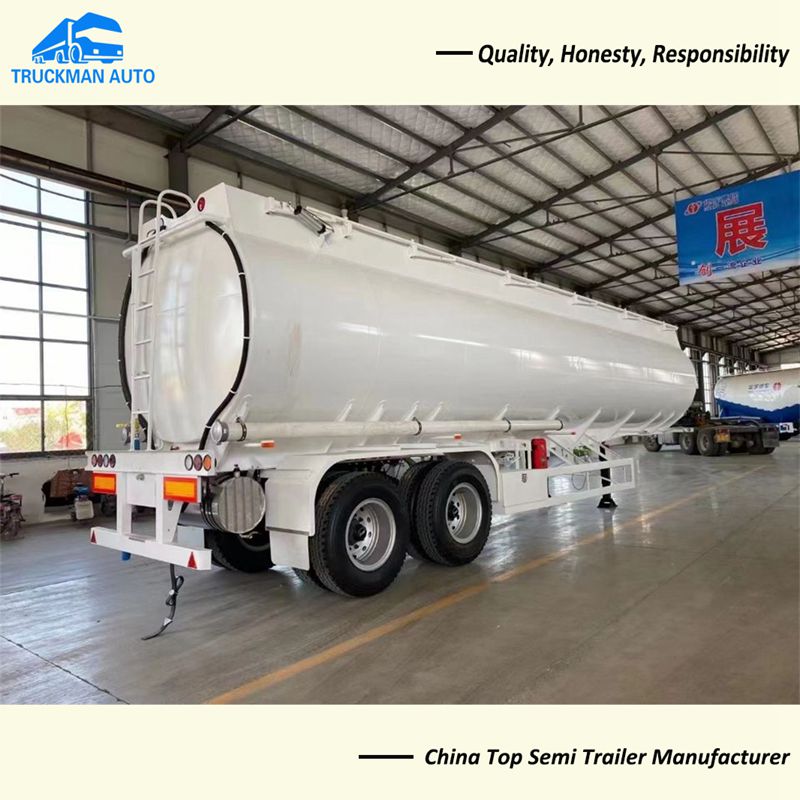

Fuel tank trailer suspension adopt the single point type, special design for Mauritania road.
40,000 liter fuel tank trailer adopt the single point 16 tons axle, high loading capacity and tire adopt the 12R24 model suitable for bad road condition. The whole fuel tank trailer have 4 pcs comdepartment, every comdepartment with 10,000 liter capacity. Also including the separate discharge valve.
Fuel Tank Trailer Main Specification.
Product Name: Fuel Tank Trailer
Loading Capacity: 40,000 liter, with 4 pcs comdepartment
Tare Weight: 9,500kg
Axle: 2 axle, 3x16,000kg
Suspension: single point suspension, FUWA brand
Leaf Spring: 120x16mmx16pcsx4sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12R24, 8 pcs tire.
Brake System: WABCO brand, ABS and 4 pcs brake chamber.
Thickness Of Frame: middle 10mm, lower plate 16mm, “I” type main beam.
Dimension: 12500x2500x3200mm.
The fuel tank trailer could design according to your request.

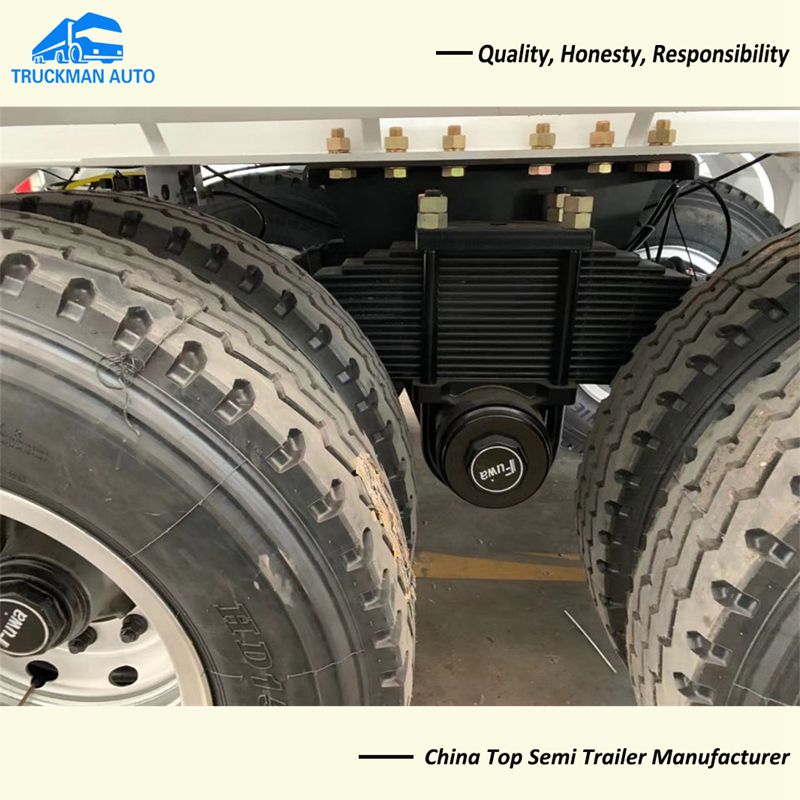

Fuel Tank Trailer Single Point Suspension Advantage.
Single-point suspension is to reduce the common leaf spring front and rear brackets into a single bracket connected to the semi trailer. Its stress points are shared on the front and rear axles. Compared with ordinary leaf spring suspensions, single-point suspension has a higher loading capacity. Very suitable for Mauritania road request
