The chassis of the 46 cubic aluminum alloy oil tank semi-trailer is configured with high-strength steel sub-beams, 13 tons of Fuhua axles, 16 tons of brake pads, 28 tons of single-action legs, 12 1200 Chengshan tubeless tires, and other manufacturers' standard configuration

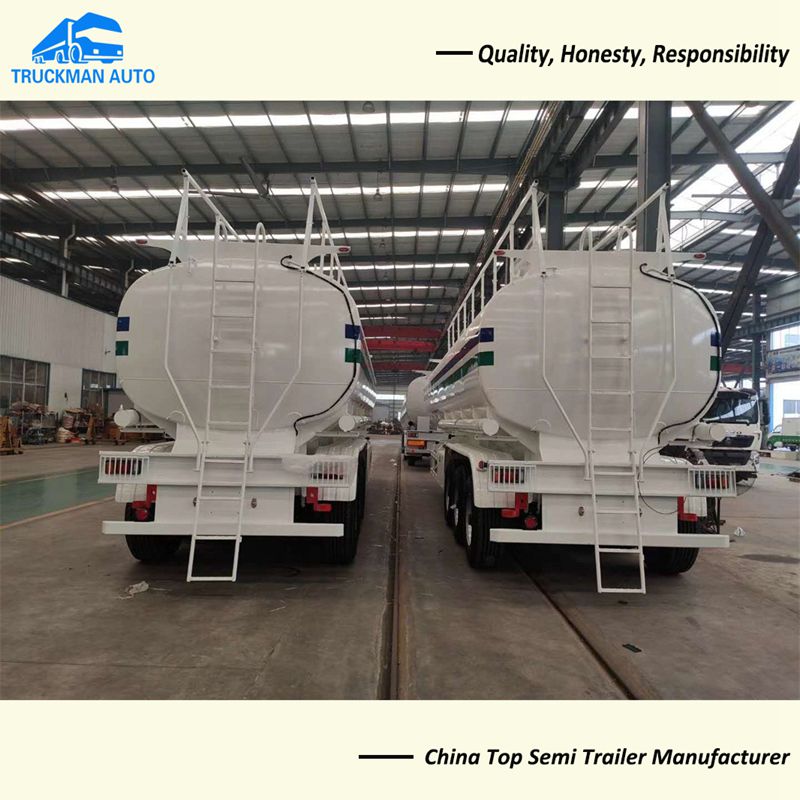

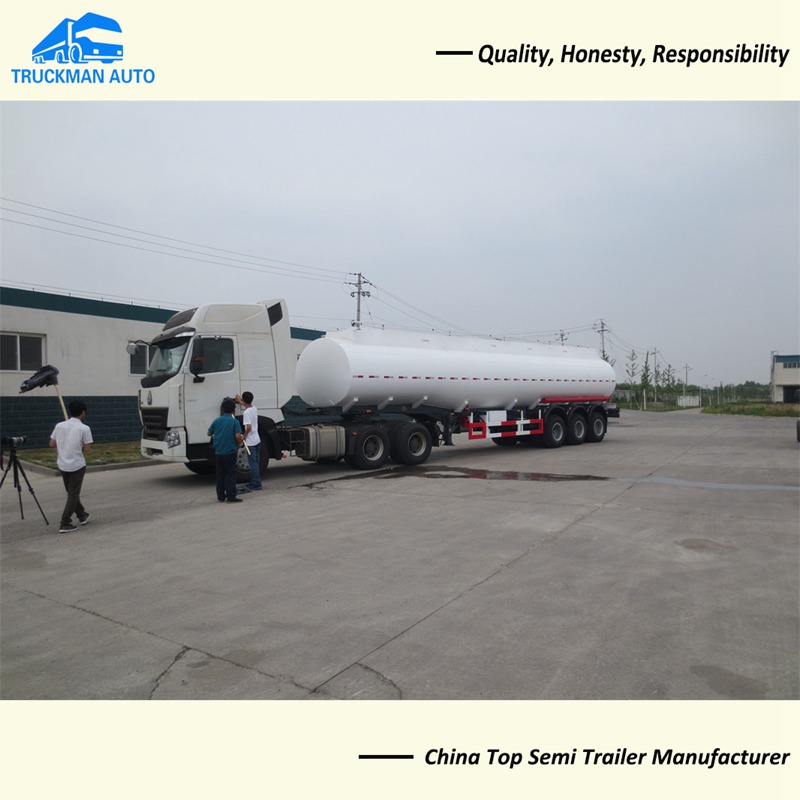

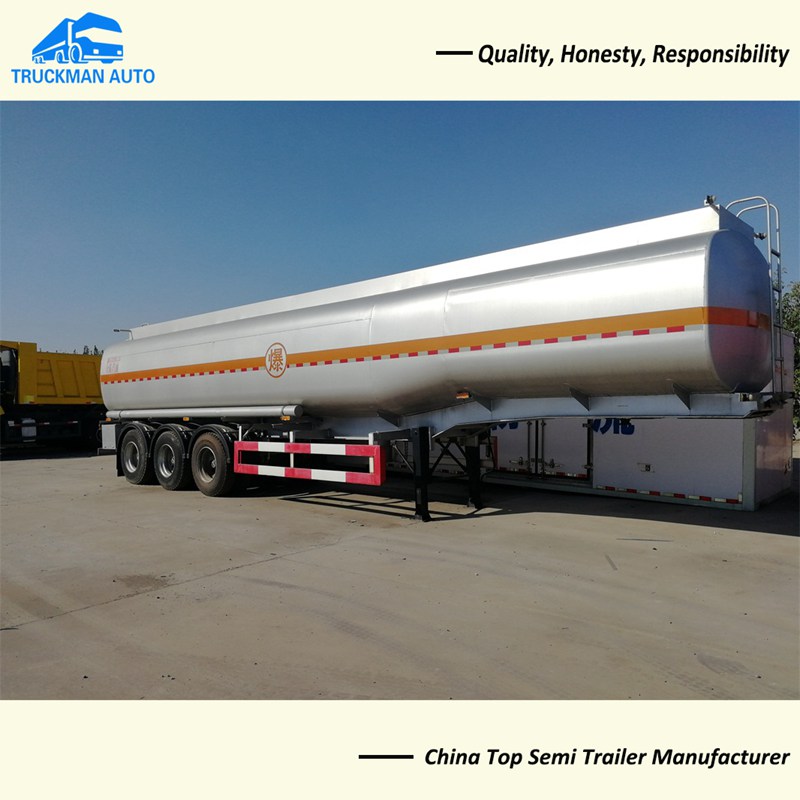

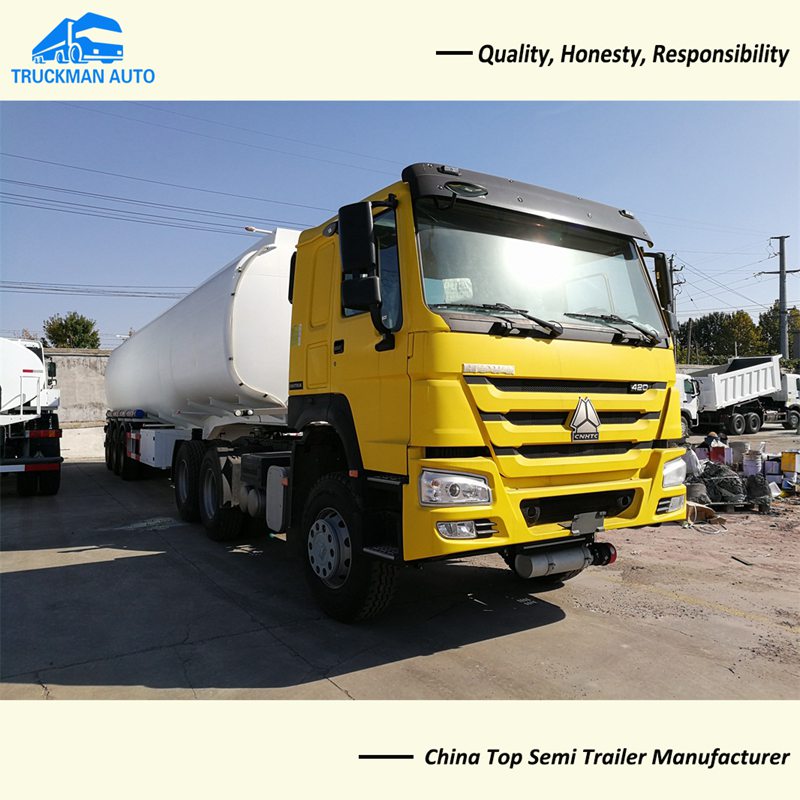

46 cubic aluminum alloy oil tank semi-trailer
vehicle model: CLW9406GYYLV aluminum alloy oil-carrying semi-trailer,
vehicle dimensions: 12280X2500X3900 (mm),
total weight: 40,000 (Kg), rated weight: 32900 (Kg),
curb weight: 7100 (Kg), number of axles: 3
wheelbase: 6300+1320+1320mm,
number of tires: 12 people,
tire specifications: 11.00R20 12PR, 12R22.5 12PR.
Effective tank volume: 46.0 cubic meters.
The overall dimensions of the tank (mm): 11750x2500x2090.
5083 aluminum alloy plate, 5mm partition, 6mm cylinder, 7mm head, equipped with two European standard tank ports, two aluminum alloy subsea valves, divided into two bins, with two sets of lower oil.
The chassis of the 46 cubic aluminum alloy oil tank semi-trailer is configured with high-strength steel sub-beams, 13 tons of Fuhua axles, 16 tons of brake pads, 28 tons of single-action legs, 12 1200 Chengshan tubeless tires, and other manufacturers' standard configuration
