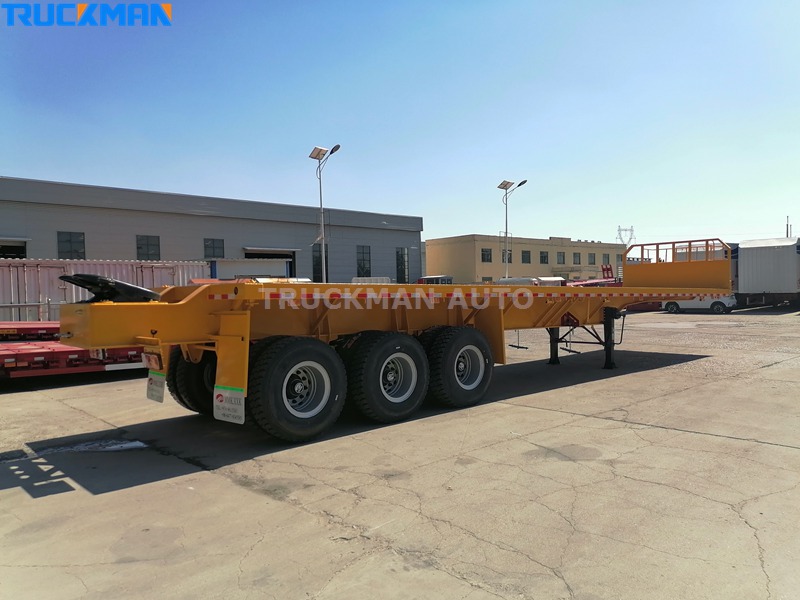

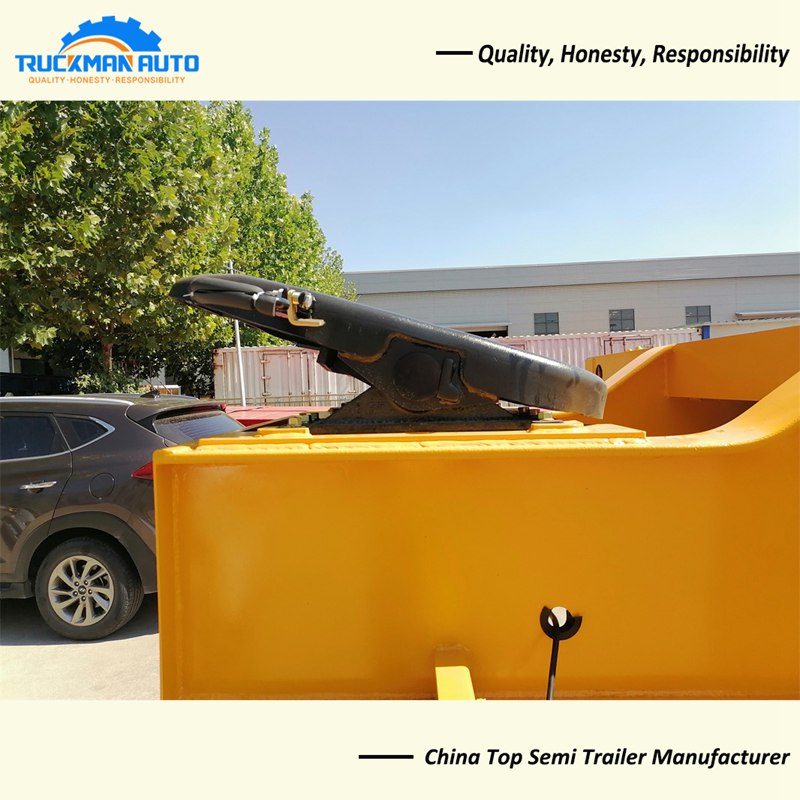

The super link container flatbed trailer is specially designed for Mongolia, the trailer can transport 20FT and 40FT containers The rear container flatbed trailer is connected with the front container flatbed trailer through the gooseneck trailer.

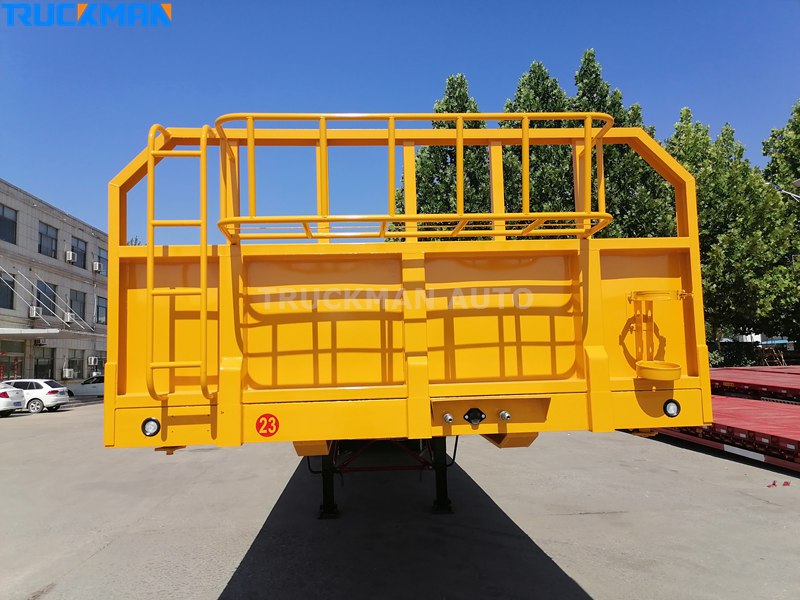

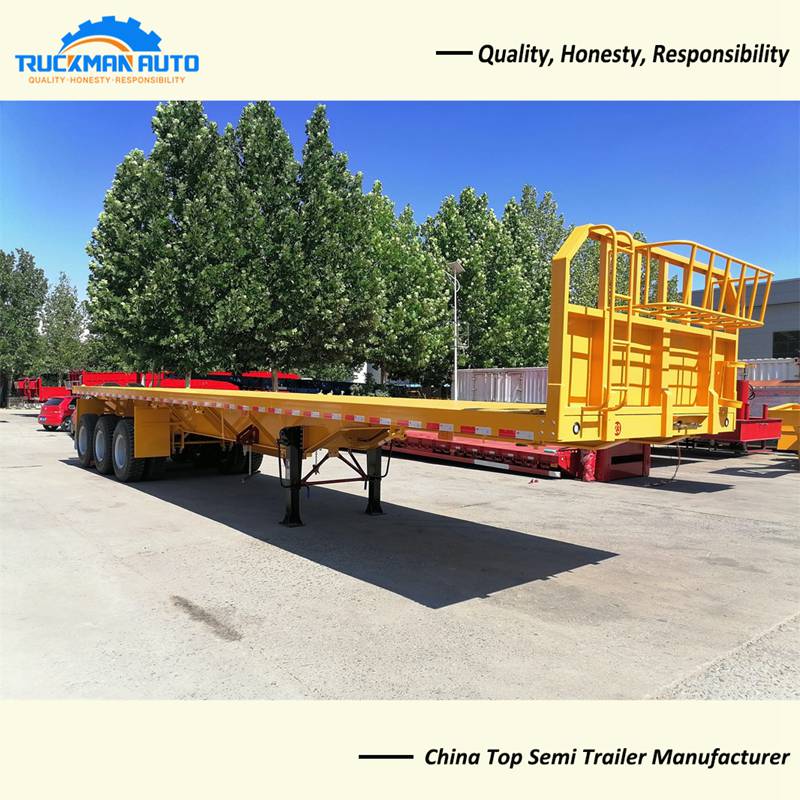

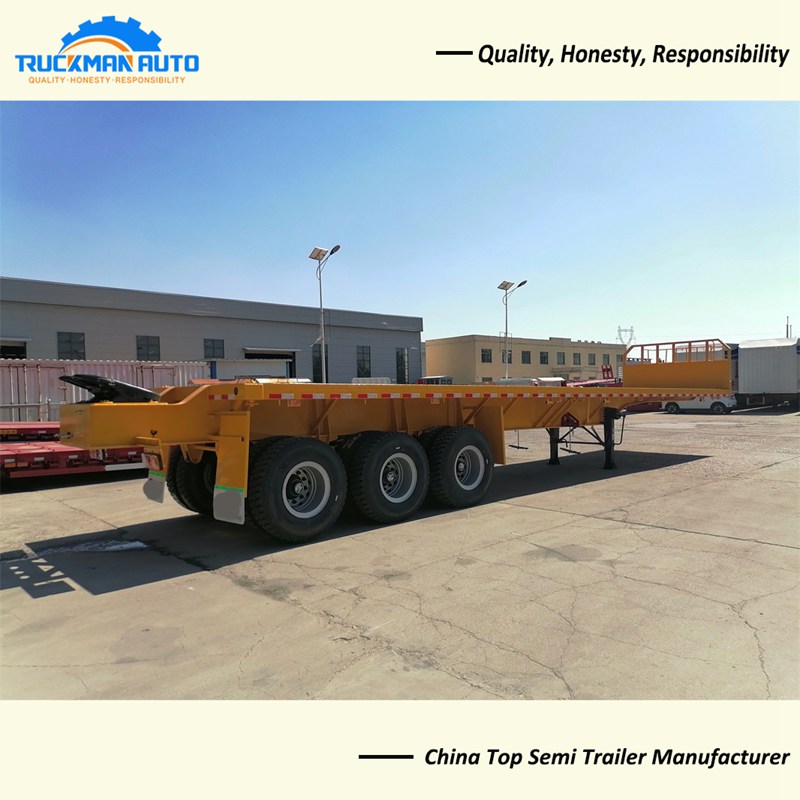

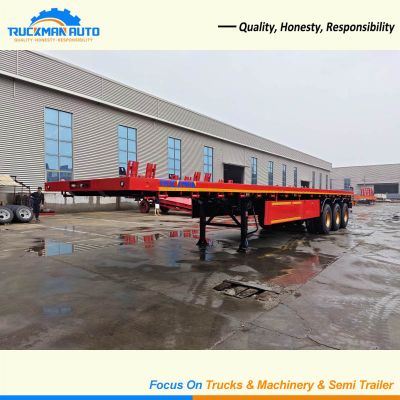

3 Axle 60 Ton Super Link Semi Trailer
1. Dimension: 12300x2500x2800mm
2. Axle: 3x16 tons, ZY brand
3. Tire: 12.00R20, 12 pcs, LINGLONG brand
4. Main Beam: upper 16mm, lower 18mm, middle 10mm

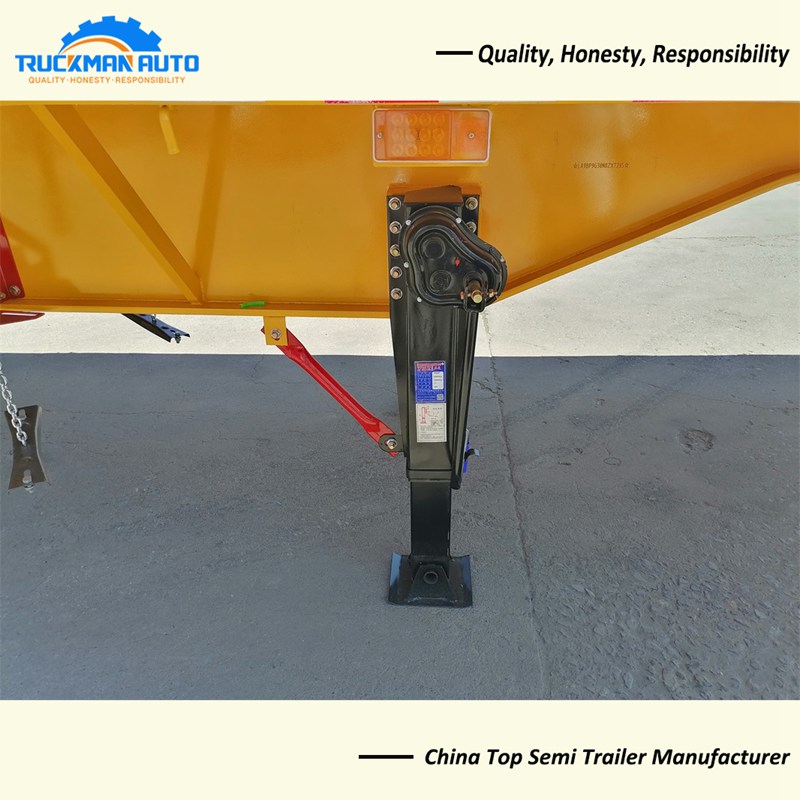

5. Support Leg: JOST brand, 28 tons
6. Tractor Pin: JOST brand, 90#
7. Suspension: 8mm thickness, heavy duty loading
8. Leaf Spring: 90x16mmx10pcs
9. Wheel Rim: 18mm
10. Brake Valve: WABCO brand
11. Hooks: Stronger hooks
12. Container Lock: 12 pcs

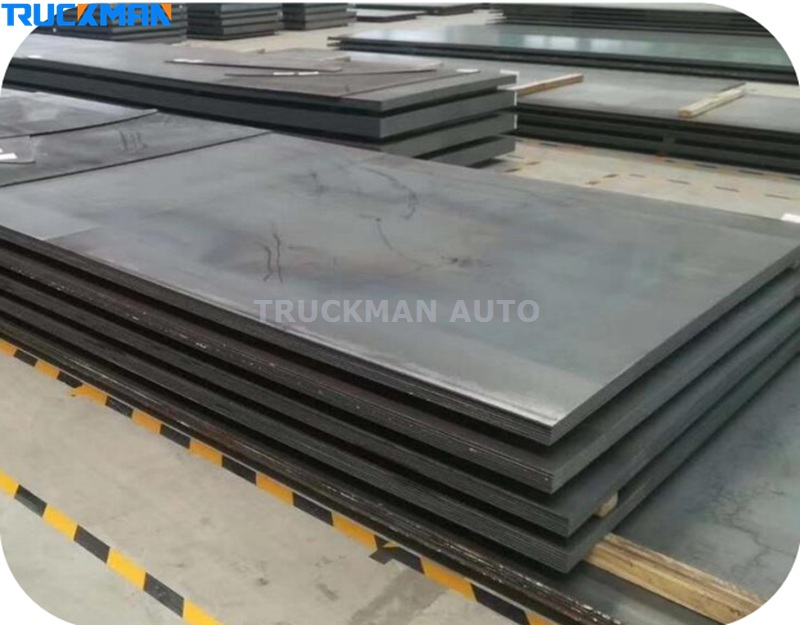

-1. Super Link Semi Trailer Q355 Manganese Steel
Super Link Semi Trailer Q355 Steel Features:
Now all the semi trailers of TRUCKMAN AUTO are made of Q355 is a low alloy high strength structural steel., which comes from famous steel factory. This kind of steel has the characteristics of wear resistance, not easy to deform, rust and so on.
-2. Super Link Semi Trailer Polyurethane paint
Super Link Semi Trailer Polyurethane paint. It has strong paint film, full luster, strong adhesion, water resistance, abrasion resistance and corrosion resistance.Polyurethane paint films have a high degree of mechanical abrasion resistance and toughness. Polyurethane paint is both protective and decorative. The paint film has strong adhesion. The coating film has excellent chemical resistance.

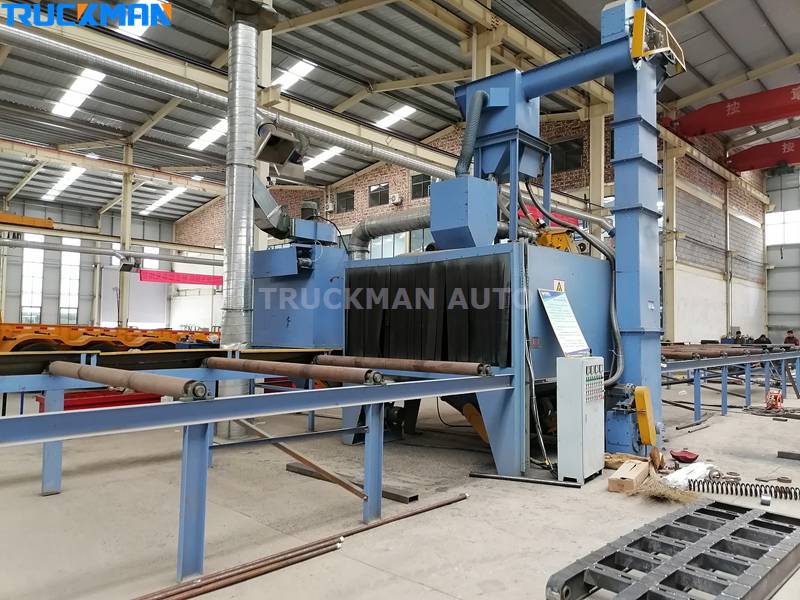

-3. Super Link Semi Trailer Shot blasting and sand blasting
Super Link Semi Trailer Shot blasting is a cold treatment process, which is divided into shot blasting cleaning and shot blasting strengthening. Shot blasting cleaning, as the name suggests, is to remove impurities such as surface oxide scale to improve the appearance quality. Shot blasting strengthening can improve the fatigue fracture resistance of materials/parts, prevent fatigue failure, plasticity Deformation and brittle fracture, improve fatigue life.
About TRUCKMAN AUTO
TRUCKMAN AUTO has rich experience in the design of Super Link Semi Trailer. TRUCKMAN AUTO’s semi trailers by have CO, BV, FORM E, CIQ, SGS etc certificates and are currently sold to more than 80 countries around the world. It is precisely because of the durable material Q355 steel and advanced production technology, such as: automatic submerged arc welding technology, plasma laser cutting and other technologies, that the quality of TRUCKMAN AUTO semi trailer is recognized by customers.
