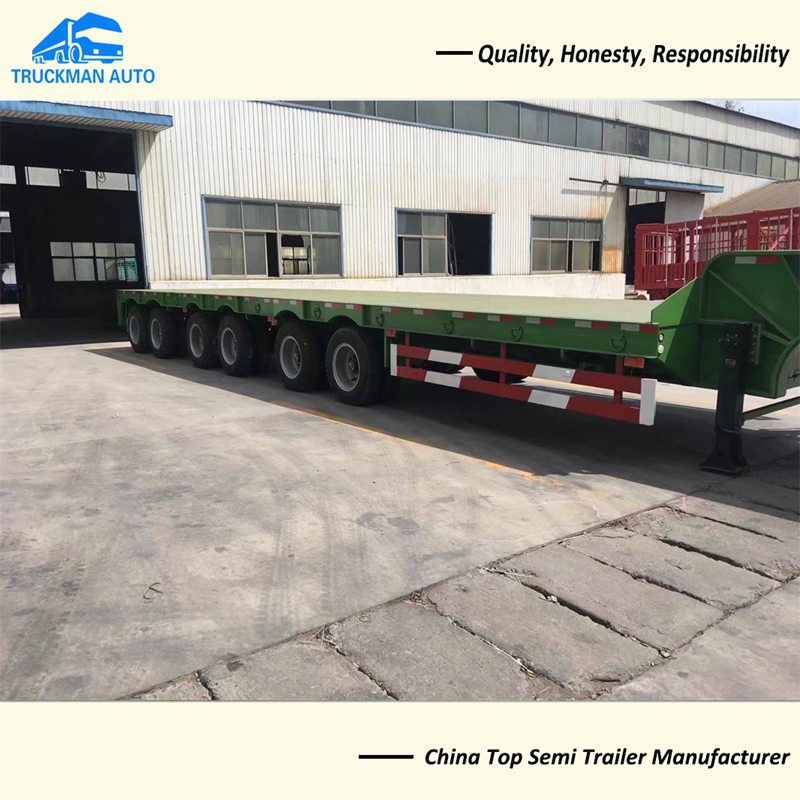

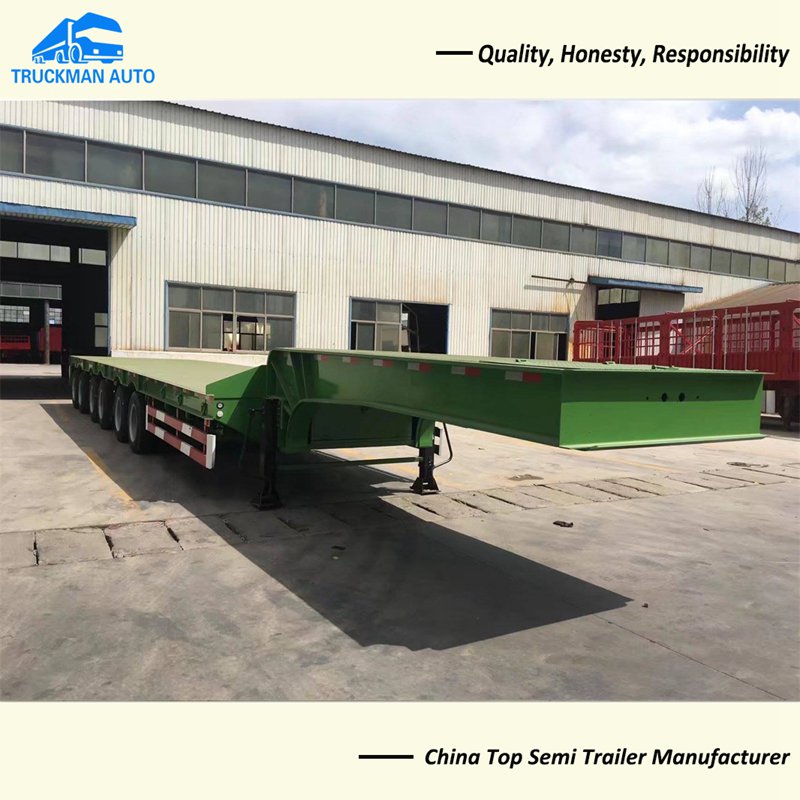

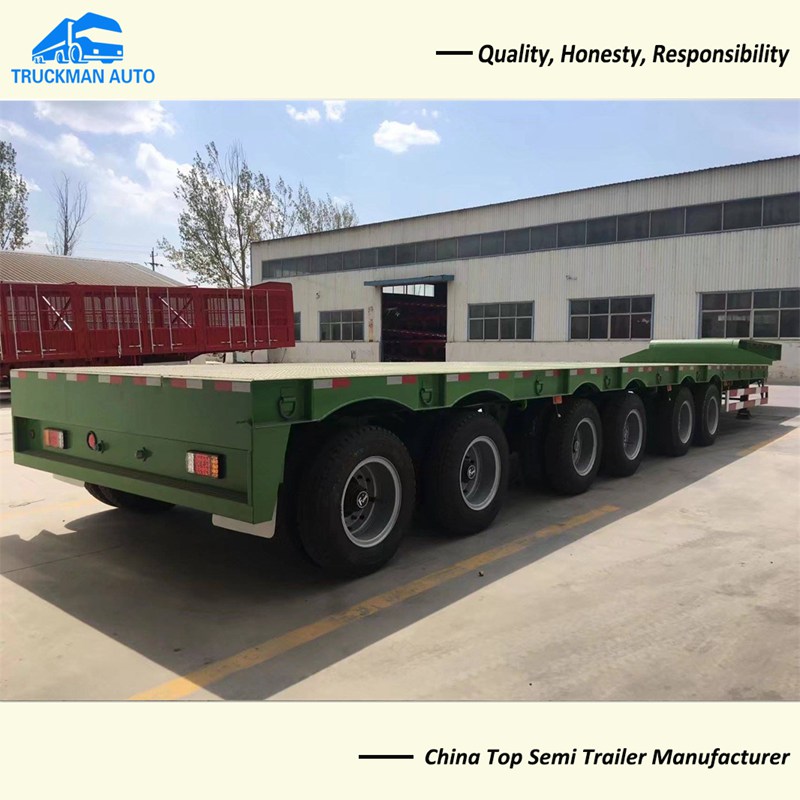

100 Tons Loading 3 lines 6 Axles Low Bed Semi Trailer
100 Tons Loading 3 lines 6 Axles Low Bed Semi Trailer 100 Tons Loading 3 lines 6 Axles Low Bed Semi Trailer 100 Tons Loading 3 lines 6 Axles Low Bed Semi Trailer

100 Tons Loading 3 lines 6 Axles Low Bed Semi Trailer

Product ID : TMA6100TT145LBT
Product Tags : Flat Bed Semi Trailer
Product Attributes :

TRUCKMAN heavy duty 3 lines 6 axles 100 tons multi axle trailers are widely used in heavy machines transportation. We produce very durable ones with high strength to meet the transport needs. We use high strength steel material to ensure the capacity, the load can be up to 60 to 100 ton payload. We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. Thisll ensure the long service life of the trailers. Also we can customize the lowbed for you. Like multi axle low bed trailer, 100-120 ton 3lines 6axles lowbed, or 150 ton 4 lines 8axles lowbed semi trailers.

Product Description

100-150tons 6lines 8lines 10lines 6 axle low bed platform modular trailer

Multi axles steering low bed trailer

Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly
specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other
crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and
tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.
High strength Carbon steel Q355
Main beam
Heavy duty H beam
beam extendable optional
13 ton(16ton,20ton) capacity
York,FUWA,BPW,ZY or other Brand
Mechanical leaf springs servo steering suspension/Hydraulic steering suspension
Size and brand optional
Other size optional
King pin
2’’/3.5’’ bolt type,SAE standard
Welding on type optional
Checked plate or wood deck plate
Power pack
Engine with pump
Braking system
Dual line brake system,Double air chamber ,brake valve,40L air tanks ;ABS optional
LED light , 7 ways ,24V
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
Tool box,oil tank,spraying system optional
6 axles steering lowboy trailer Features:
1. More than 4 lines axles
2. With steering axles .small turning radius, up to 55° steering angle.
3. Both automatically and manually all wheels steering.For manually operation we will install the power station and valve.
4. Lifting function:hydraulic and air suspension be able to adjust height
5. Can make telescopic beam to realize length extension.
6. Higher strength steel to ensure the low platform not drop down.
7. Drop deck minimize trailer’s platform height, increase trafficability and stability for over height cargo.
8. Side bracket is an option(for increase overall width), removable and swinging
9. The cover surface of the platform can be wood to anti-skidding or diamond checked plate.
10.Gooseneck normal type or hydraulic detachable type optional

1. Main beam adopts HG high strength steel, with high loading capacity, and

2. Main beaM adopts submerged arc welding technology, that ensure the smooth, sturdy welding seams and avoid welding-opening problems. And also improve the loading capacity.

3. Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm

That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.

4. Side beam adopt H steel, height is 300mm, width is 140mm, and its thickness is 8/6/8mm. The durable design avoid the side beam to have the deformation.
