The 3 axles skeleton container trailer can efficiently load 20-foot, 40-foot or 45-foot standard containers and is suitable for multimodal transport scenarios such as sea and land transport.
About 3 Axles Skeleton Container Semi Trailer
Designed with high-strength steel, the 3 axles skeleton container trailer features an optimized structure that reduces deadweight, helping to lower fuel consumption and improve loading efficiency. The 3-axles skeleton container trailer can be fitted with a variety of loadouts, including containers, wing trailers, and refrigerated trucks, to accommodate diverse cargo types and transportation needs. It is particularly well-suited for container transport, capable of carrying 20-foot, 40-foot, and even 45-foot containers.

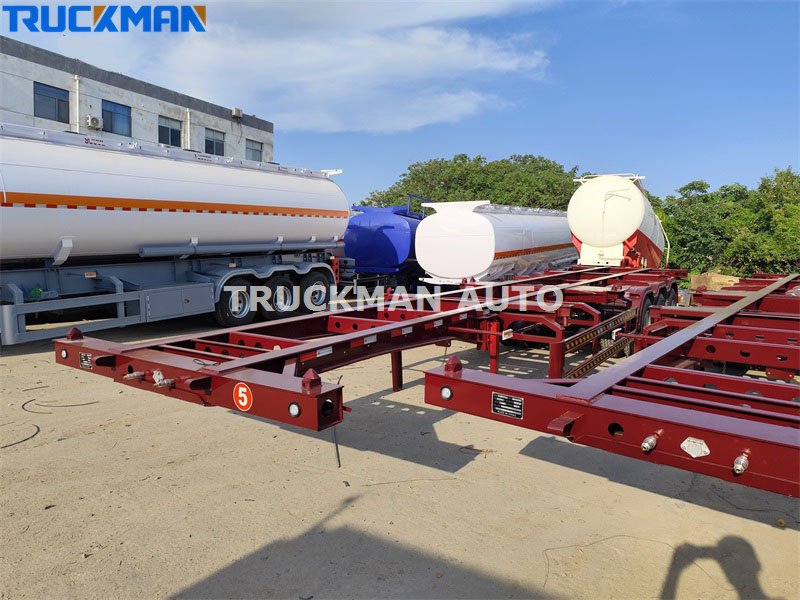

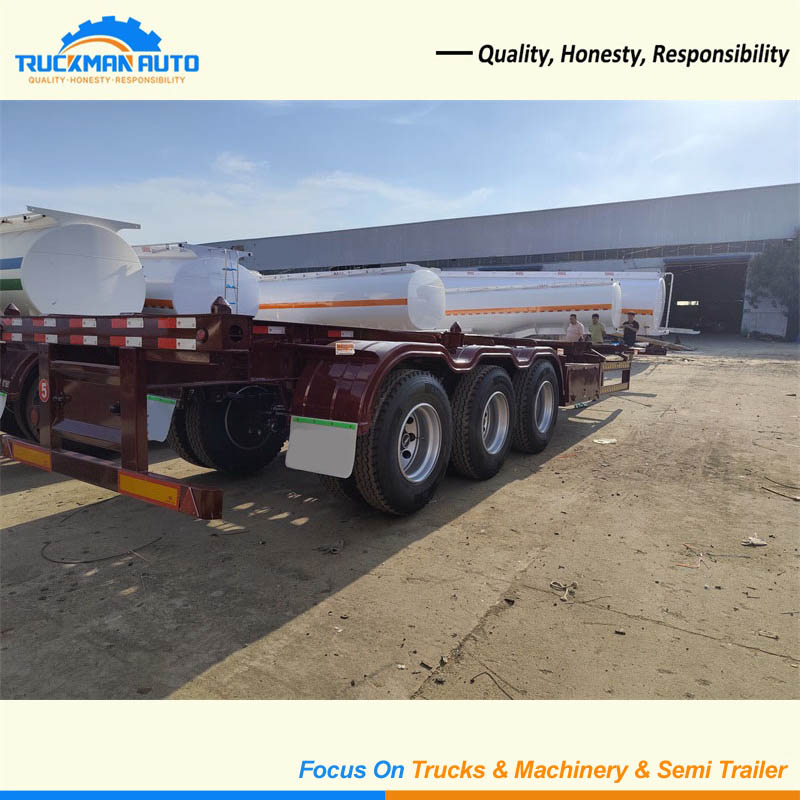

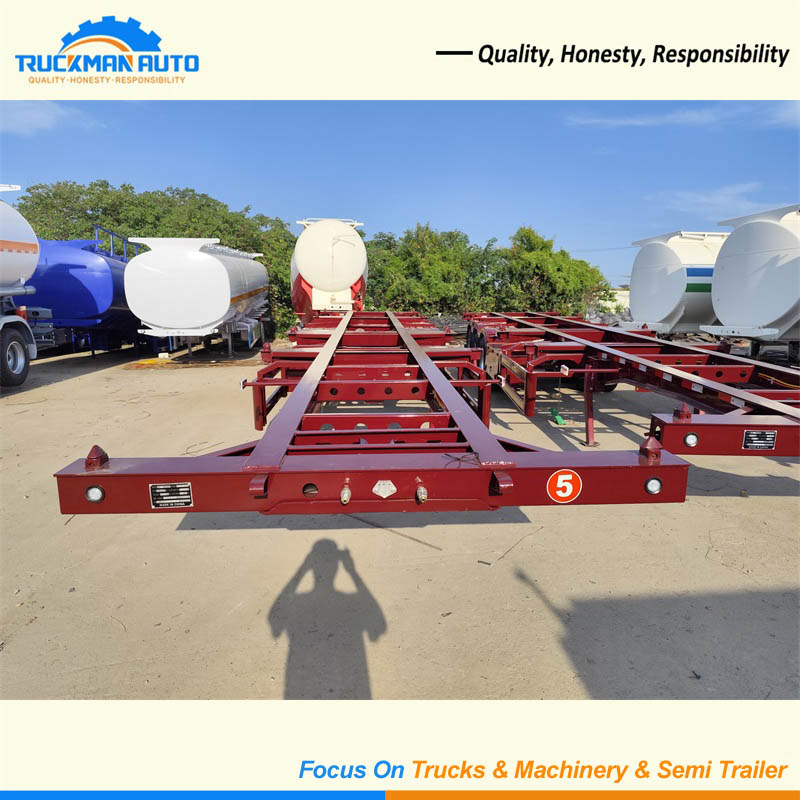

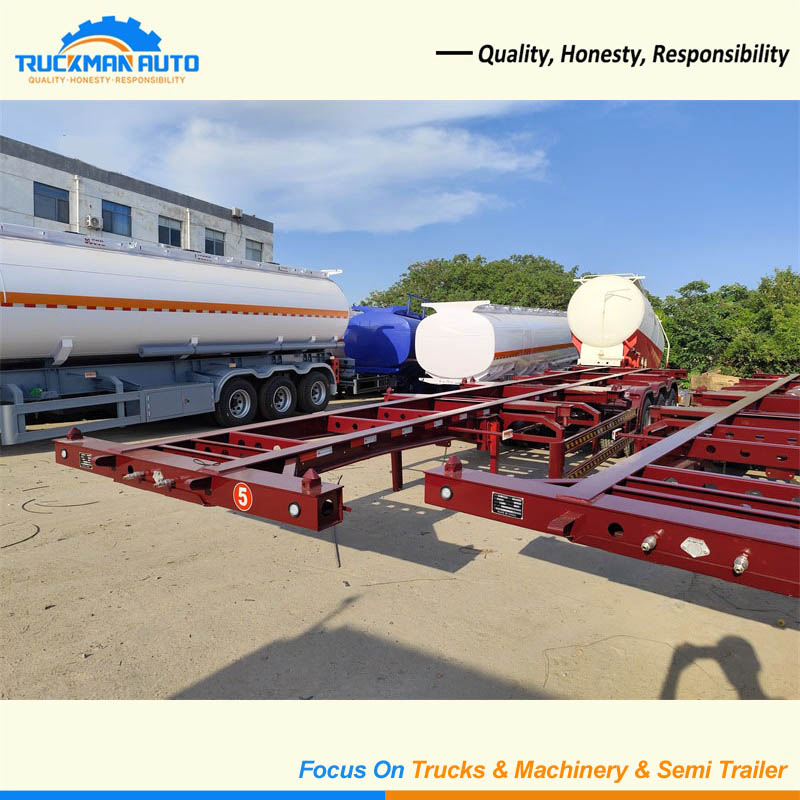

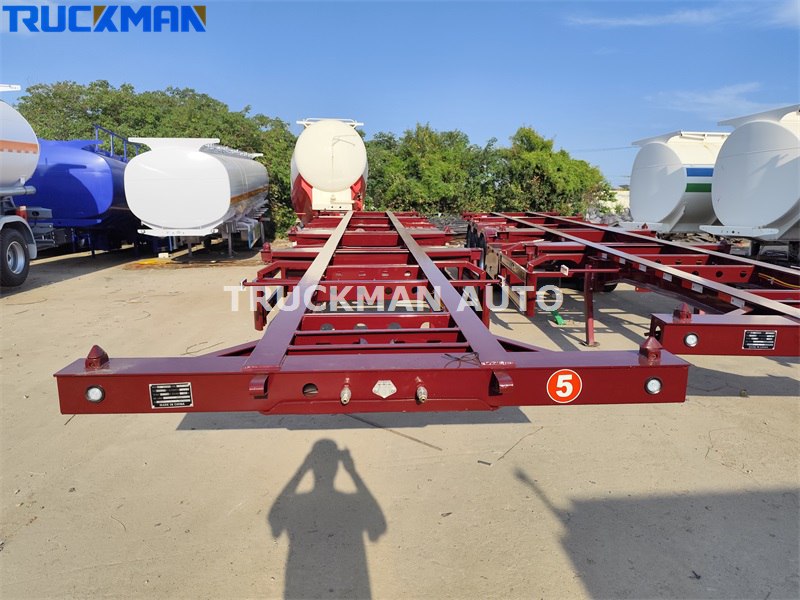

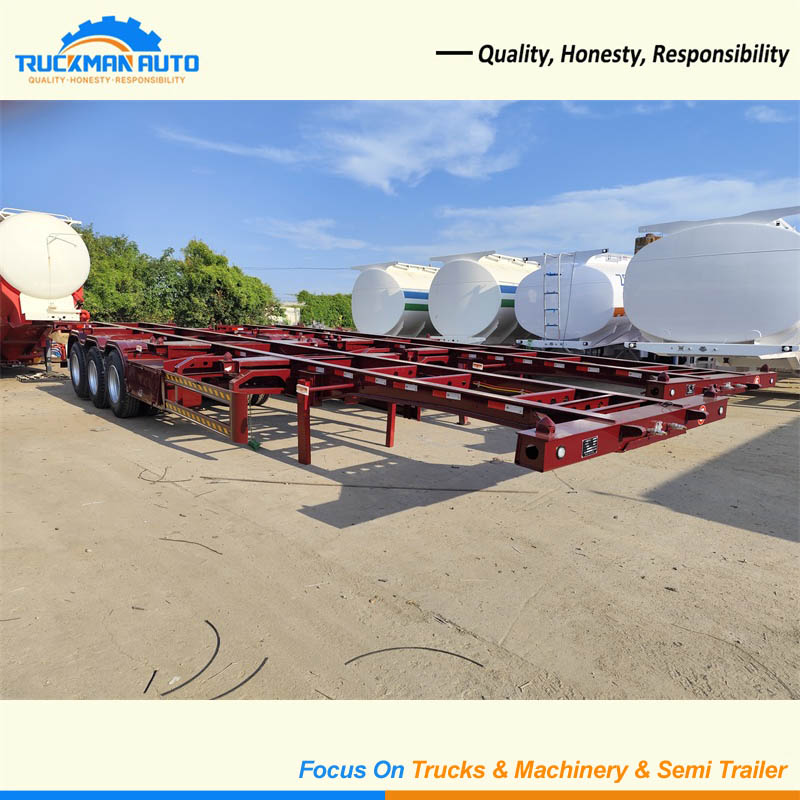

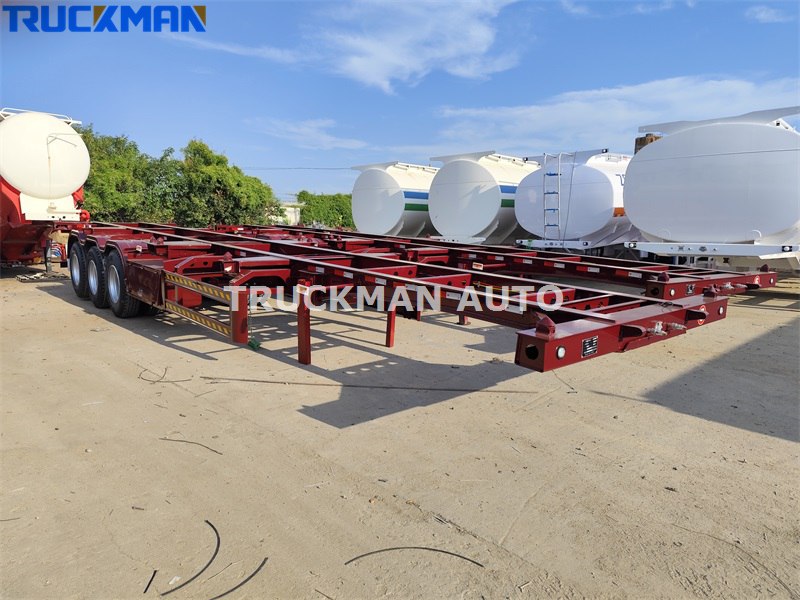

3 Axles Skeleton Container Semi Trailer
Axle: 3x16000kg, 3 axle, ZY brand
Tire: 315/80R22.5, 12+1 pcs, TRIANGLE brand
Brake System: WABCO brand
Support Leg: 28 tons, JOST brand
Tractor Pin: 50#(2inch), JOST brand
Dimension: 12500x2500x1700mm
3 axles skeleton container semi trailer specification only for your reference, we can manufacture other model trailer basic your request.
3 Axles Skeleton Container Semi Trailer Features
Key components of the 3 axles skeleton container trailer, such as axles and brake systems, utilize well-known brand parts. Finite element analysis is used to optimize the structure, and stress concentration areas are reinforced to ensure the long-term stability and safety of the entire semi-trailer. Users can choose from single-axle, dual-axle, or triple-axle configurations to meet different road conditions and load requirements. The 3-axles skeleton container trailer is equipped with dedicated locks and fixings for quick connection and disconnection with the container.
3 Axles Skeleton Container Semi Trailer Painting
The 3 axles skeleton container trailer utilizes an electrostatic powder coating process to enhance the vehicle's corrosion resistance. This coating offers excellent adhesion, wear resistance, corrosion resistance, and weather resistance, effectively protecting the surface. A single thick-film spray application replaces multiple thin-layer painting applications, resulting in a uniform coating that is less susceptible to defects such as sags and pinholes.
