Low bed trailer have flat plate type, concave beam type and tire exposed type.
Low bed trailer have flat plate type, concave beam type and tire exposed type. Concave beam type and tire exposed type low bed trailer can effectively reduce the transportation height, passed bridges on road, the center of gravity is lowered and driving is safer.
Low Bed Trailer Main Specification.
Product Name: Low Bed Trailer
Loading Capacity: 60,000kg
Tare Weight: 10,000kg
Axle: 3 axle, 3x13000kg
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12.00R20, 12 pcs, radial tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam.
Dimension: 13000x3000x3100mm.
The Low Bed Trailer could design according to your request.

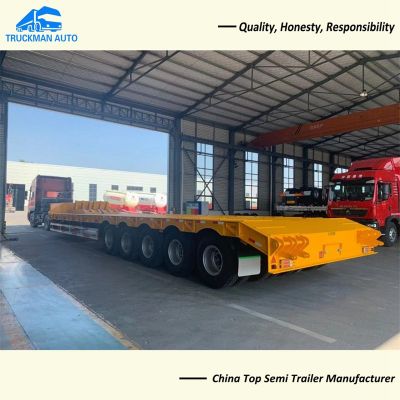

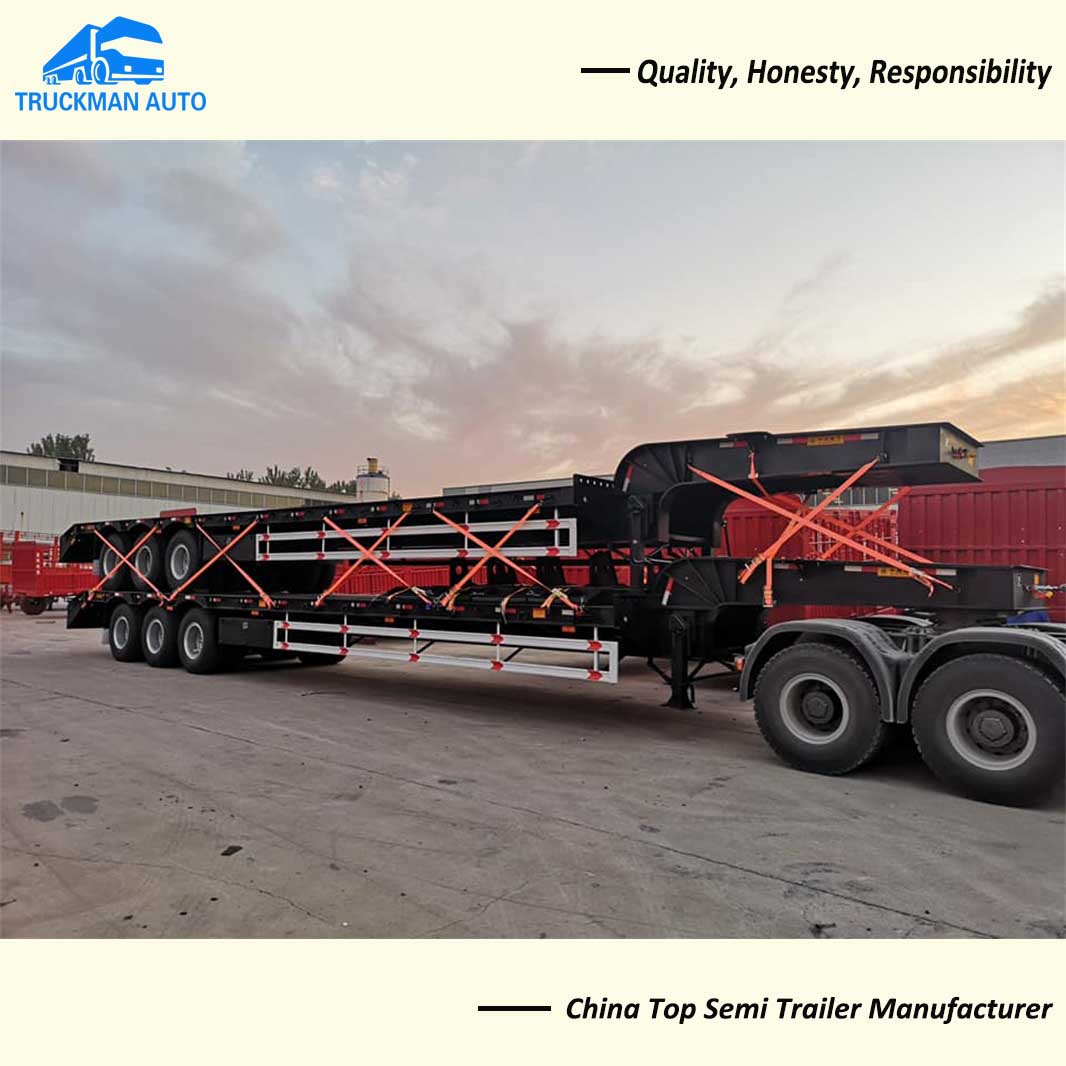

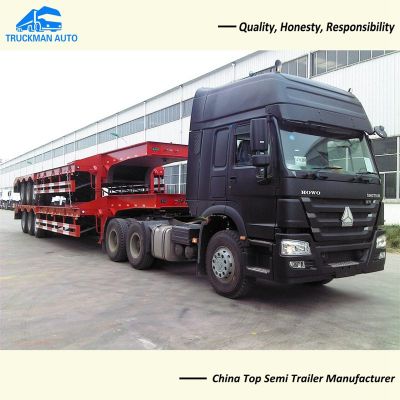

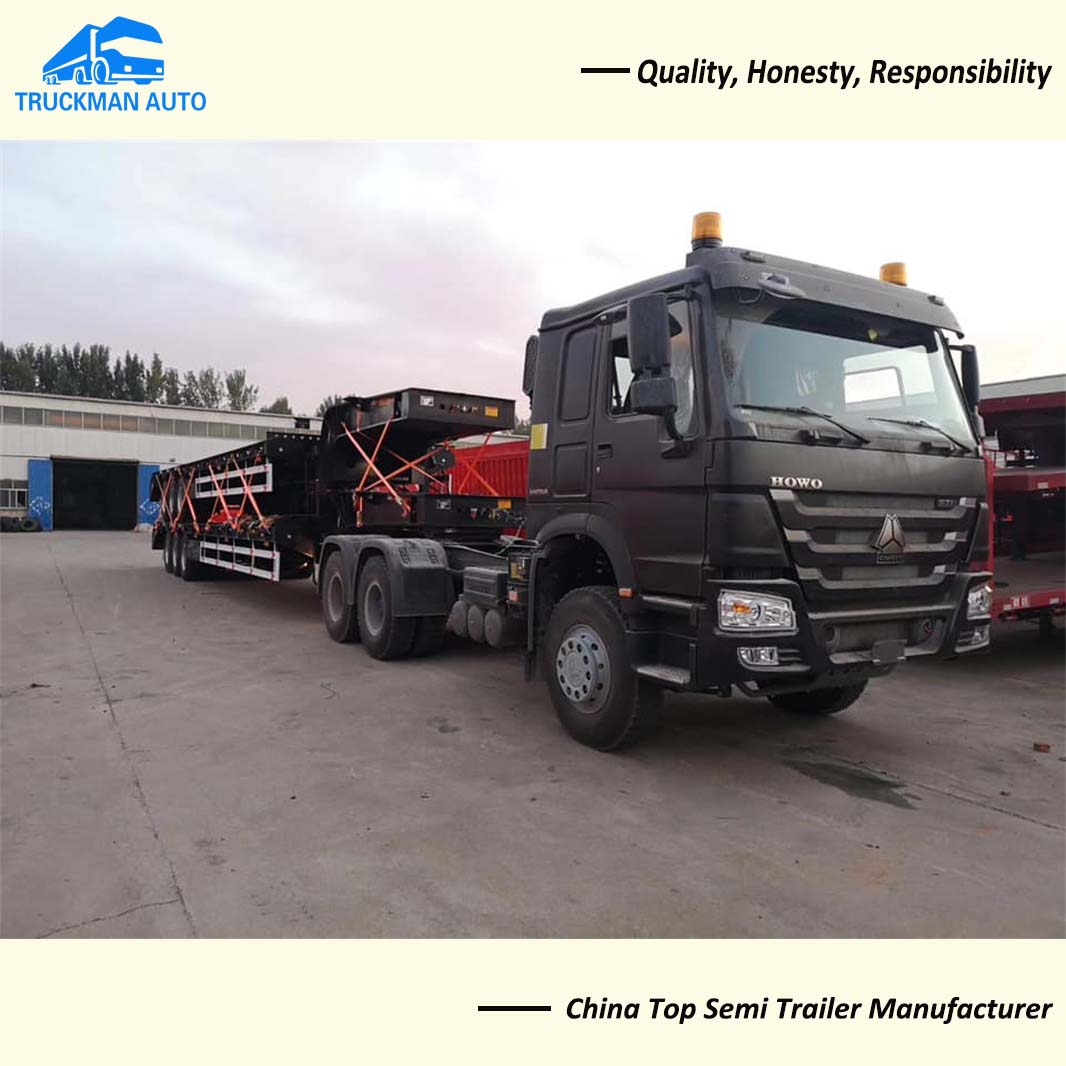

TRUCKMAN AUTO Low Bed Trailer Picture .

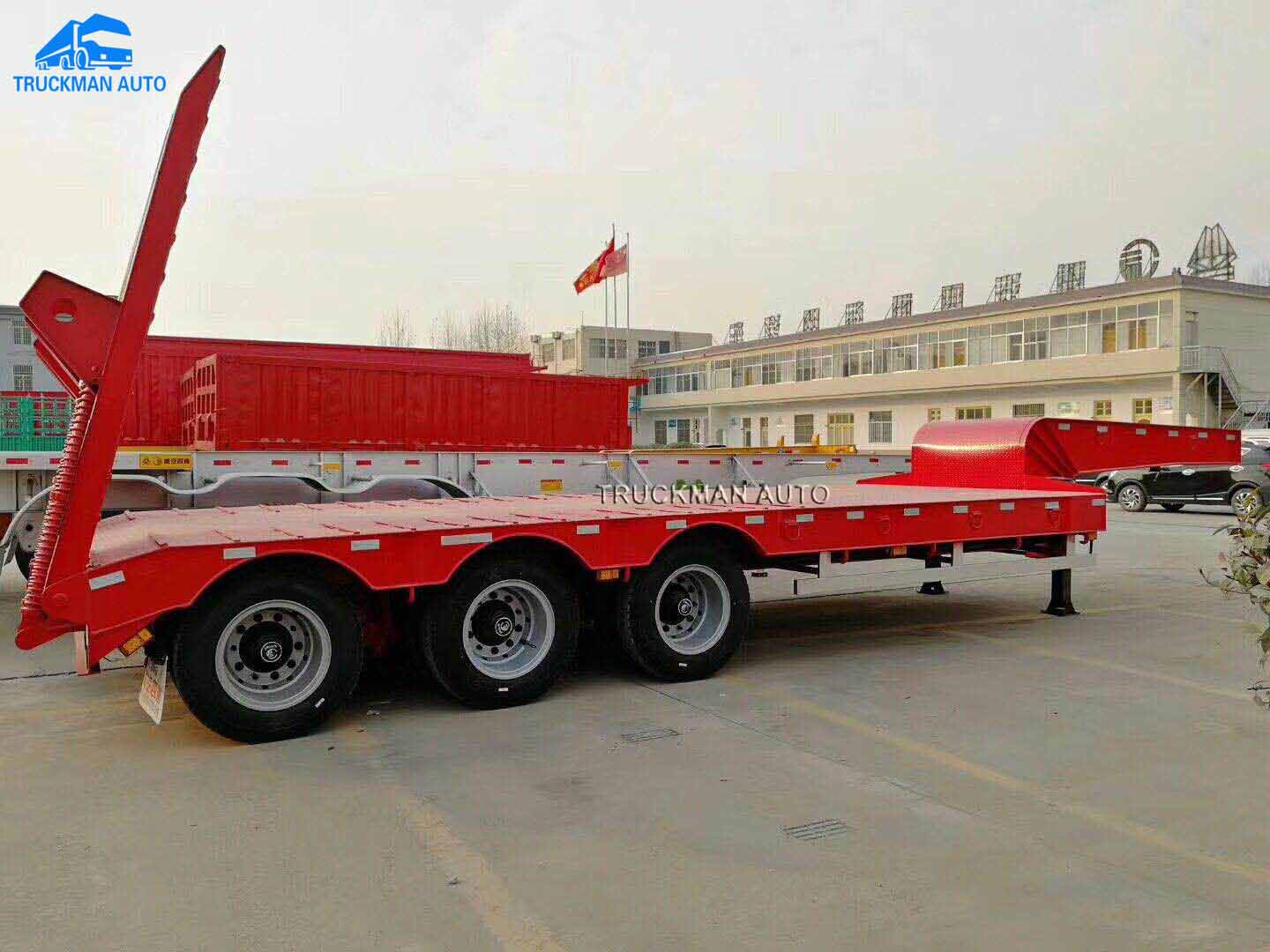

Normal low flatbed trailer

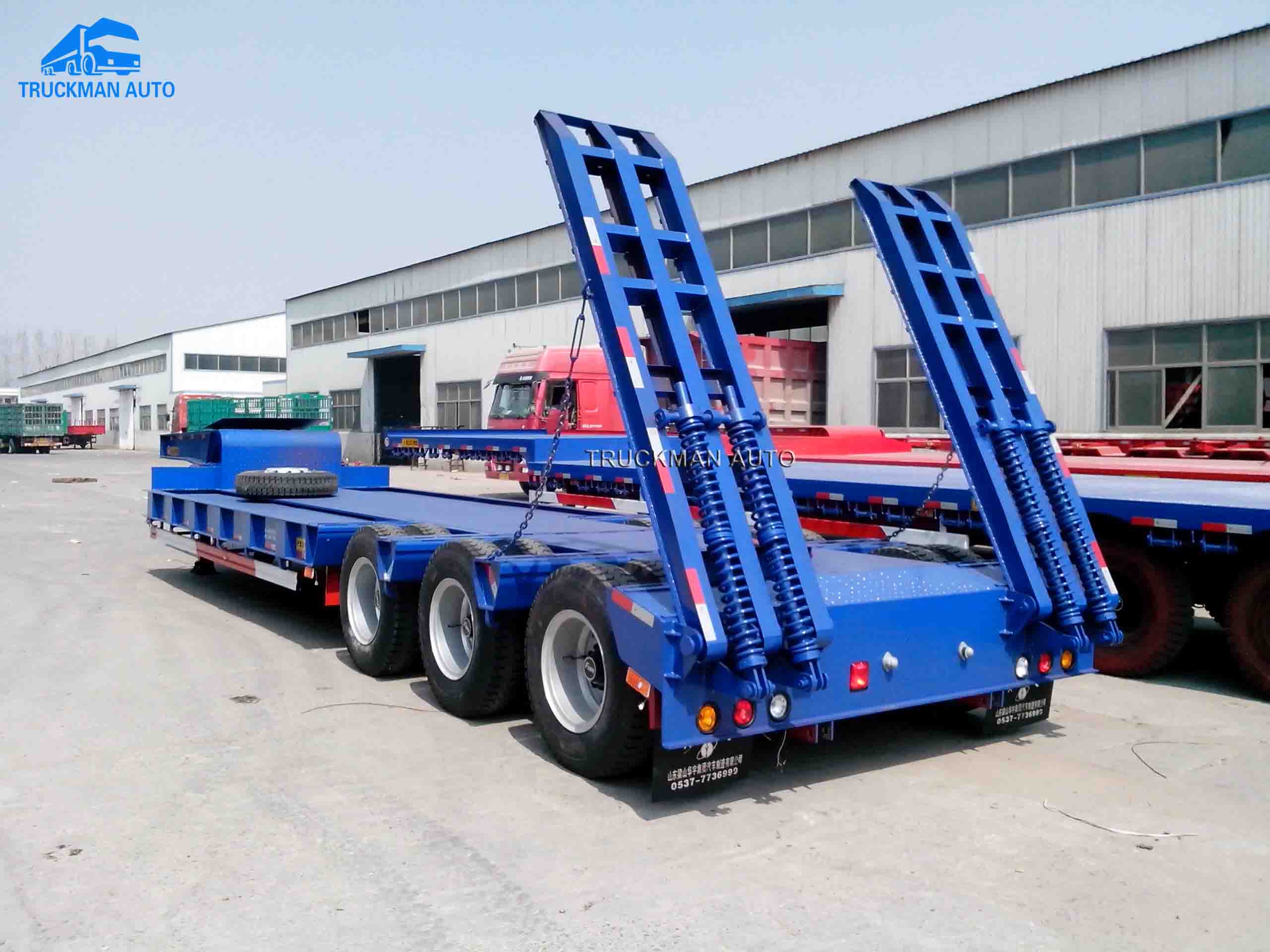

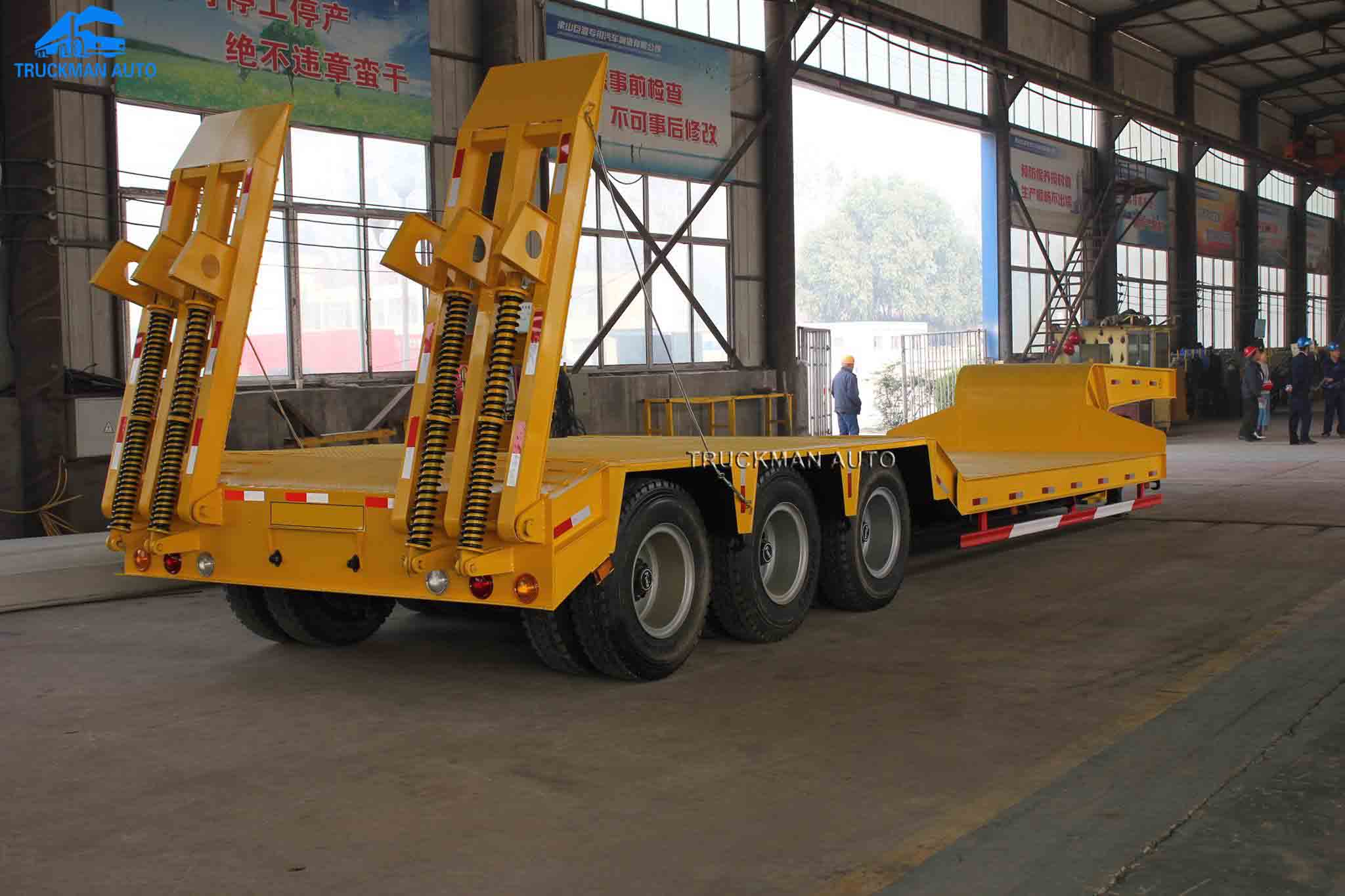

Concave beam low bed trailer
Tire exposed low bed trailer
