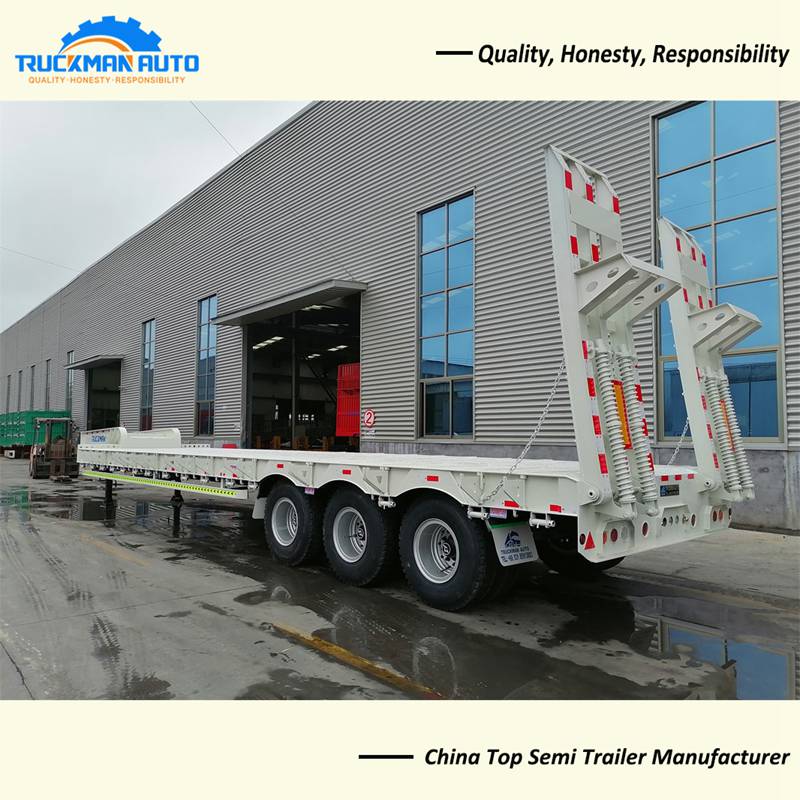

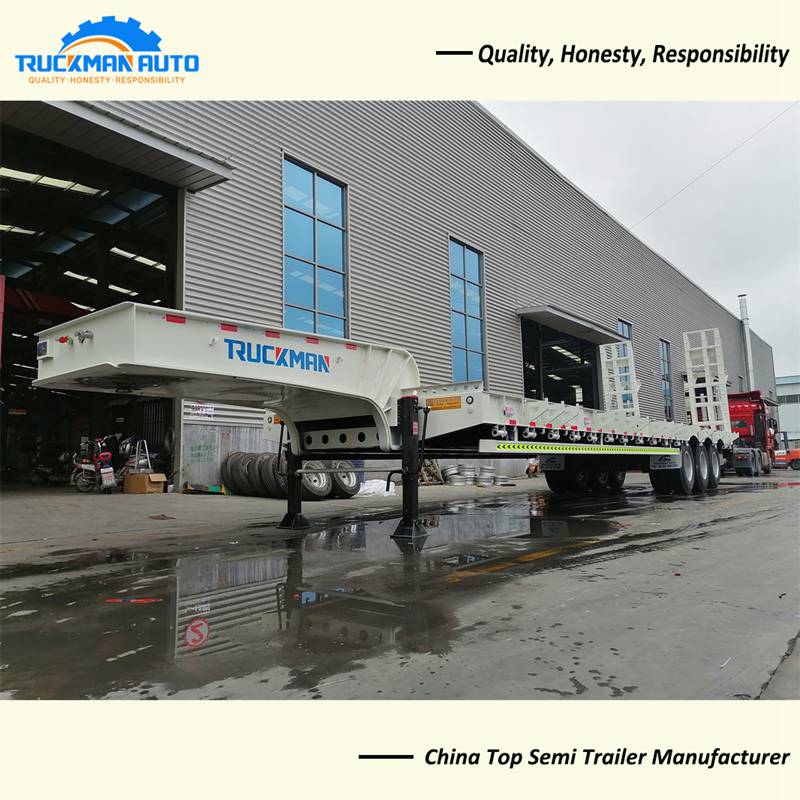

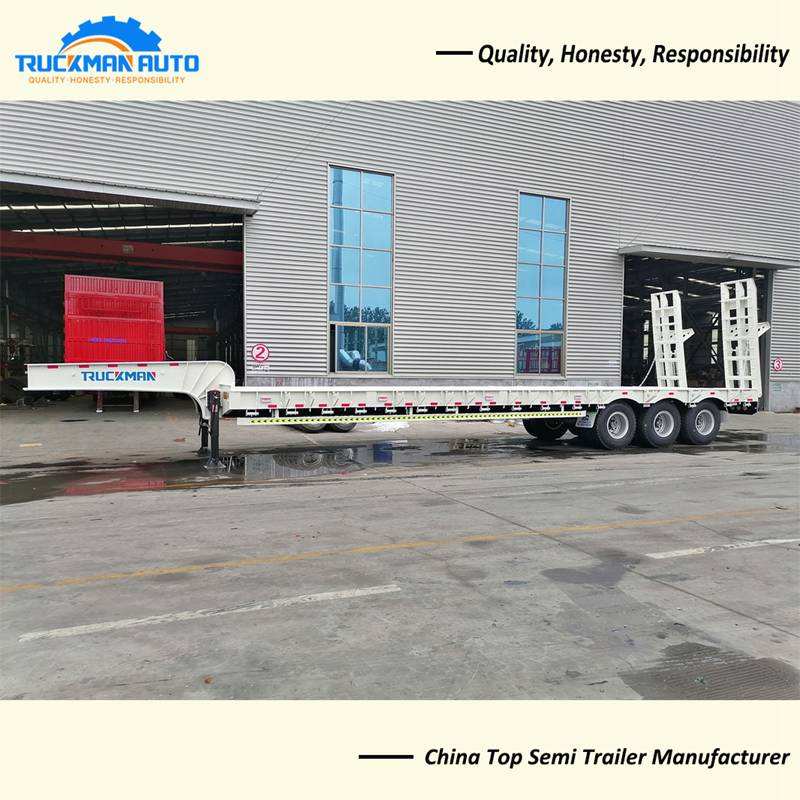

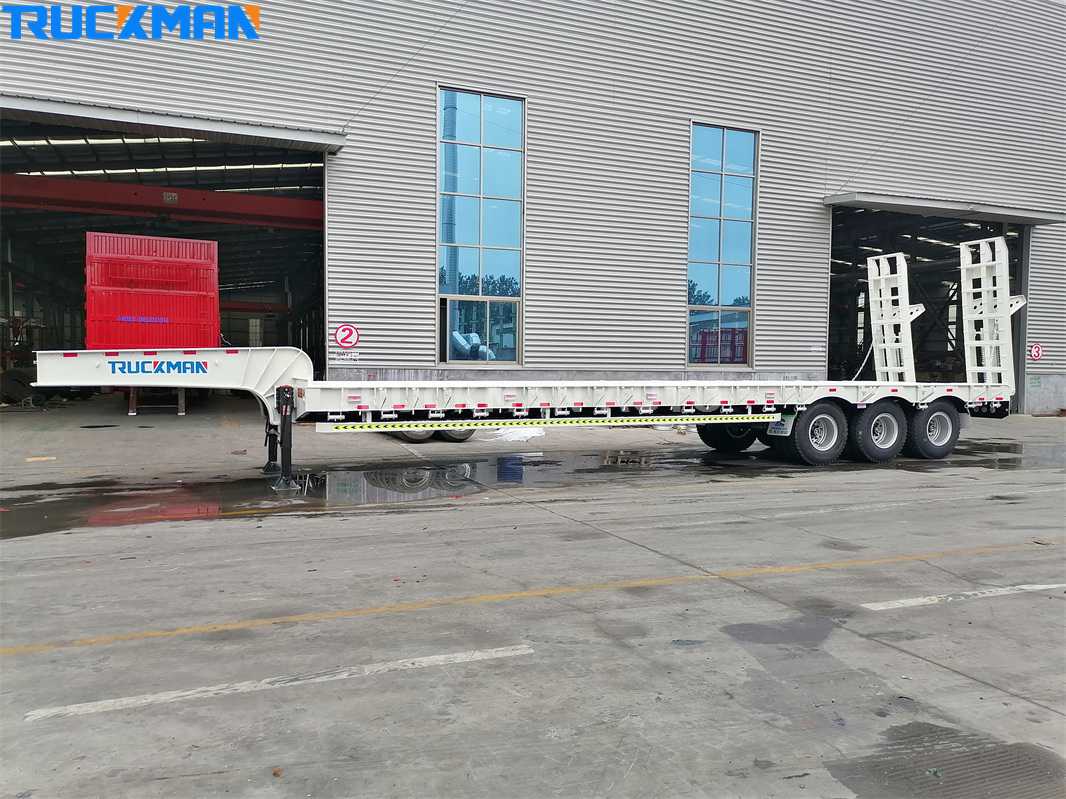

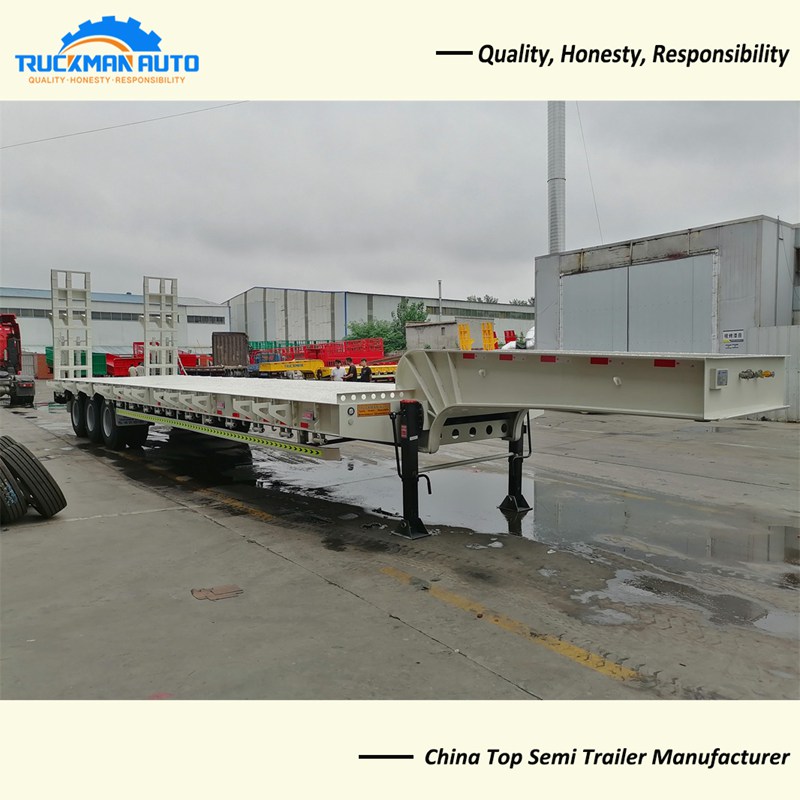

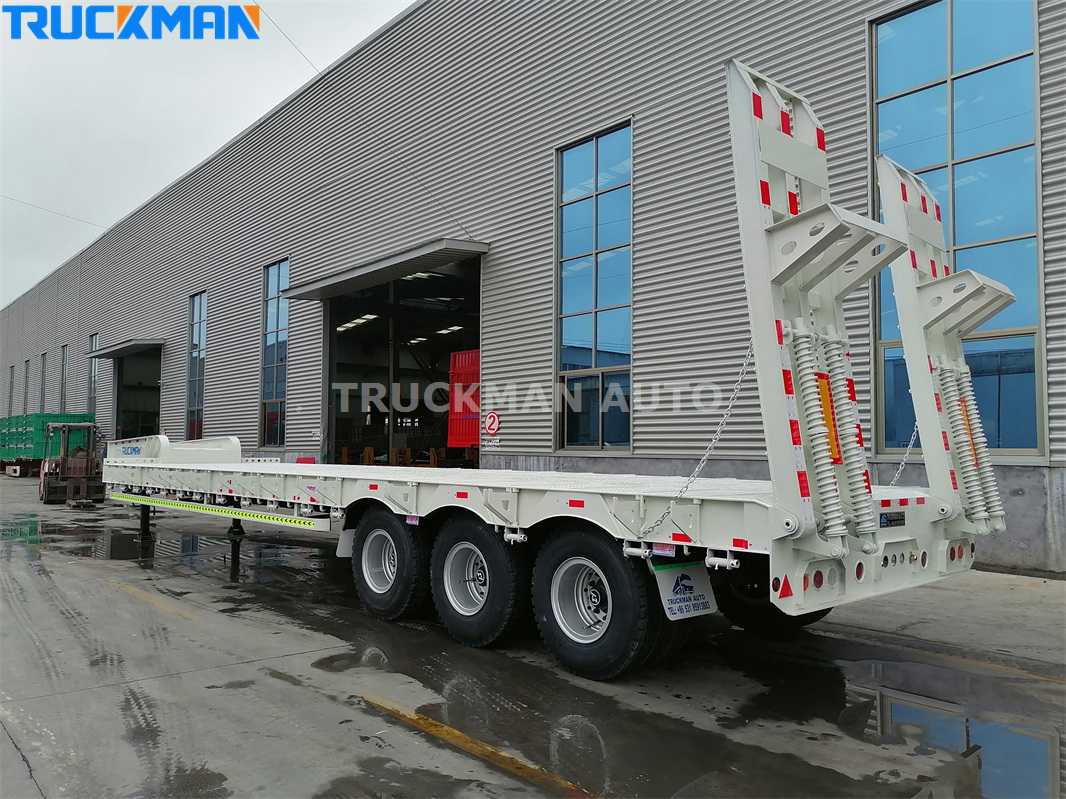

3 Axle 80 Tons Low Bed Trailer For Nigeria

3 Axle 80 Tons Low Bed Trailer Detail

3 axle low bed trailer max loading tons can reach to 80 tons, and the low bed trailer can transport the 2x20FT container and 1x40FT container, achieve one trailer two function. We use the polyester paint for 80 tons low bed trailer, this model paint with more beautiful exterior and anti-rusty advantage, using time can over 8 year.

3 Axle 80 Tons Low Bed Trailer Specification

1. Dimension: 13500x3100x3800mm

2. Axle: 3x16 tons, ZY brand

3. Tire: 315/80R22.5, 12 pcs, LINGLONG

4. Main Beam: upper 16mm, lower 20mm, middle 12mm

5. Support Leg: JOST brand, 28 tons

6. Tractor Pin: JOST brand, 90#

7. Suspension: 8mm thickness, heavy duty loading

8. Leaf Spring: 90x16mmx10pcs

9. Wheel Rim: 18mm

10. Brake Valve: WABCO brand

11. Hooks: Stronger hooks

The 3 axle 80 tons low bed trailer specification only for your reference, we will recommend other model 80 tons low bed trailer basic your request.

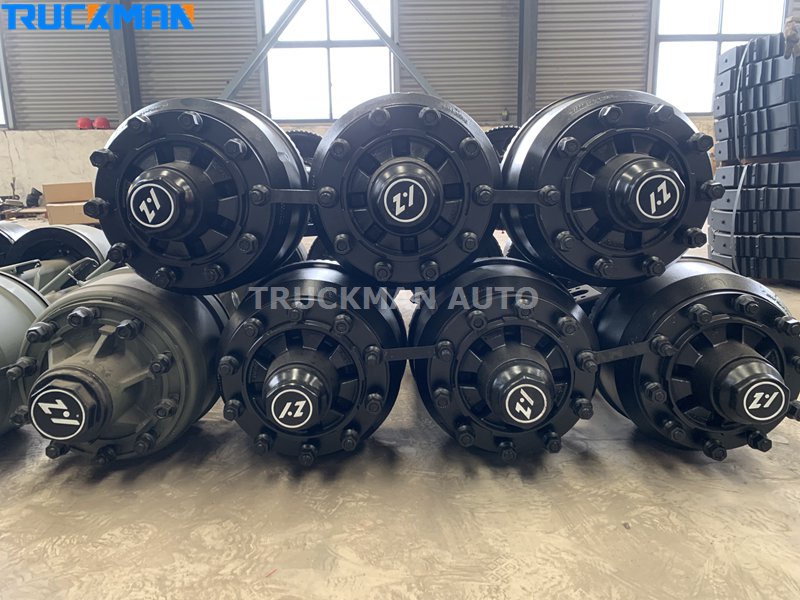

3 Axle 80 Tons Low Bed Trailer Axle Detail.

80 tons low bed semi trailer axle loading tons is 16000kg, and brake pad also 16 tons, the braking effect is better than that of the 13 ton axle. And brand have ZY, FUWA and BPW can optional, among them, ZY brand axle is the most cost-effective axle among these brands. With low purchase and maintenance cost, the loading capacity also very durable, service time even over 15 year or more.
