Steel Materials:Q355
Axles:FUWA,BPW,ZY 16T
Tires: Triangle,Linglong,Chaoyang
Landing gear and Kingpin:JOST
Brake system:WABCO
Kurb Weight:7500kgs
Our factory founded in 2010 with more than 11 years' experience. Being famous in domestic and foreign countries, we concentrate on trailer and truck's research and development. Our aim is to provide high quality and low price products for the customer. Experienced and technological team customize the best productions for customers. For any reliability& safety and economic related questions, we all have mature solutions at any time.
|

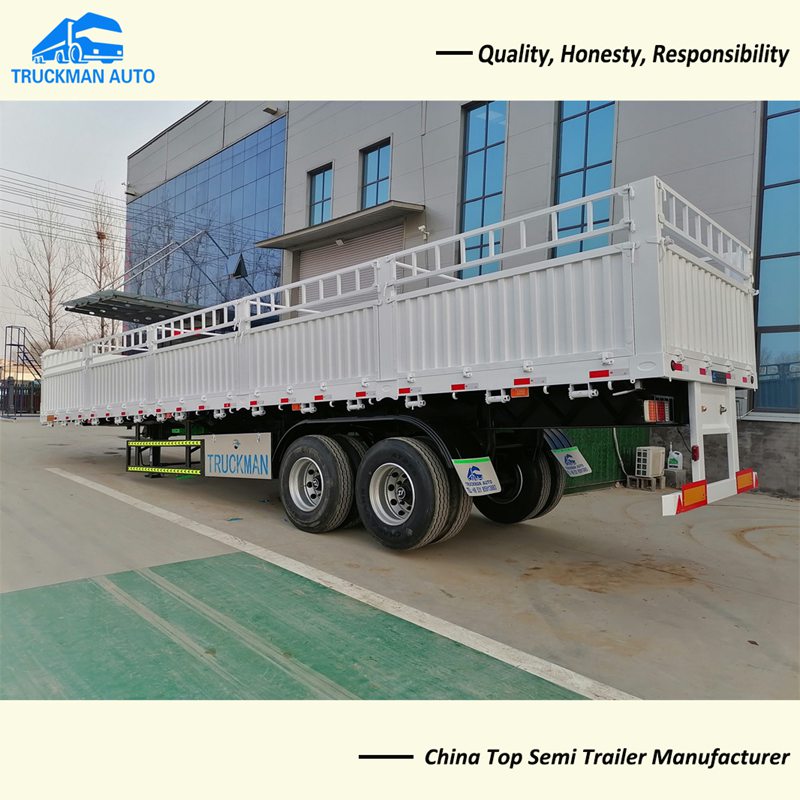

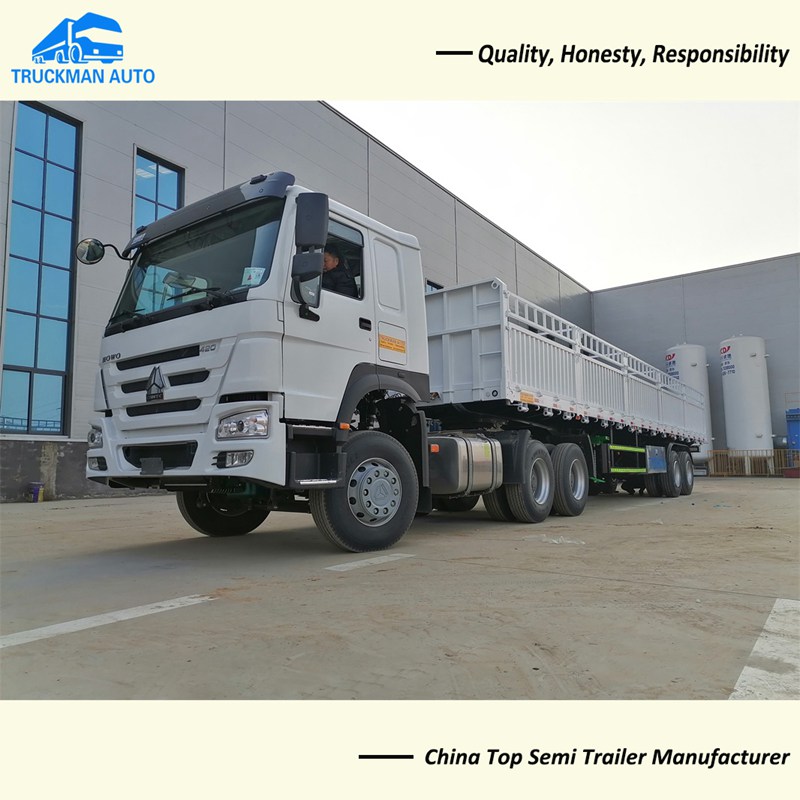

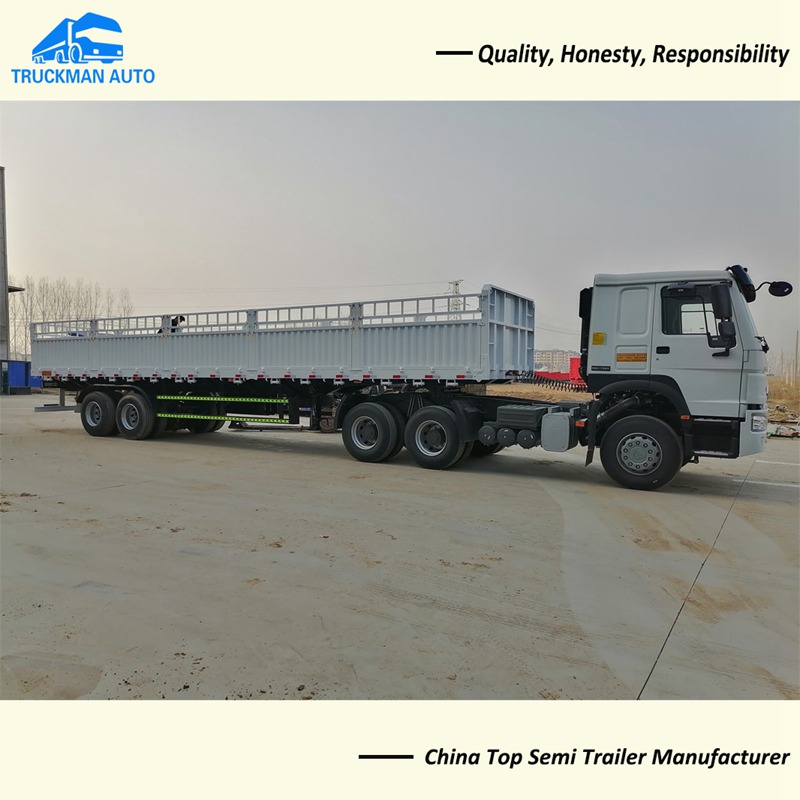

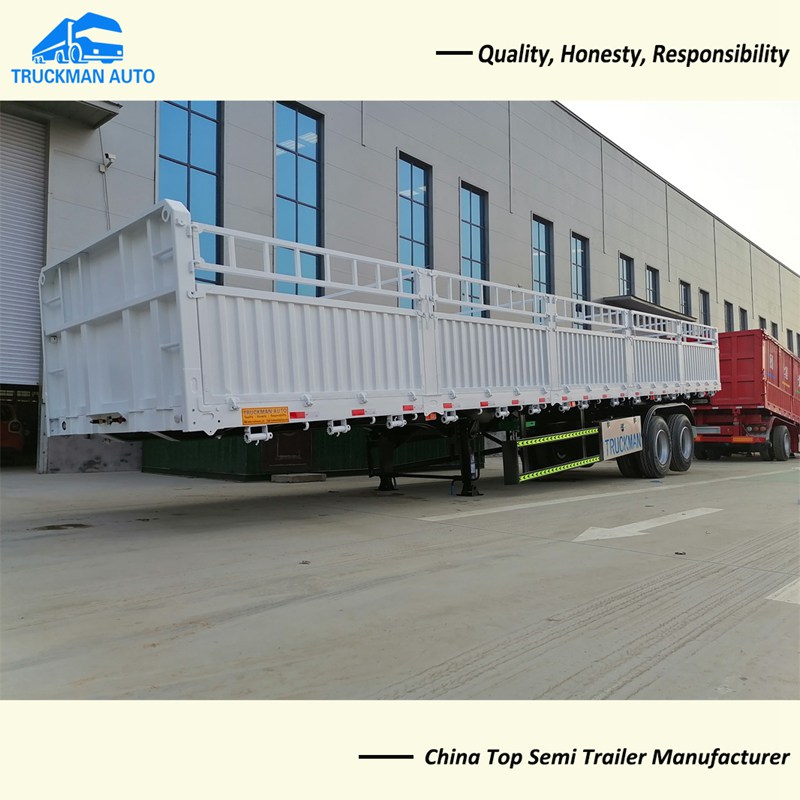

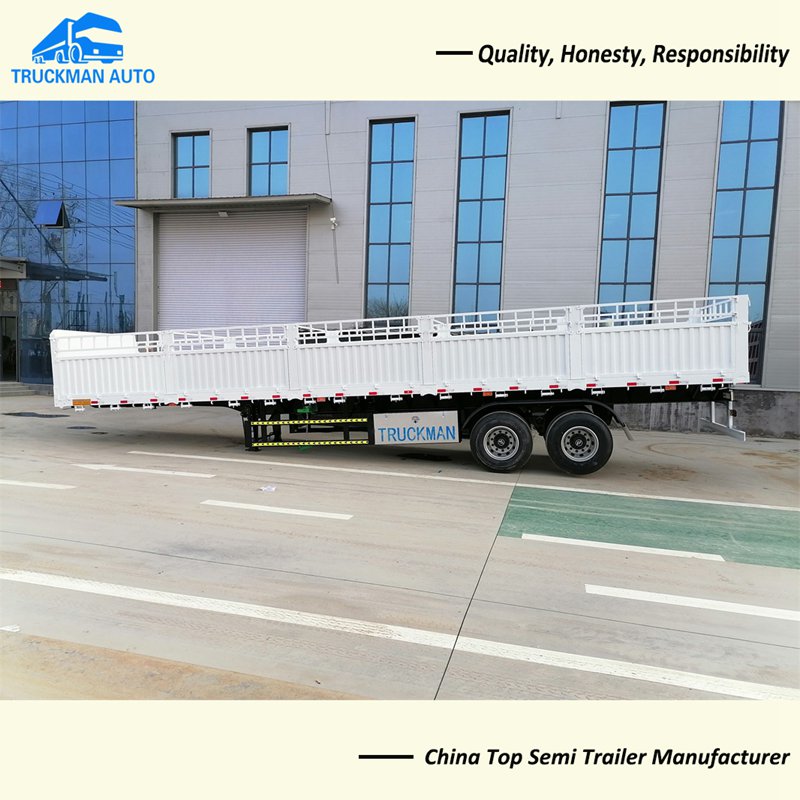

2 FUNCTIONS FLATBED FENCE SEMI TRAILER AND SIDE WALL SEMI TRAILER |
|
|
DIMENSIONS |
|
|
Tare weight |
12500kg |
|
Size |
12500mm*2500mm*1600mm |
|
Payload |
50T |
|
Main beam |
Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 16mm,width160mm;Middle Flange 10mm height 500mm;bottom flange18mm,width 160mm |
|
Side beam |
20# channel steel(Q355) |
|
Cross member |
12# channel steel(Q355) |
|
Floor |
4mm checkered plate |
|
Side waLL |
3MM |
|
Front board |
3MM |
|
Axle |
2 Axle ZY brand 16T |
|
Suspension |
Mechanical suspension American type local brand |
|
Leaf spring |
Leaf spring 10pcs*90*16mm |
|
Tire |
12R22.5 China brand 8pcs |
|
Wheel rim |
8.25 China brand 8pcs,Thickness 16mm |
| kingpin |
2"/3.5" bolt-in king pin,Jost brand |
|

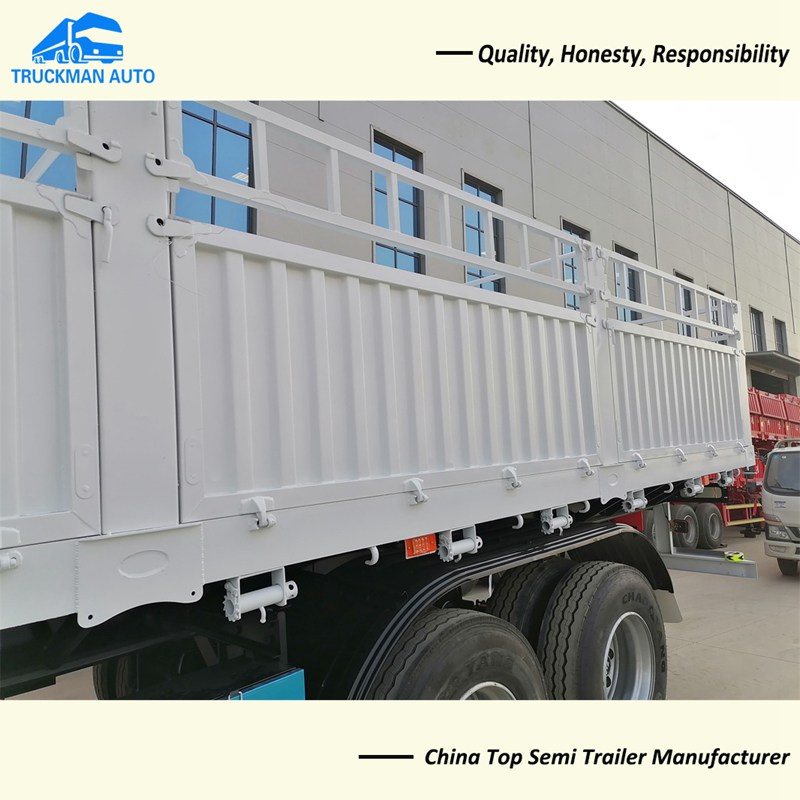

FLOOR AND SIDE WALL |
Checkered plate side wall 800mm+300mm Fence |
|
Hinge |
Removeable |
|
Braking system |
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|
ABS |
Without |
|
Lights |
LED 8 side lights and 2 rear lights 2 width lamp |
|
Painting |
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
|
Accessories |
One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
|
Date of delivery |
20 workdays after we received 30% of contract value T/T down payment. |

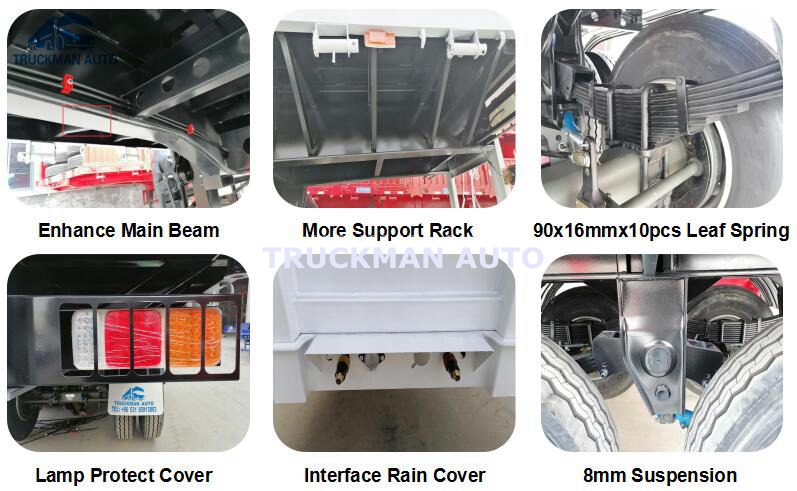

TRUCKMAN SEMI TRAILER MORE DETAILS VIEW:
