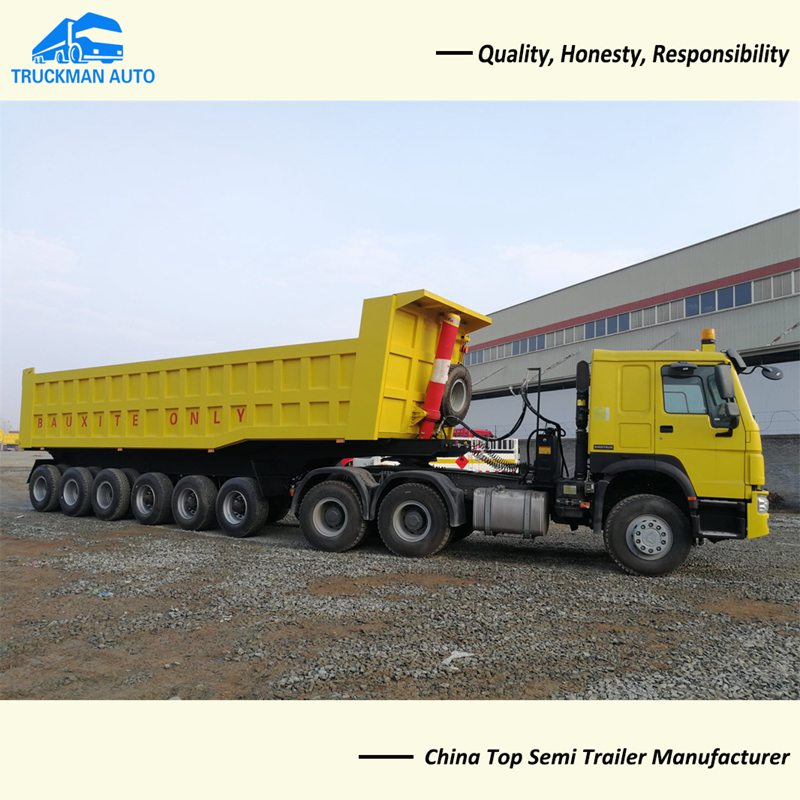

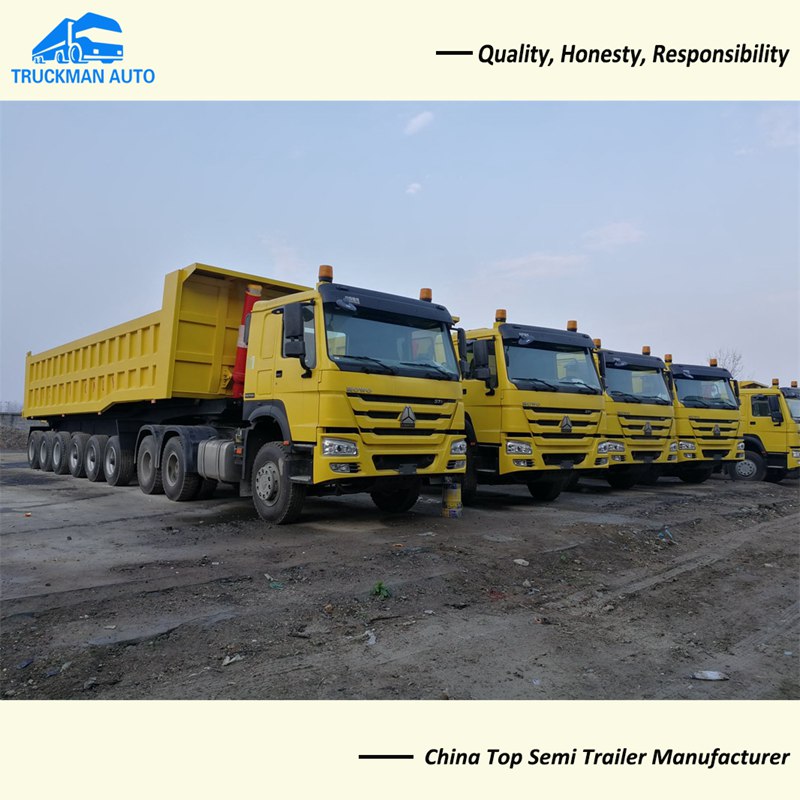

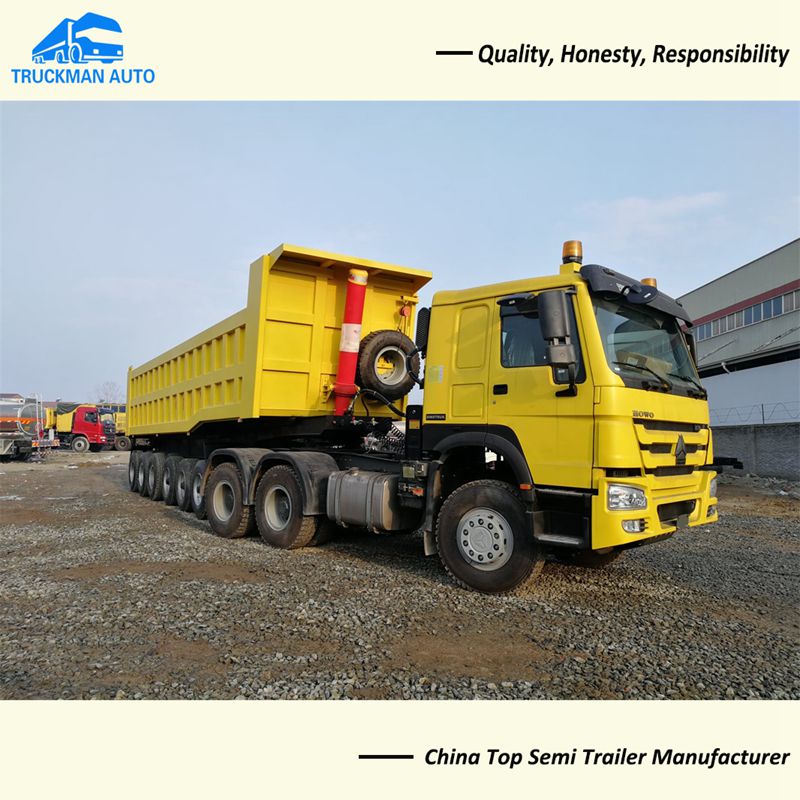

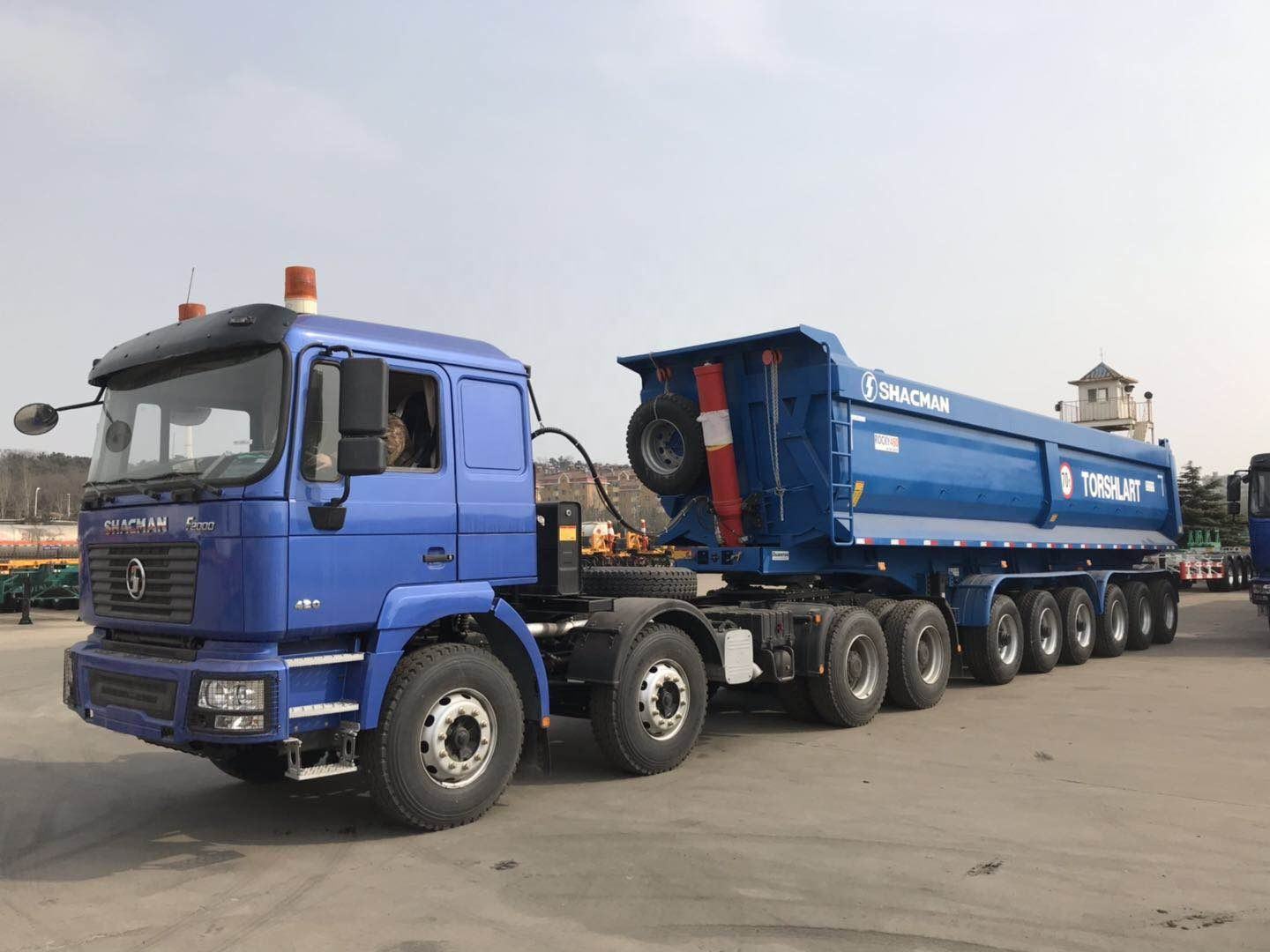

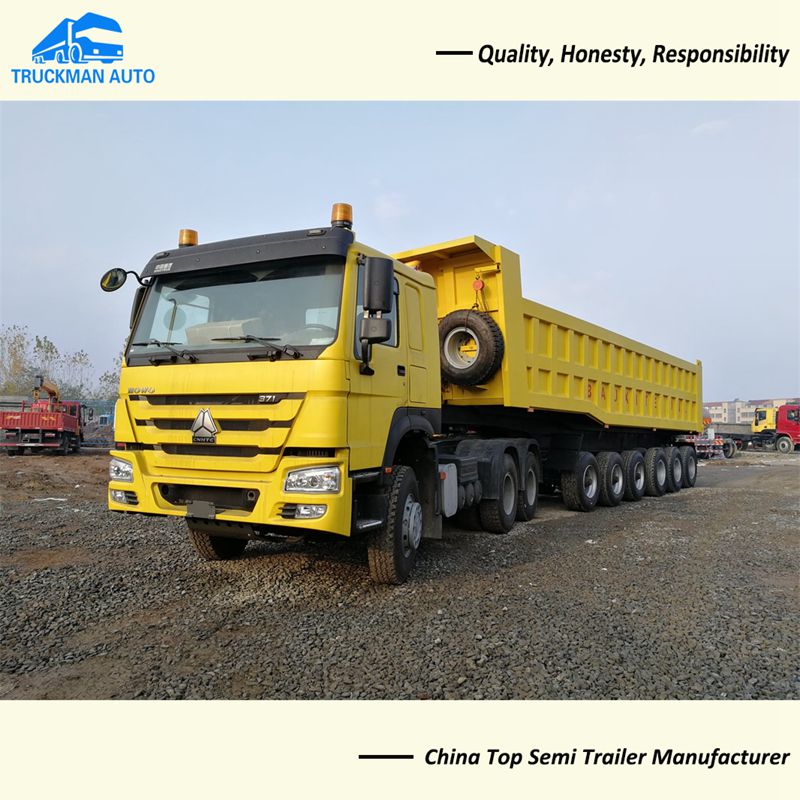

1. Dump tipping semi trailer, 6 axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation.
2. TRUCKMAN is the NO.1 factory to produce Square type dump trailers
3. We are the OEM factory for sinotruk, Shacman, foton, hino, beiben, SAIC, benz etc.
Ghana 40 CBM 6 axles heavy payload 70 tons dump tipper trailer
We are the top one and professional semi-trailer supplier.
We can give you better product and favorable price.
TRUCKMAN AUTO has successfully entered into over 60 countries around the world.
|
Overall Dimension |
11700*2500*1800 optional |
|
Curb Weight |
19T |
|
Loading Capacity |
80T |
|
Main Beam Spec. |
T700/Q355 Steel, Height:500mm, Plate Thickness:8-16mm |
|
Side Frame |
Channel Steel |
|
Cross Brace |
Channel Steel/Bending Steel |
|
Suspension |
Mechanical Suspension, Air Suspension or Optional |
|
Leaf Spring |
10-layers leaf spring(90mm*13mm*10pcs) |
|
Axle Spec. |
13T/16T/20T BPW or FUWA brand |
|
King Pin |
2"(50mm)or3.5"(90mm) JOST Brand |
|
Tire |
11.00R20/12.00R20/ 12R22.5/ 13R22.5 |
|
Brake Chamber |
6sets |
|
Landing Gear |
28T*2, JOST brand |
|
Accessories |
1 Standard Tool Box |
|
Electric System |
24V, One Set 6-core Standard Cable |
|
Light |
Tail lamp with turn signal,brake light & reflector,side lamp etc |
|
Painting |
Sand balsting,prime coating, surface painting,color opitional, wax polishing |
|
Ladder |
Spring or Hydraulic |
|
Packing |
FCL Container, Ro-ro Shipment, Framework or Optional |
