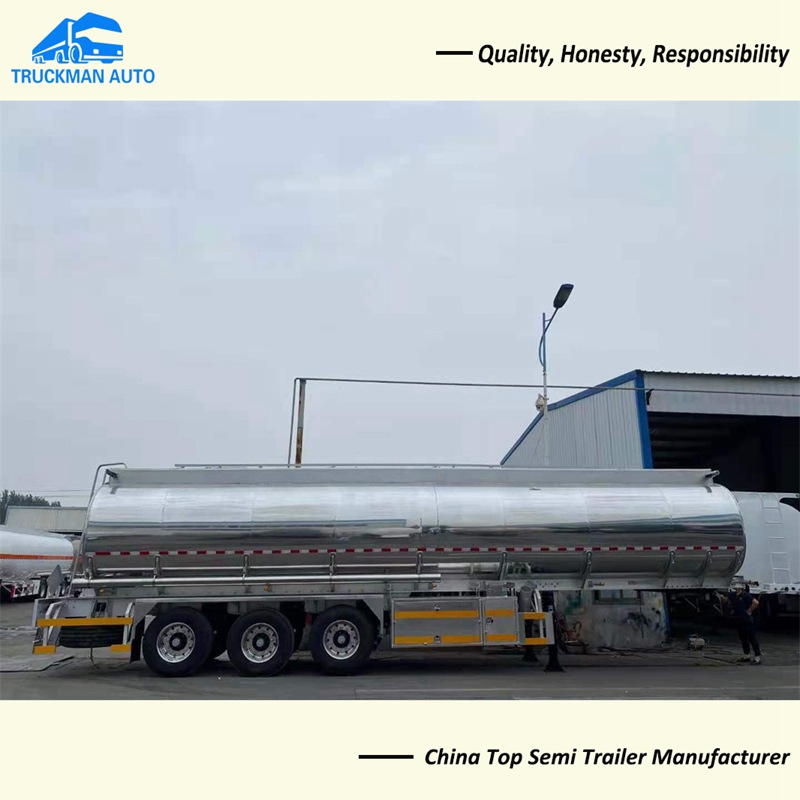

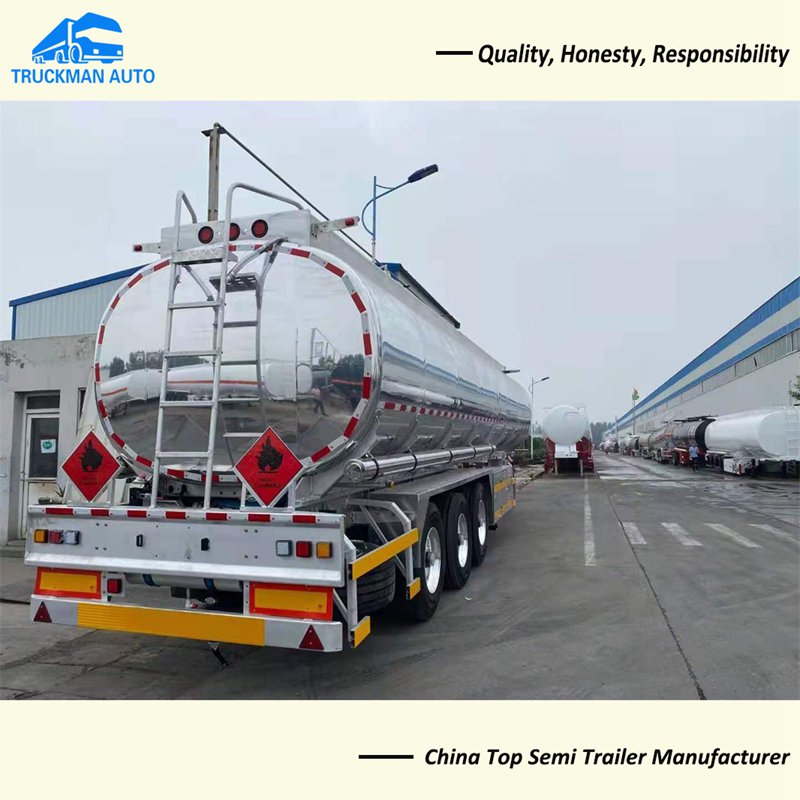

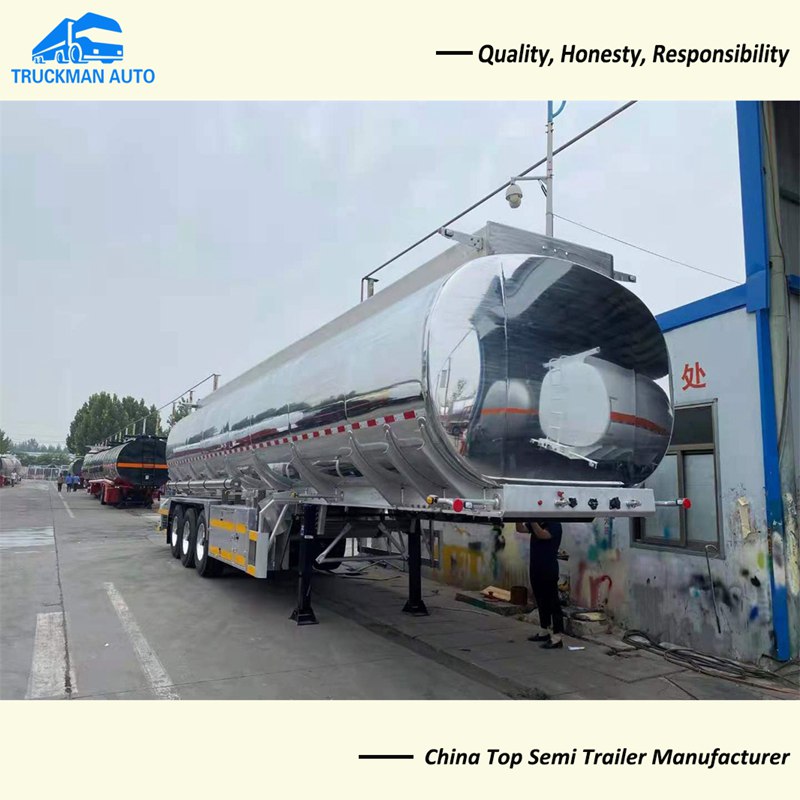

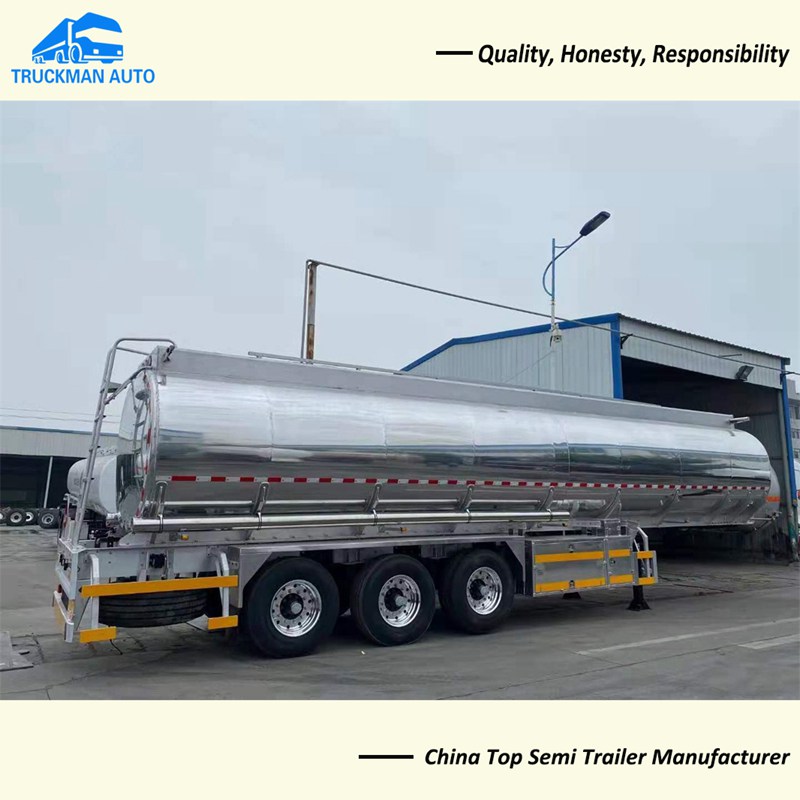

TRUCKMAN Brand 3 Axles Oil Tank Trailer
TRUCKMAN Brand 3 Axles Oil Tank Trailer TRUCKMAN Brand 3 Axles Oil Tank Trailer TRUCKMAN Brand 3 Axles Oil Tank Trailer TRUCKMAN Brand 3 Axles Oil Tank Trailer

TRUCKMAN Brand 3 Axles Oil Tank Trailer

Product ID : TMA350TO123OT
Product Tags : Fuel Tanker Trailer
Product Attributes :

Using industrial automation technology, the manufacturing equipment in the tank manufacturing process, such as CNC cutting machine, CNC milling machine, transporting and turning machine, large jigsaw, CNC rolling machine, large expansion machine, template-less hemming machine, profile Tank ring seam plasma arc welding machine and other equipment, as well as roller transmission system, welding power source, workpiece displacement machine, conveying machine all realize digital control.

Product Description
Tank Body
Shape
Optional ( Round or Suare)
Dimension
11000mm*2490mm*3990mm ( Exact size depends on the final design)
Tare weight
About 8000KGS
Total Volume(m3)
42 m³
Tanker Body Material
6mm aluminum
End Plate
7mm aluminum
Manhole Cover
Aluminum alloy API manhole cover, ∮500mm
Bottom Valve
Aluminum API Pneumatic Bottom Valve
Discharging Valve
Diameter is 3 or 4 inch
Compartments
Optional
Discharging Pipe
4”rubber hose, 2 pcs, 6m/each
Cat Walk
With (Common model or special design)
Chassis
Main Beams
Weldding design or Special design I beam, connected by bolts and nuts
Axle
3 axles, FUWA brand
Landing Gear
 CHINA BRAND 28T
King Pin
JOST 3.5 inch bolt-in king pin
Suspension
America typesuspension
Leaf Spring
90(W)mm*13(Thickness)mm*10 Layer
Pneumatic Braking System
WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks.
Rim
8.00-20China Brand
Tire
11.00R20 Brand can be Optional
ABS
Optional
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories
One standard tool box
Shipping Terms
By Bulk Cargo ,RORO
FOB PRICE
32000USD--38000USD
