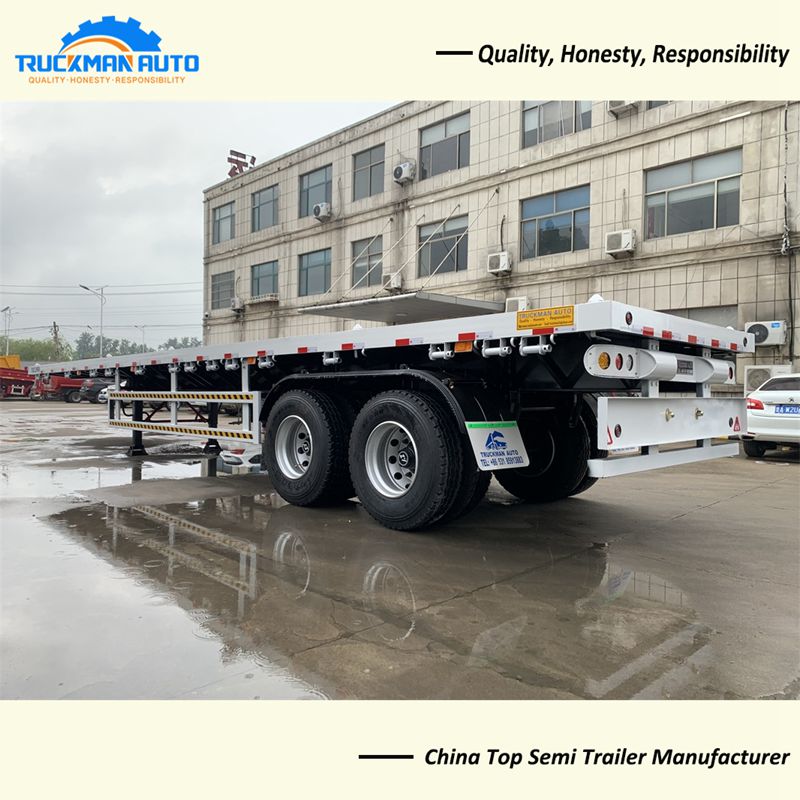

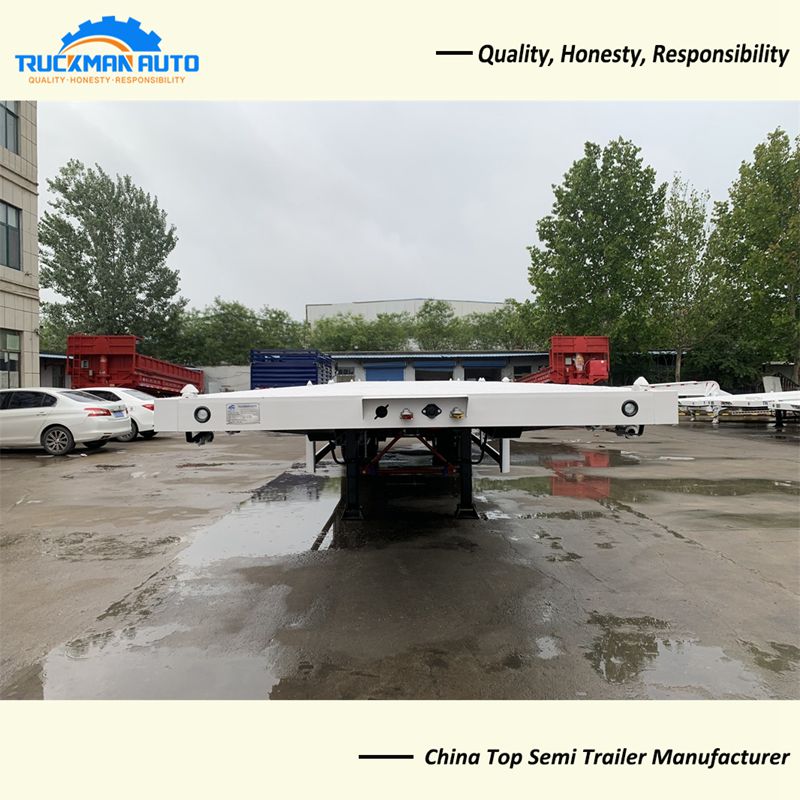

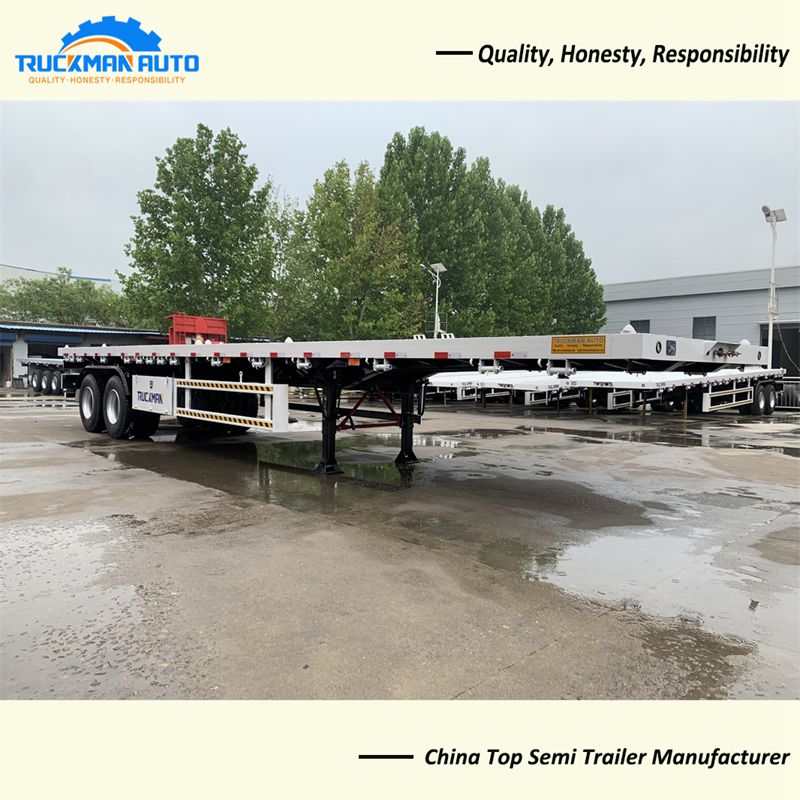

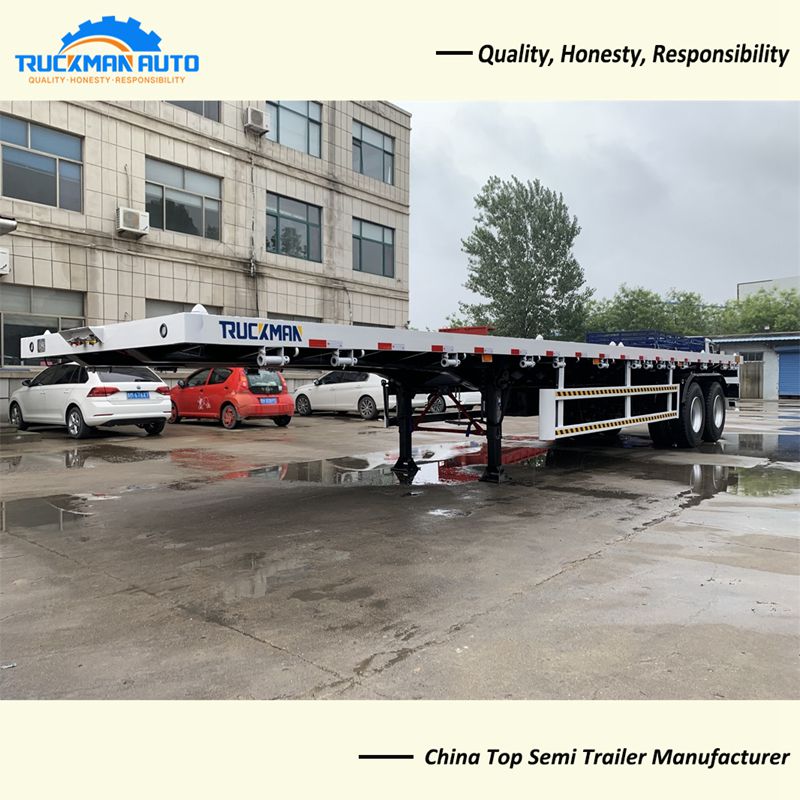

New 2 Axles 50 Ton Container Flatbed Semi Trailer
New 2 Axles 50 Ton Container Flatbed Semi Trailer New 2 Axles 50 Ton Container Flatbed Semi Trailer New 2 Axles 50 Ton Container Flatbed Semi Trailer New 2 Axles 50 Ton Container Flatbed Semi Trailer New 2 Axles 50 Ton Container Flatbed Semi Trailer

New 2 Axles 50 Ton Container Flatbed Semi Trailer

Product ID : TMA2A50TCFT-1525
Product Tags : Flatbed Container Trailer
Product Attributes :

2 Axles 50 Ton Container flatbed Semi Trailer

1. Dimension: 12300x2500x1600mm
2. Axle: 2x16 tons, ZY brand
3. Tire: 12R22.5, 8 pcs, LINGLONG
4. Main Beam: upper 14mm, lower 16mm, middle 8mm
5. Support Leg: FUWA brand, 28 tons
6. Tractor Pin: JOST brand, 90#
7. Suspension: 8mm thickness, heavy duty loading
8. Leaf Spring: 90x16mmx10pcs
9. Wheel Rim: 16mm
10. Brake Valve: WABCO brand
11. Hooks: Stronger hooks
12. Container Lock: 12 pcs

Product Description

Specification

2 Axles 50 Ton Container flatbed Semi Trailer

1. Dimension: 12300x2500x1600mm

2. Axle: 2x16 tons, ZY brand

3. Tire: 12R22.5, 8 pcs, LINGLONG

4. Main Beam: upper 14mm, lower 16mm, middle 8mm

5. Support Leg: FUWA brand, 28 tons

6. Tractor Pin: JOST brand, 90#

7. Suspension: 8mm thickness, heavy duty loading

8. Leaf Spring: 90x16mmx10pcs

9. Wheel Rim: 16mm

10. Brake Valve: WABCO brand

11. Hooks: Stronger hooks

12. Container Lock: 12 pcs

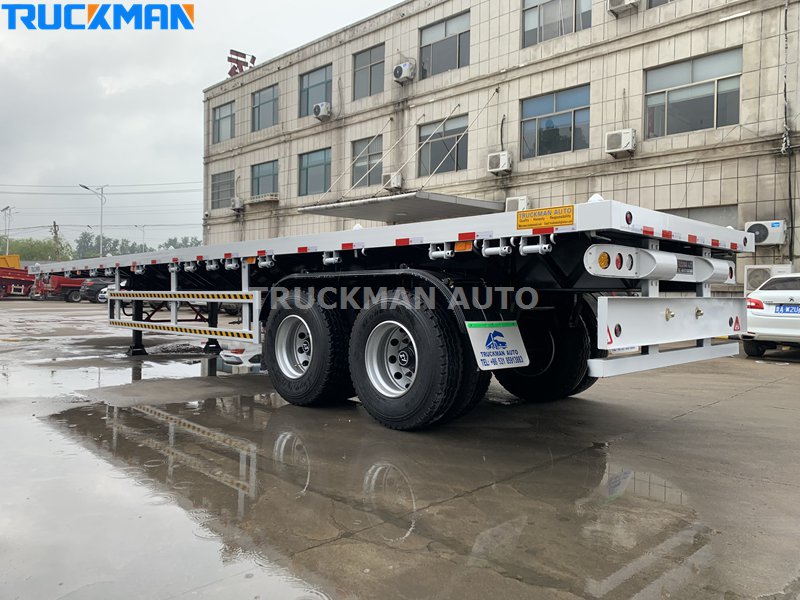

Container flatbed Semi Trailer



Container flatbed Semi Trailer Product Details

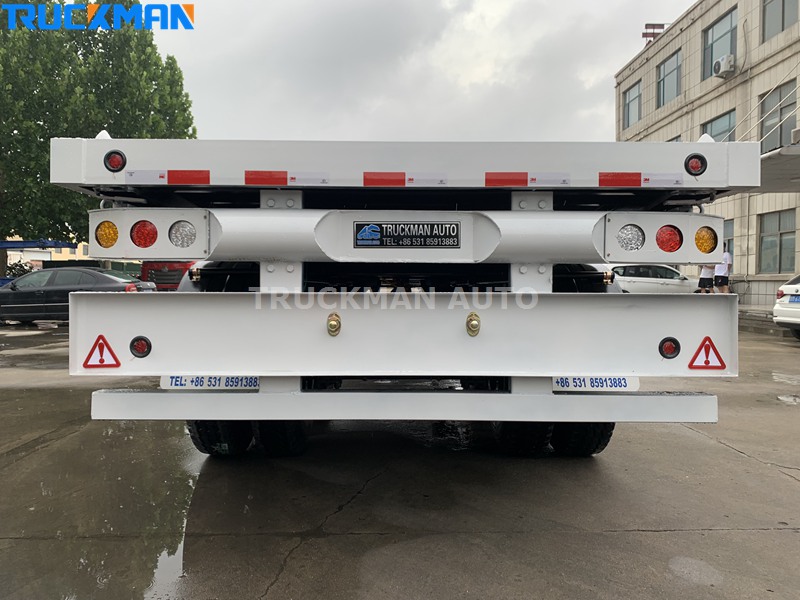

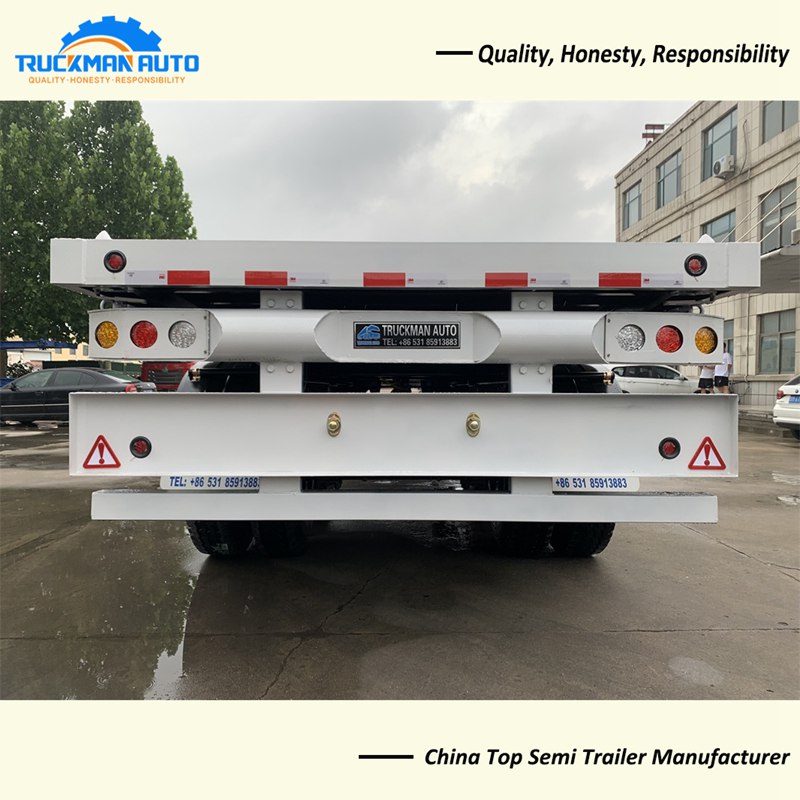

-1.Container flatbed Semi Trailer Reinforced Bumper



We use thick steel pipe to cut and reinforce the bumper. It can provide stronger protection to ensure safety on the road.

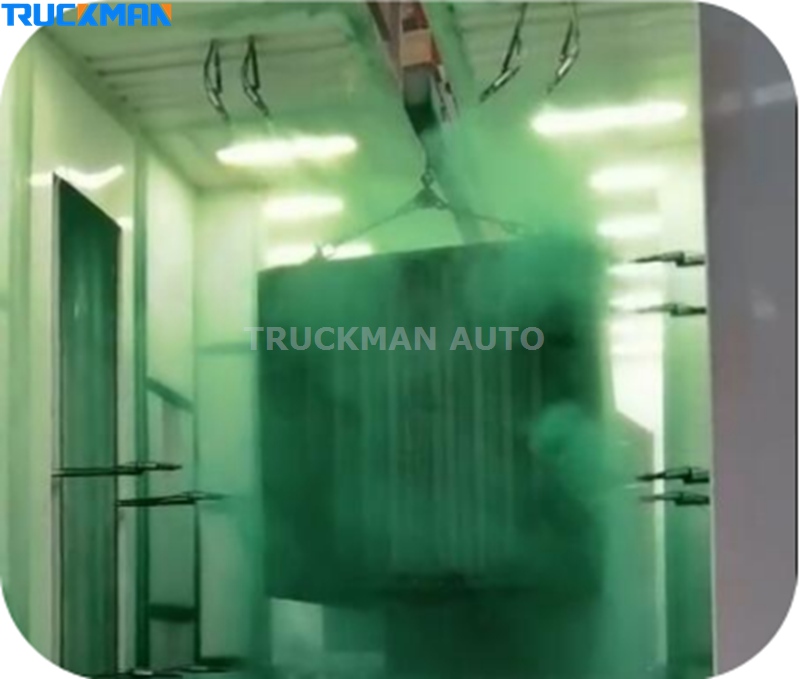

-2. Container flatbed Semi Trailer Polyurethane paint



Container flatbed Semi Trailer Polyurethane paint. It has strong paint film, full luster, strong adhesion, water resistance, abrasion resistance and corrosion resistance.Polyurethane paint films have a high degree of mechanical abrasion resistance and toughness. Polyurethane paint is both protective and decorative. The paint film has strong adhesion. The coating film has excellent chemical resistance.

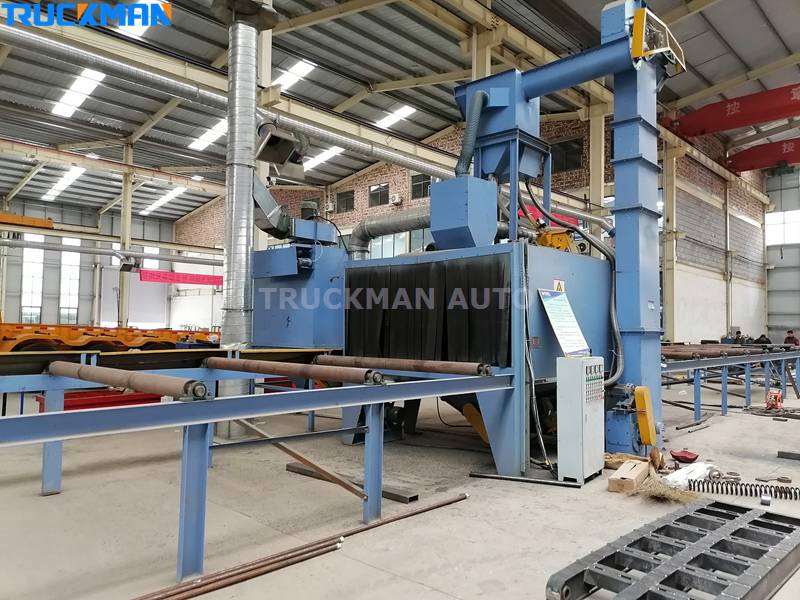

-3. Container flatbed Semi Trailer Shot blasting and sand blasting



Container flatbed Semi Trailer Shot blasting is a cold treatment process, which is divided into shot blasting cleaning and shot blasting strengthening. Shot blasting cleaning, as the name suggests, is to remove impurities such as surface oxide scale to improve the appearance quality. Shot blasting strengthening can improve the fatigue fracture resistance of materials/parts, prevent fatigue failure, plasticity Deformation and brittle fracture, improve fatigue life.

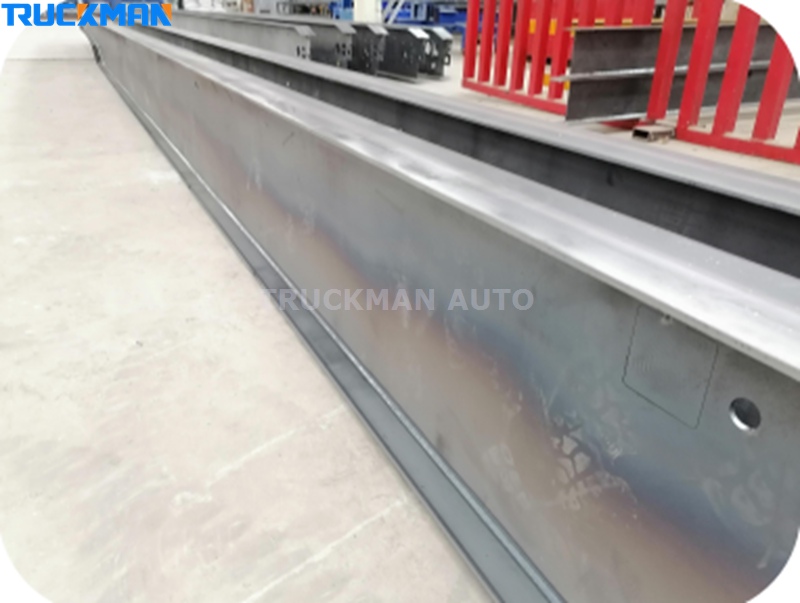

-4. Container flatbed Semi Trailer Automatic submerged arc welding



Submerged arc welding is a welding method in which the arc burns under the flux layer. It has the inherent advantages of stable welding quality, high welding productivity. The weld seam is of high quality. Not easy to desolder. Beautiful welds. The trailer parts are welded firmly. Durable and not easily damaged.



About TRUCKMAN AUTO

TRUCKMAN AUTO has rich experience in the design of Container flatbed Semi Trailer. TRUCKMAN AUTO’s semi trailers by have CO, BV, FORM E, CIQ, SGS etc. certificates and are currently sold to more than 80 countries around the world. It is precisely because of the durable material and advanced production technology, such as: automatic submerged arc welding technology, plasma laser cutting and other technologies, that the quality of TRUCKMAN AUTO semi trailer is recognized by customers.
