2 Axles 40 Feet Container Flatbed Semi Trailer

Product ID : TMA250TT125FBC

Product Tags : Flatbed Container Trailer

Product Attributes :

TRUCKMAN Brand 2-Axle 40 feet container semi trailer that can load 50 tons.with BPW axles and CHAOYANG Tires.It can not only load 40 feet container but also 20 Feet containers.

Product Description

Container Flatbed Semi Trailer, 40ft is the most popular model. It is designed for carrying 40ft container, 20ft container and other dry bulk cargo. In general, the flatbed trailer suit for carrying loads 40 ton~60 tons weight .
According to the length, we can also offer the 45ft 48ft 52ft, 2axles/3axles/4axles, the color can also be customized.

Specifications of truckman 40ft flatbed container truck semi trailer

Overall size	12500x2500x1550 mm
Tare weight	7550 kgs
Payload	50000 kgs
I Beam & Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q355, welded by automatic Submerged-Arc processes. Top Flange 14 mm,width 160mm; Middle Flange 8 mm,Height 500mm, Bottom Flange 16mm,width 160mm.
Axle	BPW/FUWA/HJ/ZY 12/13/14/15/16 ton axles
Number of axles	2*16T ZY brand
Suspension	Heavy duty air/mechanical suspension
Floor	3mm checked plate
King Pin	JOST brand 3.5” Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear,28Tons
Wheel Rim	8.25-22.5, 9.0-22.5, 8.0-20, 8.5-20, 11.75-22.5, 13-22.5 steel/aluminium rim
Tire	11R22.5, 12R22.5, 315/80R22.5, 12.00R20, 385/65R22.5, 425/65R22.5
Twist Lock	12 nos. of ISO twist lock for 1x40ft, 2x20ft, 1x20ft container, the retractable central locks can be laid down.
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box, fuel tank, water tank, ABS etc

Our Advantages

1) Favorable price: Factory price, very competitive in the market. We, Jinan Truckman Automobile Co.,Ltd is a Sinotruck,Shacman,Beiben,XCMG,CIMC exporter together all of them spare parts

2) In time Warranty: One year or 100,000km for on road trucks as tractor truck or 6 months or 60,000km for off road trucks as dump truck, which comes to the first for the engine, gear box, and axles. We have offices in Tanzania, Zambia and Philippines to provide warranty service, and we have distributors in different countries all over the world to assist.

3) In time After-sales: We have set up over 240 spare parts centers and service outlets all over 80 countries, professional after-sales team solve your after sales problem within 3 working days or 5 working days, and all spare parts are available for you.

4) Experienced sales team and logistics team: Experienced sales team are at your service all the time and offer excellent service, professional logistics team work with international shipping company such as MSK&Hyundai to ship your trucks safely and cost-efficiently.

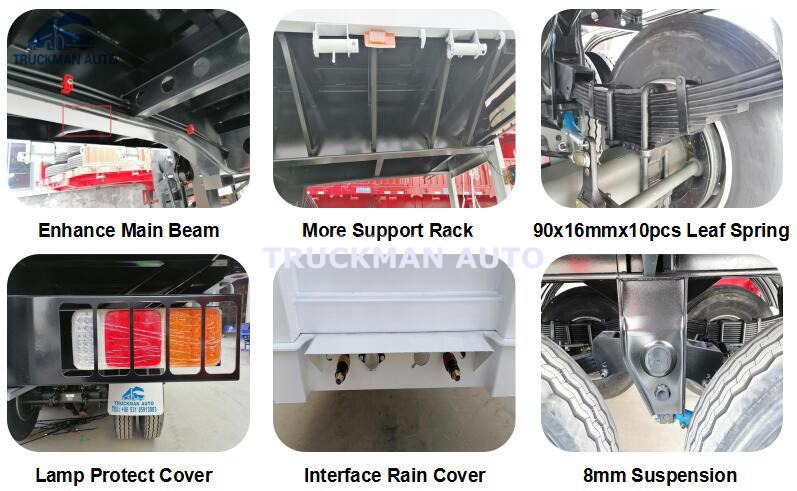

MORE TRUCKMAN SEMI TRAILER DETAILS:
