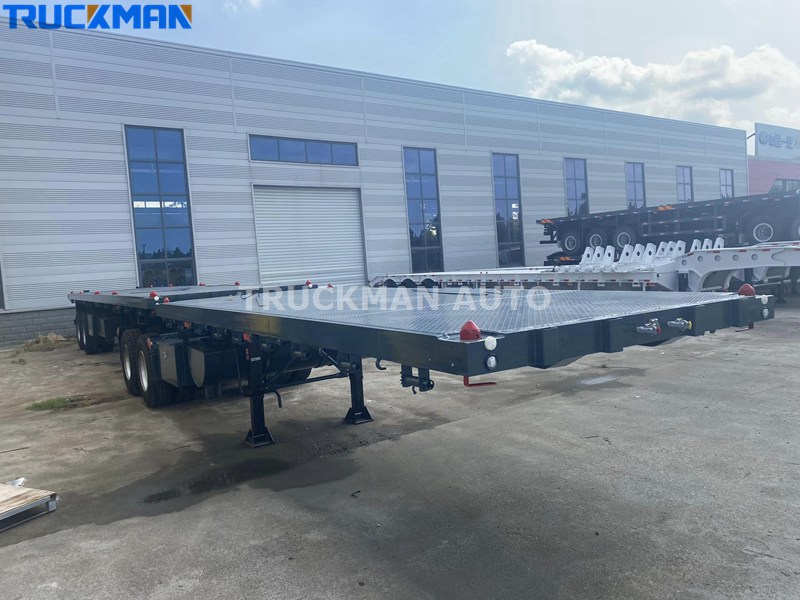

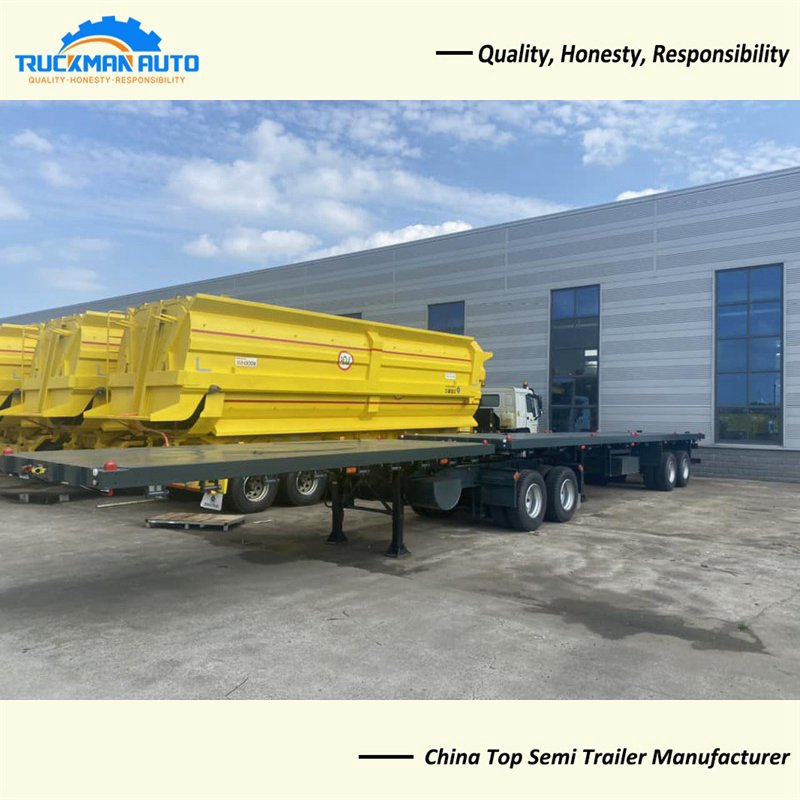

Interlink container trailer made up of two container semi trailers, 20FT container trailer and 40FT container trailer. It is mainly used for long-distance transportation of containers, in addition, it can also transport all kinds of bulk cargoes.

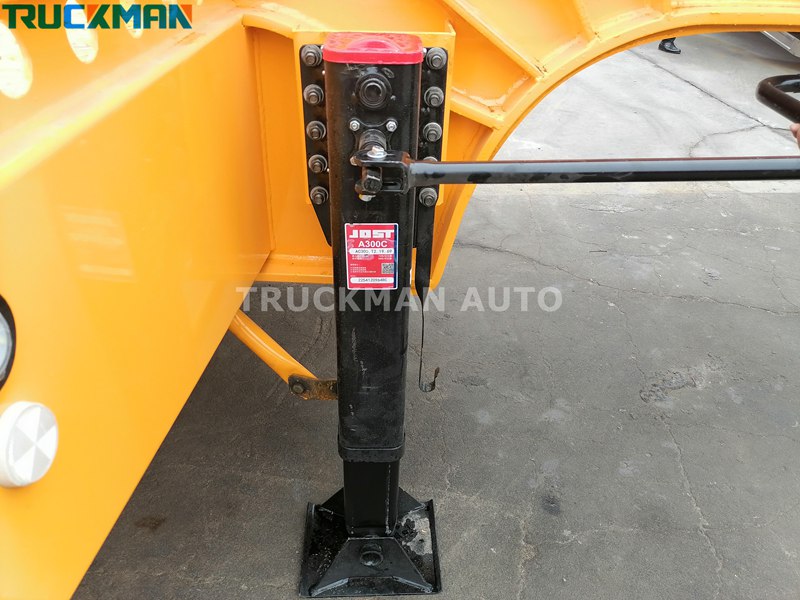

Interlink Container Trailer Landing Leg Detail
The interlink container landing gear use the JOST brand, support weight is 28 tons. The legs are generally hand-operated two-speed single-acting, linked mechanical left and right legs constitute. Rocking outriggers have two speeds, a slow speed, suitable for heavy loads. Another gear fast, suitable for no load. Heavy-duty version of the landing gear is available as an option, suitable for drop and pull transport.
Interlink Container Trailer Specification
Product Name: Interlink container trailer
Application: container transport
Axle: 4 axles, 4x13 tons, FUWA brand
Tire: 315/80R22.5, 12 pcs, TRIANGLE brand
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Container Lock: 12 pcs
Support Leg: 28 tons, JOST brand
Dimension: 17500x2500x1530mm
The interlink container trailer specification only for your reference, we can manufacture other model interlink trailer basic your request.

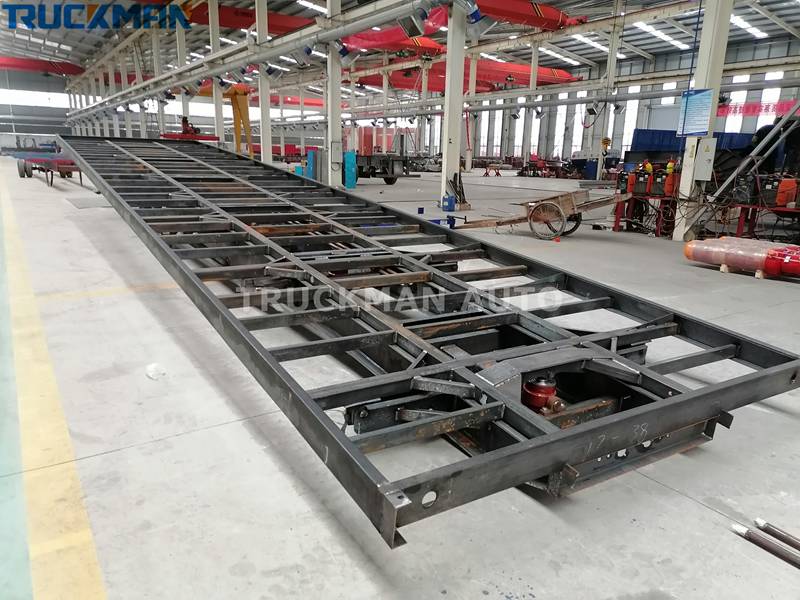

Interlink Container Trailer Chassis Detail
Interlink container trailer chassis adopt the structure design, stronger and more reliable. All of them are made of manganese steel, and the load-bearing position is strengthened again. Once the chassis is complete, it will be shot blasted again before the next step of painting to improve paint adhesion.
Interlink Container Trailer Advantages
1. Durable material: The container trailer material is adopt the famous brand steel company, like BAO steel, with durable quality and long service life.
2. Advanced production tech: The main beam adopt the automatic submerge welding tech and whole vehicle adopt the shot blasting tech and paint is electrostatic powder coating process.
3. Durable brand parts: Our trailer only adopt the durable and famous brand parts to guarantee the quality. Such as FUWA axle, JOST landing gear and LINGLONG tire etc.
4. Good rust prevention: Sea transportation is very easy to cause the semi-trailer rust, we through spray wax and cover the tarpaulin very well protect the semi-trailer, customers will not have any problems after receiving.
