Manufacturer
|
JINAN TRUCKMAN AUTOMOBILE CO.,LTD
|
|
Type
|

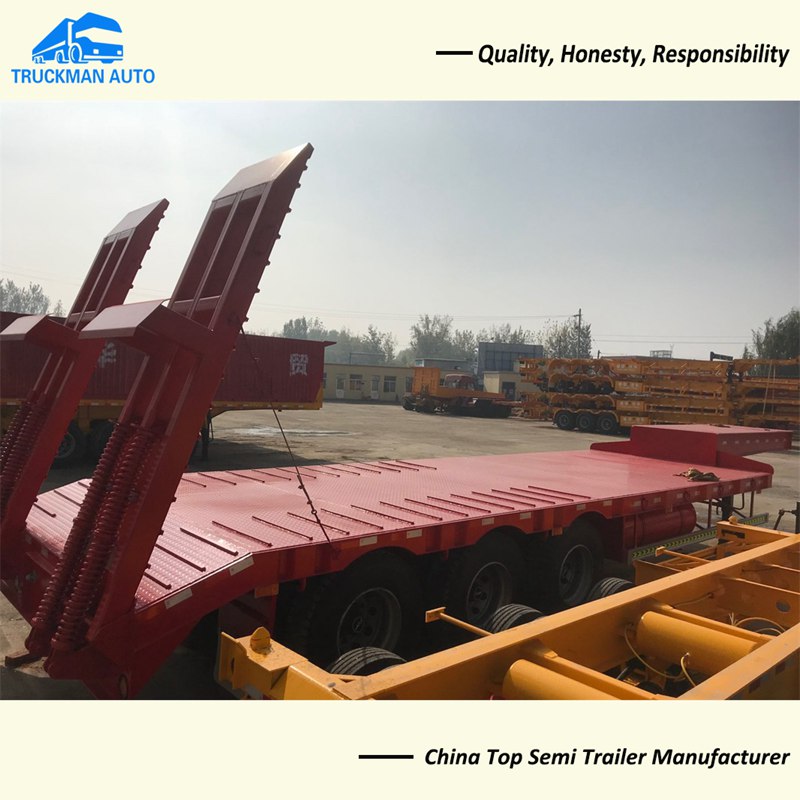

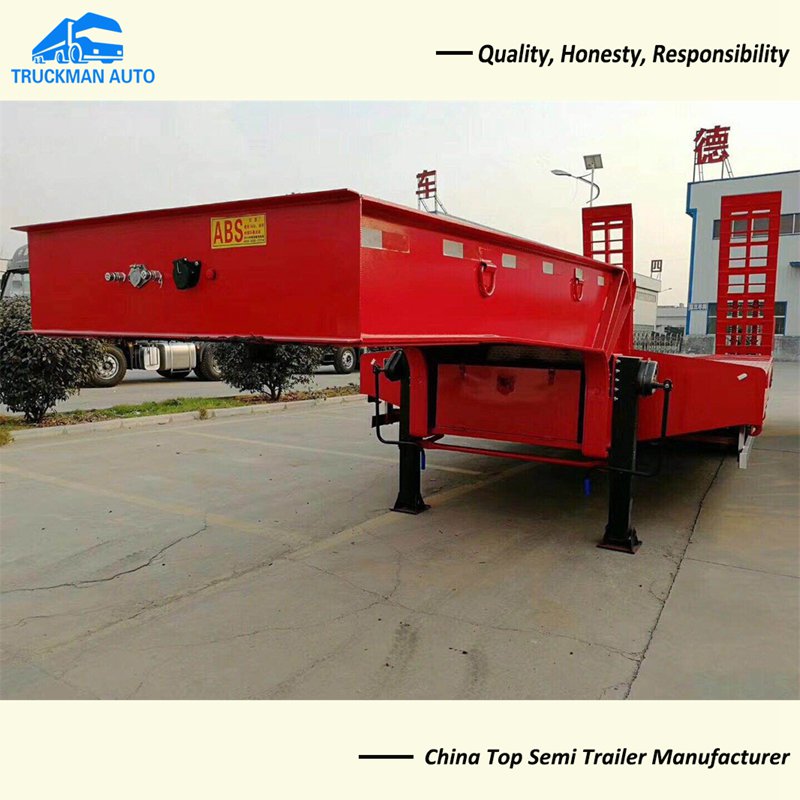

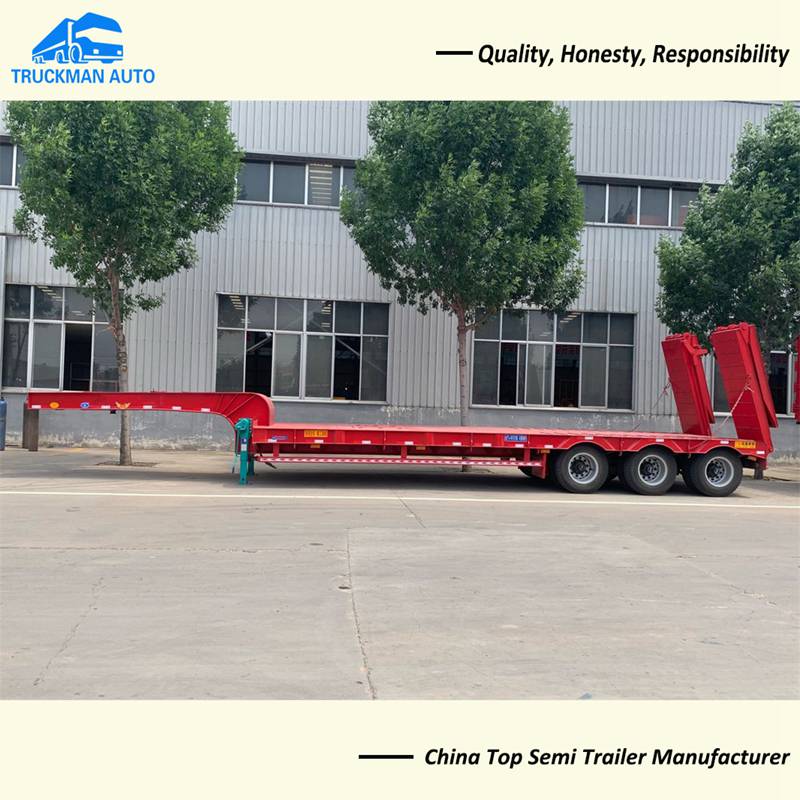

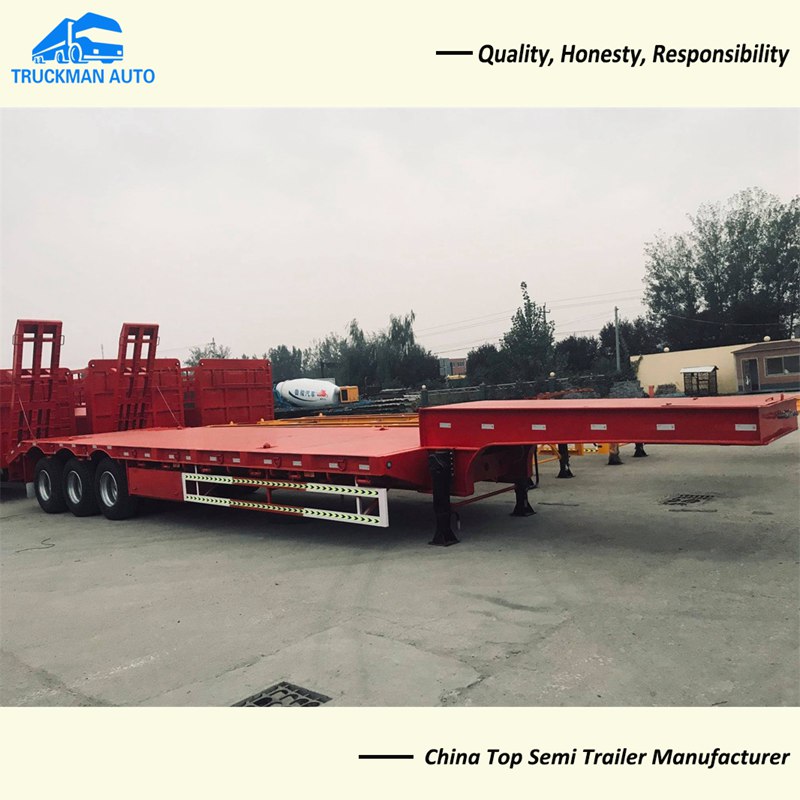

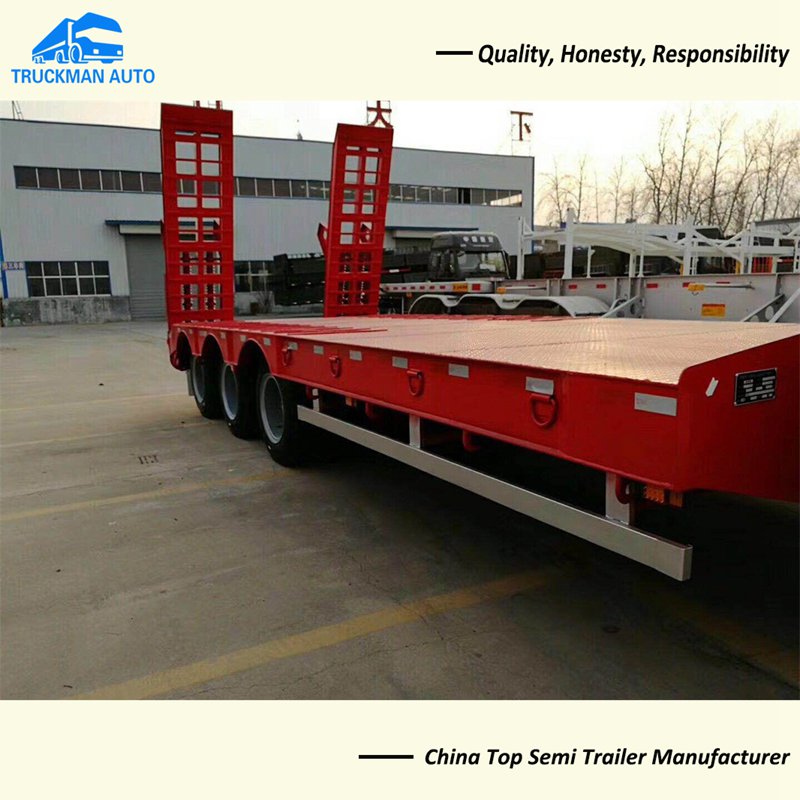

Lowboy semi trailer
|
|
Dimension
|
9500-16500*2500-3000*3200 (Exact size depends on the final design)
|
|
Tare weight
|
Approx. 8000kgs-12800kgs
|
|
Capacity
|
30 ton - 100 ton
|
|
Main beam
|
Height 450mm-520mm, upper plate is 14mm-25mm, middle plate is 14mm-25mm, down plate is 16mm-25mm, material is Q345B steel
|
|
Side beam
|
16 mm- 25 mm channel steel (Material is Q235 steel)
|
|
Platform
|
3 mm - 5 mm thickness chequered plate or can be optional
|
|
Gooseneck
|
For chosse
|
|
Ladder
|
Manual type or Hydraulic type
|
|
Axle
|
13/16T, FUWA / BPW brand etc
|
|
King pin
|
Jost 2.0 or 3.5 inch bolted type
|
|
Suspension
|
Mechanical suspension / Germany type or America type / Air suspension
|
|
Leaf spring
|
90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer
|
|
Braking system
|
WABCO 6 relay valve, spring brake chamber, 2 pieces of 45L air tank
|
|
Rim
|
9.0*22.5 / 8.0-20 / 8.5-20
|
|
Tire
|
12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional
|
|
ABS
|
Optional
|
|
Fire extinguiser
|
Two pieces 4 kgs
|
|
Spare tire carrier
|
2 pieces
|
|
Safety guard
|
With standard
|
|
Painting
|
Complete chassis sand blasting to clean rust, 1 coat of anticorrosive primer, 2 coats of finla painting, Color advised by customer.
|
|
Accessories
|
One standard tool box
|
|
Light
|
LED light
|
|
Shipping terms
|
By BULK vessel or RORO
|
