Customize the semi trailer according to your requirements.Professional semi trailer manufacturer
We are China Top class semi trailer manufacturer,we are semi trailer factory not trading company
|
Items |

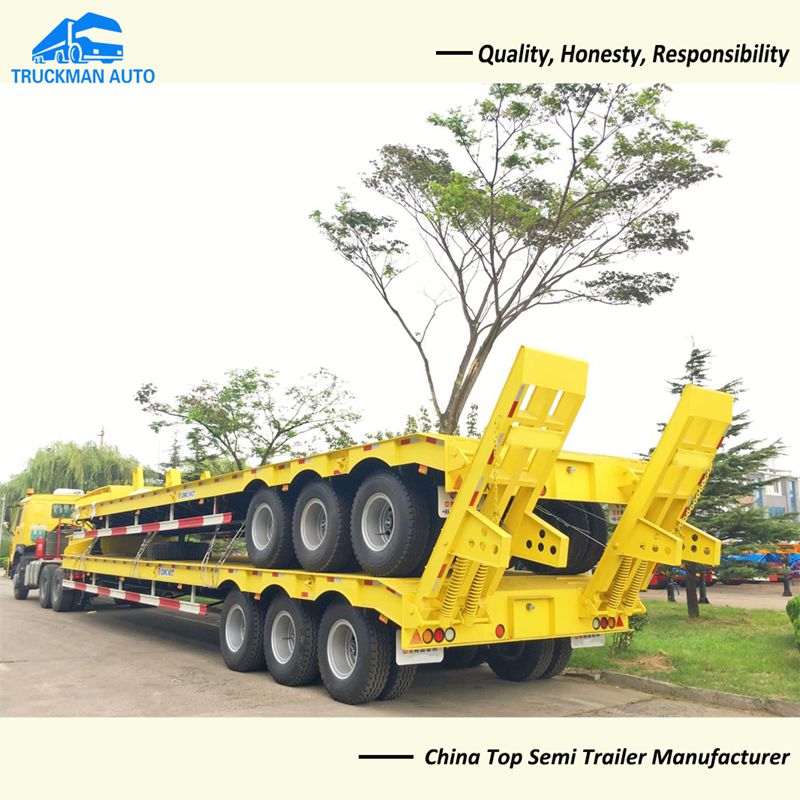

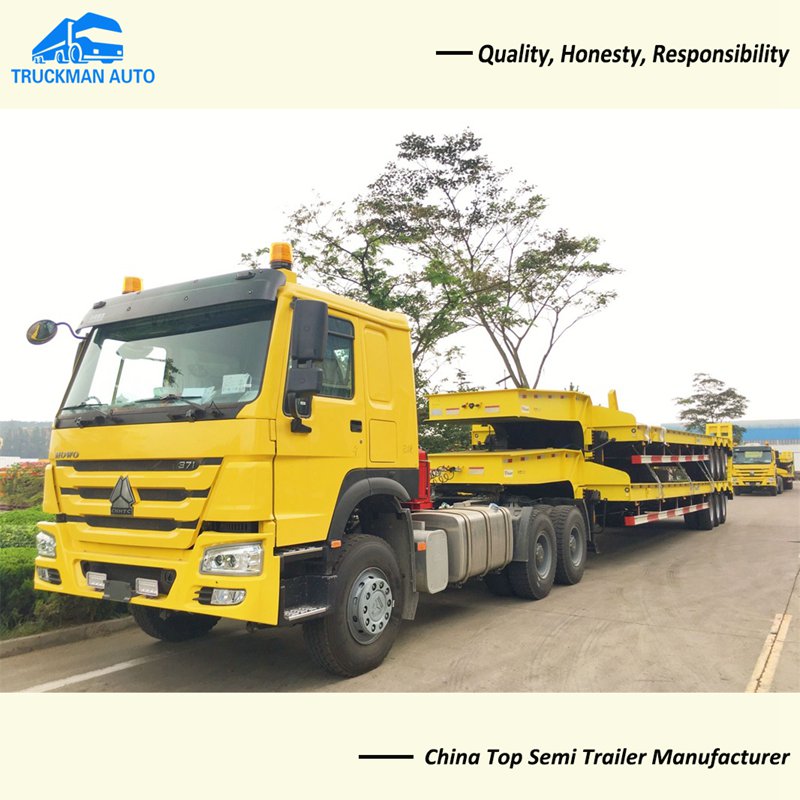

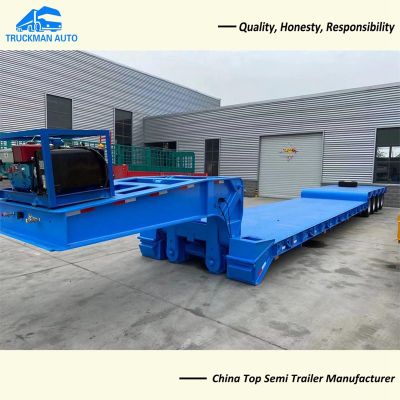

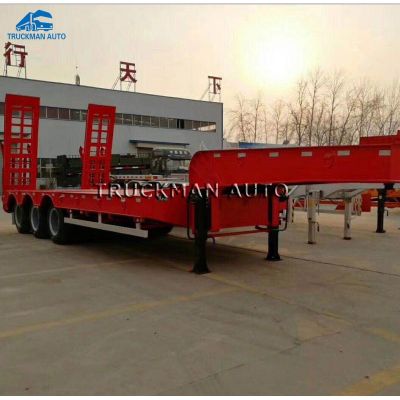

Low bed semi trailer TRUCKMAN |
|
Loading Capacity |
40-80 tons |
|
Axle |
3/4 pieces, 13T FUWA/BPW axle |
|
Tyre |
12/16 pieces, 8.25R20,10.00R20,11.00R20 |
|
Dimensions(LxWxH) |
13000 -17000mm x 3000 x 1750mm |
|
Tare weight |
10 tons to 12 tons |
|
Rims |
8.5-20, 9.0-20 |
|
Suspension System |
Leaf spring suspension / air suspension |
|
Brake System |
Dual line pneumatic brake system with WABCO emergency relay valve |
|
Main Beam |
Height 500mm Q345 carbon steel |
|
Chassis |
upper 20mm, lower 20mm. Mid web 12mm |
|
Rear Loading Ramps |
2 nos, 720 mm width, spring loaded & manually operated with safety chain |
|
Kingpin |
2’ or 3.5’ interchangeable,JOST brand |
|
Landing Gear |
28 Tons , Two speed manual operation |
|
Electrical System |
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
|
Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Painting |
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available |
|
Tool Box |
One tool box with a set of standard trailer tools |
|
Spare Tyre Carrier |
One piece or two pieces |
